Optimization of TT Alignment Using Muon Track Reconstruction Techniques

This paper details the processes and findings related to the alignment of the Tracker Tracking (TT) system through muon track reconstruction. Key activities include the measurement of TT efficiency and the stability study of PMT pedestals. The main goal is to minimize distances between reconstructed muon tracks, employing 3D transformations and systematic adjustments along multiple axes (X, Y, Z). A preliminary TT alignment has been achieved, with relative parameters identified, indicating the need for more precise measurements and cross-checks for absolute positions in subsequent studies.

abiola
Télécharger la présentation

Optimization of TT Alignment Using Muon Track Reconstruction Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

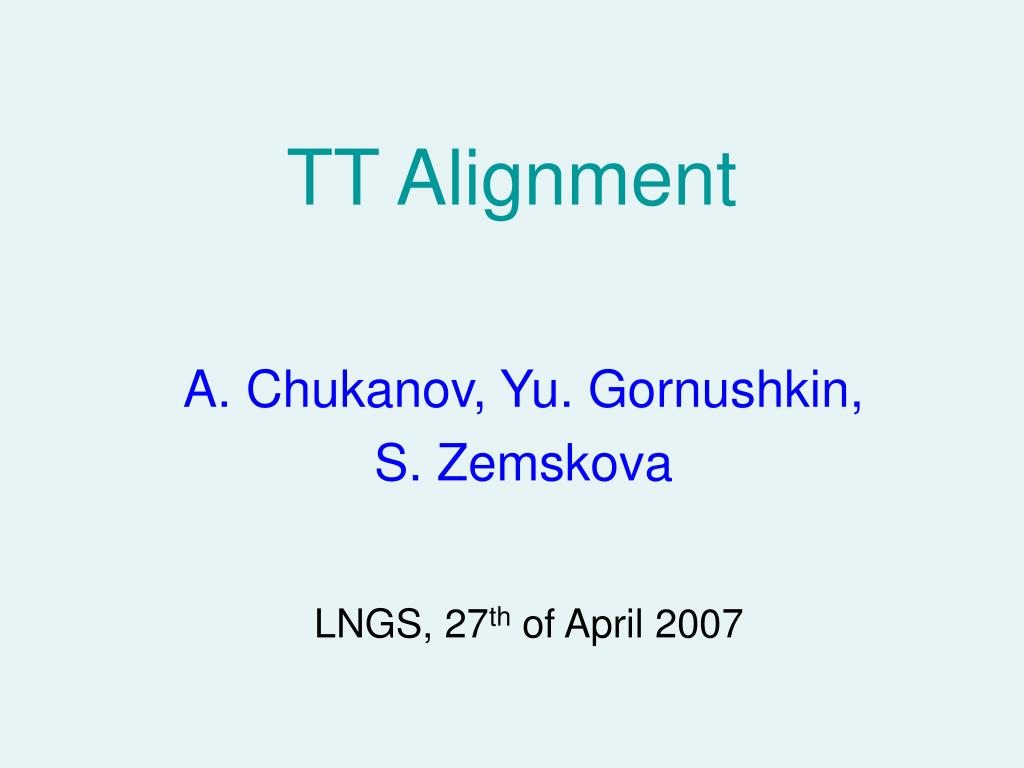

  1. TT Alignment A. Chukanov, Yu. Gornushkin, S. Zemskova LNGS, 27th of April 2007

  2. Dubna’s group activity • Muon track reconstruction (TT alignment, brick finding) • TT alignment • Measurement of TT efficiency • Study of PMT pedestals stability • TODO study of PMT signals stability (gains)

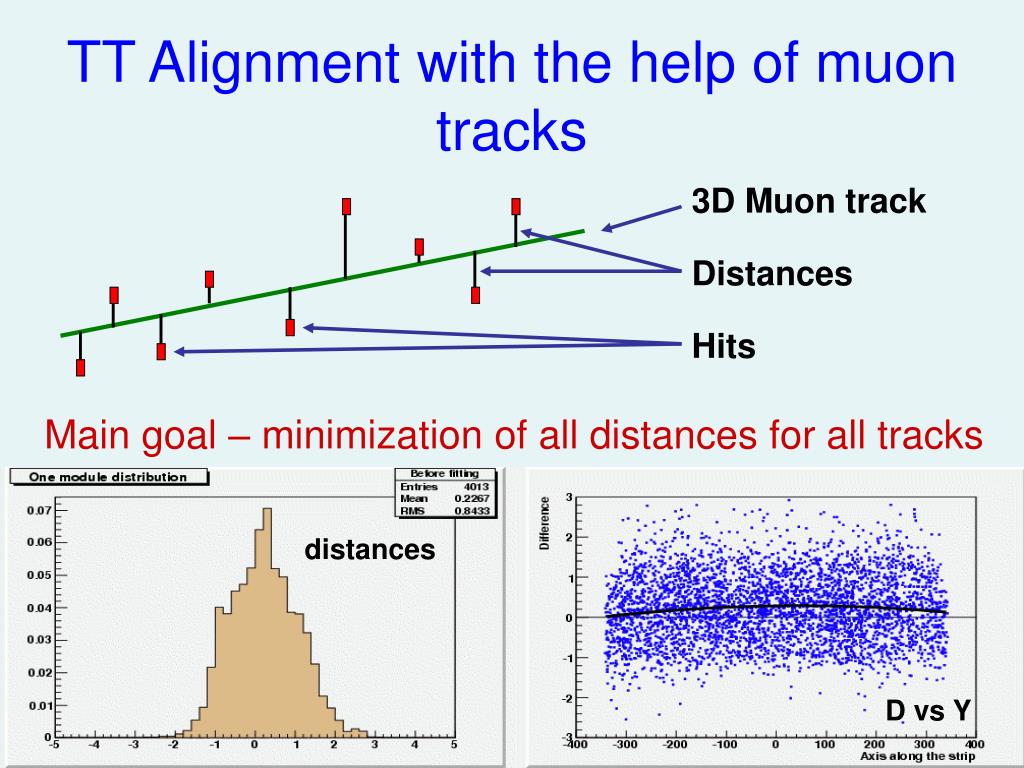

  3. TT Alignment with the help of muon tracks 3D Muon track Distances Hits Main goal – minimization of all distances for all tracks distances D vs Y

  4. 3 dimension transformation • 3 angles – around X, Y and Z axises • Shifting along Z-axis (beam line) • Shifting along X-axis • Non-linearity along strips X Z (beam) Y (strip)

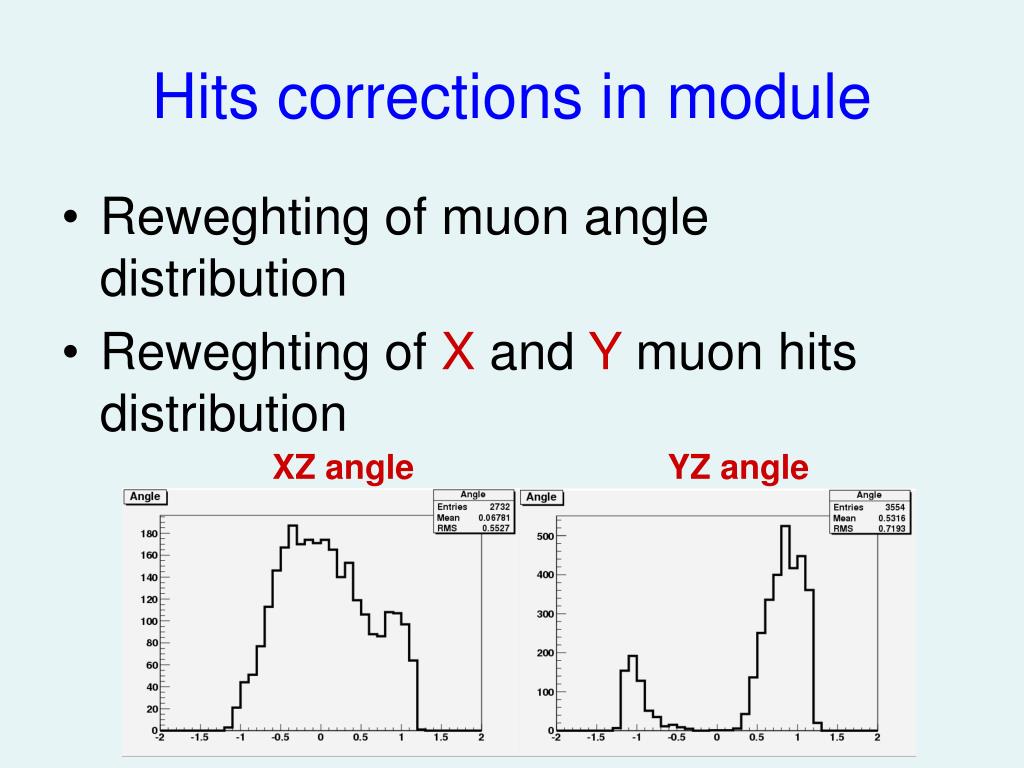

  5. Hits corrections in module • Reweghting of muon angle distribution • Reweghting of X and Y muon hits distribution XZ angle YZ angle

  6. Rotation around beam line beam Strips dXa, cm

  7. Rotation around strip line Strip dZa, cm beam

  8. Shifting transverse to strips direction Strip dX, cm beam

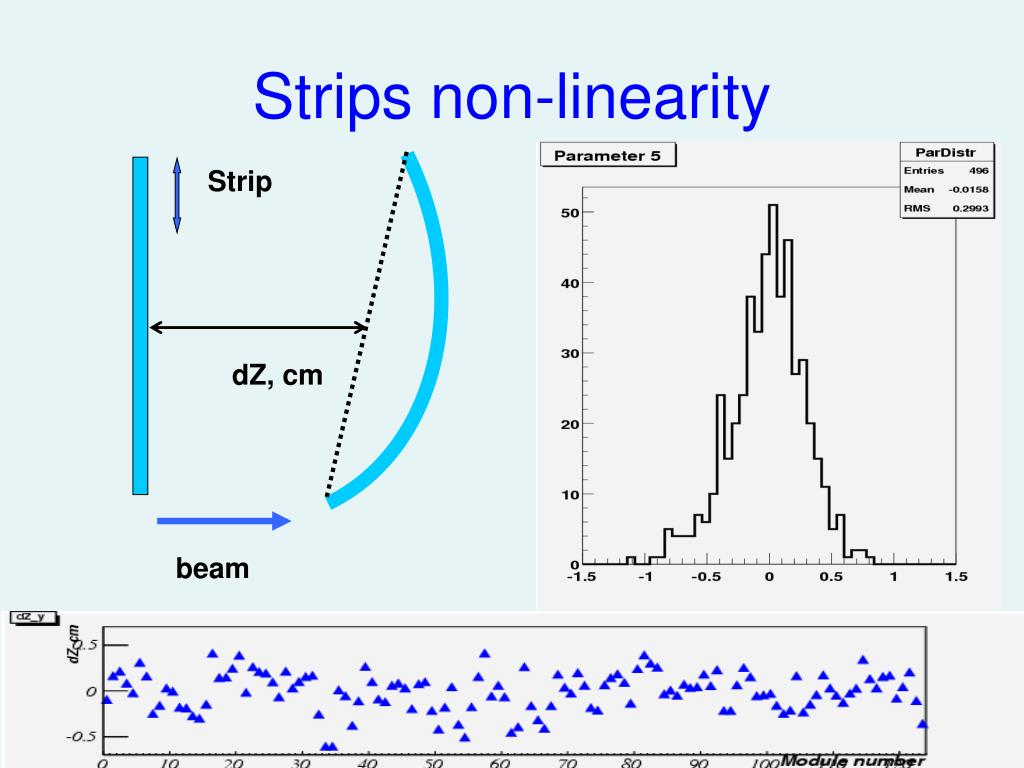

  9. Strips non-linearity Strip h, cm beam

  10. Strips non-linearity dYv, cm Strip beam

  11. Strips non-linearity Strip dZ, cm beam

  12. Iteration procedure

  13. Conclusion • Preliminary TT alignment has been made • Relative parameters was obtained • Cross-checks and tests are needed • Absolute measurements are needed (bricks and TT position) • Necessary to measure relative position of TT, DT and RPC
