Path Following

Path Following. Frenet Frame. Look ahead to point on curve. Auxiliary curves for ‘look-at’ and ‘up’. v = w x u. w = P’(u). u = P’(u) x P’’(u). P’’(u). Path Following. Frenet Frame - local coordinate system at a point on curve. Use w as direction vector Use v as up vector.

abirnbaum
Télécharger la présentation

Path Following

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

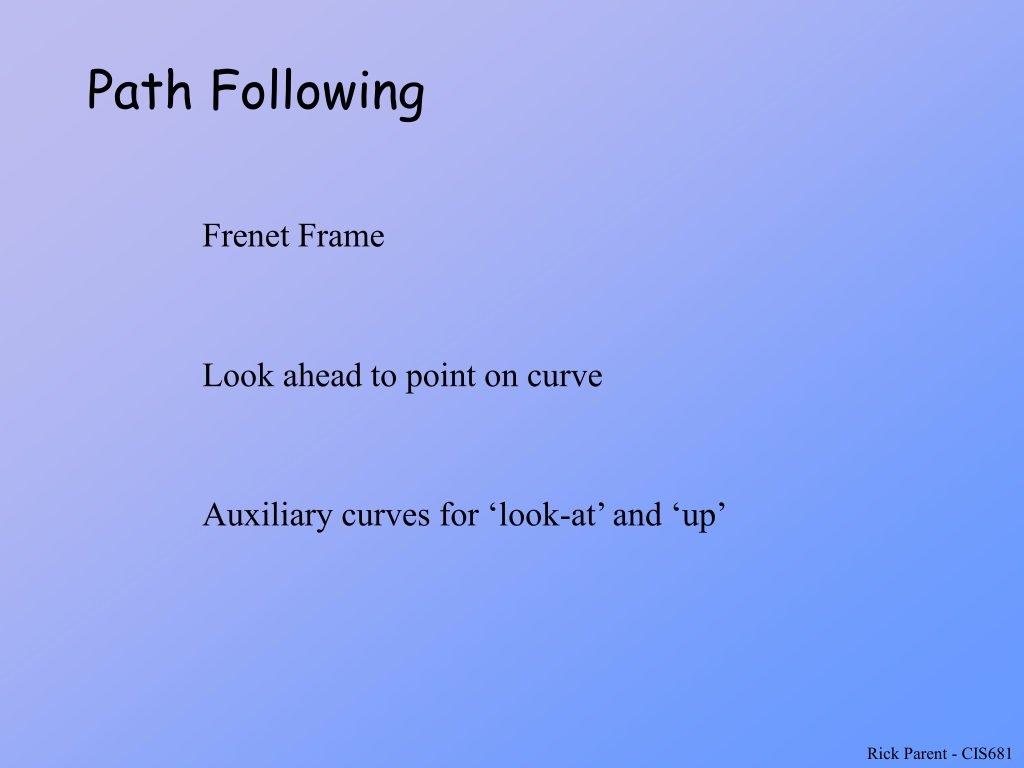

  1. Path Following Frenet Frame Look ahead to point on curve Auxiliary curves for ‘look-at’ and ‘up’

  2. v = w x u w = P’(u) u = P’(u) x P’’(u) P’’(u) Path Following Frenet Frame - local coordinate system at a point on curve Use w as direction vector Use v as up vector

  3. Path Following - Y is ‘up’

  4. Path Following - curvature is ‘up’

  5. Path Following - bank into curvature

  6. Path Following - bank into curvature

  7. Curvature continuity Frenet Frame P”(u)=0 may not be defined may not be continuous

  8. y up • Up vector to stay upright, use vector: • perpendicular to tangent • in plane with global y-axis Look ahead to point on curve Using the tangent for direction can be too jerky Looking n points ahead can smooth out direction

  9. Define “look-at” vector using auxiliary curve

  10. Define “up” vector using auxiliary curve
