  1. Approximate Boyer-Moore String Matching Source : SIAM Journal on Computing, Vol. 22, No. 2, 1993, pp.243-260 J. Tarhio and E. Ukkonen Advisor: Prof. R. C. T. Lee Speaker: Kuei-hao Chen

  2. The k mismatches problem • The k differences problem

  3. Definition of the k mismatches problem • Given a pattern string P of length m and a text string T of length n, we would like to find all approximate occurrences P in T with at most k mismatches. If k=1, then

  4. Consider the following situation where a pattern P is matching with a windows W of T and there are already (k+1) mismatches:

  5. Since there are already (k+1) mismatches, we must move the pattern. The following is obvious: P must be moved to such an extent that there are at most k mismatches between a suffix S of W and a substring S’ of P.

  6. Our trick is as follows: Consider the (k+1)-suffix of W. There are two cases:

  7. Case 1: There is one character in this (k+1)-suffix which exists in P in such a way as shown below. Move the pattern to match these characters. Note that in such a situation, there are at most k mismatches between the (k+1)-suffix and its corresponding substring in P.

  8. Case 2: No such a character exists. Move the pattern in such a way that the k-prefix of P aligns with the k-suffix of W as shown below. Under such a situation, again, there are at most k-mismatches between the k-suffix of W and k-prefix of P.

  9. The generalization of the BM algorithm for the k mismatches problem will be very natural: for k=0 the generalized algorithm is exact string matching. Recall that the k mismatches problem asks for finding all occurrences of P in T such that in at most k positions of P, T and P have different characters.

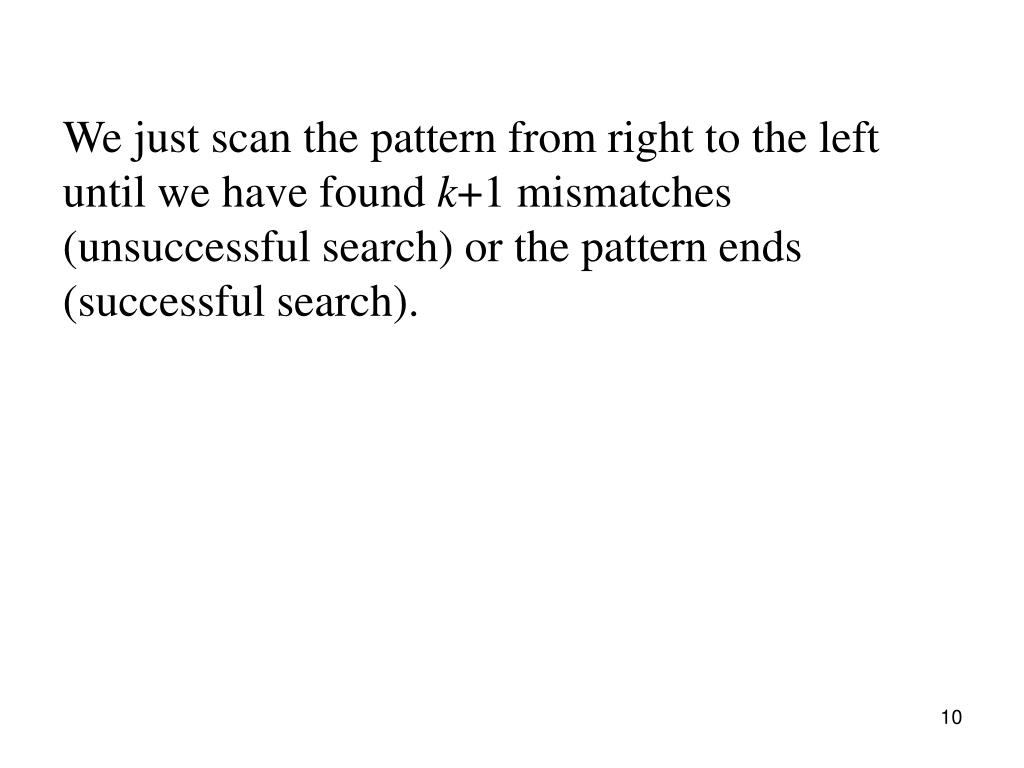

  10. We just scan the pattern from right to the left until we have found k+1 mismatches (unsuccessful search) or the pattern ends (successful search).

  11. Preprocessing phase for approximate matching Dk table The value Dk for a particular alphabet is defined as the rightmost position of that character in the pattern – 1 and the end position i where i=[m..m-k]. Example : Let k=1, m=8, a  ∑

  12. Algorithm for preprocessing phase P = p1p2…pm,T = t1t2…tn Preprocessing Fora ∑ Do Forj=m downto m-k Do Begin dk[j,a]← m Find a character a that it is close to pj. If it is found, we calculate the distance between the position of the character a and j and insert it into dk[j,a].

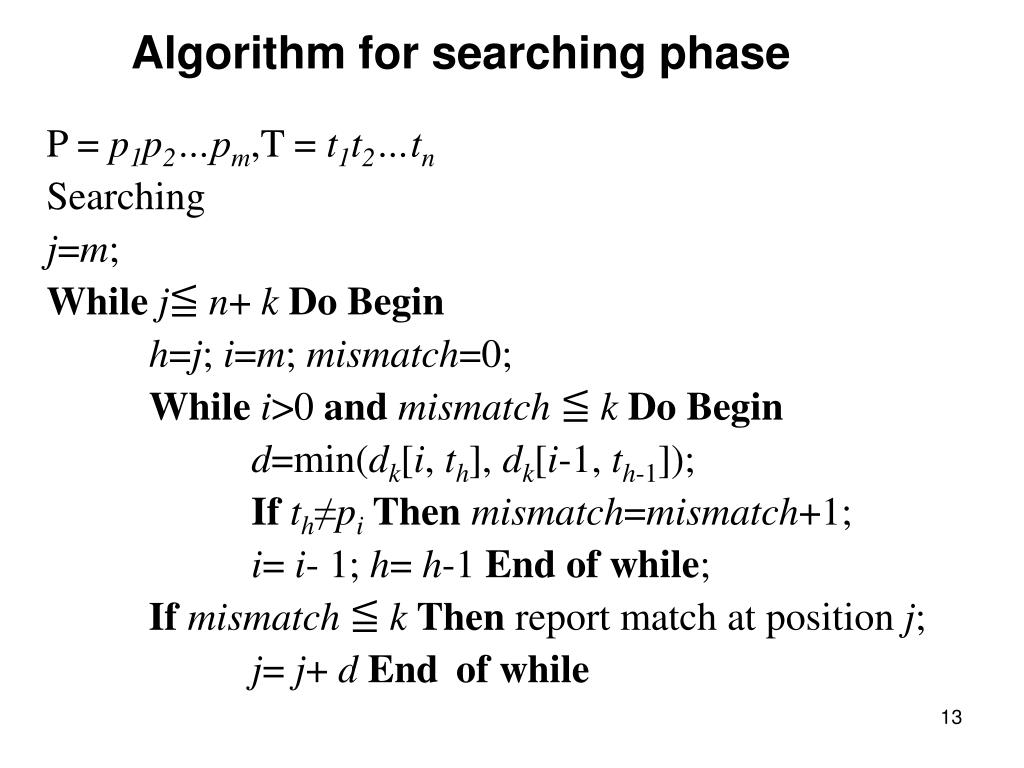

  13. Algorithm for searching phase P = p1p2…pm,T = t1t2…tn Searching j=m; While j≦ n+ k Do Begin h=j; i=m; mismatch=0; While i>0 and mismatch ≦ k Do Begin d=min(dk[i, th], dk[i-1, th-1]); If th≠pi Then mismatch=mismatch+1; i= i- 1; h= h-1 End of while; If mismatch ≦ k Then report match at position j; j= j+ dEnd of while

  14. Complete example for approximate string matching Example 1: Let k=1, m=4, n=17

  15. Example 1 (1/6)

  16. Example 1 (2/6)

  17. Example 1 (3/6)

  18. Example 1 (4/6)

  19. Example 1 (5/6)

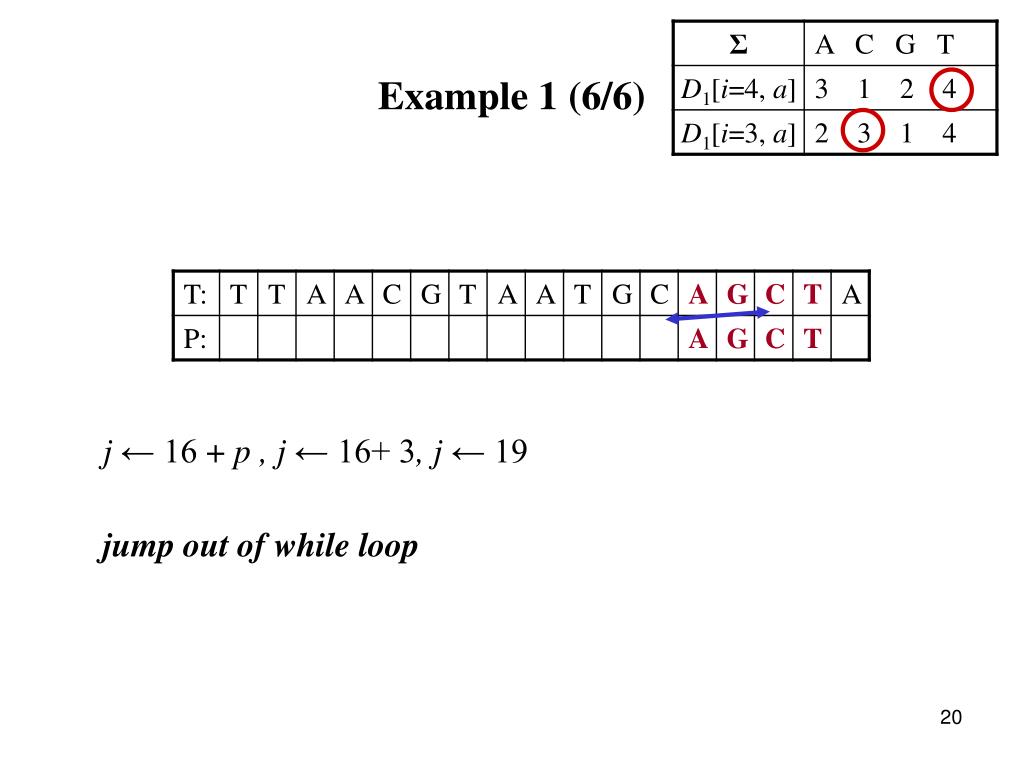

  20. Example 1 (6/6) j ← 16+ p , j ← 16+ 3, j ← 19 jump out of while loop

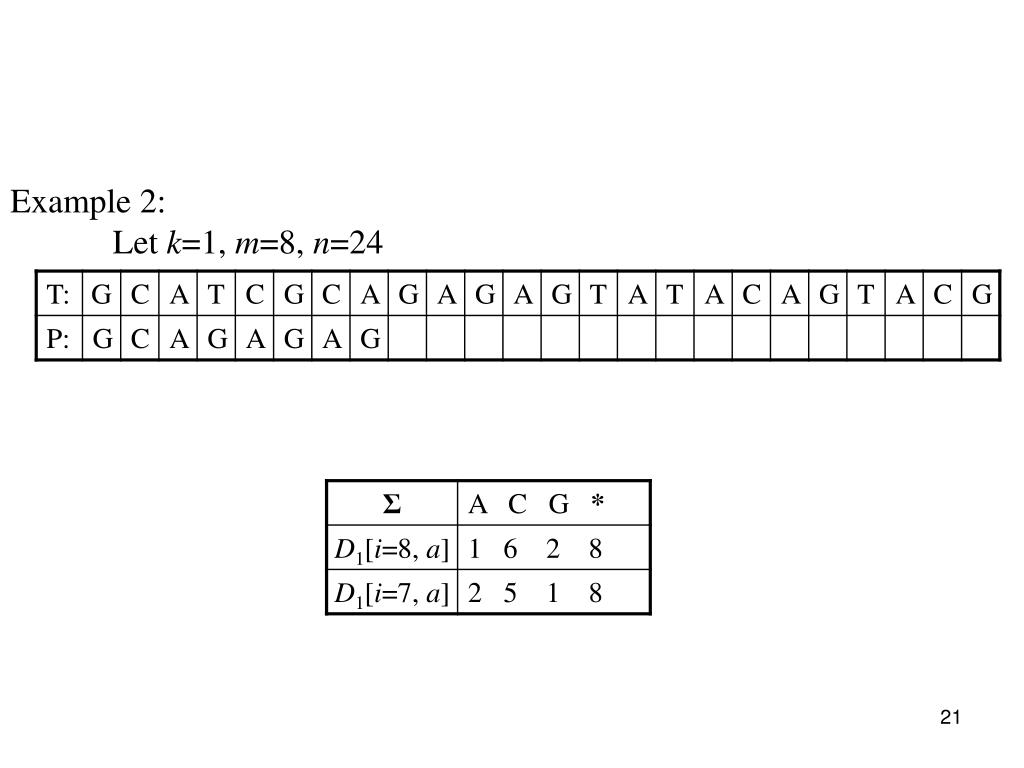

  21. Example 2: Let k=1, m=8, n=24

  22. Example 2 (1/14)

  23. Example 2 (3/14)

  24. Example 2 (4/14)

  25. Example 2 (5/14) Then report match at position j; j ← 13+ p , j ← 13+ 2, j ← 15

  26. Example 2 (6/14)

  27. Example 2 (7/14)

  28. Example 2 (8/14)

  29. Example 2 (9/14)

  30. Example 2 (11/14)

  31. Example 2 (13/14)

  32. Example 2 (14/14) If h = 0 Then report match at position j; j ← 24+ p , j ← 24+ 2, j ← 26 jump out of while loop

  33. Time complexity • preprocessing phase in O(m+ kc) time and O(kc) space complexity. • searching phase in O(mn) time complexity.

  34. Definition of the k differences problem • Given a pattern string P of length m and a text string T of length n, we would like to find all approximate occurrences P in T with edit distance not larger than k.

  35. The basic approach to solve the problem is to find the edit distance for T(1, i) and P for every i [Ukk85b] : Let Edit be an m+1 by n+1 table such that Edit(i, j) is the minimum edit distance between p1p2…pj and any substring of T ending at ti.

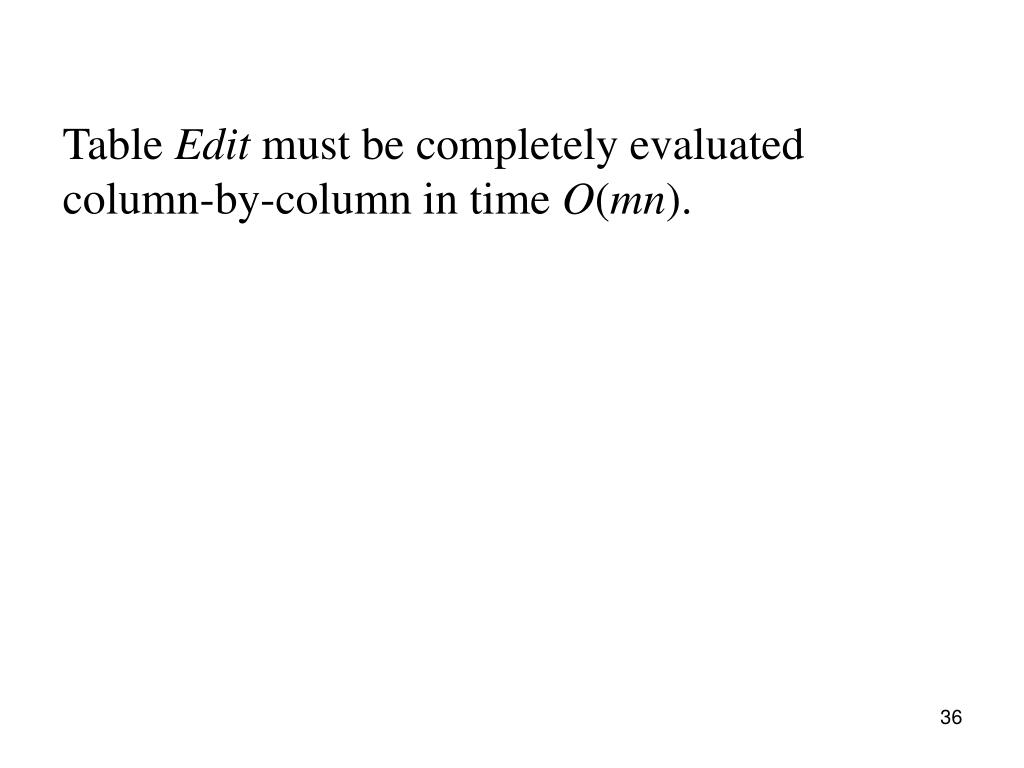

  36. Table Edit must be completely evaluated column-by-column in time O(mn).

  37. If we can find out all occurrences of i where Edit(T(1, i), P) cannot be smaller than k. We may skip this i. This paper is based upon Rule 7 proposed by Professor Lee.
