Piezo crystals are fascinating materials that produce an electric charge when compressed or struck. They can also change shape when an electric current flows through them. Common applications include electric cigarette lighters, autofocus systems in cameras, and shoes that light up while walking. The future of piezo crystals is promising, especially in the medical field, where they may be used in synthetic skin to restore sensation. While they have several advantages, such as efficiency and compactness, it's essential to consider their limitations as well.

1 / 8

Télécharger la présentation

Presenting…

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

  1. Presenting… Piezo Crystals Piezo Crystals Piezo Crystals Piezo Crystals Piezo Crystals Piezo Crystals Piezo Crystals By Jeremy Franczyk

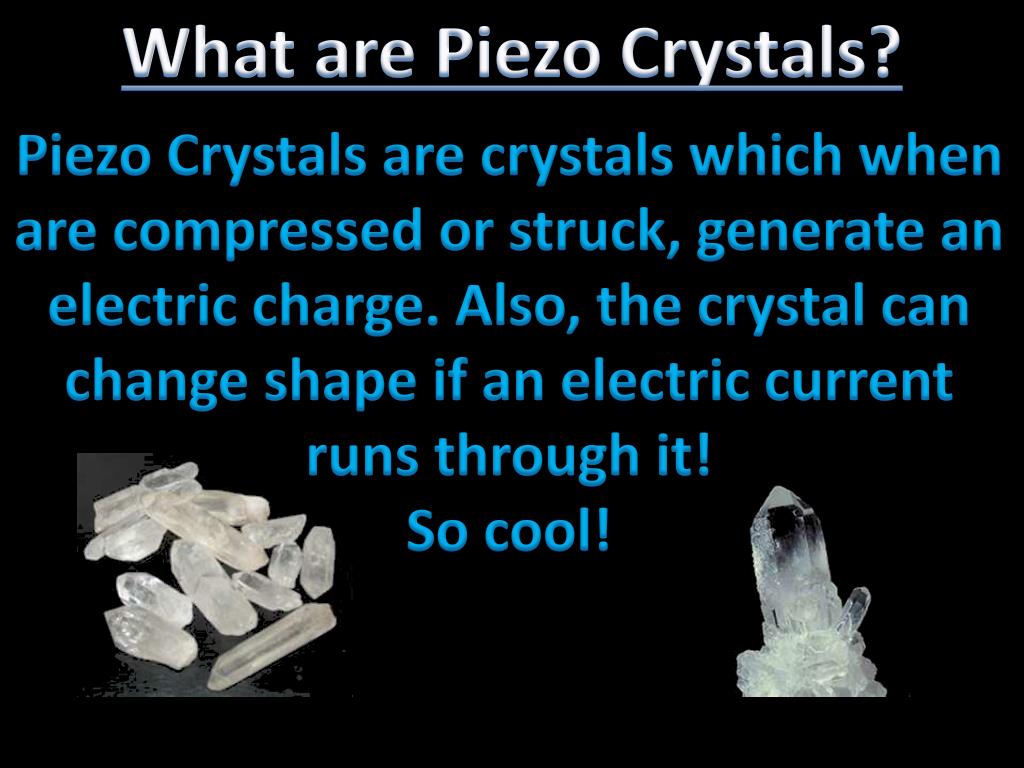

  2. What are Piezo Crystals? Piezo Crystals are crystals which when are compressed or struck, generate an electric charge. Also, the crystal can change shape if an electric current runs through it! So cool!

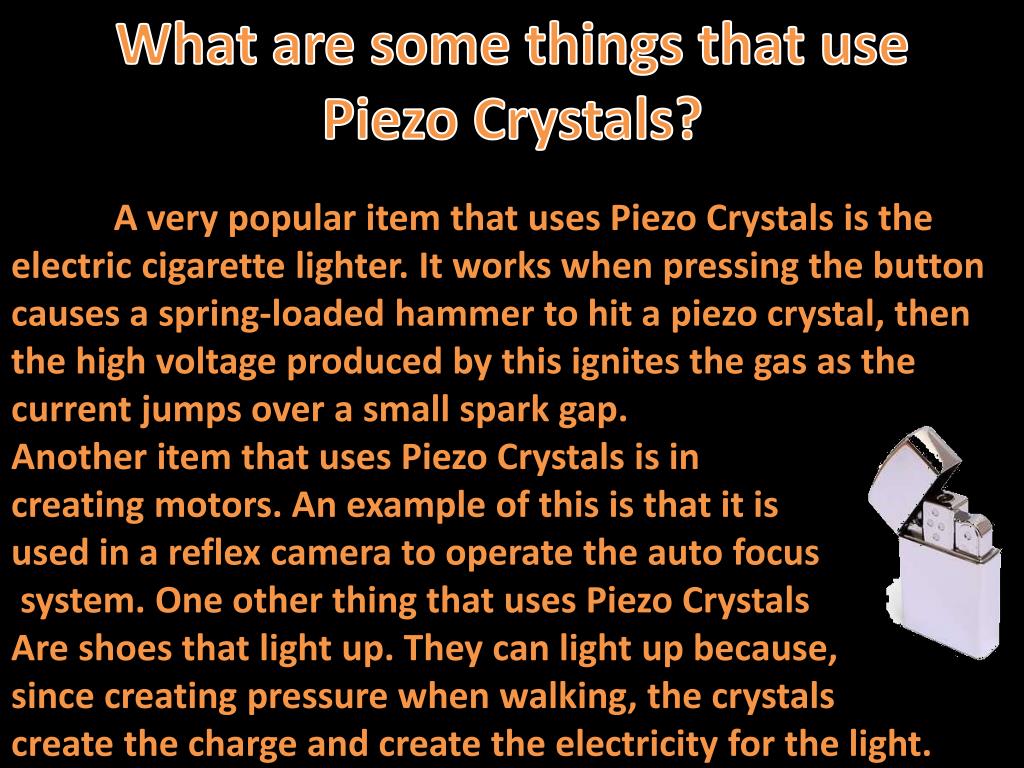

  3. What are some things that use Piezo Crystals? A very popular item that uses Piezo Crystals is the electric cigarette lighter. It works when pressing the button causes a spring-loaded hammer to hit a piezo crystal, then the high voltage produced by this ignites the gas as the current jumps over a small spark gap. Another item that uses Piezo Crystals is in creating motors. An example of this is that it is used in a reflex camera to operate the auto focus system. One other thing that uses Piezo Crystals Are shoes that light up. They can light up because, since creating pressure when walking, the crystals create the charge and create the electricity for the light.

  4. What are some advantages and disadvantages?

  5. Future Goal In the medical field, people are talking about useingpiezo crystals in a material which will be used for synthetic skin when people need skin if they have lost it. Since they lost their old skin and there's no feeling, the new synthetic skin with the crystals will allow them to feel from the electric energy.

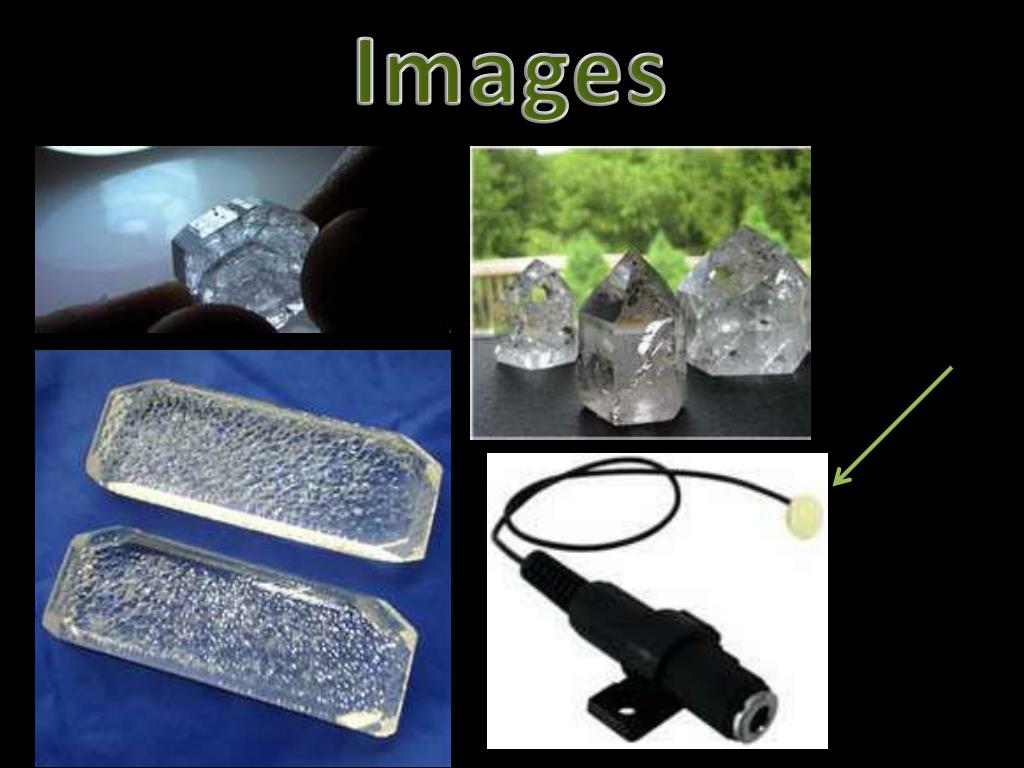

  6. Images

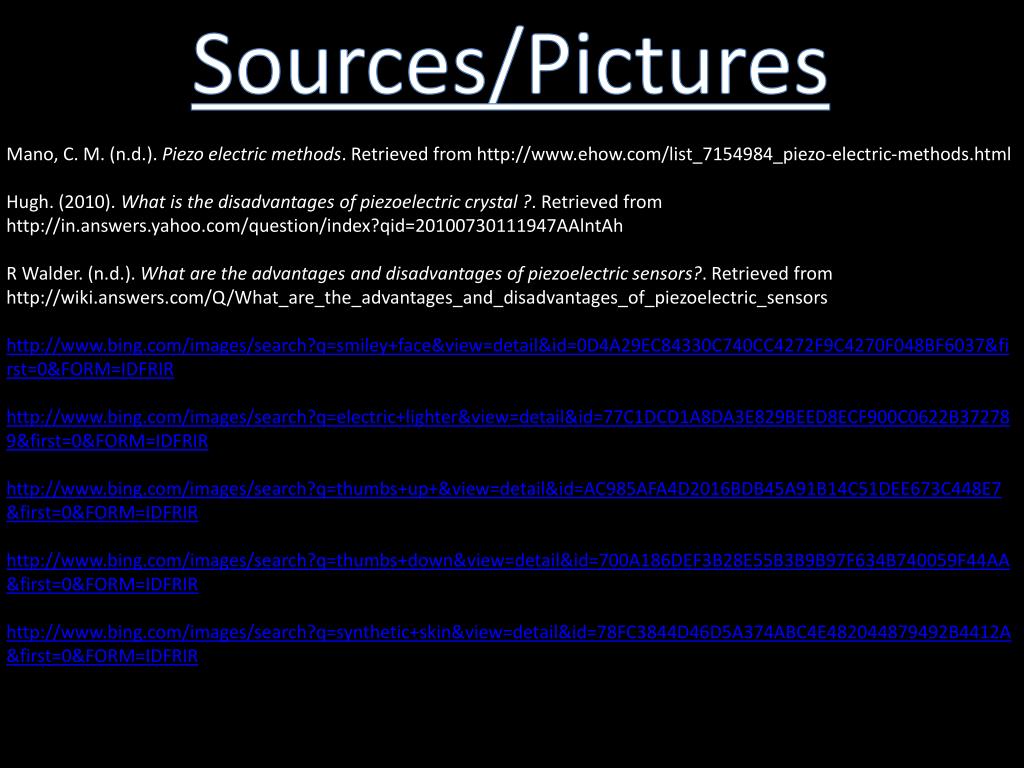

  7. Sources/Pictures Mano, C. M. (n.d.). Piezo electric methods. Retrieved from http://www.ehow.com/list_7154984_piezo-electric-methods.html Hugh. (2010). What is the disadvantages of piezoelectric crystal ?. Retrieved from http://in.answers.yahoo.com/question/index?qid=20100730111947AAlntAh R Walder. (n.d.). What are the advantages and disadvantages of piezoelectric sensors?. Retrieved from http://wiki.answers.com/Q/What_are_the_advantages_and_disadvantages_of_piezoelectric_sensors http://www.bing.com/images/search?q=smiley+face&view=detail&id=0D4A29EC84330C740CC4272F9C4270F048BF6037&first=0&FORM=IDFRIR http://www.bing.com/images/search?q=electric+lighter&view=detail&id=77C1DCD1A8DA3E829BEED8ECF900C0622B372789&first=0&FORM=IDFRIR http://www.bing.com/images/search?q=thumbs+up+&view=detail&id=AC985AFA4D2016BDB45A91B14C51DEE673C448E7&first=0&FORM=IDFRIR http://www.bing.com/images/search?q=thumbs+down&view=detail&id=700A186DEF3B28E55B3B9B97F634B740059F44AA&first=0&FORM=IDFRIR http://www.bing.com/images/search?q=synthetic+skin&view=detail&id=78FC3844D46D5A374ABC4E482044879492B4412A&first=0&FORM=IDFRIR

  8. Thank-you!!!
