  1. CONSTRUCTION BLUEPRINT READING INTRO TO INTRUSION ALARM

  2. CONSTRUCTION BLUEPRINT READING • An intrusion detection system consists of several different system components wired together to provide protection of persons and property.

  3. CONSTRUCTION BLUEPRINT READING • Intrusion detection systems (IDS) are also called security alarms, security systems, alarm systems, perimeter detection systems, burglar alarm systems and similar terms. • Burglar alarms are used in residential, commercial, industrial, and military properties for protection against theft or property damage, as well as personal protection against intruders.

  4. CONSTRUCTION BLUEPRINT READING • Car alarms likewise protect vehicles and their contents. Prisons also use security systems for control of inmates. • Some alarm systems serve a single purpose of burglary protection; combination systems provide both fire and intrusion protection. • Many burg. Panels at a minimum provide a zone for smoke detectors.

  5. CONSTRUCTION BLUEPRINT READING • Intrusion alarm systems may also be combined with closed-circuit television (CCTV) surveillance systems to automatically record the activities of intruders. • Many CCTV systems have alarm interfaces that facilitate quick and easy interconnection to an intrusion alarm system.

  6. CONSTRUCTION BLUEPRINT READING • Burglar alarm systems may interface to access control systems for electrically locked doors that require a key fob or access card/code. • Systems range from small, self-contained noisemakers, to complicated, multi-zone systems with computer monitoring and control. PERSONAL ALARM SYSTEM “NOISE MAKER”

  7. CONSTRUCTION BLUEPRINT READING

  8. CONSTRUCTION BLUEPRINT READING • As with many low voltage systems the primary component or heart of the system is the central device that controls all other components. • In this case it is the control panel.

  9. CONSTRUCTION BLUEPRINT READING • Alarm systems can be sub-divided into three parts: DETECTION CONTROL SIGNALING

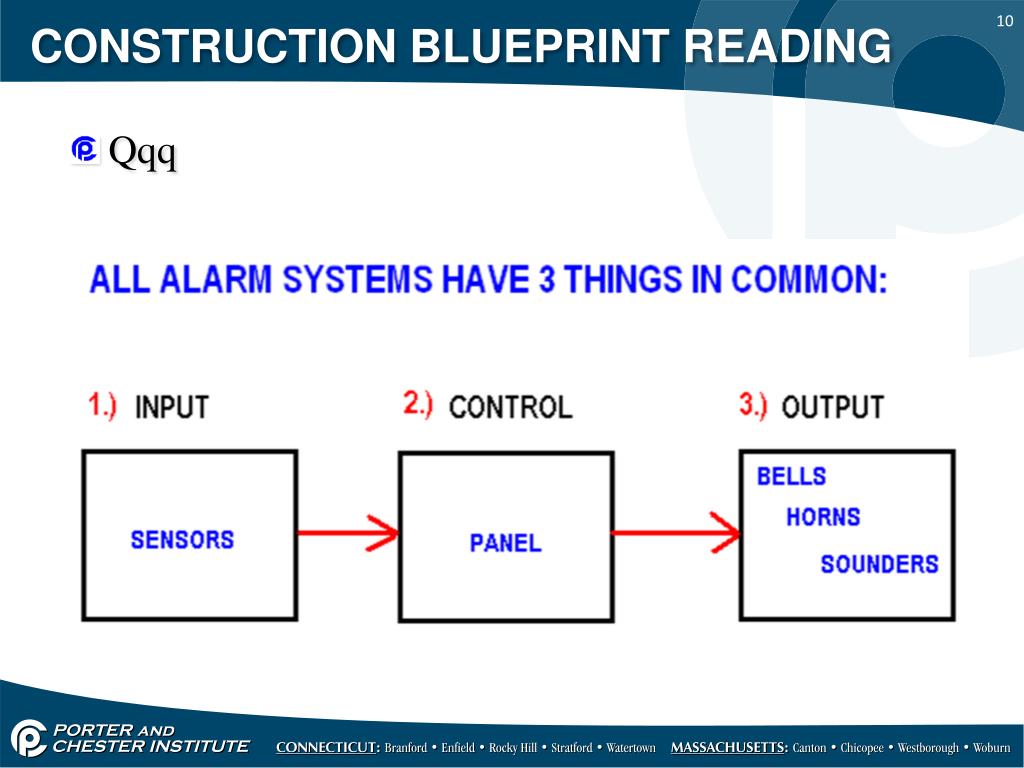

  10. CONSTRUCTION BLUEPRINT READING • Qqq

  11. CONSTRUCTION BLUEPRINT READING • We can further break down an alarm system into all the separate components .

  12. ABBREVIATIONS • EOL END OF LINE RESISTOR • CP CONTROL PANEL • NC NORMALLY CLOSED • NO NORMALLY OPENED • PIR PASSIVE INFARED DETECTOR • C COMMON • JB JUNCTION BOX

  13. ABBREVIATIONS • DS DOOR STRIKE • POTS PLAIN OLD TELEPHONE SERVICE • PSTN PUBLIC SWITCHED TELEPHONE NETWORK • TDM TIME DIVISION MULTIPLEXING • FDM FREQUENCY DIVISION MULTIPLEXING

  14. INTRUSION ALARM SYSTEMS

  15. CONSTRUCTION BLUEPRINT READING

  16. CONSTRUCTION BLUEPRINT READING
