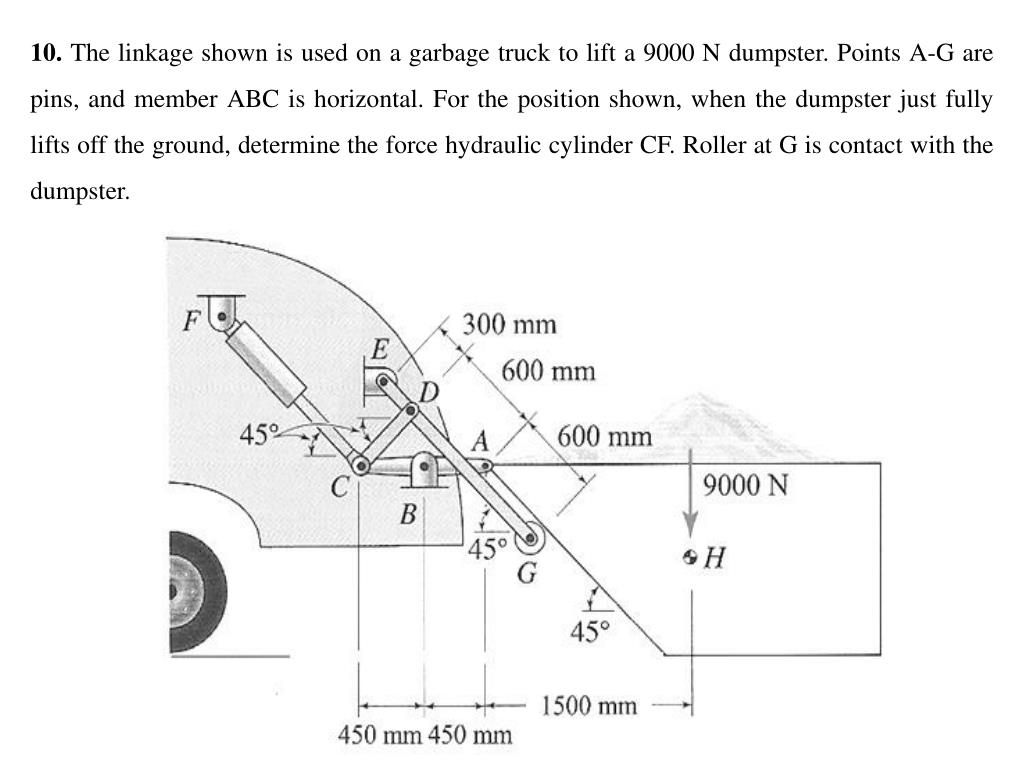

10. The linkage shown is used on a garbage truck to lift a 9000 N dumpster. Points A-G are pins, and member ABC is horizontal. For the position shown, when the dumpster just fully lifts off the ground, determine the force hydraulic cylinder CF. Roller at G is contact with the dumpster. . A y.

aderyn
Télécharger la présentation

A x

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 10. The linkage shown is used on a garbage truck to lift a 9000 N dumpster. Points A-G are pins, and member ABC is horizontal. For the position shown, when the dumpster just fully lifts off the ground, determine the force hydraulic cylinder CF. Roller at G is contact with the dumpster.

  2. Ay Ax FG FBD of dumpster

  3. Ey Ex FCD FG FBD of member EDG

  4. From equilibrium of whole system; FCF Ey Ex Bx By
