  1. Building Networks for Delivering IPTV David Boland, Sr. Manager, Next Generation Solutions

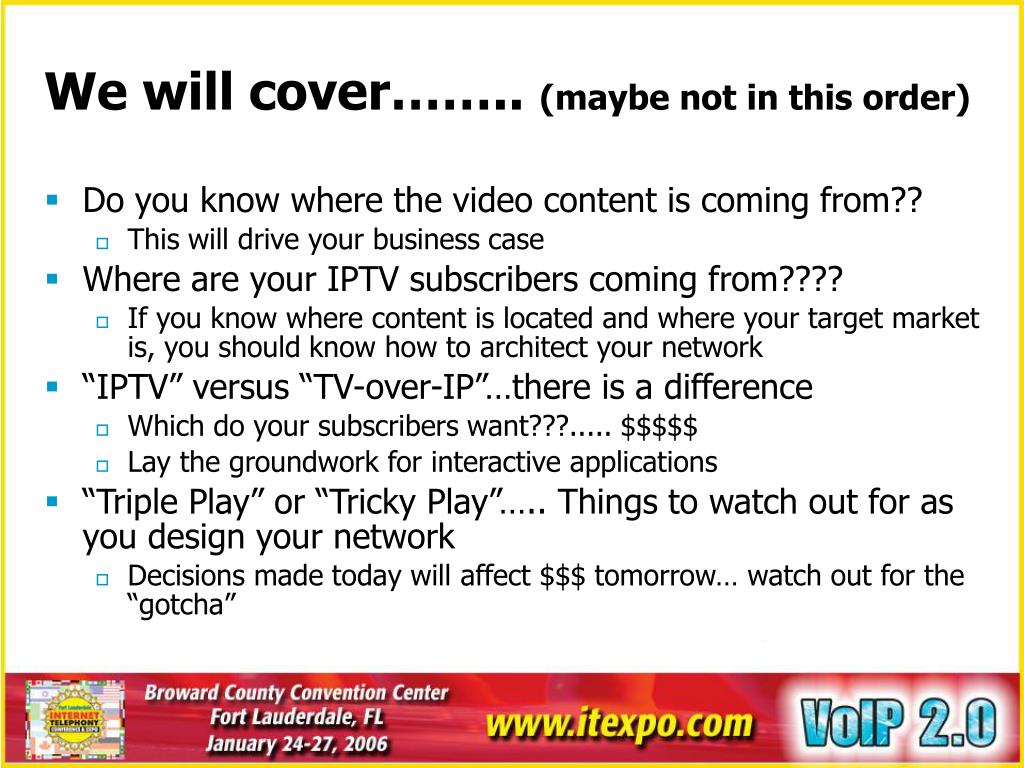

  2. We will cover…….. (maybe not in this order) • Do you know where the video content is coming from?? • This will drive your business case • Where are your IPTV subscribers coming from???? • If you know where content is located and where your target market is, you should know how to architect your network • “IPTV” versus “TV-over-IP”…there is a difference • Which do your subscribers want???..... $$$$$ • Lay the groundwork for interactive applications • “Triple Play” or “Tricky Play”….. Things to watch out for as you design your network • Decisions made today will affect $$$ tomorrow… watch out for the “gotcha”

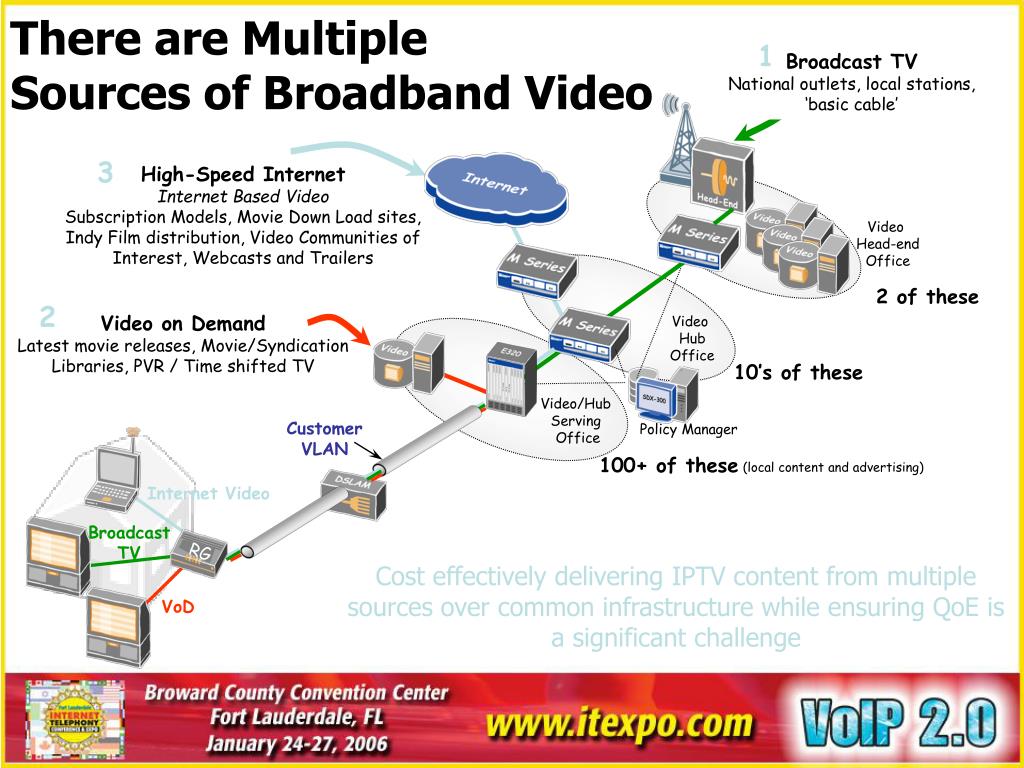

  3. 1 Broadcast TV National outlets, local stations, ‘basic cable’ 3 High-Speed Internet Internet Based Video Subscription Models, Movie Down Load sites, Indy Film distribution, Video Communities of Interest, Webcasts and Trailers RG There are Multiple Sources of Broadband Video Video Head-end Office 2 of these 2 Video on Demand Latest movie releases, Movie/Syndication Libraries, PVR / Time shifted TV Video Hub Office 10’s of these Video/Hub Serving Office Customer VLAN Policy Manager 100+ of these (local content and advertising) Internet Video Broadcast TV Cost effectively delivering IPTV content from multiple sources over common infrastructure while ensuring QoE is a significant challenge VoD

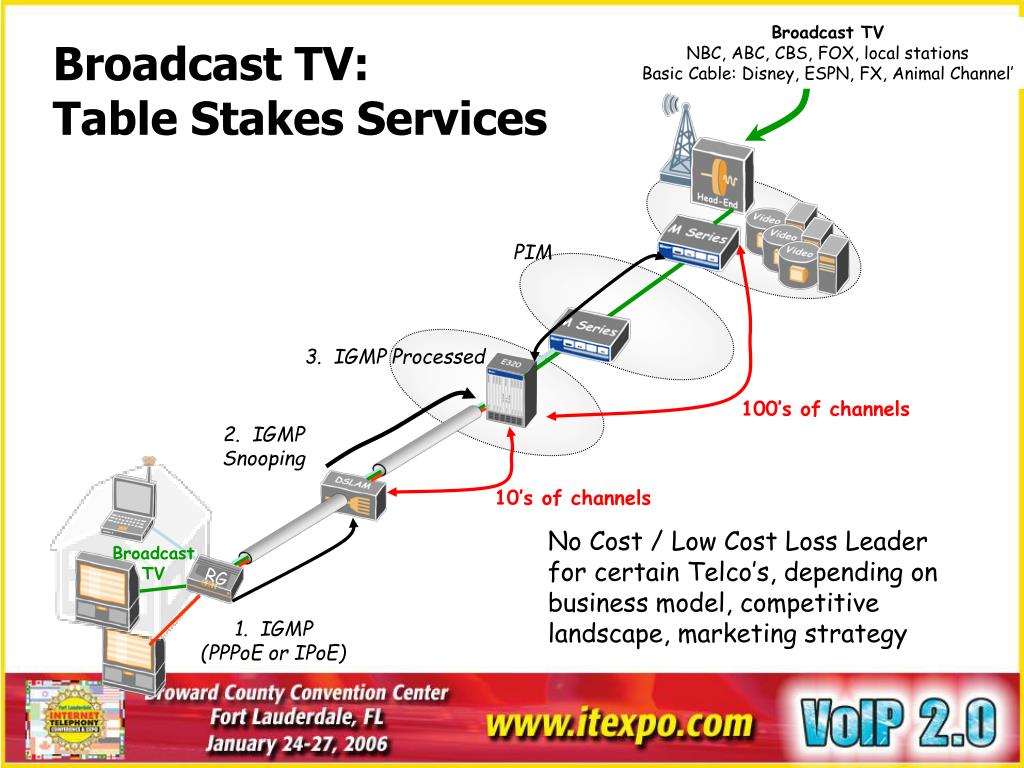

  4. RG Broadcast TV NBC, ABC, CBS, FOX, local stations Basic Cable: Disney, ESPN, FX, Animal Channel’ Broadcast TV:Table Stakes Services PIM 3. IGMP Processed 100’s of channels 2. IGMP Snooping 10’s of channels No Cost / Low Cost Loss Leader for certain Telco’s, depending on business model, competitive landscape, marketing strategy Broadcast TV 1. IGMP (PPPoE or IPoE)

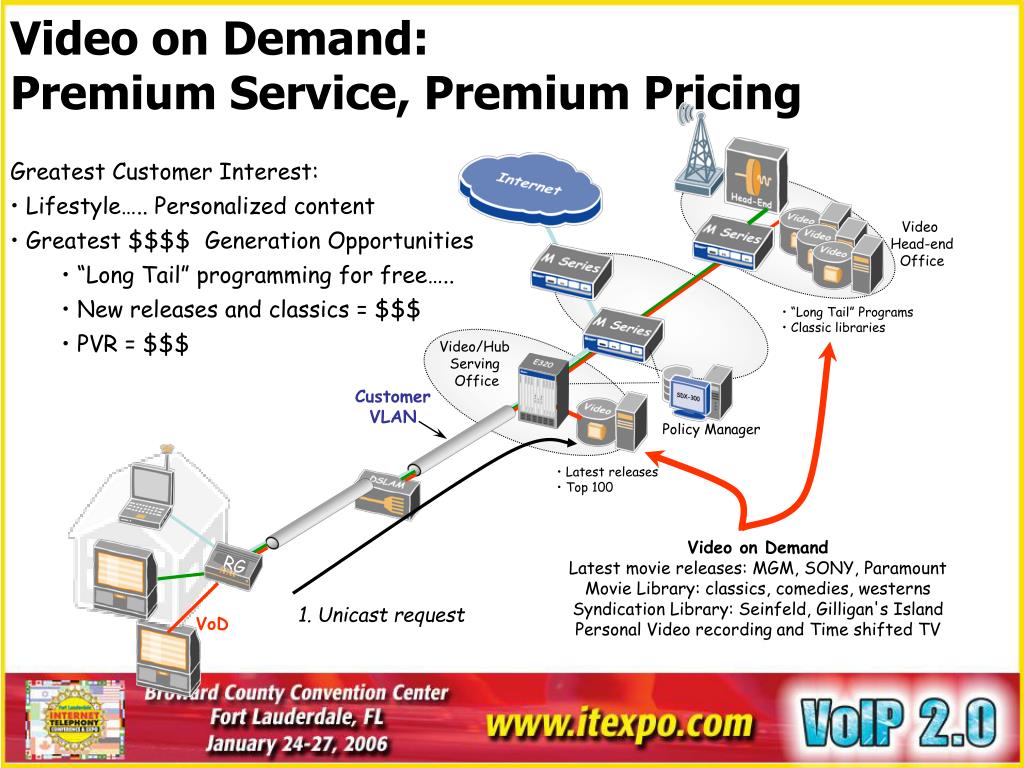

  5. RG Video on Demand:Premium Service, Premium Pricing • Greatest Customer Interest: • Lifestyle….. Personalized content • Greatest $$$$ Generation Opportunities • “Long Tail” programming for free….. • New releases and classics = $$$ • PVR = $$$ Video Head-end Office • “Long Tail” Programs • Classic libraries Video/Hub Serving Office Customer VLAN Policy Manager • Latest releases • Top 100 Video on Demand Latest movie releases: MGM, SONY, Paramount Movie Library: classics, comedies, westerns Syndication Library: Seinfeld, Gilligan's Island Personal Video recording and Time shifted TV 1. Unicast request VoD

  6. RG Guaranteeing QoE for Premium VoD services Justifying $$$ for VoD and PVR…… Video Head-end Office Video/Hub Serving Office Policy Manager 4, Confirm Network Resources VoD 1, Subscriber requests Movie 5, Enforce BW/QoS 2, Request User Authorization 6, Authorization Granted 3, Activate Service Request Plug-In ID, Address, BW, Port, Etc. 7, Movie Streamed at Guaranteed Service Level

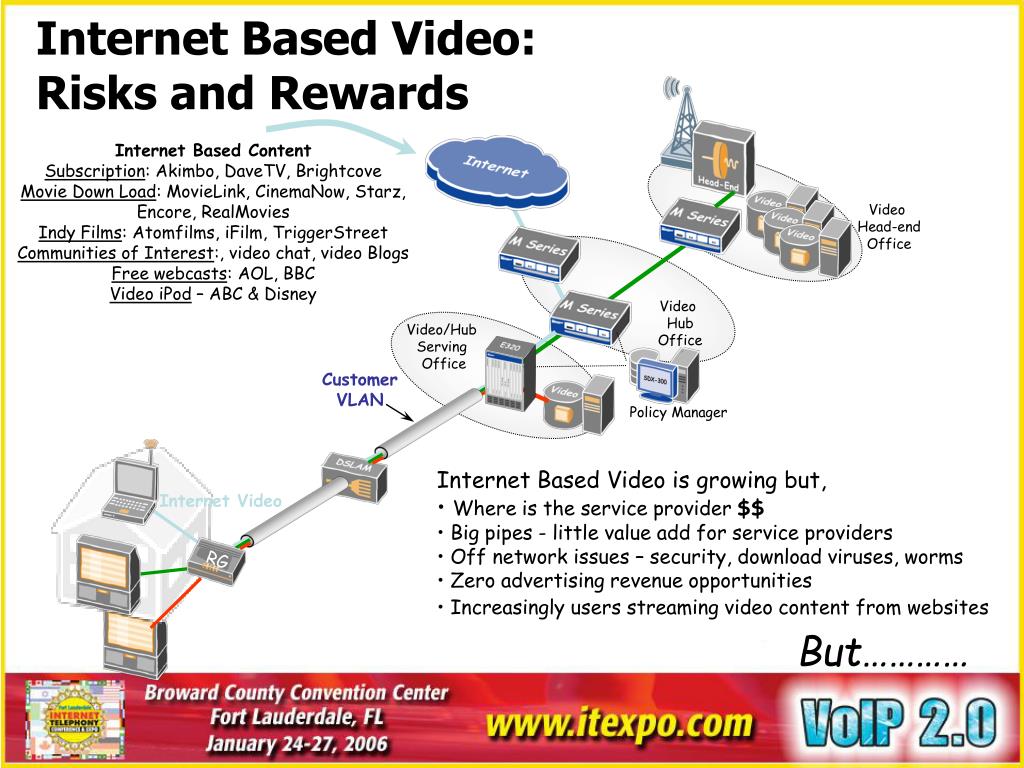

  7. Internet Based Content Subscription: Akimbo, DaveTV, Brightcove Movie Down Load: MovieLink, CinemaNow, Starz, Encore, RealMovies Indy Films: Atomfilms, iFilm, TriggerStreet Communities of Interest:, video chat, video Blogs Free webcasts: AOL, BBC Video iPod – ABC & Disney Video Head-end Office Video Hub Office Video/Hub Serving Office Customer VLAN Policy Manager Internet Video RG Internet Based Video:Risks and Rewards • Internet Based Video is growing but, • Where is the service provider $$ • Big pipes - little value add for service providers • Off network issues – security, download viruses, worms • Zero advertising revenue opportunities • Increasingly users streaming video content from websites But…………

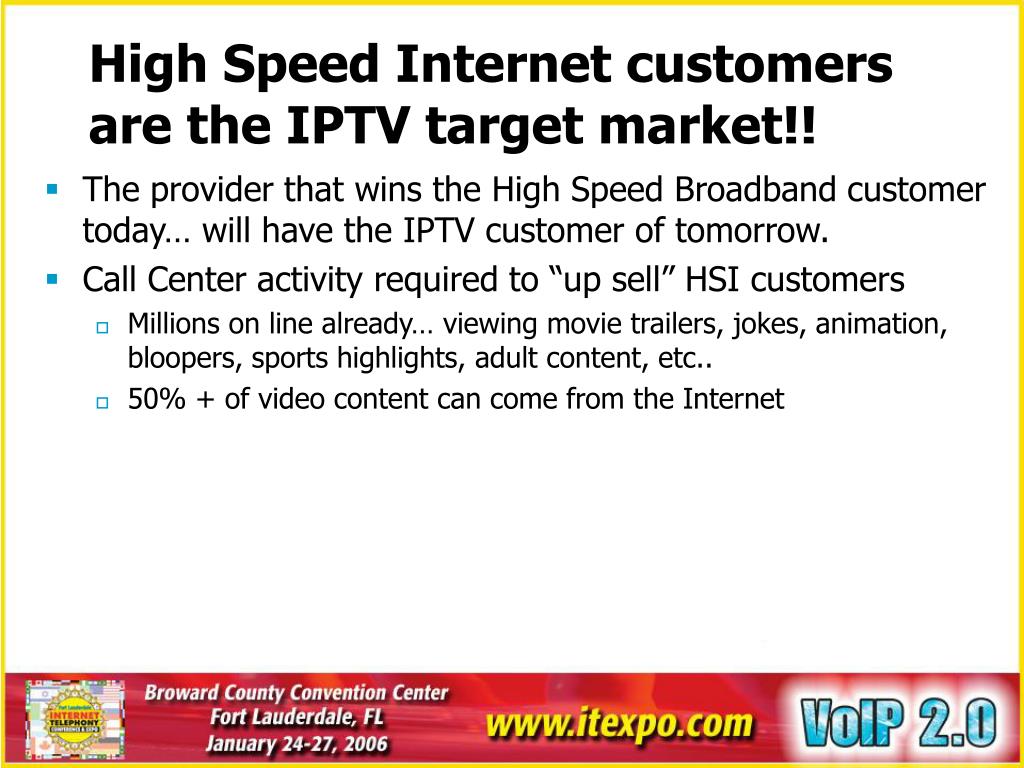

  8. High Speed Internet customers are the IPTV target market!! • The provider that wins the High Speed Broadband customer today… will have the IPTV customer of tomorrow. • Call Center activity required to “up sell” HSI customers • Millions on line already… viewing movie trailers, jokes, animation, bloopers, sports highlights, adult content, etc.. • 50% + of video content can come from the Internet

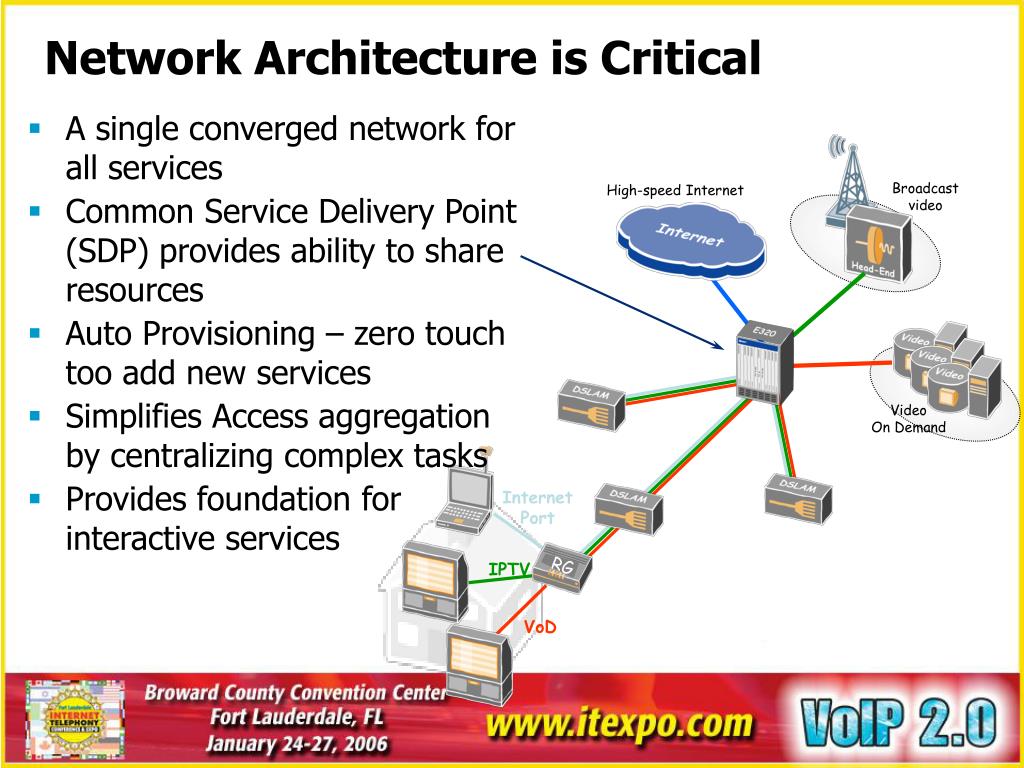

  9. A single converged network for all services Common Service Delivery Point (SDP) provides ability to share resources Auto Provisioning – zero touch too add new services Simplifies Access aggregation by centralizing complex tasks Provides foundation for interactive services Network Architecture is Critical RG Broadcast video High-speed Internet Video On Demand Internet Port IPTV VoD

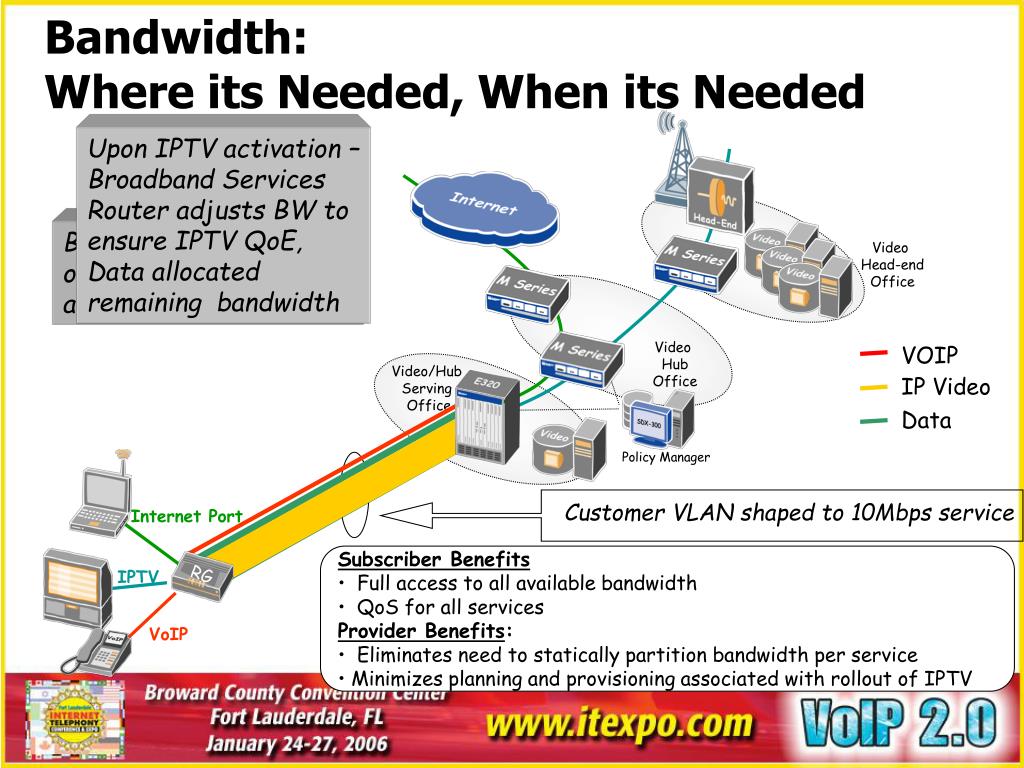

  10. Upon IPTV activation – Broadband Services Router adjusts BW to ensure IPTV QoE, Data allocated remaining bandwidth Before IPTV is turned on – bandwidth fully allocated to Data/Voice Customer VLAN shaped to 10Mbps service RG Bandwidth:Where its Needed, When its Needed Video Head-end Office Video Hub Office VOIP Video/Hub Serving Office IP Video Data Policy Manager Internet Port • Subscriber Benefits • Full access to all available bandwidth • QoS for all services • Provider Benefits: • Eliminates need to statically partition bandwidth per service • Minimizes planning and provisioning associated with rollout of IPTV IPTV VoIP

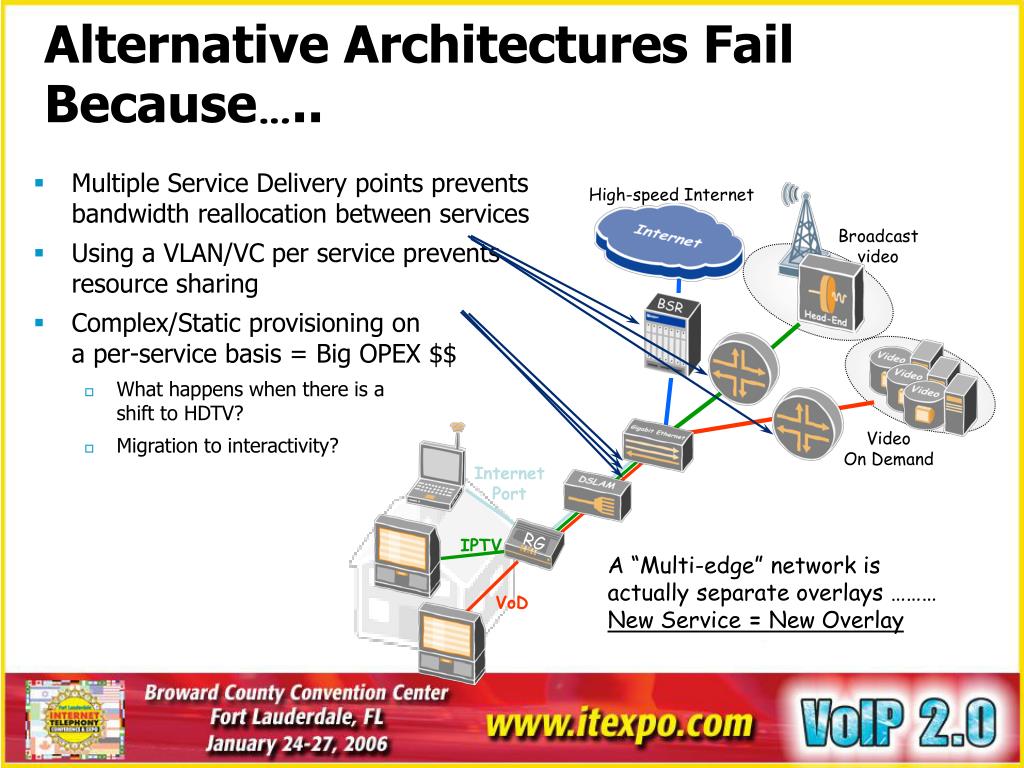

  11. Multiple Service Delivery points prevents bandwidth reallocation between services Using a VLAN/VC per service prevents resource sharing Complex/Static provisioning on a per-service basis = Big OPEX $$ What happens when there is a shift to HDTV? Migration to interactivity? RG Alternative Architectures Fail Because….. High-speed Internet Broadcast video Video On Demand Internet Port IPTV A “Multi-edge” network is actually separate overlays ……… New Service = New Overlay VoD

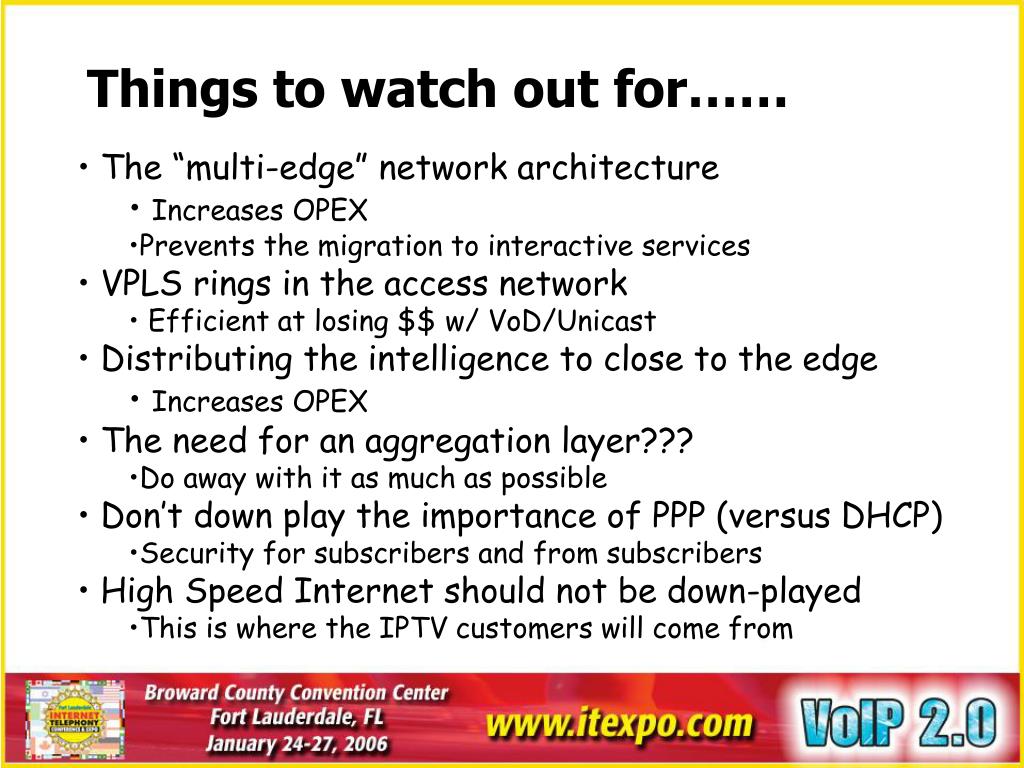

  12. Things to watch out for…… • The “multi-edge” network architecture • Increases OPEX • Prevents the migration to interactive services • VPLS rings in the access network • Efficient at losing $$ w/ VoD/Unicast • Distributing the intelligence to close to the edge • Increases OPEX • The need for an aggregation layer??? • Do away with it as much as possible • Don’t down play the importance of PPP (versus DHCP) • Security for subscribers and from subscribers • High Speed Internet should not be down-played • This is where the IPTV customers will come from

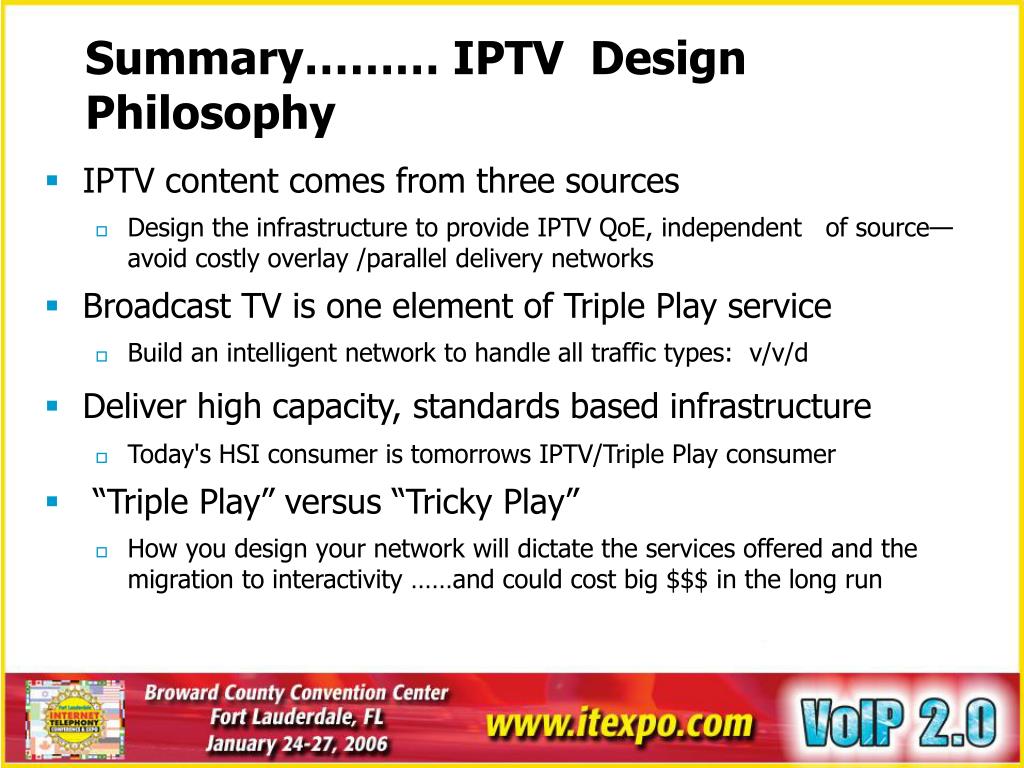

  13. Summary……… IPTV Design Philosophy • IPTV content comes from three sources • Design the infrastructure to provide IPTV QoE, independent of source—avoid costly overlay /parallel delivery networks • Broadcast TV is one element of Triple Play service • Build an intelligent network to handle all traffic types: v/v/d • Deliver high capacity, standards based infrastructure • Today's HSI consumer is tomorrows IPTV/Triple Play consumer • “Triple Play” versus “Tricky Play” • How you design your network will dictate the services offered and the migration to interactivity ……and could cost big $$$ in the long run

  14. Thank you !
