Chapter 2: Algorithm Analysis

adina avatar
adina
32 diapositives · 484 Views · Sep 14, 2014

Chapter 2: Algorithm Analysis. What is an algorithm? What to analyse? What we want to know? How accurate is required?. 2.1: Example: Max Subsequence Sum Problem(MSSP). Given N (possibly negative) integers A 1 , A 2 , …, A N , find the maximum value of. Assumed that. 2.1:Example- MSSP.

Chapter 2: Algorithm Analysis - slide 1
01 / 32Chapter 2: Algorithm Analysis
1 / 17

Télécharger la présentation

Chapter 2: Algorithm Analysis
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

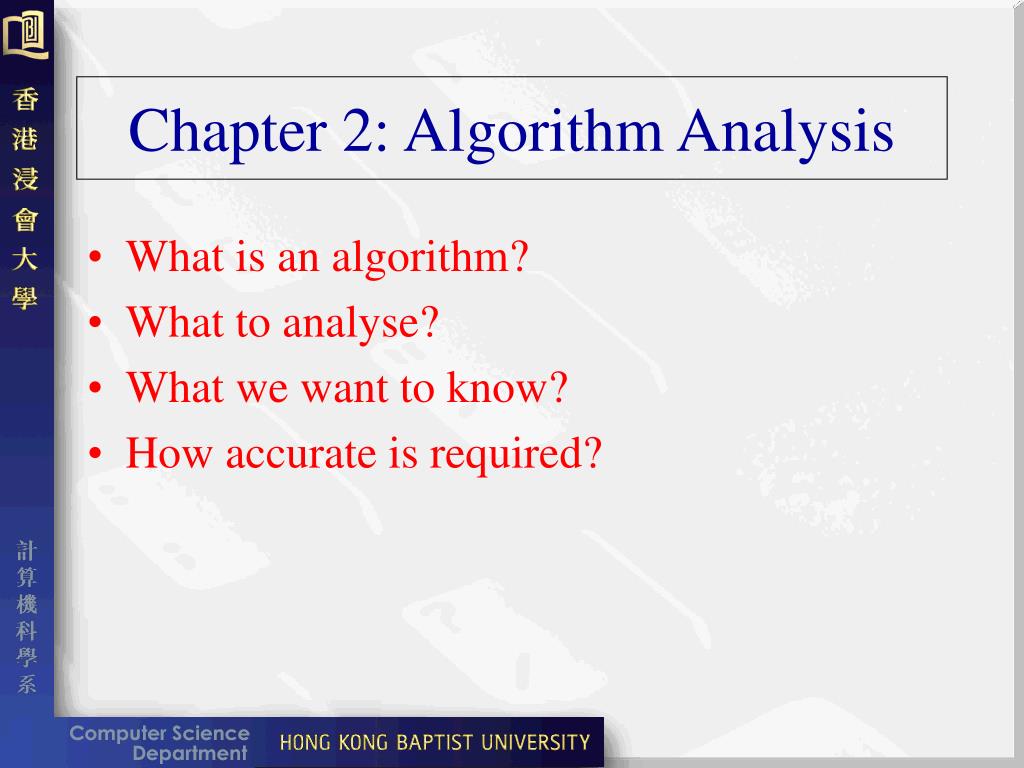

  1. Chapter 2: Algorithm Analysis • What is an algorithm? • What to analyse? • What we want to know? • How accurate is required?

  2. 2.1: Example: Max Subsequence Sum Problem(MSSP) • Given N (possibly negative) integers A1, A2, …, AN, find the maximum value of • Assumed that

  3. 2.1:Example- MSSP • Example: input -2, 11, -4, 13, -5, -2 • the answer is 20 (A2 through A4) • 4 possible solutions

  4. 2.1:MSSP: Solution1 • Exhaustively tries all possibilities • int MaxSubSumSol1(const int A[], int N) { int ThisSum, MaxSum, i, j, k; MaxSum = 0; for (i=0; i<N; i++) for ( j=i; j<N; j++) { ThisSum = 0; for (k=i; k<j; k++) ThisSum += A[k]; if (ThisSum > MaxSum) MaxSum = ThisSum; } return MaxSum; } Running Time: O(N3)

  5. 2.1:MSSP: Solution 2 • Eliminate the last for loop in solution 1 int MaxSubSumSol2(const int A[], int N) { int ThisSum, MaxSum, i, j, k; MaxSum = 0; for (i=0; i<N; i++) { ThisSum = 0; for ( j=i; j<N; j++) { ThisSum += A[j]; if (ThisSum > MaxSum) MaxSum = ThisSum; } return MaxSum; } Running Time: O(N2)

  6. 2.1:MSSP: Solution 3 • “divide-and-conquer” strategy static int MaxSubSum(const int A[], int Left, int Right) { int MaxLeftSum, MaxRightSum; int MaxLeftBoarderSum, MaxRightBoardSum; int LeftBoarderSum, RightBoardSum; int center, i; if ( Left == Right) /*Base Case*/ if (A[Left] > 0) return A[Left]; else return (0); Center = (Left + right)/2; MaxLeftSum = MaxSubSum(A, Left, Center); MaxRightSum=MaxSubSum(A, Center +1, Right); MaxLeftBoardSum = 0; LeftBoardSum = 0;

  7. 2.1:MSSP: Solution 3 for (i= Center; i>= Left; i--) { LeftBoarderSum += A[i]; if (LeftBoarderSum > MaxLeftBoarderSum) MaxLeftBoarderSum = LeftBoarderSum; } for (i= Center+1; i>= Right; i++) { RightBoarderSum += A[i]; if (RightBoarderSum>MaxRightBoarderSum) MaxRightBoarderSum = RightBoarderSum; } return Max3(MaxLeftSum, MaxRightSum, MaxLeftBoarderSum+MaxLeftBoarderSum) } int MaxSubSumSol3(const int A[], int N) { return (MaxSubSum(A, 0, N-1); } Running Time: O(NlogN)

  8. 2.1:MSSP: Solution 4 • int MaxSubSumSol4(const int A[], int N) { int ThisSum, MaxSum, j; ThisSum = MaxSum = 0; for ( j=0; j<N; j++) { ThisSum += A[j]; if (ThisSum > MaxSum) MaxSum = ThisSum; else if (ThisSum < 0) ThisSum = 0; } return MaxSum; } Running Time: O(N)

  9. 2.1:MSSP: Running Times (in second)

  10. 2.1:MSSP: Running Times (in second)

  11. 2.1:MSSP: Running Times (in second)

  12. 2.2: Mathematical Background • 4 Definitions:

  13. 2.2: Mathematical Background • Physical meaning of the definitions and objectives. • Example:

  14. 2.2: Mathematical Background Typical Growth Rates

  15. 2.2: Mathematical Background • Rule 1 • Examples: if T1(N) = O(N2) and T2(N)= O(N) then (a) T1(N) + T2(N) = O(N2) (b) T1(N)*T2(N) = O(N3)

  16. 2.2: Mathematical Background • Rule 2 • Rule 3

  17. 2.2: Mathematical Background • Using L’Hospital rule to evaluate:

  18. 2.2: Mathematical Background • Example:

  19. 2.3:Running Time Calculations • Ways to estimate the running time • Rule 1: for loops for (i=0;i<N;i++) k++ • Rule 2: Nested for loops for (i=0; i<N; i++) for (j=0; j<N; j++) k++

  20. 2.3:Running Time Calculations • Rule 3: Consecutive Statements for (i=0;i<N;i++) k++ for (i=0; i<N; i++) for (j=0; j<N; j++) k++ O(N) O(N2)

  21. 2.3:Running Time Calculations • Rule 4: Condition Statement if (condition) S1 else S2

  22. 2.3.A:Examples Sum=0 for (j=0;j<N;j++) Sum++; O(N)

  23. 2.3.A:Examples Sum=0 for (j=0;j<N;j++) for (k=0;k<N;k++) Sum++; O(N2)

  24. 2.3.A:Examples Sum=0 for (j=0;j<N;j++) for (k=0;k<N*N;k++) Sum++; O(N3)

  25. 2.3.A:Examples Sum=0 for (j=0;j<N;j++) for (k=0;k<j;k++) Sum++; O(N2)

  26. 2.3.A:Examples Sum=0 for (j=0;j<N;j++) for (k=0;k<j*j;k++) for (m=0; m<k; m++) Sum++; O(N5)

  27. 2.3.A:Examples Sum=0 for (j=0;j<N;j++) for (k=0;k<j*j;k++) if (k%j == 0) for (m=0; m<k; m++) Sum++; O(N4)

  28. 2.3:Running Time Calculations • Analysis of factorial int fact(int n) { if (n<=1) return 1; else return (n*fact(n-1)); } O(N)

  29. 2.3:Running Time Calculations • Analysis of Fibonacci number int Fib (int N) { if (N<=1) return 1; else return ( Fib(N-1) + Fib(N-2) ); } O((3/2)N)

  30. 2.3:Running Time Calculations • Analysis of Binary Search while (low <= high) { mid = (low + high) / 2; if (x == a [mid]) return (mid); else if (x < a [mid]) high = mid - 1; else low = mid + 1; } O(logN)

  31. 2.4 Check Your Analysis • Check with actual running time • Compute T(N)/f(N) for a range of N

  32. 2.4 Check Your Analysis
