  1. CEMLink- Data Acquisition SystemsUNLOCKING THE CEMS DOOR Features & Benefits

  2. CEMLink- Compliance Data Acquisition VIM Technologies, Inc. is expertly positioned to assist end users in meeting the data acquisition & reporting requirements for air emissions monitoring, backed by over 14 years experience CEMLink 5th Generation DAS solutions now & in the future

  3. CEMLink- Compliance Qualified CEMLink serving all air compliance markets • Acid Rain • NOx – OTC, SIP Calls, Section 126 • Title V • MACT & MACT II • And everything in between

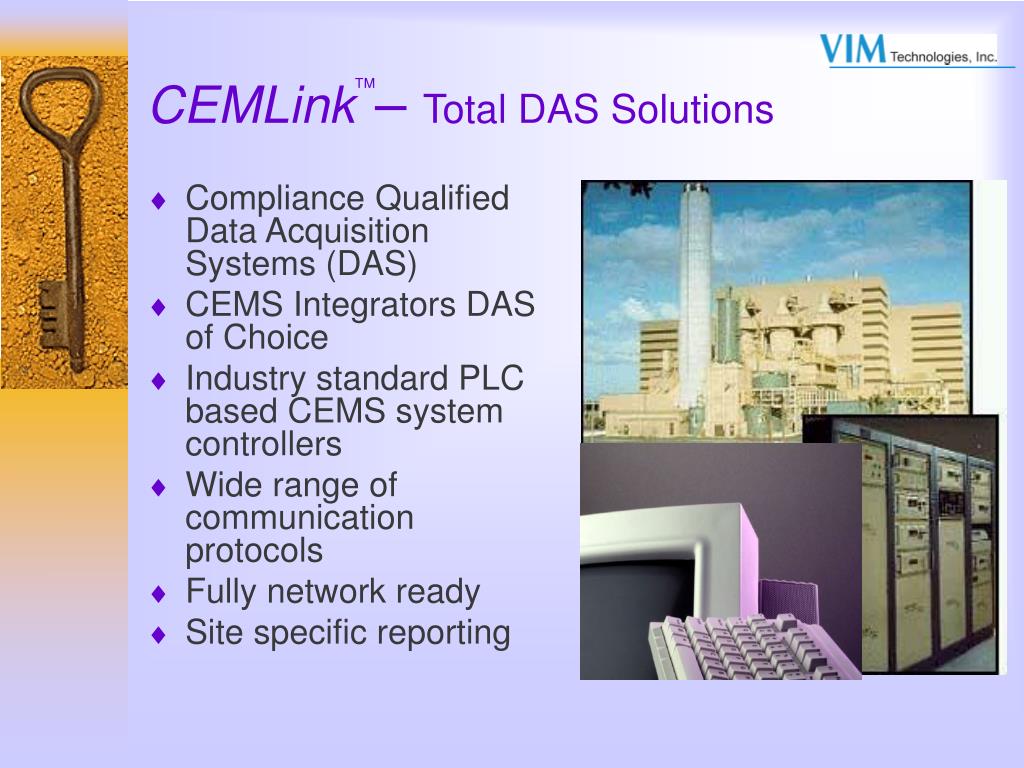

  4. CEMLink– Total DAS Solutions • Compliance Qualified Data Acquisition Systems (DAS) • CEMS Integrators DAS of Choice • Industry standard PLC based CEMS system controllers • Wide range of communication protocols • Fully network ready • Site specific reporting

  5. CEMLink– System Controllers • Allen Bradley • Control Logix • Compact Logix • SLC Series 5/04 • PLC 5 Series • GE FANUC • 90-30 Series • 90-70 Series • Modicon • Quantum Series • Compact Series

  6. CEMLink– System Schematic The PLC is the heart of theCEMLink DAS PLC

  7. CEMLink– System Schematic CEMS ANALYZERS NOx/CO/O2/NH3 The PLC controls the CEMS functions PLC

  8. CEMLink– System Schematic CEMS ANALYZERS NOx/CO/O2/NH3 CEMLinkDAS supports Local Interface Panels OPERATOR INTERFACE PANEL PLC

  9. CEMLink– System Schematic CEMS ANALYZERS NOx/CO/O2/NH3 Plant critical signals interface directly to the PLC OPERATOR INTERFACE PANEL PLC PLANT SIGNALS

  10. CEMLink– System Schematic CEMS ANALYZERS NOx/CO/O2/NH3 DCS data exchange is directly through the PLC OPERATOR INTERFACE PANEL PLC DCS PLANT SIGNALS

  11. CEMLink– System Schematic CEMS ANALYZERS NOx/CO/O2/NH3 CEMLinksupports PI interfaces & Plant Historians OPERATOR INTERFACE PANEL PLC DCS PLANT SIGNALS Panel Meters Annunciator Panels Plant Information Systems

  12. CEMLink– Communications • CEMLinkis built with Windows XP & MS Visual Studio technology • CEMLinkuses OPC communications between the real time data and the reportable database • CEMLinksupports • DH/DH+/DF 1 • Modbus/Modbus Plus • Ethernet • LAN/WAN Networks • And other communication protocols

  13. CEMLink– Communications • CEMLinkinnovative design supports multiple sources on one DAS • CEMLink supports standard PLC communication protocols • CEMLink supports remote licensing of plant workstations • CEMLinkmay be configured to communicate through independent DAS network, plant-wide network or corporate WAN systems CEMLink - links you to your data

  14. CEMLink– Support Services • CEMLink offers a full 12 month warranty • CEMLink is supported via modem • CEMLink is supported via network permission • CEMLink is supported through 24x7 maintenance contracts • CEMLink is supported through manuals, tutorial CDs and training courses

  15. CEMLink– COMPAS Services Compliance Optimization and Monitoring Performance Accuracy Service (COMPAS). CEMLink offers a unique set of services under the COMPAS Service program. Data Audits, Reporting Accuracy, Air Permit Reviews, Monitoring Plans and a broad suite of air compliance services all available under COMPAS.

  16. CEMLink– VIM Exclusives • CEMLinkis 100% VIM designed, configured & supported. • CEMLinkoffers end user conveniences like browse data, email alerts, alarm paging, pre-defined report library and more. • CEMLinkis the premier state of the art data acquisition system for air compliance reporting.

  17. Why VIM? • Established Industry Presence (14 + years) • Established Industry Partners • Wide Experience in Regulatory Compliance • Proven Acid Rain Experience • Proven NOx SIP Call Experience • Proven Site/State Specific Experience • Specialize in Site Standardization/DAS Conversions • 24/7 Technical Support System • Compliance Watchdog Services • Compliance Data Auditing Services (COMPAS) • Regular End-User Workshops

  18. CEMLink– Total DAS Solutions • Stable • Flexible • Reliable • Innovative • Compliant CEMLink the last DAS you will ever need
