  1. Data Acquisition Systems Ryan Rivera Fermilab Detector R&D Retreat May 5, 2011

  2. Wikipedia • Data acquisition • is the process of sampling signals that measure real world physical conditions and converting the resulting samples into digital numeric values that can be manipulated by a computer. Data Acquisition Systems - Ryan Rivera

  3. This Talk • Current DAQ program • Future projections • Direction of Current Program • Direction of New R&D Data Acquisition Systems - Ryan Rivera

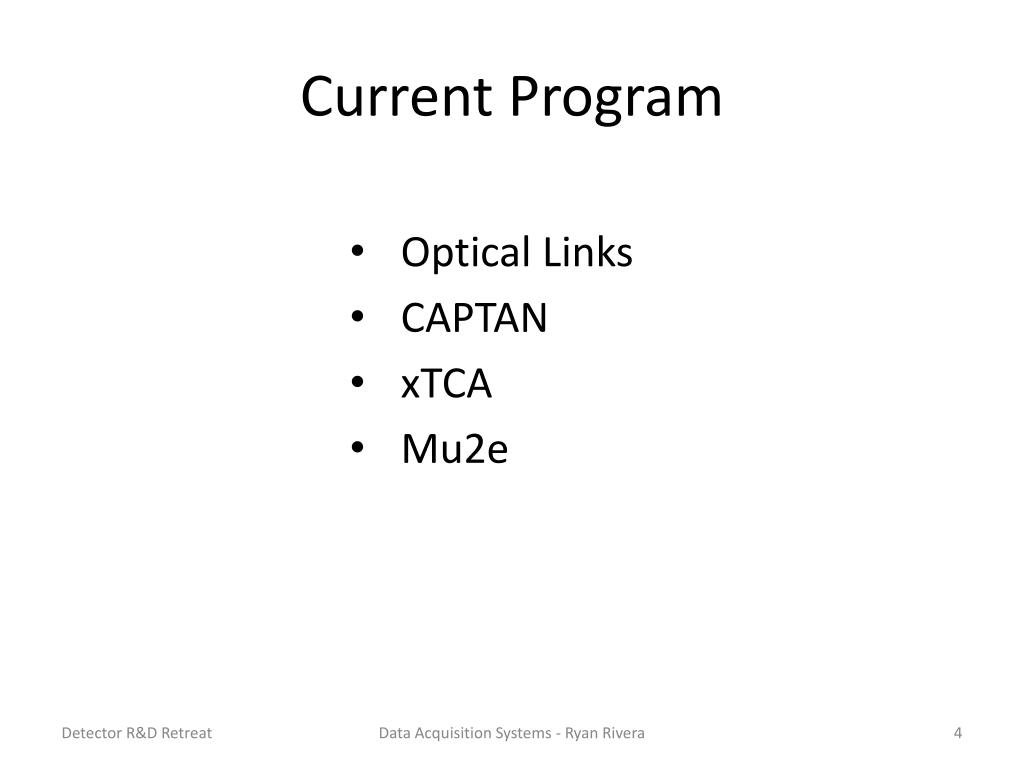

  4. Current Program • Optical Links • CAPTAN • xTCA • Mu2e Data Acquisition Systems - Ryan Rivera

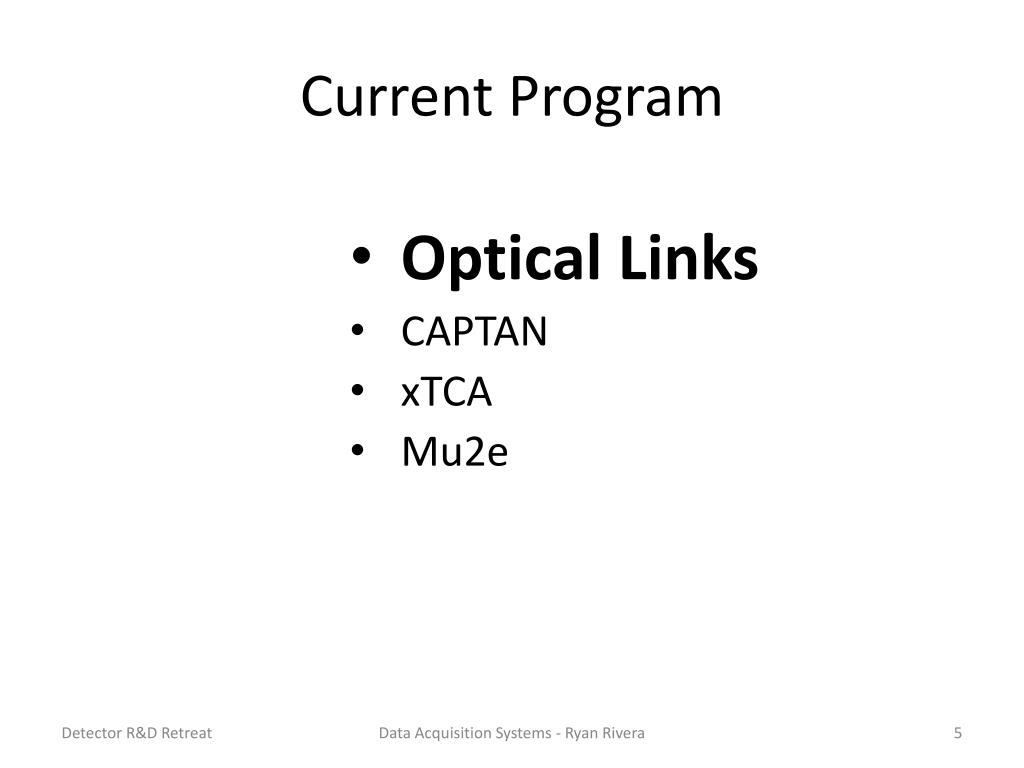

  5. Current Program • Optical Links • CAPTAN • xTCA • Mu2e Data Acquisition Systems - Ryan Rivera

  6. Optical Links • Versatile Link Common Project • Free Space Optical Transmission Data Acquisition Systems - Ryan Rivera

  7. Optical Links • Versatile Link Common Project • Free Space Optical Transmission Data Acquisition Systems - Ryan Rivera

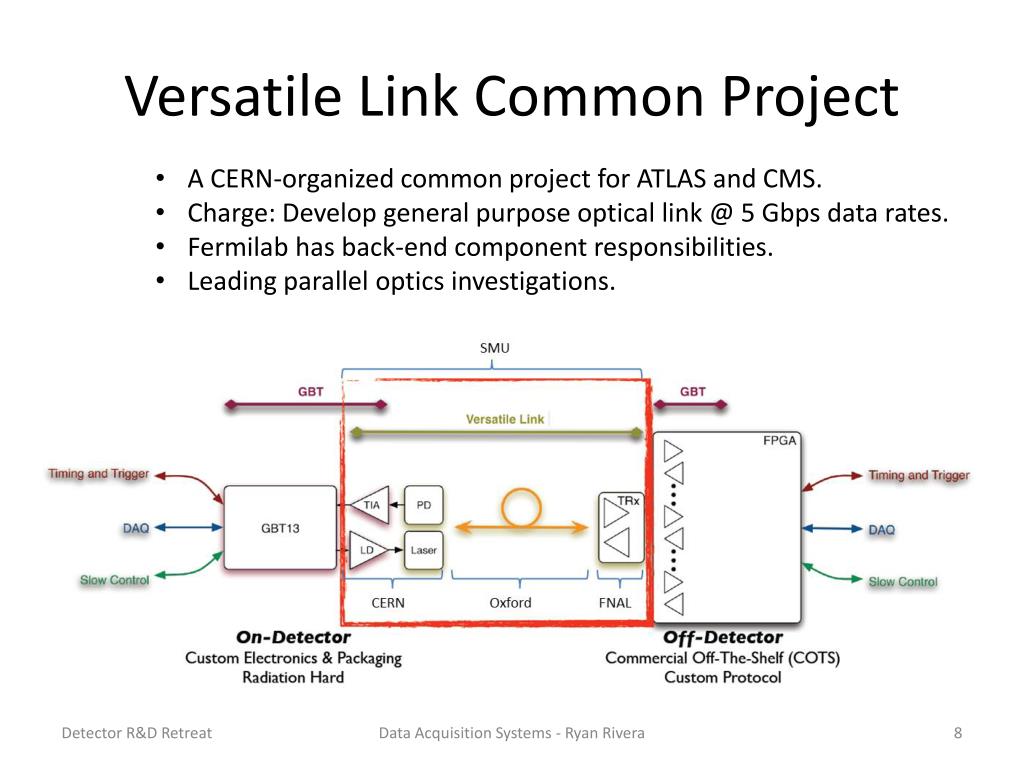

  8. Versatile Link Common Project • A CERN-organized common project for ATLAS and CMS. • Charge: Develop general purpose optical link @ 5 Gbps data rates. • Fermilab has back-end component responsibilities. • Leading parallel optics investigations. Data Acquisition Systems - Ryan Rivera

  9. Optical Transceiver Test Measurements Industry Standard Measurements and Apparatus • Eye Diagram Measurements: • Optical Modulation Amplitude • Extinction Ratio • Rise/Fall Times • Jitter Analysis: • Deterministic Jitter Decomposition • Random Jitter (Gaussian, Unbounded) • Eye Opening @ 10-12 BER Data Acquisition Systems - Ryan Rivera

  10. CMS Pixel Optohybrid (POH) • Status: Current laser no longer available • Upgrades will require new devices • Requirements: • Rad hard • 640 Mbps • Next: FNAL responsible for testing and characterizing devices Data Acquisition Systems - Ryan Rivera

  11. Parallel Optics – Technology Evolution Data Acquisition Systems - Ryan Rivera

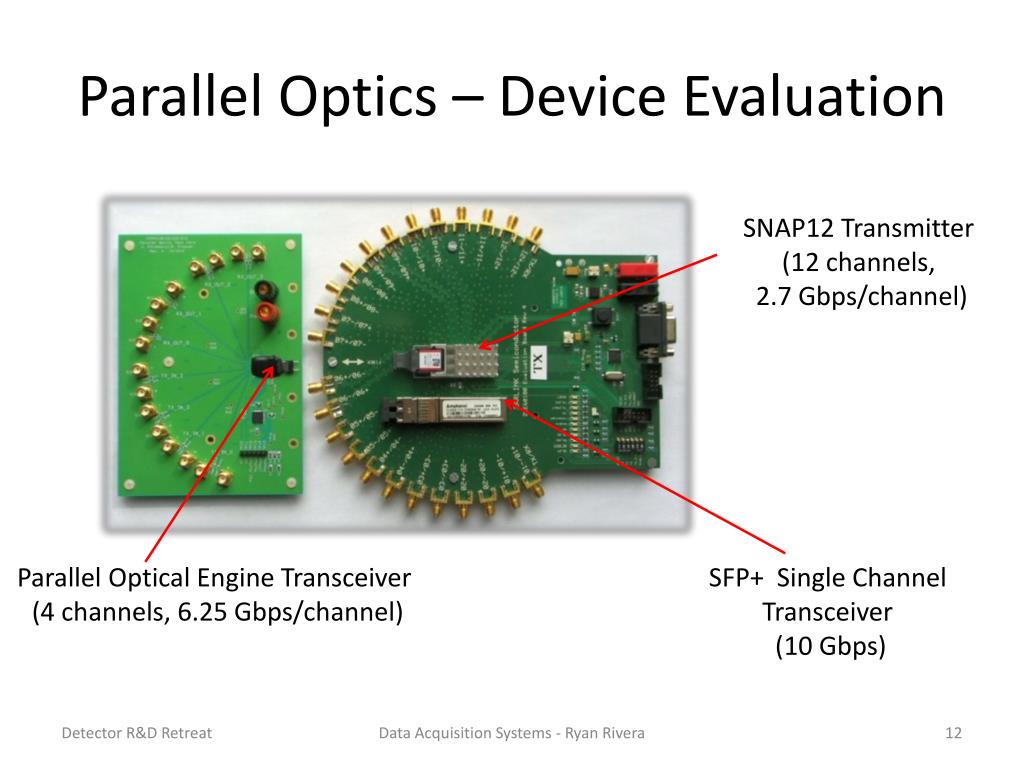

  12. Parallel Optics – Device Evaluation SNAP12 Transmitter (12 channels, 2.7 Gbps/channel) Parallel Optical Engine Transceiver (4 channels, 6.25 Gbps/channel) SFP+ Single Channel Transceiver (10 Gbps) Data Acquisition Systems - Ryan Rivera

  13. Optical Links • Versatile Link Common Project • Free Space Optical Transmission Data Acquisition Systems - Ryan Rivera

  14. Free Space Optical Transmission 10Gb/s Optical Receivers • Motivation • Reduce material budget • Work within rigid space constraints 10 Gbps Optical Transmitters at different wavelengths Silicon Detectors ~100-150 cm ~50-100 cm ~10- 50cm Beam Line Center Data Acquisition Systems - Ryan Rivera

  15. Free Space Proof of Concept l1 = 1470 nm l2 = 1490 nm l3 = 1510 nm l4 = 1530 nm CWDM: Coarse Wavelength Division Multiplexing 21 cm CWDM DeMux CWDM Mux 8cm Lens Lens ~2 mm Si ~2 mm Si FPGA-Based BERT l1 l1 Rx Tx l2 l2 Rx Tx l3 l3 Rx Tx l4 l4 Rx Tx Rx LVDS Electrical Bit Streams Tx LVDS Electrical Bit Streams Next Step: Evolve the Optical Design for Detector Applications Data Acquisition Systems - Ryan Rivera

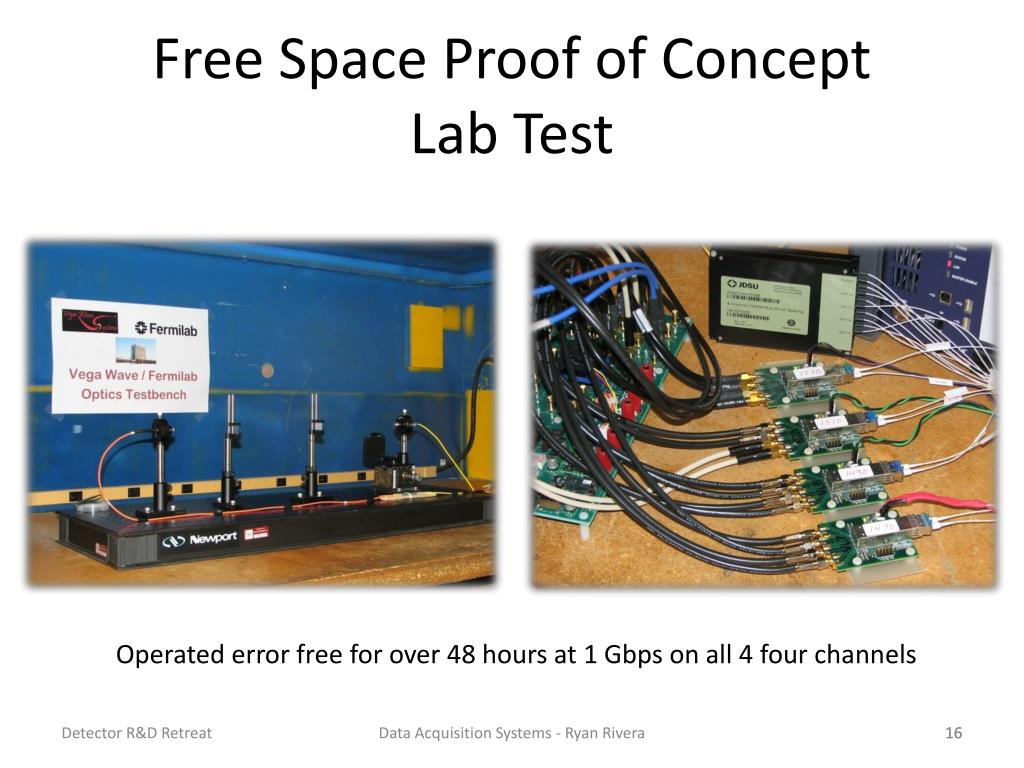

  16. Free Space Proof of ConceptLab Test Operated error free for over 48 hours at 1 Gbps on all 4 four channels Data Acquisition Systems - Ryan Rivera 16

  17. Optical Links Future • Parallel optics • Initiated US R&D request to recent DOE detector solicitation. Need KA15 money until DOE approval. • Working with vendors on emerging devices, and SMU/OSU on custom devices. • Versatile Link and CMS Phase 1 Optohybrid • Activities not funded by KA15, funded through CMS. • Free space optics • Exploring low mass/power options (modulators). Data Acquisition Systems - Ryan Rivera

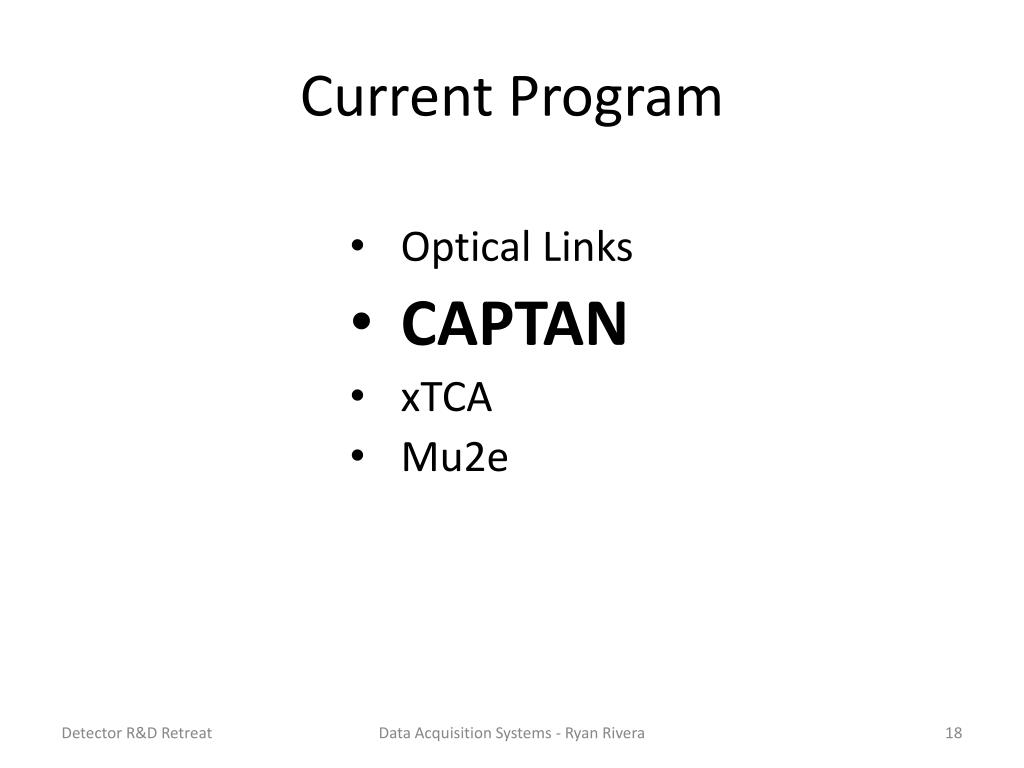

  18. Current Program • Optical Links • CAPTAN • xTCA • Mu2e Data Acquisition Systems - Ryan Rivera

  19. CAPTAN What is the CAPTAN system? Data Acquisition Systems - Ryan Rivera

  20. Compact And Programmable daTa Acquisition Node Data Acquisition Systems - Ryan Rivera

  21. Attributes • It is simple. • It is 6” x 6” and for many systems, the only external connections are a 3.3V power supply and a standard Ethernet cable. Data Acquisition Systems - Ryan Rivera

  22. Attributes • It is flexible. • The user can stack the foundation boards in different combinations to give unique functionality. Data Acquisition Systems - Ryan Rivera

  23. Attributes • It is scalable. • In addition to the vertical stacking, the stacks can be repeated arbitrarily and connected with one or many PCs in an Ethernet network. Data Acquisition Systems - Ryan Rivera

  24. COOLING CHANNEL OPTICAL BUS ELECTRONICS VERTICAL BUS LATERAL BUS MOUNTING HOLE User Template • The CAPTAN architecture consists of a few core boards but is intended to be augmented by custom boards designed and built by users. Data Acquisition Systems - Ryan Rivera

  25. Core Boards “Green Board” NPCB – Node Processing and Control Board “Blue Board” DCB – Data Conversion Board “Red Board” PDB – Power Distribution Board. Data Acquisition Systems - Ryan Rivera

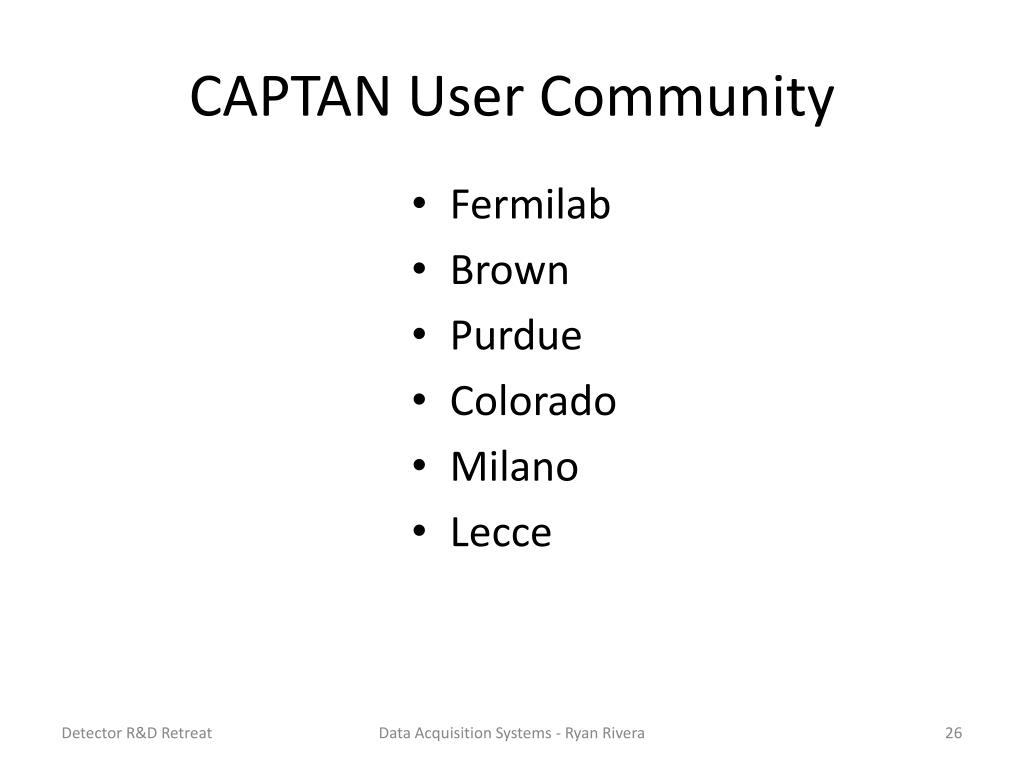

  26. CAPTAN User Community • Fermilab • Brown • Purdue • Colorado • Milano • Lecce Data Acquisition Systems - Ryan Rivera

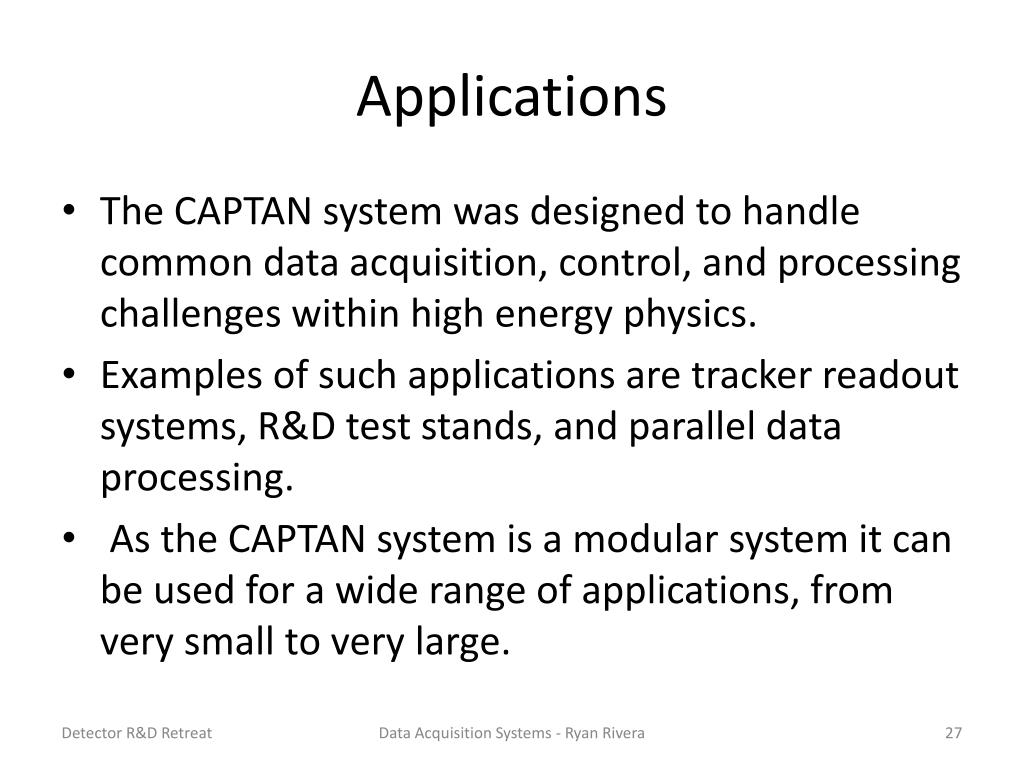

  27. Applications • The CAPTAN system was designed to handle common data acquisition, control, and processing challenges within high energy physics. • Examples of such applications are tracker readout systems, R&D test stands, and parallel data processing. • As the CAPTAN system is a modular system it can be used for a wide range of applications, from very small to very large. Data Acquisition Systems - Ryan Rivera

  28. FTBF Pixel Telescope Data Acquisition Systems - Ryan Rivera

  29. PPD VIP Test Stand Data Acquisition Systems - Ryan Rivera

  30. QIE Irradiation BER Testing Data Acquisition Systems - Ryan Rivera

  31. IHEP Telescope - Beijing Data Acquisition Systems - Ryan Rivera

  32. T980 Crystal Collimation Telescope Data Acquisition Systems - Ryan Rivera

  33. CAPTAN Future • Port CAPTAN Software to Linux • Explore parallel processing power • Integrate with xTCA Data Acquisition Systems - Ryan Rivera

  34. Current Program • Optical Links • CAPTAN • xTCA • Mu2e Data Acquisition Systems - Ryan Rivera

  35. xTCA • ATCA (Advanced Telecommunications Computing Architecture) • Spec put forth by PICMG (PCI Industrial Computer Manufacturers Group: a consortium of over 250 companies) • AMC plugs into ATCA card • Or MicroTCA crate • ATCA + MicroTCA = xTCA • Successor to VME? 12U 14-slot ATCA shelf Data Acquisition Systems - Ryan Rivera

  36. Advanced Mezzanine Card (AMC) Data Acquisition Systems - Ryan Rivera

  37. xTCA and CAPTANIntegration Data Acquisition Systems - Ryan Rivera

  38. VME vs. xTCA +Number of new developments decreasing, sales still constant + Many I/O modules available − Developed in 1981 − Bus technology has speed limitations − Wide busses create a lot of noise in analog channels − No standard management at crate level − No standard management at module level − One damaged bus line stops entire crate Data Acquisition Systems - Ryan Rivera

  39. VME vs. xTCA + Scalable modern architecture • From 1 slot MicroTCA to full mesh ATCA + 1 Gbps serial communication links + Standard PCIe and Ethernet communication+ Well defined management + Hot-swappable + Safe against hardware/software failures + 99.999% availability is possible Data Acquisition Systems - Ryan Rivera

  40. VME vs. xTCA − Many crates and modules from different manufacturers • Is there a 'standard' ? − Learning curve to software/hardware specifications − Need functional MMC/IPMI code for power delivery − Imposed system management Data Acquisition Systems - Ryan Rivera

  41. xTCA Future • Large experiments are considering xTCA over VME. • CMS • ATLAS • LHCb • Experiments at DESY • Dream is to develop a readout system for strips/pixels • Evaluate for future FNAL Experiments (CMS upgrade, Mu2e) • SBIR submitted with industry partners. • Vince Pavlicek is on committee to develop the PhysMTCA or MTCA.4 (MicroTCA for Physics) spec. Data Acquisition Systems - Ryan Rivera

  42. Current Program • Optical Links • CAPTAN • xTCA • Mu2e Data Acquisition Systems - Ryan Rivera

  43. Mu2e • Tracker • 21,600 Straws • 216 Readout Controllers • ~65 GBps* • Calorimeter • 2112 Crystals • 44 Readout Controllers • ~15 GBps* • * zero-suppressed data • Additional data (< 1 GBps) from • Cosmic Ray Veto system and • extinction/target monitors Data Acquisition Systems - Ryan Rivera

  44. Architecture Alternatives • Streaming (this is the selected architecture) +less front-end hardware (no concentrators or L1 Trigger) +simpler design + flexible trigger −higher cost • Triggered +less back-end hardware (networking and processing) + lower cost + allows higher digitization rate (e.g., waveform digitizers) −fixed L1 trigger Data Acquisition Systems - Ryan Rivera

  45. Implementation Alternatives Servers Standalone (rack-mount) DTC NIC EVB Switch DTC Servers EVB Switch PCIe DTC DTC Servers EVB Switch PCIe DTC (event building in server) NIC DTC Data Acquisition Systems - Ryan Rivera

  46. Comparing Technology • To meet the demands of a 100 GBps streaming DAQ, Mu2e will leverage… • 10 Gbps Networking • High Density FPGAs • High Performance Processors • Fiber-optic Communications (synergy with Optical Links) Historical Perspective Data Acquisition Systems - Ryan Rivera

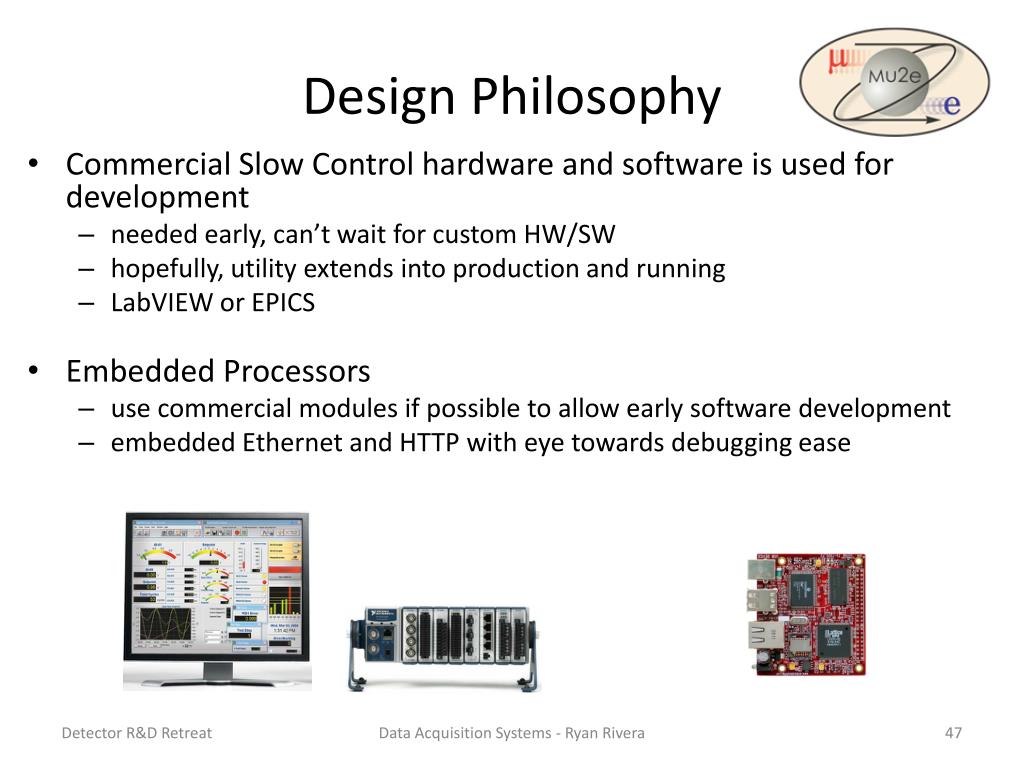

  47. Design Philosophy • Commercial Slow Control hardware and software is used for development • needed early, can’t wait for custom HW/SW • hopefully, utility extends into production and running • LabVIEW or EPICS • Embedded Processors • use commercial modules if possible to allow early software development • embedded Ethernet and HTTP with eye towards debugging ease Data Acquisition Systems - Ryan Rivera

  48. Mu2e Future • One year from starting prototype phase. • ~6 years to installation complete. • Mu2e funded by Mu2e, but components of DAQ architecture may apply to future experiments (Project X and others). Data Acquisition Systems - Ryan Rivera

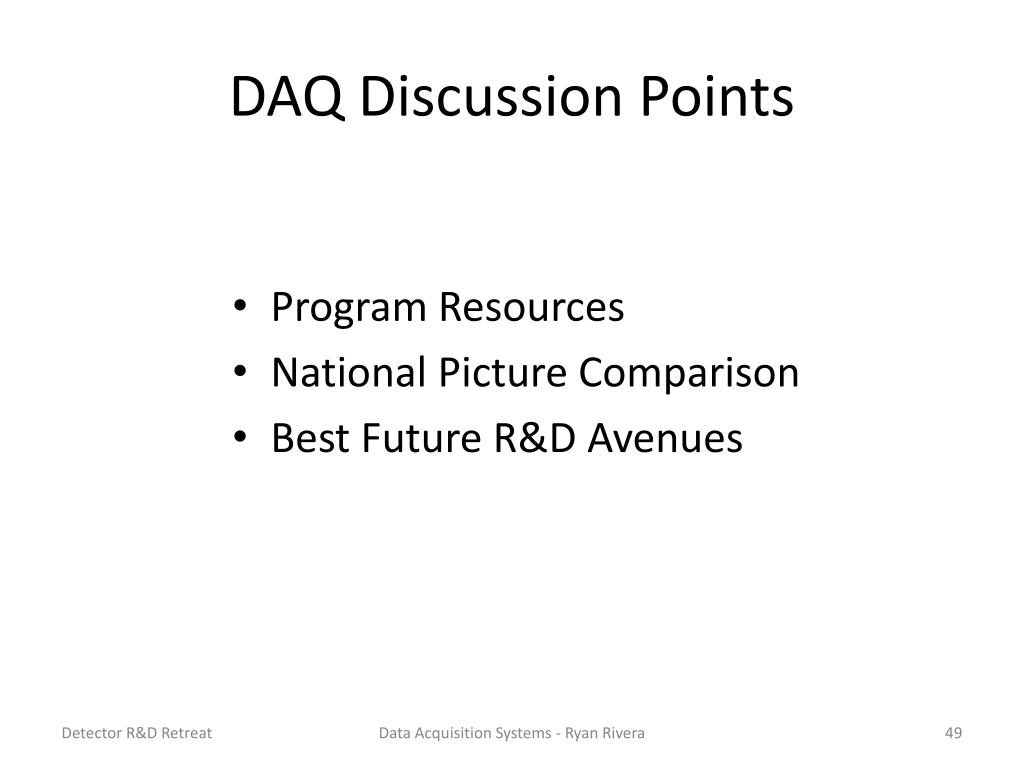

  49. DAQ Discussion Points • Program Resources • National Picture Comparison • Best Future R&D Avenues Data Acquisition Systems - Ryan Rivera

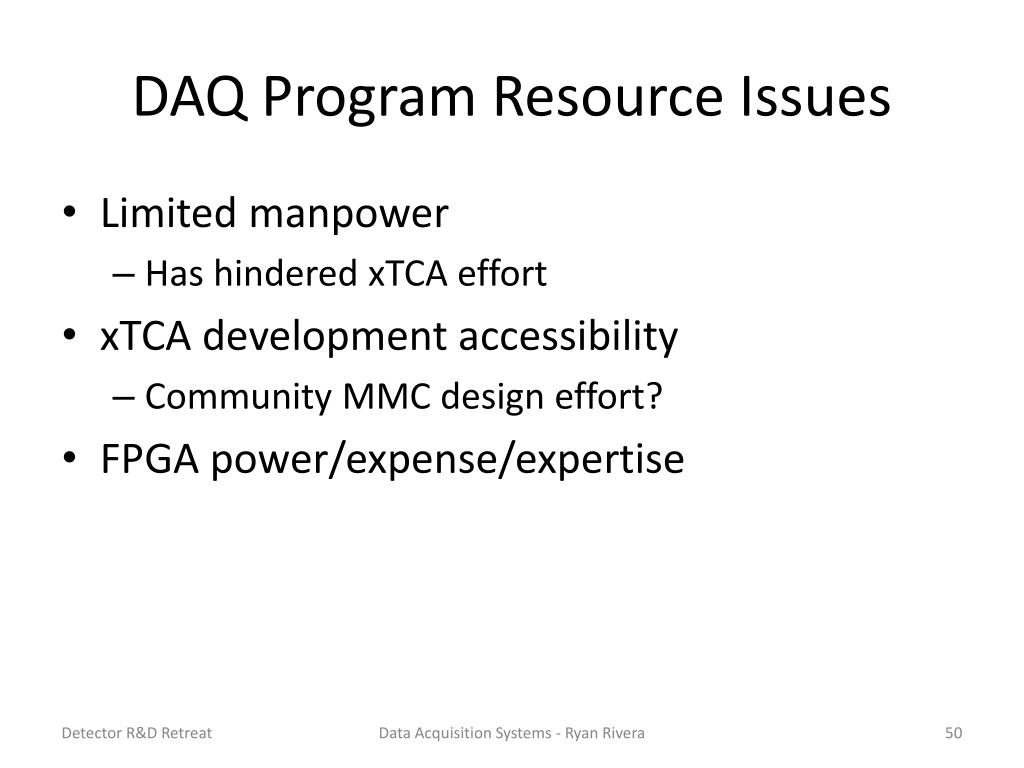

  50. DAQ Program Resource Issues • Limited manpower • Has hindered xTCA effort • xTCA development accessibility • Community MMC design effort? • FPGA power/expense/expertise Data Acquisition Systems - Ryan Rivera
