  1. Floyds Fork Bacteria TMDL Andrea M. Fredenburg Kentucky Division of Water TMDL Section November 28, 2012

  2. Goals • Present watershed information • Present TMDL calculations • Provide example for one stream segment • Vote on options for path forward to public notice

  3. KY’s Bacteria Criteria

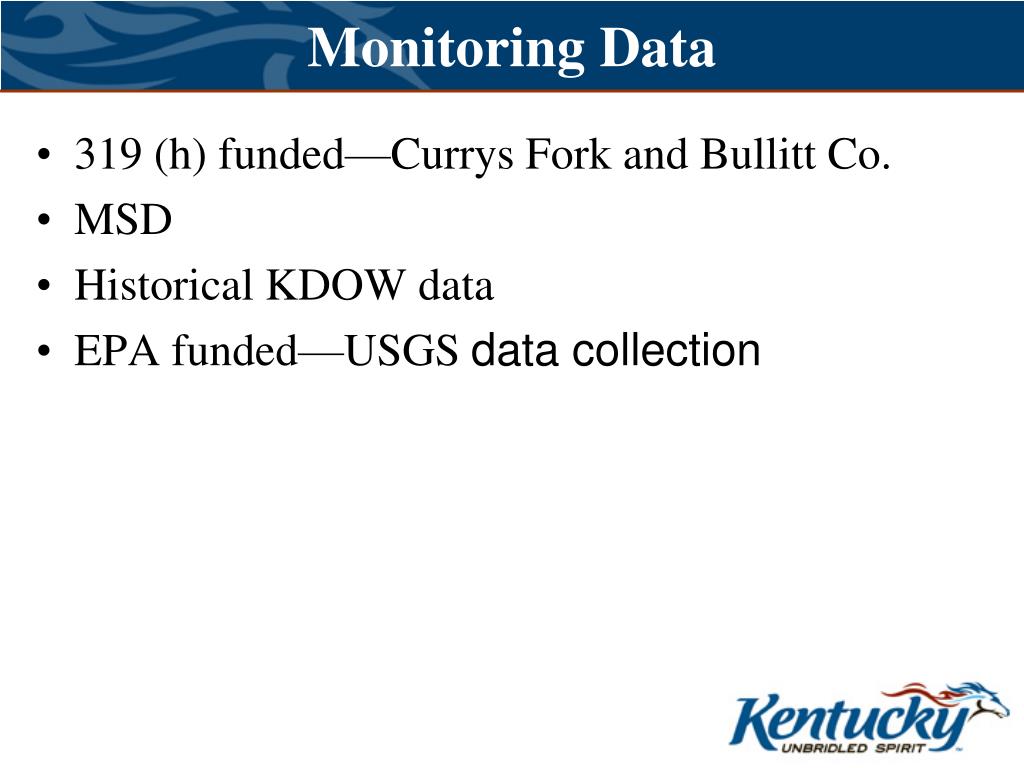

  4. Monitoring Data • 319 (h) funded—Currys Fork and Bullitt Co. • MSD • Historical KDOW data • EPA funded—USGS data collection

  5. Currys Fork WBP Sites (2007, 2009)

  6. Bullitt County WBP Sites (2005-2006)

  7. MSD Sample Sites (2000-2010)

  8. KDOW Sample Sites (1998-2009)

  9. USGS Sample Sites (2007-2008)

  10. USGS Sample Sites (2007-2008)

  11. Bacteria Impaired Segments • 18 impaired stream segments • 18 E. coli PCR • 4 Fecal coliform PCR • 4 Fecal coliform SCR • 26 listed waterbody/pollutant combinations

  12. Floyds Fork Bacteria Impairments

  13. Floyds Fork Bacteria Impairments

  14. Floyds Fork Bacteria Impairments

  15. Floyds Fork Bacteria Impairments

  16. Potential Sources • KPDES-permitted sources to WLA • Others to LA

  17. Sanitary Wastewater Systems

  18. Sanitary Wastewater Systems

  19. MS4 Entities

  20. KNDOPs

  21. KNDOPs

  22. Sewer Lines* *Information Not Available for Jefferson County

  23. Sewer Lines* *Information Not Available for Jefferson County

  24. Septic Tank Suitability

  25. Land Cover

  26. TMDL Calculation Example • South Fork Currys Fork 0.0 to 6.1 • E. coli PCR impairment • SFCF-2 USGS sample site

  27. South Fork Currys Fork

  28. TMDL Equation TMDL (allowable # per day) = Allowable Concentration (allowable # per 100 ml) x Flow (in cubic feet per second) x Conversion Factor (24,465,758.4 per day) Conversion factor is figured as 1 cubic foot = 28316.85 ml and 1 day = 86400 seconds 1 x 1 cubic foot x 28316.85 ml x 86400 seconds = 24,465,758.4 100 ml second 1 cubic foot 1 day 1 day

  29. SFCF-2 Sample Data

  30. Convert Gage Flow to TMDL Site Flow Flow at sample site = Acres of land draining to sample site ÷ Acres of land draining to gage site x Flow at gage Flow at sample site = 4672 acres ÷ 51136 acres x 233 cfs Flow at sample site = 21.3 cfs

  31. Site SFCF-2 TMDL TMDL = Allowable Concentration x Flow x Conversion Factor TMDL = 240 E. coli colonies per 100 ml x 21.3 cfs x 24,465,758.4 per day TMDL = 125,068,956,900 E. coli colonies per day TMDL = 1.25E+11 E. coli colonies/day

  32. Segment TMDL Segment TMDL = Site TMDL x Acres at downstream end of segment ÷ Acres at site Segment TMDL = 1.25E+11 E. coli colonies/day x 5949 acres ÷ 4672 acres Segment TMDL = 1.59E+11 E. coli colonies/day

  33. TMDL and Flow TMDL = Allowable Concentration x Flow x Conversion Factor TMDL ≈ Flow Sample Load = Sample Concentration x Flow (on sample day) x Conversion Factor

  34. Load Duration Curve

  35. Source Areas

  36. TMDL Allocations TMDL = ∑WLA + ∑LA + MOS Explicit MOS is 10% of TMDL South Fork Currys Fork 0.0-6.1 Segment TMDL = 1.59E+11 E. coli colonies/day MOS= 1.59E+11 E. coli colonies/day x 10% MOS= 1.59E+10 E. coli colonies/day

  37. SWS-WLA SWS-WLA = Allowable Concentration of Bacteria (#/100 ml) x Facility Design Capacity (Design Flow in cfs) x Conversion Factor (24,465,758.4/day) South Fork Currys Fork 0.0 to 6.1

  38. Remainder Remainder = TMDL – MOS – ∑SWS-WLA South Fork Currys Fork 0.0 to 6.1 Remainder = 1.59E+11 - 1.59E+10 - 1.68E+09 Remainder = 1.42E+11 E. coli (colonies/day)

  39. MS4-WLA MS4-WLA = # Acres of Developed Land in MS4 ÷ # Acres in Subwatershed x Remainder For South Fork Currys Fork 0.0 to 6.1 754 acres of developed land in the MS4 5948.52 acres in the subwatershed Remainder = 1.42E+11 E. coli (colonies/day) South Fork Currys Fork 0.0 to 6.1 MS4-WLA = 754 ÷ 5948.52 x 1.42E+11 MS4-WLA = 1.80E+10 E. coli (colonies/day)

  40. Future Growth WLA Future Growth-WLA = Future Growth WLA Percentage x Remainder South Fork Currys Fork 0.0 to 6.1 754 acres of developed land 5948.52 acres of land in the subwatershed. Percent Developed Area = 12.68 (754 ÷ 5948.52 = 12.68%) • Future Growth WLA Percentage = 2%, Remainder = 1.42E+11 Future Growth-WLA = 2% x 1.42E+11 E. coli (colonies/day) Future Growth-WLA = 2.83E+09 E. coli (colonies/day)

  41. LA ∑LA = TMDL - MOS - ∑WLA South Fork Currys Fork 0.0 to 6.1 TMDL = 1.59E+11 MOS = 1.59E+10 • ∑ SWS-WLA = 1.68E+09 • MS4-WLA = 1.80E+10 • Future Growth-WLA = 2.83E + 09 • ∑WLA =2.25E+10 ∑LA= 1.59E+11 – 1.59E+10 – 2.25E+10 ∑LA= 1.21E+11

  42. The TMDLs and Allocations • E. coli PCR • Fecal coliform PCR • Fecal coliform SCR

  43. E. Coli PCR TMDLs

  44. Fecal Coliform PCR TMDLs

  45. Fecal Coliform SCR TMDLs

  46. Vote • TAC review/comments prior to public notice • TAC review/comments concurrent with public notice

  47. Contact Information Andrea M. Fredenburg TMDL Section Division of Water 200 Fair Oaks Lane Frankfort, KY 40601 Andrea.Fredenburg@ky.gov
