  1. Primitives for Achieving Reliability 3035/GZ01 Networked Systems Kyle Jamieson Lecture 7 Department of Computer Science University College London

  2. Achieving reliability: the story so far • Apply forward error correction (FEC) at physical layer • Apply error detection at higher layers

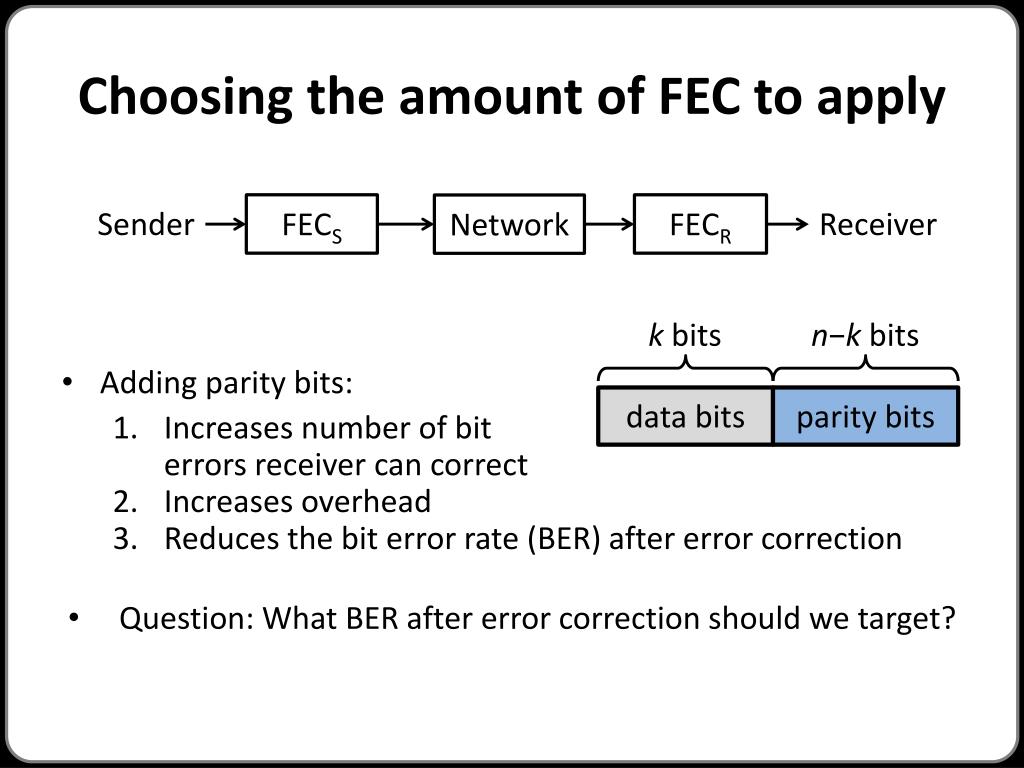

  3. Choosing the amount of FEC to apply • Adding parity bits: • Increases number of bit errors receiver can correct • Increases overhead • Reduces the bit error rate (BER) after error correction • Question: What BER after error correction should we target? k bits n−k bits FECS FECR Network Sender Receiver data bits parity bits

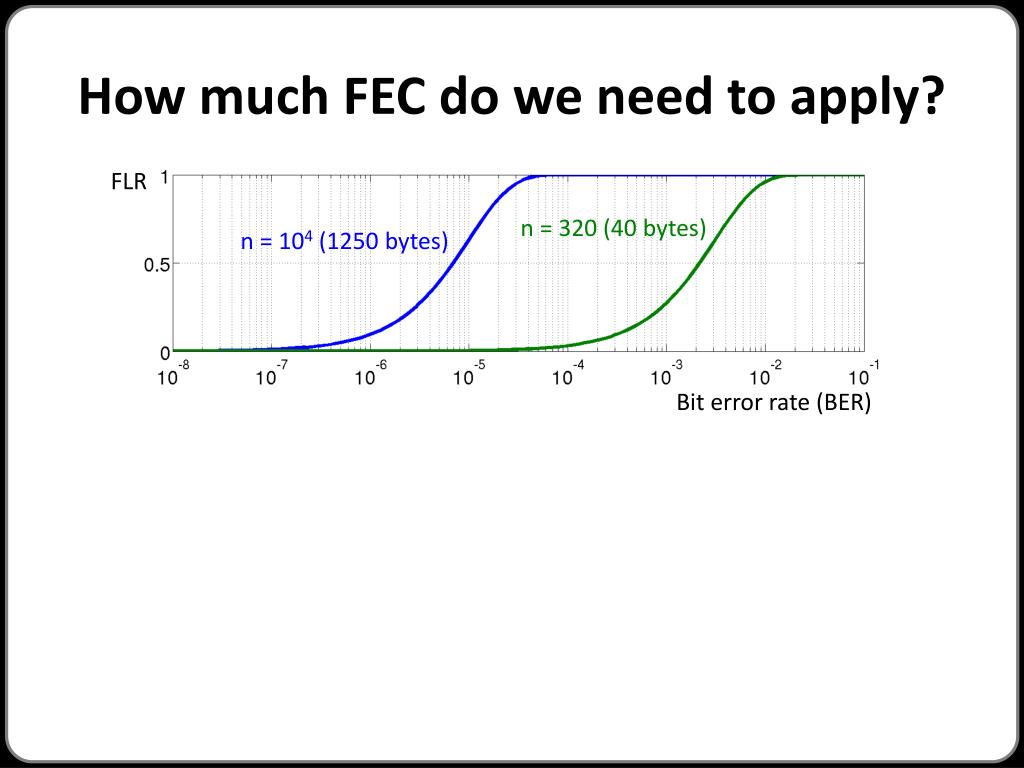

  4. How much FEC do we need to apply? FLR n = 320 (40 bytes) n = 104 (1250 bytes) Bit error rate (BER)

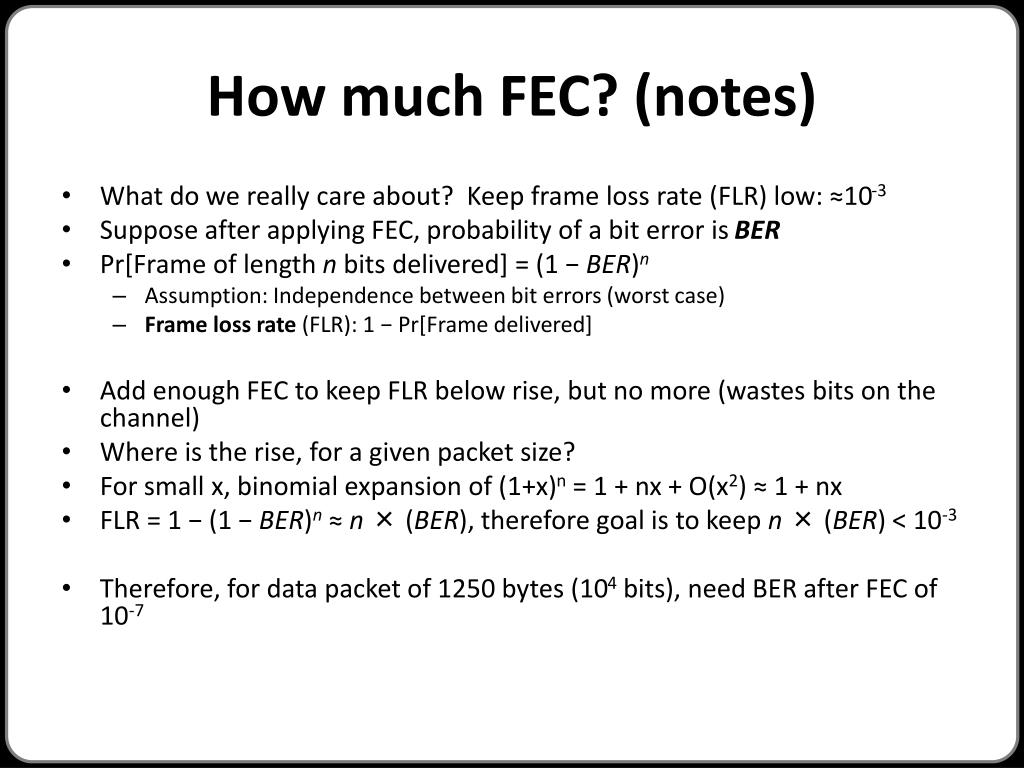

  5. How much FEC? (notes) • What do we really care about? Keep frame loss rate (FLR) low: ≈10-3 • Suppose after applying FEC, probability of a bit error is BER • Pr[Frame of length n bits delivered] = (1 − BER)n • Assumption: Independence between bit errors (worst case) • Frame loss rate (FLR): 1 − Pr[Frame delivered] • Add enough FEC to keep FLR below rise, but no more (wastes bits on the channel) • Where is the rise, for a given packet size? • For small x, binomial expansion of (1+x)n = 1 + nx + O(x2) ≈ 1 + nx • FLR = 1 − (1 − BER)n ≈ n × (BER), therefore goal is to keep n × (BER) < 10-3 • Therefore, for data packet of 1250 bytes (104 bits), need BER after FEC of 10-7

  6. Some errors are too severe to be corrected • No matter how many parity bits we add, the network could flip them and data bits, causing errors! • Error detection (CRC) then discards these frames How to ensure that links are reliable? FECS FECR Network Sender Receiver

  7. Reliable delivery: Plan • Goal: ensure every packet is received exactly once • Exactly-once delivery • Pipelining for performance • Handling retransmissions intelligently • Congestion in the Internet • Culmination: the Transmission Control Protocol

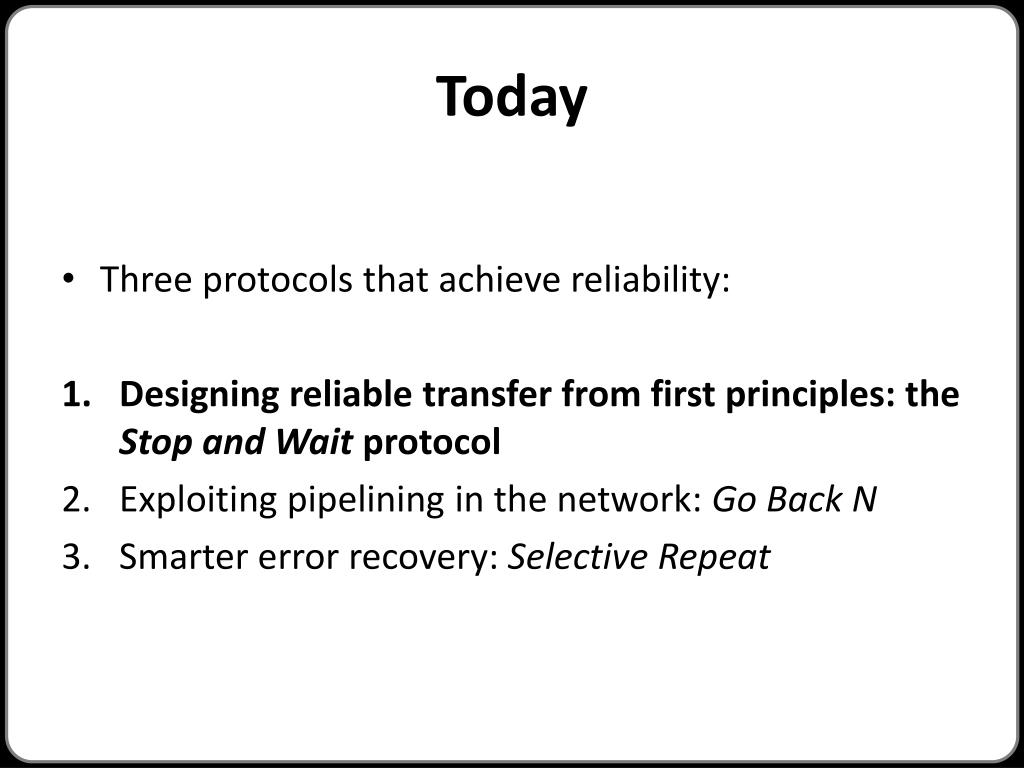

  8. Today • Three protocols that achieve reliability: • Designing reliable transfer from first principles: the Stop and Wait protocol • Exploiting pipelining in the network: Go Back N • Smarter error recovery: Selective Repeat

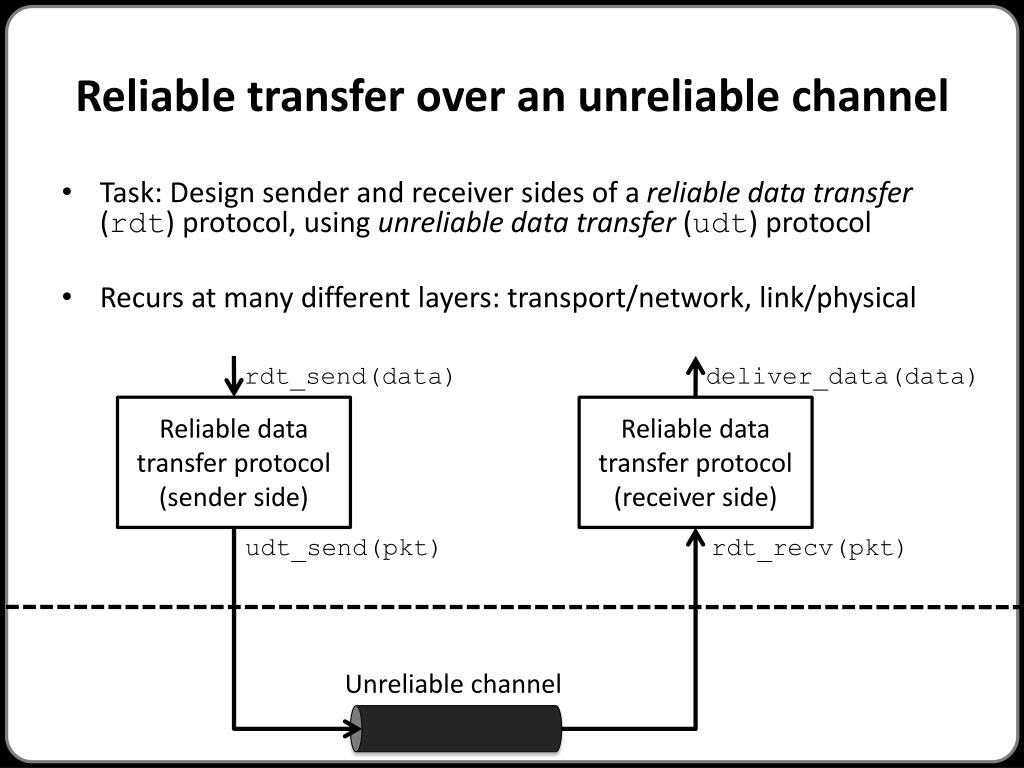

  9. Reliable transfer over an unreliable channel • Task: Design sender and receiver sides of a reliable data transfer (rdt) protocol, using unreliable data transfer (udt) protocol • Recurs at many different layers: transport/network, link/physical rdt_send(data) deliver_data(data) Reliable data transfer protocol (sender side) Reliable data transfer protocol (receiver side) udt_send(pkt) rdt_recv(pkt) Unreliable channel

  10. Approach • Let’s derive a protocol that achieves reliable transfer from first principles • Goal:exactly once, in-order delivery of every packet • Unidirectional at first; same principles can generalize to bidirectional data transfer • Starting assumptions: • Channel can not introduce bit errors into packets • Channel can not fail to deliver packets • Channel can not delay packets • Channel can not reorder packets • Gradually relax these assumptions, one by one

  11. Reliable data transfer (rdt) v1.0 • Independent state machines at sender, receiver • No need for feedback (underlying channel is reliable) • No flow control in this protocol Sender state machine: Receiver state machine:

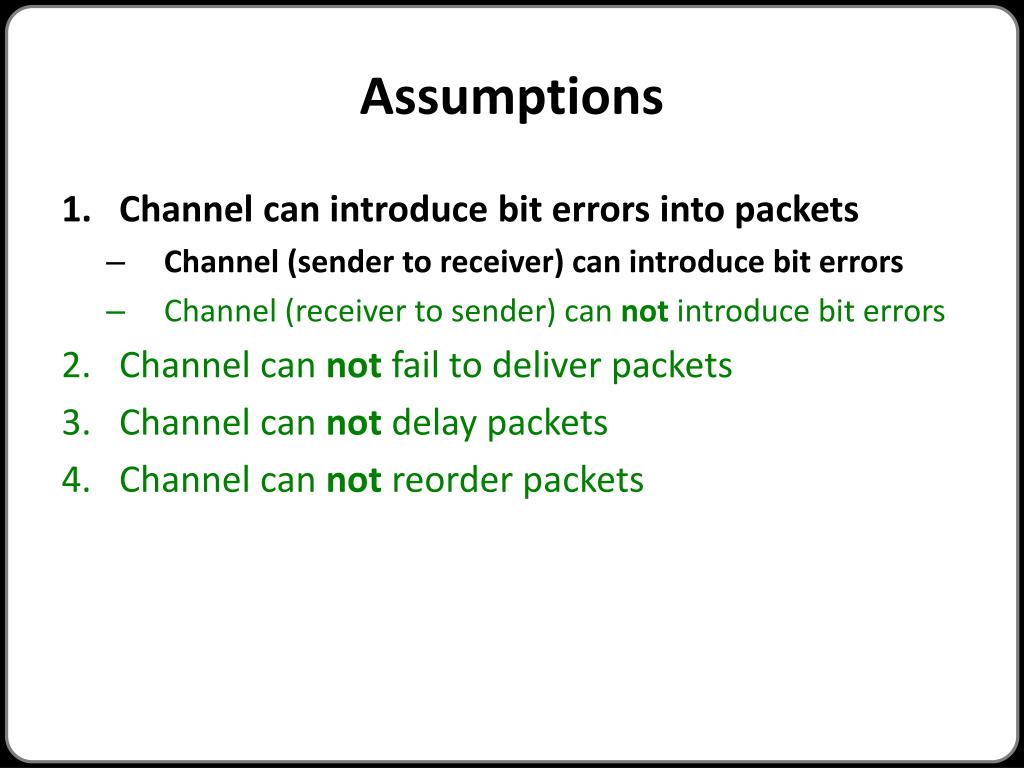

  12. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can not introduce bit errors • Channel can not fail to deliver packets • Channel can not delay packets • Channel can not reorder packets

  13. Idea: Receiver requests re-sends • Three fundamental mechanisms: • Error detection: typically a packet checksum (like the CRC) • Acknowledgements: small control frame (ACK) transmitted from the receiver back to the sender • Positive ACKs acknowledge correct receipt • Negative ACKs inform sender of incorrect receipt • Timeouts: sender waits a reasonable amount of time, then retransmits the frame • Protocols using these techniques are called automatic repeat request (ARQ) protocols • Surprisingly challenging to apply correctly! A loaf of bread, OK. A dozen eggs, Sorry? A dozen eggs,

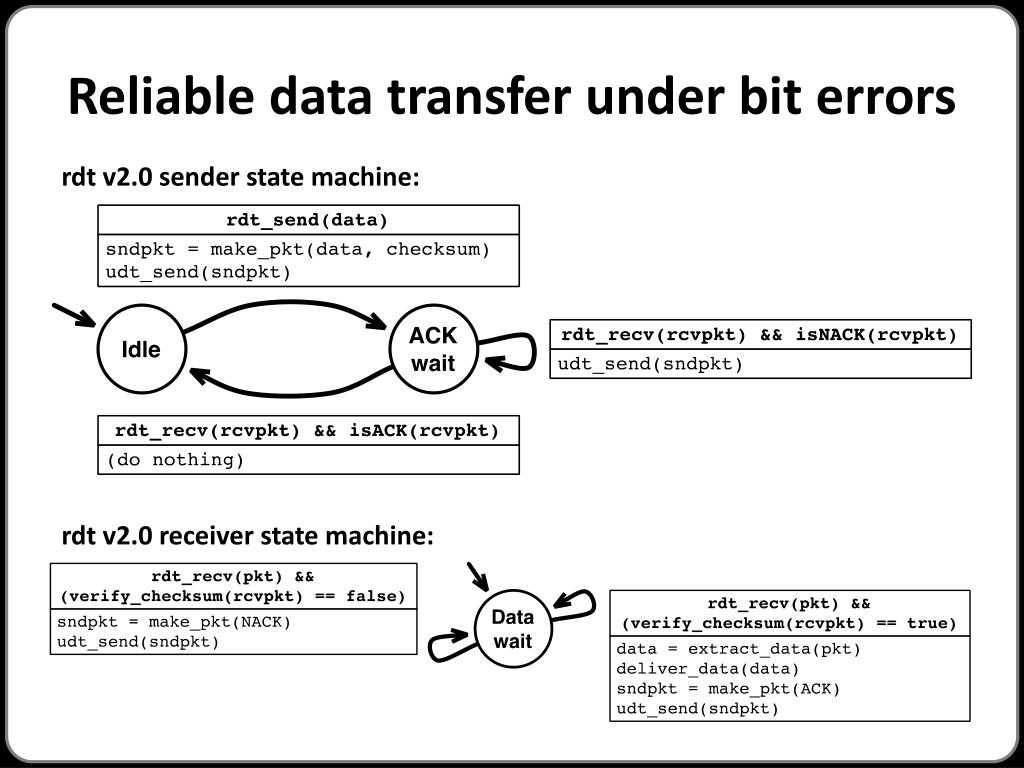

  14. Reliable data transfer under bit errors rdt v2.0 sender state machine: rdt v2.0 receiver state machine:

  15. Reliable data transfer v2.0 analysis Sender Receiver • Stop-and-wait protocol: Sender doesn’t send more data until sure original data received • Performance depends on sender-receiver delay, and throughput • Correctness: Two cases • Data arrives okay • ACK comes back immediately • Sender sends next packet • Data arrives corrupted • NACK comes back immediately • Sender retransmits corrupted packet • Exactly once, in-order delivery IDLE ACK wait Data A ACK IDLE ACK wait Data B NACK IDLE ACK wait Data B ACK

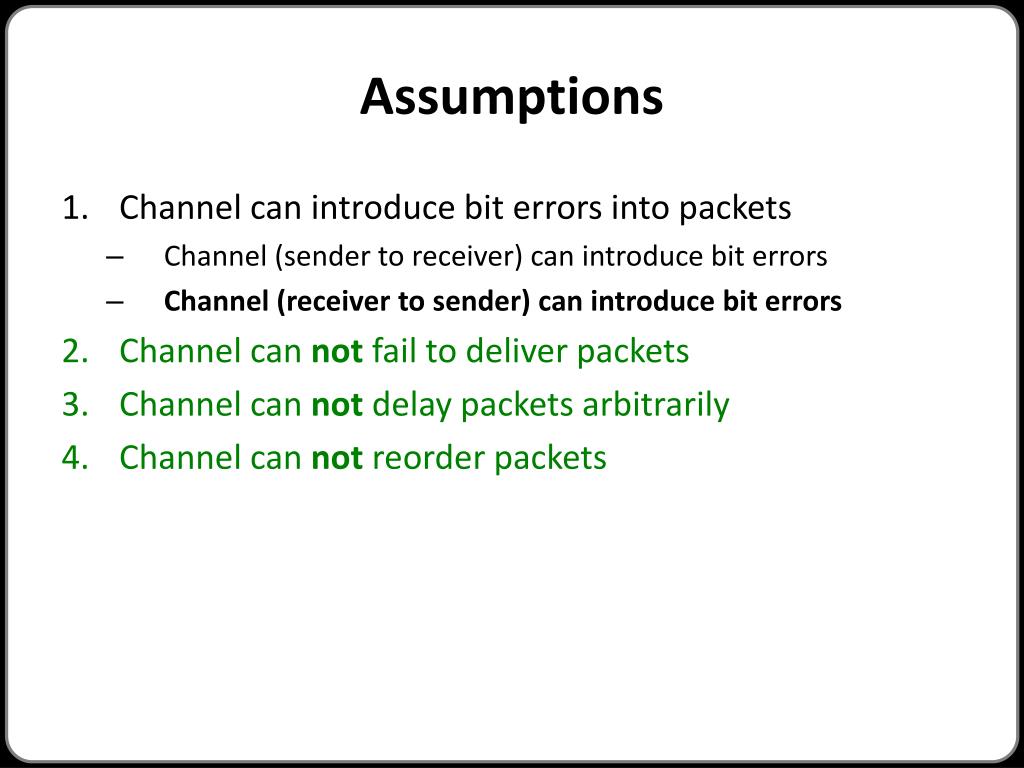

  16. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can introduce bit errors • Channel can not fail to deliver packets • Channel can not delay packets arbitrarily • Channel can not reorder packets

  17. Human approach to feedback errors • One possibility: Apply ARQ in reverse • Request retransmits of corrupted feedback • If corrupt, receiver doesn’t know if forward-link packets are data or feedback retransmit requests • Clearly heading down a difficult path! A loaf of bread, OK. Sorry? ???

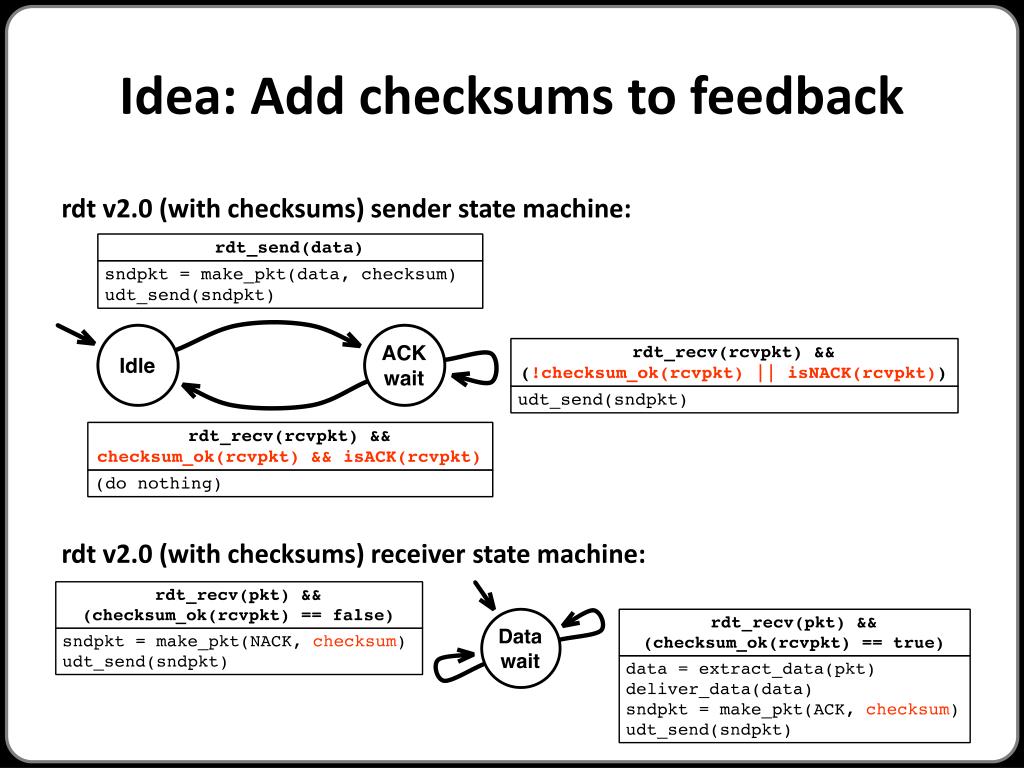

  18. Idea: Add checksums to feedback rdt v2.0 (with checksums) sender state machine: rdt v2.0 (with checksums) receiver state machine:

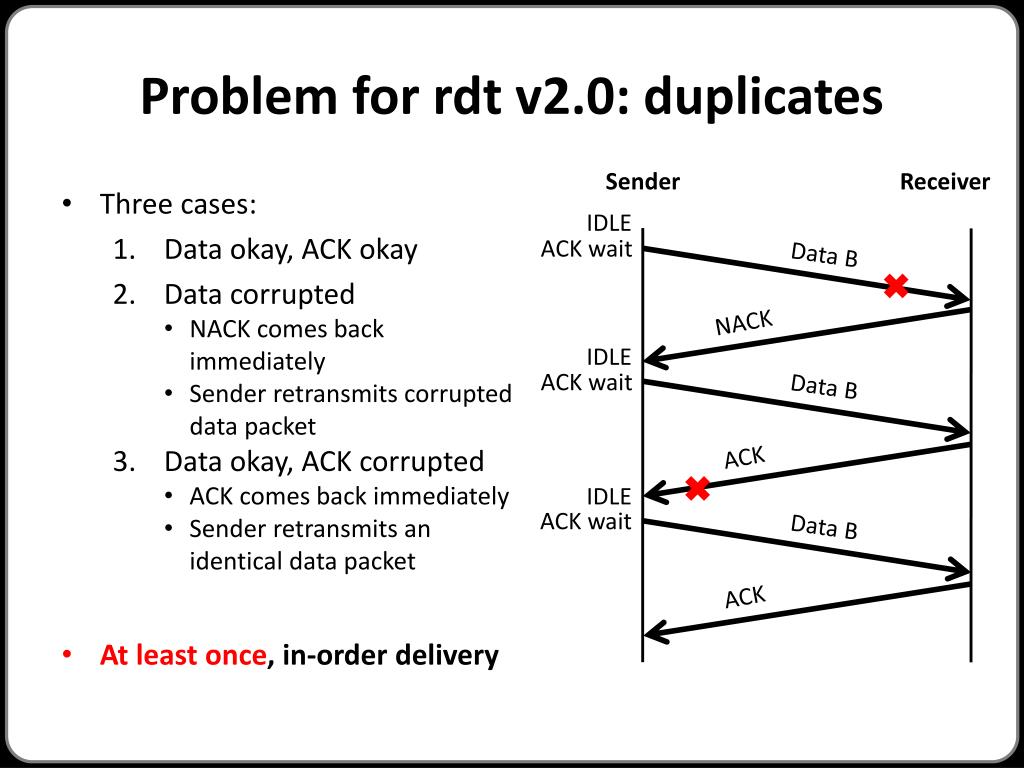

  19. Problem for rdt v2.0: duplicates Sender Receiver • Three cases: • Data okay, ACK okay • Data corrupted • NACK comes back immediately • Sender retransmits corrupted data packet • Data okay, ACK corrupted • ACK comes back immediately • Sender retransmits an identical data packet • At least once, in-order delivery IDLE ACK wait Data B NACK IDLE ACK wait Data B ACK IDLE ACK wait Data B ACK

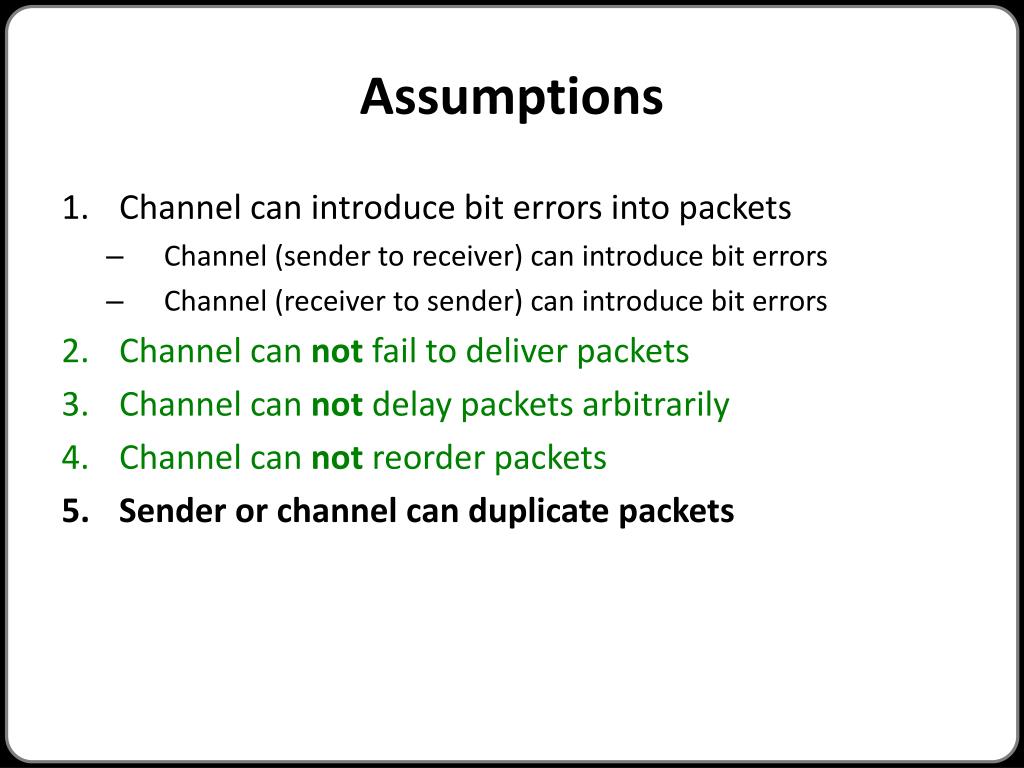

  20. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can introduce bit errors • Channel can not fail to deliver packets • Channel can not delay packets arbitrarily • Channel can not reorder packets • Sender or channel can duplicate packets

  21. From at least once to exactly once • Idea: add sequence numbers to data packets • Sequence number allows receiver to suppress duplicates rdt v2.1 sender state machine:

  22. From at least once to exactly once • Two states at receiver: one for expecting seqno=1; the other for expecting seqno=0 rdt v2.1 receiver state machine:

  23. rdt v2.1 error-free operation • Sender: send data, wait for reply • Receiver: deliver data, send ACK • Sender: send next data, wait • Receiver: deliver data, send ACK • Sender: transition to Idle State 0 Sender state machine: Sender Receiver Data, seqno=0 I0 DW 0 AW0 DW 1 Receiver state machine: ACK I1 Data, seqno=1 AW1 DW 0 ACK I0

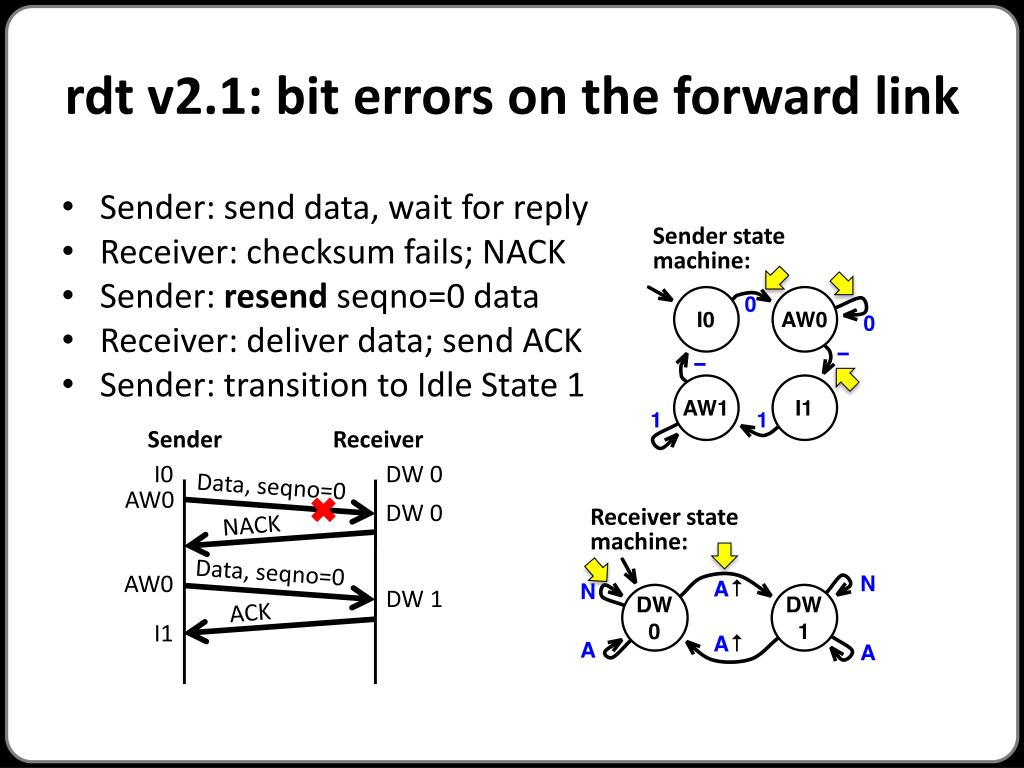

  24. rdt v2.1: bit errors on the forward link • Sender: send data, wait for reply • Receiver: checksum fails; NACK • Sender: resend seqno=0 data • Receiver: deliver data; send ACK • Sender: transition to Idle State 1 Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 0 Receiver state machine: NACK Data, seqno=0 AW0 DW 1 ACK I1

  25. rdt v2.1: bit errors on the reverse link • Sender: send data, wait for reply • Receiver: deliver data; send ACK • Sender: resend seqno=0 data • Receiver: dup. data; resend ACK • Sender: transition to Idle State 1 Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 1 Receiver state machine: ACK Data, seqno=0 AW0 DW 1 ACK I1

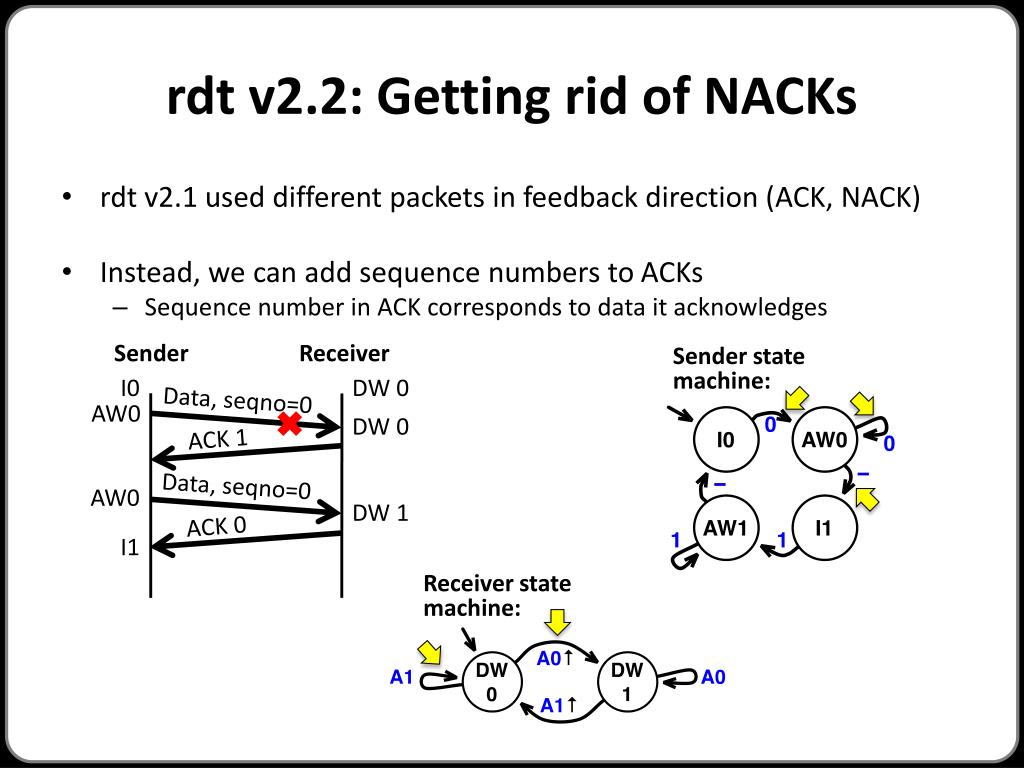

  26. rdt v2.2: Getting rid of NACKs • rdt v2.1 used different packets in feedback direction (ACK, NACK) • Instead, we can add sequence numbers to ACKs • Sequence number in ACK corresponds to data it acknowledges Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 0 Receiver state machine: ACK 1 I1 Data, seqno=0 AW0 DW 1 ACK 0

  27. rdt v2.1: Dropped packets • Sender: transmit data, wait for a reply from the receiver • Result: Deadlock Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 Receiver state machine:

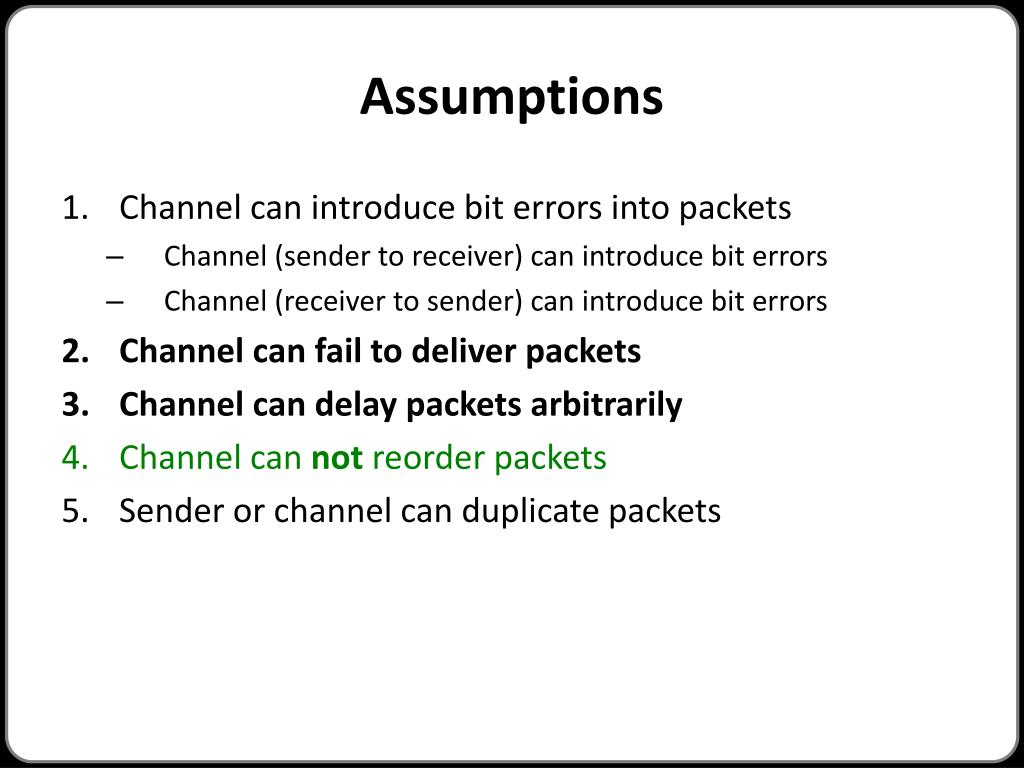

  28. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can introduce bit errors • Channel can fail to deliver packets • Channel can delay packets arbitrarily • Channel can not reorder packets • Sender or channel can duplicate packets

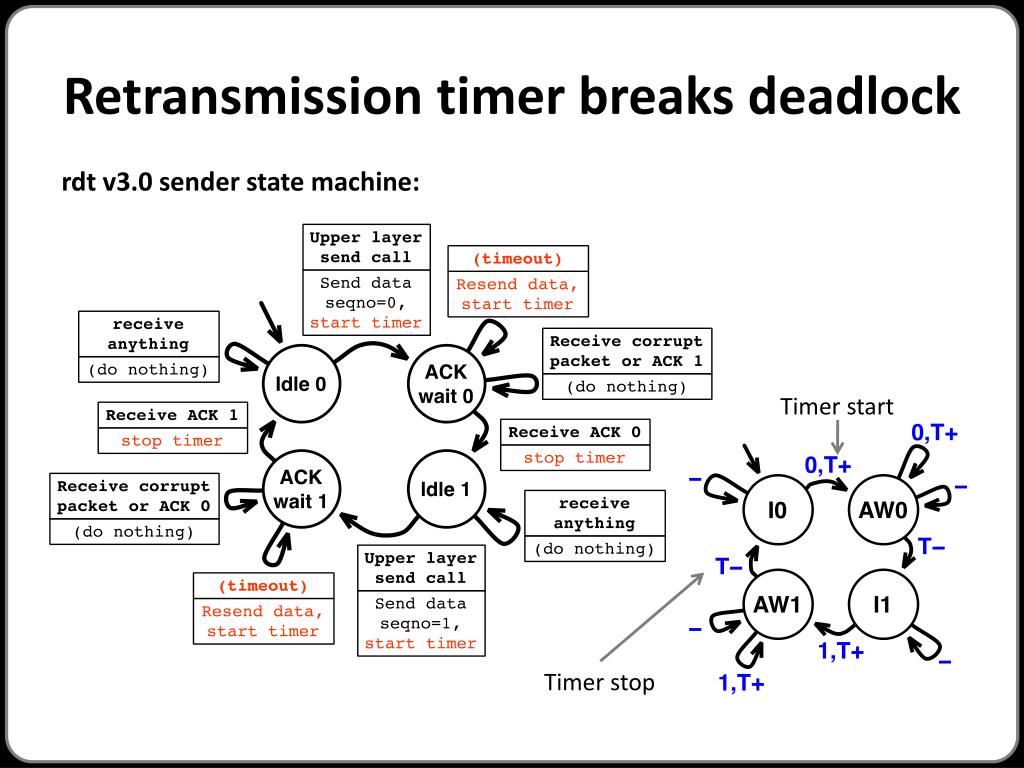

  29. Retransmission timer breaks deadlock rdt v3.0 sender state machine: Timer start Timer stop

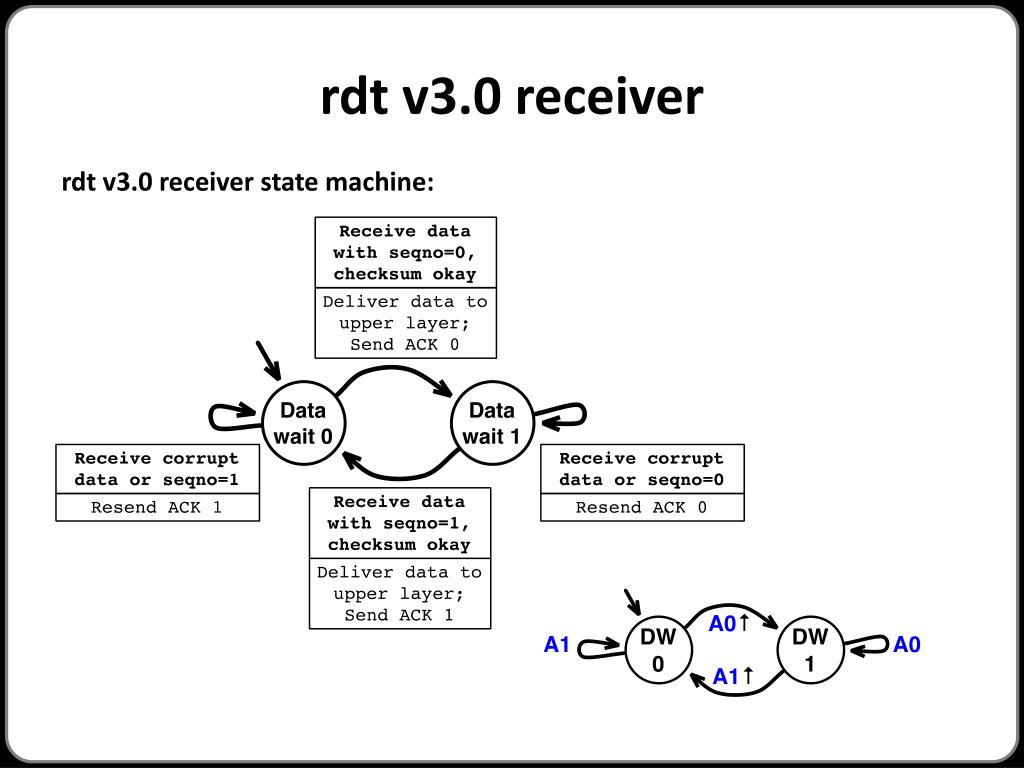

  30. rdt v3.0 receiver rdt v3.0 receiver state machine:

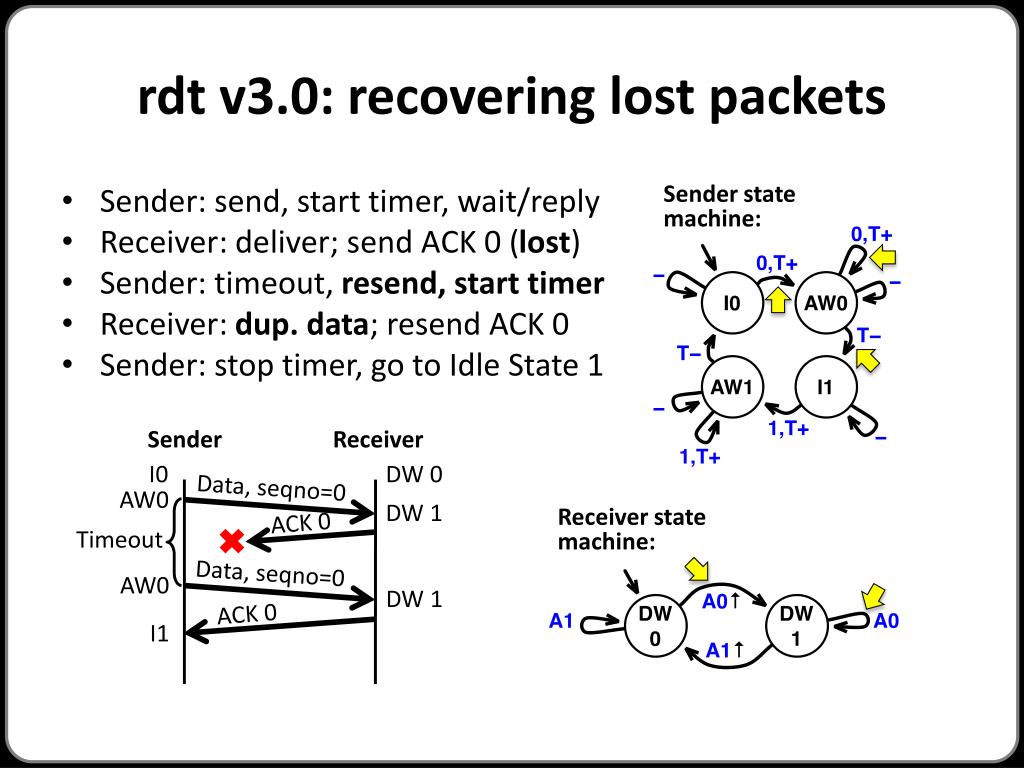

  31. rdt v3.0: recovering lost packets • Sender: send, start timer, wait/reply • Receiver: deliver; send ACK 0 (lost) • Sender: timeout, resend, start timer • Receiver: dup. data; resend ACK 0 • Sender: stop timer, go to Idle State 1 Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 1 Receiver state machine: ACK 0 Timeout Data, seqno=0 AW0 DW 1 ACK 0 I1

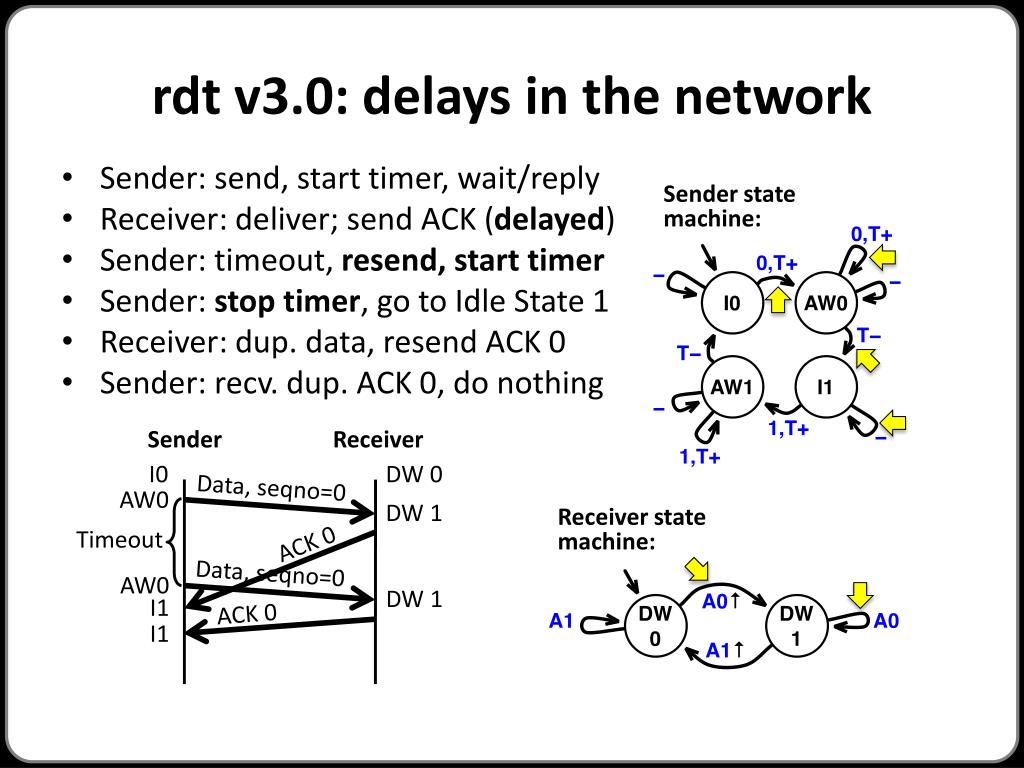

  32. rdt v3.0: delays in the network • Sender: send, start timer, wait/reply • Receiver: deliver; send ACK (delayed) • Sender: timeout, resend, start timer • Sender: stop timer, go to Idle State 1 • Receiver: dup. data, resend ACK 0 • Sender: recv. dup. ACK 0, do nothing Sender state machine: Sender Receiver I0 DW 0 Data, seqno=0 AW0 DW 1 Receiver state machine: Timeout ACK 0 Data, seqno=0 AW0 DW 1 I1 ACK 0 I1

  33. Stop-and-wait performance Data packet size L bits, link bitrate R bits/second sender receiver First bit transmitted, t = 0 Last bit transmitted, t = L/R First bit arrives RTT Last bit arrives, send ACK ACK arrives, send next packet, t = RTT + L/R Forward link utilization:

  34. Packet size L, link bitrate R; utilization Internet e.g.: 8000 bit packet; 1 Gbit/s link, 30 ms RTT: WiFi e.g.: 8000 bit packet; 54 Mbit/s link, 100 ns RTT Performance of stop-and-wait protocols (not including other unrelated overheads) When packet time << RTT, stop-and-wait underperforms.

  35. Pipelining: sender allows multiple unacknowledged packets “in-flight” from sender to receiver Range of sequence numbers must be increased Buffering at sender and/or receiver Two generic forms of pipelined protocols: Go-Back-N, Selective Repeat Idea: Pipelined protocols

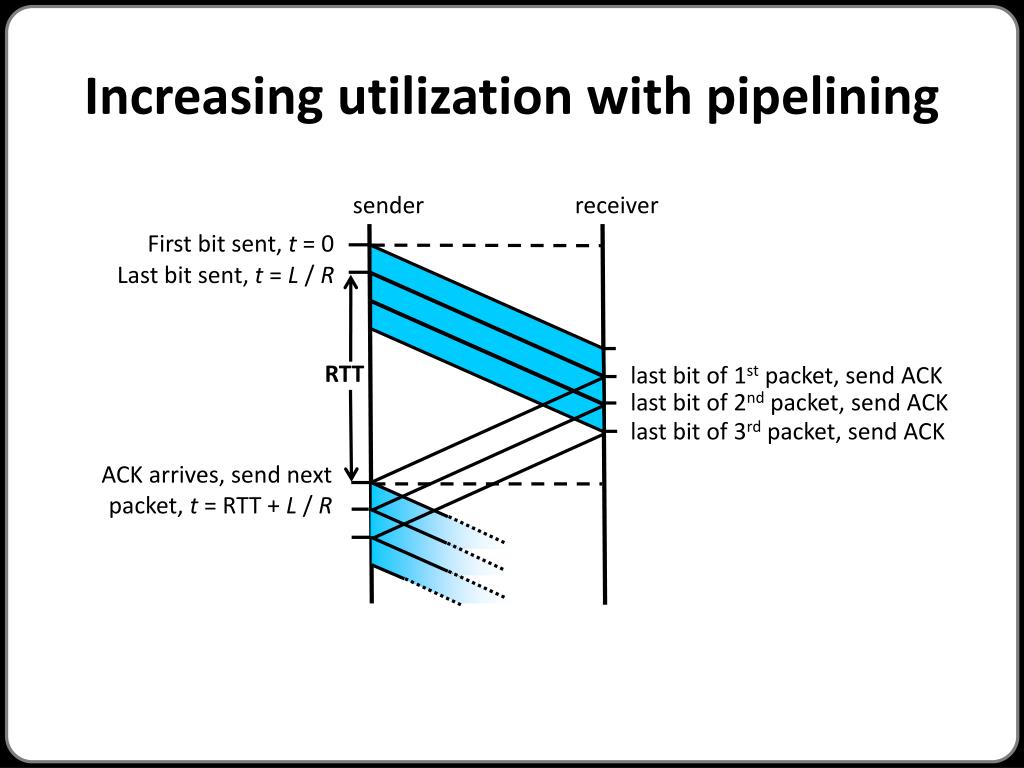

  36. Increasing utilization with pipelining sender receiver First bit sent, t = 0 Last bit sent, t = L / R RTT last bit of 1st packet, send ACK last bit of 2nd packet, send ACK last bit of 3rd packet, send ACK ACK arrives, send next packet, t = RTT + L / R

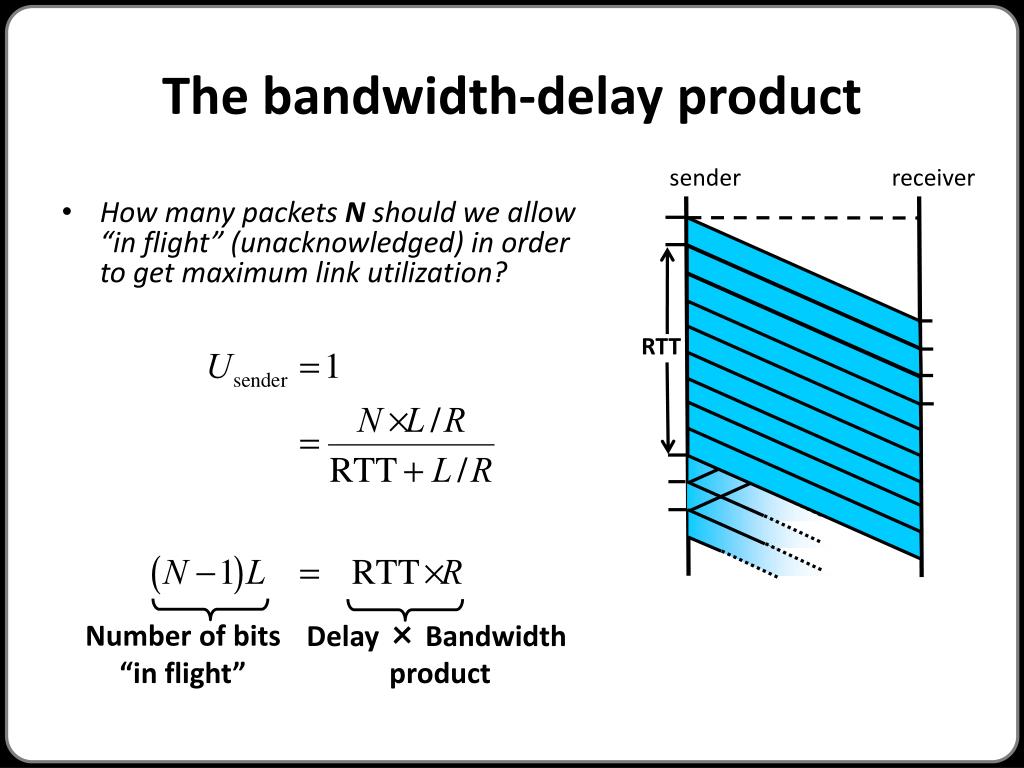

  37. The bandwidth-delay product • How many packets N should we allow “in flight” (unacknowledged) in order to get maximum link utilization? sender receiver RTT Number of bits “in flight” Delay × Bandwidth product

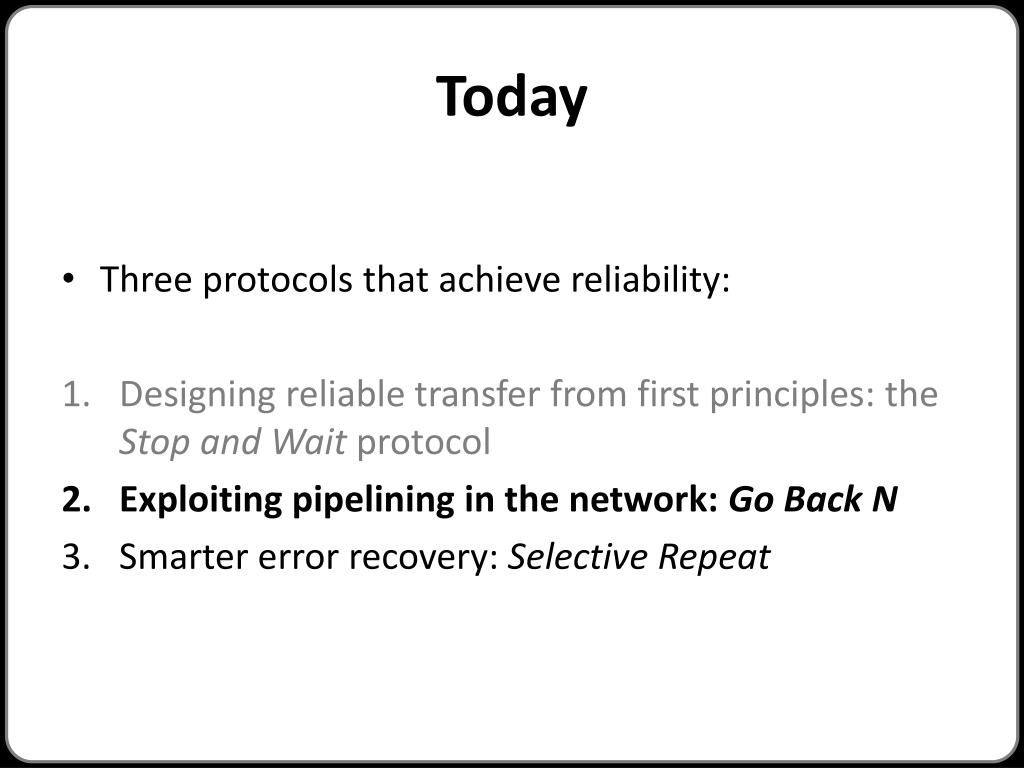

  38. Today • Three protocols that achieve reliability: • Designing reliable transfer from first principles: the Stop and Wait protocol • Exploiting pipelining in the network: Go Back N • Smarter error recovery: Selective Repeat

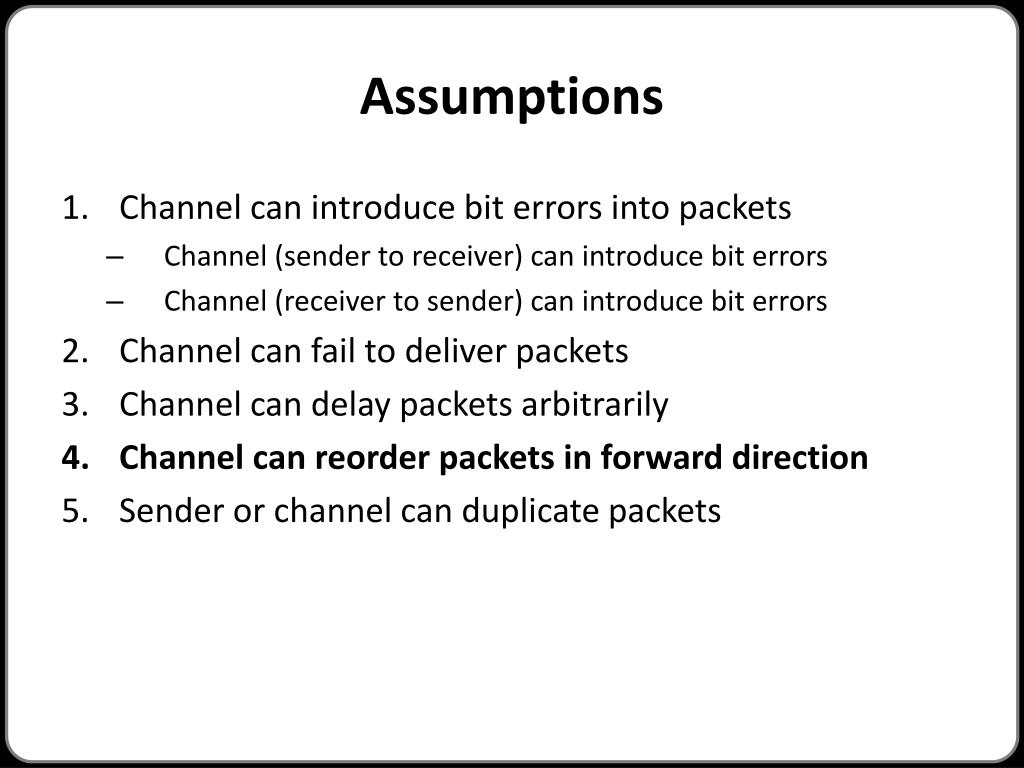

  39. Assumptions • Channel can introduce bit errors into packets • Channel (sender to receiver) can introduce bit errors • Channel (receiver to sender) can introduce bit errors • Channel can fail to deliver packets • Channel can delay packets arbitrarily • Channel can reorder packets in forward direction • Sender or channel can duplicate packets

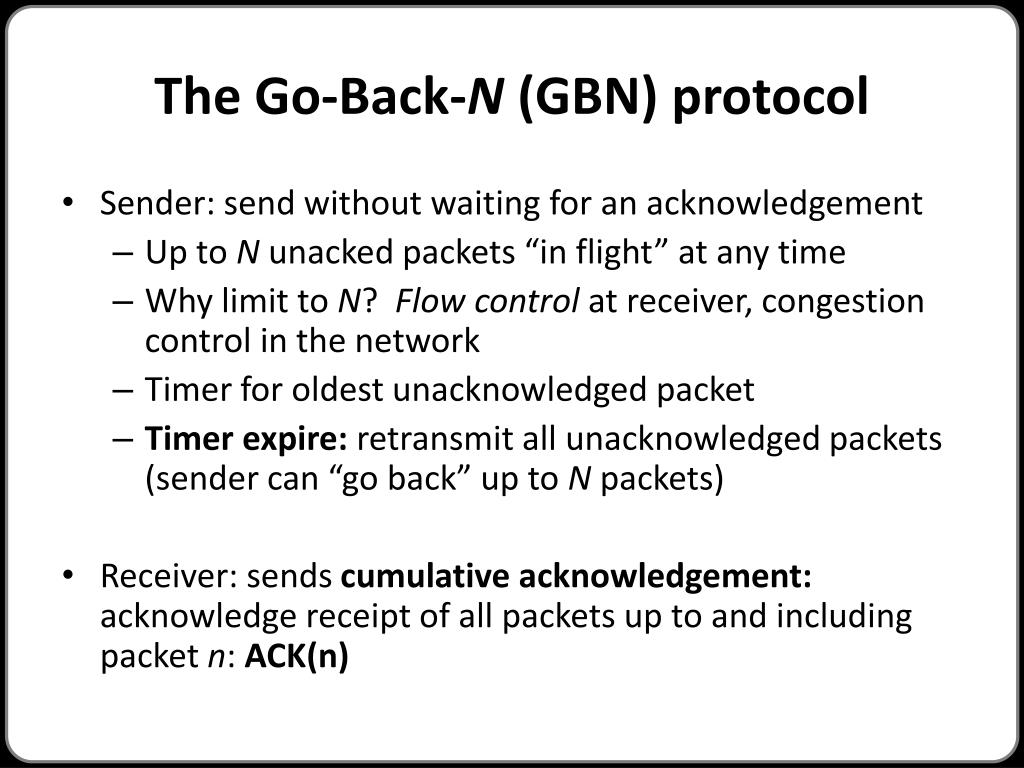

  40. The Go-Back-N (GBN) protocol • Sender: send without waiting for an acknowledgement • Up to N unacked packets “in flight” at any time • Why limit to N? Flow control at receiver, congestion control in the network • Timer for oldest unacknowledged packet • Timer expire: retransmit all unacknowledged packets (sender can “go back” up to N packets) • Receiver: sends cumulative acknowledgement: acknowledge receipt of all packets up to and including packet n:ACK(n)

  41. GBN: at the sender rdt_send(data): if nextseqnum < send_base + N: sndpkt[nextseqnum] = make_pkt send data with nextseqnum nextseqnum++ else: (refuse data) timeout: send(sndpkt[base]) send(sndpkt[base+1]) … send(sndpkt[nextseqnum−1]) rdt_recv(ackpkt): send_base = ackpkt.seqno + 1 • GBN: A type of Sliding Window Protocol (Timer code not shown)

  42. GBN: at the receiver • Maintain expectedseqnumvariable: sequence number of the next in-order packet • send_base ≤ expectedseqnum < nextseqnum • Incoming data packet with seqno=n • n = expectedseqnum: send ACK(n), increment expectedseqnum • n <> expectedseqnum: discard packet, send ACK(expectedseqnum − 1) • Nothing more, because in the event of loss, the sender will go back to expectedseqnum! • Could buffer correctly-received out-of-order packets, but the sender will transmit them later anyway

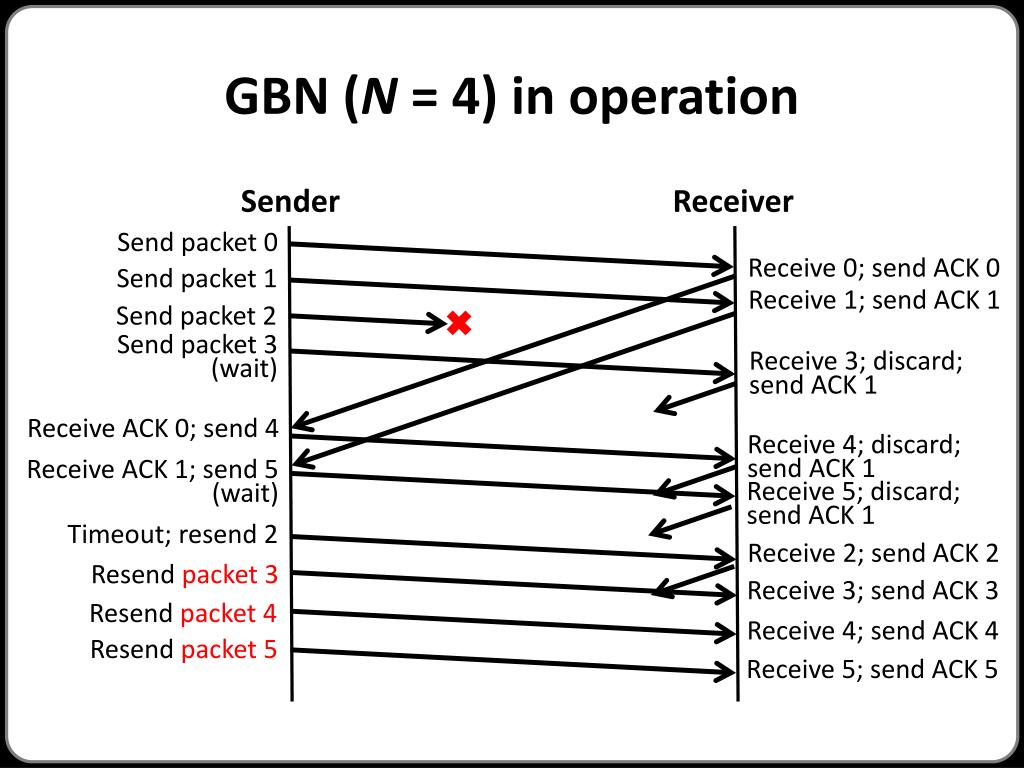

  43. GBN (N = 4) in operation Sender Receiver Send packet 0 Receive 0; send ACK 0 Send packet 1 Receive 1; send ACK 1 Send packet 2 Send packet 3 (wait) Receive 3; discard; send ACK 1 Receive ACK 0; send 4 Receive 4; discard; send ACK 1 Receive ACK 1; send 5 (wait) Receive 5; discard; send ACK 1 Timeout; resend 2 Receive 2; send ACK 2 Resend packet 3 Receive 3; send ACK 3 Resend packet 4 Receive 4; send ACK 4 Resend packet 5 Receive 5; send ACK 5

  44. The role of the retransmission timer • Keeps track of time at sender since the oldest unacknowledged packet was sent • This is the packet at the left edge of the sender’s window • Issue: Choosing a reasonable timer value • Compare to RTT of one packet: • Too small causes unnecessary retransmissions • Too big wastes time • Later: we will see how TCP solves this problem robustly

  45. Today • Three protocols that achieve reliability: • Designing reliable transfer from first principles: the Stop and Wait protocol • Exploiting pipelining in the network: Go Back N • Smarter error recovery: Selective Repeat

  46. Selective Repeat: Introduction • Go Back N • Allows sender to fill pipeline with packets, for high channel utilization • Receiver sends cumulative acknowledgements ACK(n) acknowledging packet n and all those before • Large pipeline means that a single packet error results in many duplicate packet transmissions • Selective Repeat (SR) • Main idea: sender retransmits only packets that don’t reach the receiver correctly • Receiver individually acknowledges each packet • One retransmission timer per packet • GBN and SR are both examples of sliding window protocols

  47. Finite sequence number space • Used in practice for both GBN and SR • Sequence numbers • k-bit sequence number • Result: a sequence number space in the range [0, 2k−1] • All arithmetic is modulo 2k: wrap-around from end to beginning 1 0 2k−1 2 0 2k−1

  48. Selective Repeat: Sequence numbers Already ACKed Out of order but ACKed Usable, not yet sent Acceptable nextseqnum send_base Sender’s view: • Window size N limits number of unacked packets in pipeline • send_base: lowest unacked packet • nextseqnum: last sent packet sequence number, plus 1 • rcv_base: last frame delivered, plus 1 Sent, not yet ACKed Expected, not yet received Not usable Not usable Window size N rcv_base Receiver’s view: Window size N

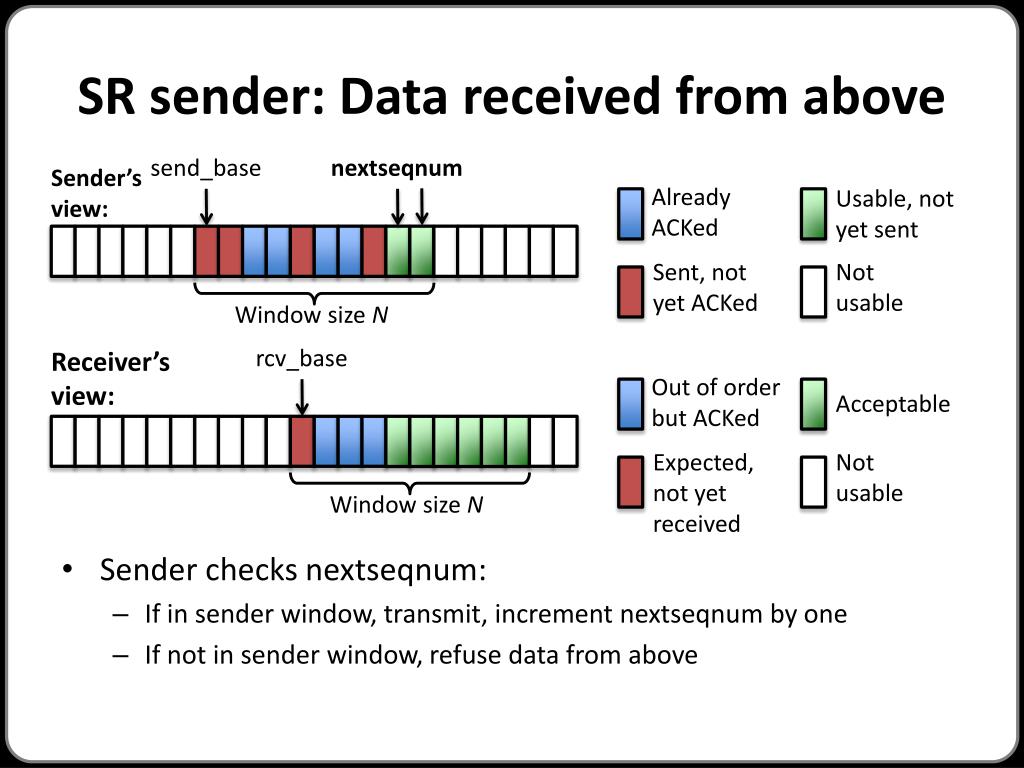

  49. SR sender: Data received from above Already ACKed Out of order but ACKed Usable, not yet sent Acceptable send_base nextseqnum Sender’s view: • Sender checks nextseqnum: • If in sender window, transmit, increment nextseqnum by one • If not in sender window, refuse data from above Sent, not yet ACKed Expected, not yet received Not usable Not usable Window size N rcv_base Receiver’s view: Window size N

  50. SR sender: Timeout event Already ACKed Out of order but ACKed Usable, not yet sent Acceptable nextseqnum send_base Sender’s view: • Recall: each packet has its own retransmission timer • Only packets’ timers in send window will be active • Sender retransmits packet then restarts that packet’s timer Sent, not yet ACKed Expected, not yet received Not usable Not usable Window size N rcv_base Receiver’s view: Window size N
