Drawing Primitives

This presentation provides an overview of how to draw basic primitive shapes using OpenTK, an OpenGL wrapper for .NET. It demonstrates various methods for rendering lines, polygons, and triangles, which are some of the most common graphical primitives. Examples include drawing lines, closed polygons, triangle strips, and more. This guide describes how to set color, clear the screen, and force rendering for visual output. While there are multiple approaches to generating these primitives, the methods shown here are among the most prevalent in OpenTK applications.

ursala
Télécharger la présentation

Drawing Primitives

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Drawing Primitives

  2. Foreward This presentation shows how some primitive shapes may be drawn using openTK (openGL) This is not the only approach to draw these primitives, but may be the most common

  3. DrawLine() private void DrawLine() { // Clear screen to background color. GL.Clear(ClearBufferMask.ColorBufferBit); // Set foreground (or drawing) color. GL.Color3(Color.White); GL.Begin(BeginMode.Lines); GL.Vertex3(20.0, 20.0, 0.0); GL.Vertex3(80.0, 20.0, 0.0); GL.Vertex3(80.0, 80.0, 0.0); GL.Vertex3(20.0, 80.0, 0.0); GL.End(); // Flush created objects to the screen, i.e., force rendering. glControl1.SwapBuffers(); }

  4. Lines

  5. Polygon private void DrawPolygon() { // Clear screen to background color. GL.Clear(ClearBufferMask.ColorBufferBit); // Set foreground (or drawing) color. GL.Color3(Color.White); GL.Begin(BeginMode.Polygon); GL.Vertex3(20.0, 20.0, 0.0); GL.Vertex3(80.0, 20.0, 0.0); GL.Vertex3(80.0, 80.0, 0.0); GL.Vertex3(20.0, 80.0, 0.0); GL.End(); // force rendering. glControl1.SwapBuffers(); }

  6. Polygon

  7. Triangles private void DrawLine() { // Clear screen to background color. GL.Clear(ClearBufferMask.ColorBufferBit); // Set foreground (or drawing) color. GL.Color3(Color.White); GL.Begin(BeginMode.Triangles); GL.Vertex3(10.0, 90.0, 0.0); GL.Vertex3(10.0, 10.0, 0.0); GL.Vertex3(35.0, 75.0, 0.0); GL.Vertex3(30.0, 20.0, 0.0); GL.Vertex3(90.0, 90.0, 0.0); GL.Vertex3(80.0, 40.0, 0.0); GL.End(); // force rendering. glControl1.SwapBuffers(); }

  8. Triangles

  9. LineStrip private void DrawLineStrip() { // Clear screen to background color. GL.Clear(ClearBufferMask.ColorBufferBit); // Set foreground (or drawing) color. GL.Color3(Color.White); GL.Begin(BeginMode.LineStrip); GL.Vertex3(20.0, 20.0, 0.0); GL.Vertex3(80.0, 20.0, 0.0); GL.Vertex3(80.0, 80.0, 0.0); GL.Vertex3(20.0, 80.0, 0.0); GL.End(); // force rendering. glControl1.SwapBuffers(); }

  10. LineStrip

  11. TriangleFan private void DrawTRFan() { // Clear screen to background color. GL.Clear(ClearBufferMask.ColorBufferBit); // Set foreground (or drawing) color. GL.Color3(Color.White); GL.PolygonMode(MaterialFace.FrontAndBack, PolygonMode.Line); // Draw a polygon with specified vertices. GL.Begin(BeginMode.TriangleFan); GL.Vertex3(10.0, 10.0, 0.0); GL.Vertex3(15.0, 90.0, 0.0); GL.Vertex3(55.0, 75.0, 0.0); GL.Vertex3(80.0, 30.0, 0.0); GL.Vertex3(90.0, 10.0, 0.0); GL.End(); // Flush created objects to the screen, i.e., force rendering. glControl1.SwapBuffers(); }

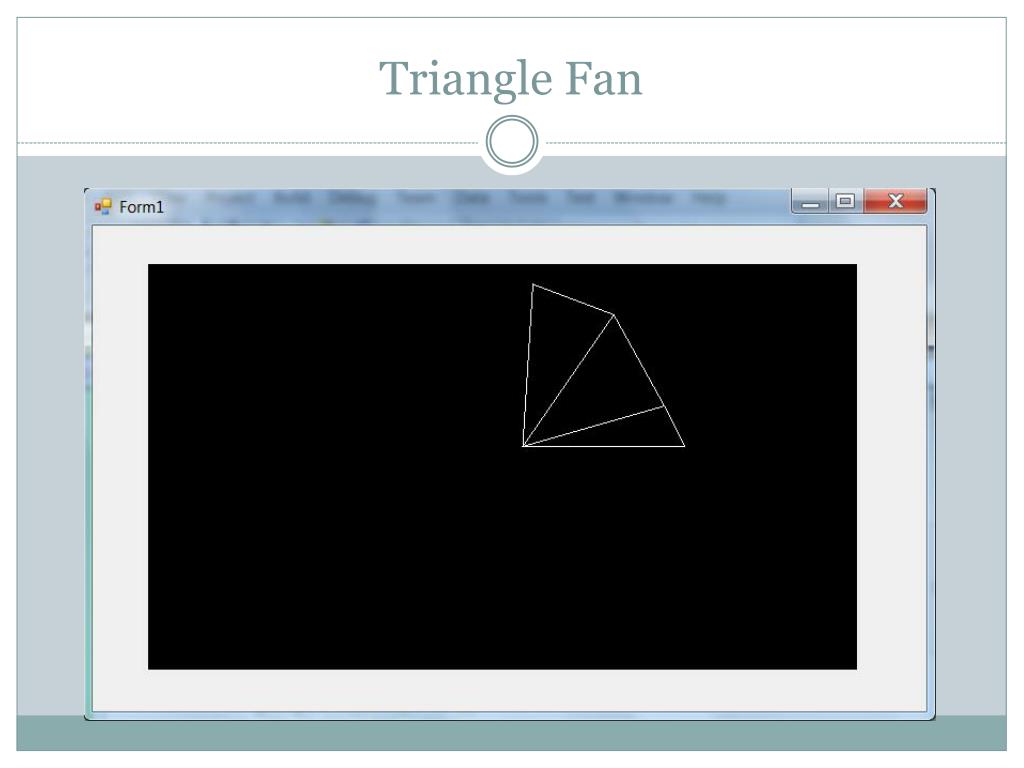

  12. Triangle Fan

  13. QuadStrip private void DrawQDStrip() { // Clear screen to background color. GL.Clear(ClearBufferMask.ColorBufferBit); // Set foreground (or drawing) color. GL.Color3(Color.White); GL.PolygonMode(MaterialFace.FrontAndBack, PolygonMode.Line); // Draw a polygon with specified vertices. GL.Begin(BeginMode.QuadStrip); // glBegin(GL_LINE_STRIP); // glBegin(GL_LINE_LOOP); GL.Vertex3(10.0, 90.0, 0.0); GL.Vertex3(10.0, 10.0, 0.0); GL.Vertex3(30.0, 80.0, 0.0); GL.Vertex3(40.0, 15.0, 0.0); GL.Vertex3(60.0, 75.0, 0.0); GL.Vertex3(60.0, 25.0, 0.0); GL.Vertex3(90.0, 90.0, 0.0); GL.Vertex3(80.0, 20.0, 0.0); GL.End(); // Flush created objects to the screen, i.e., force rendering. glControl1.SwapBuffers(); }

  14. QuadStrip

  15. Constructing Shapes from Lines

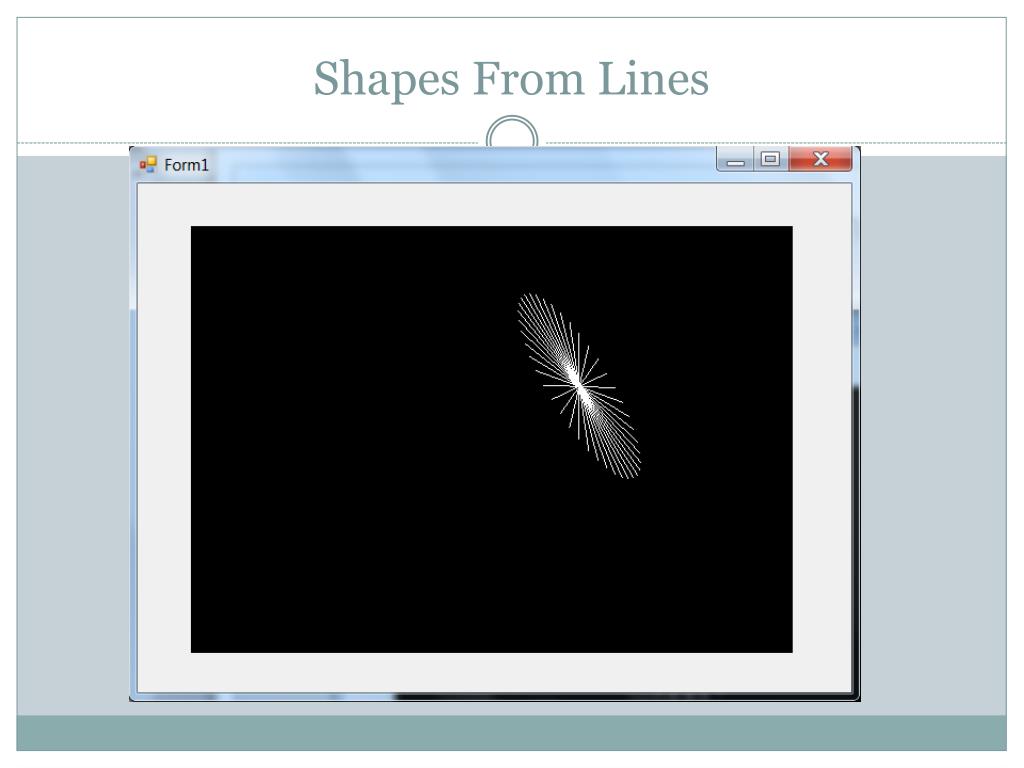

  16. Shapes From Lines

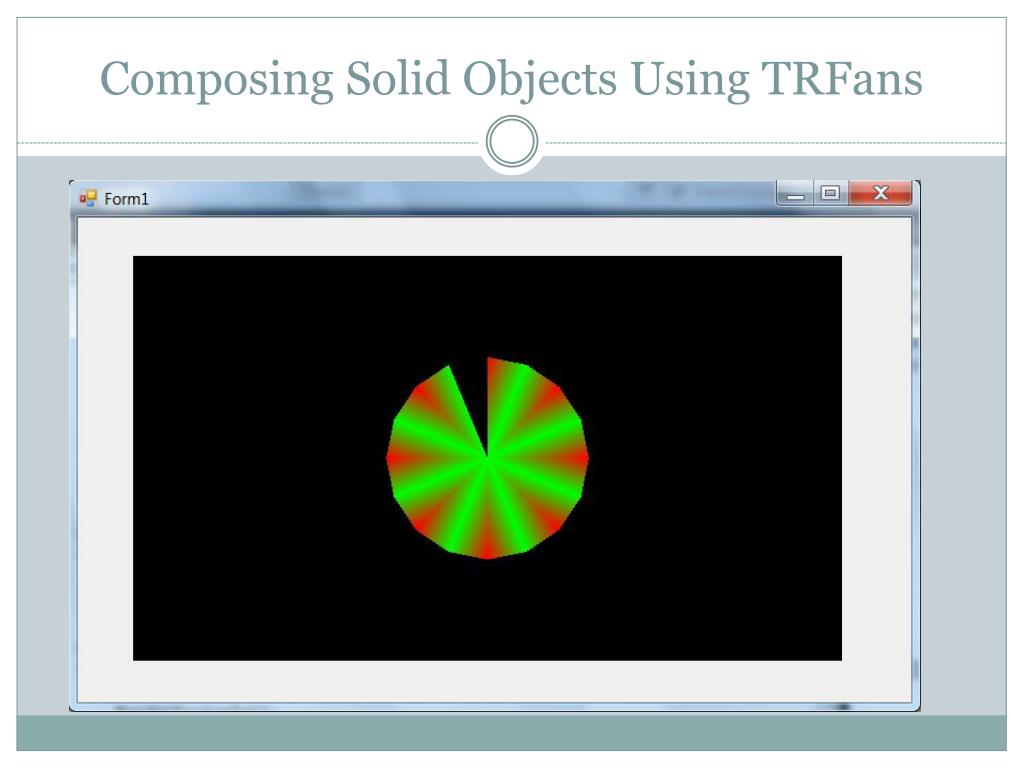

  17. Composing Solid Objects Using TRFans

  18. A Cone

  19. Same Cone Using Outline Mode
