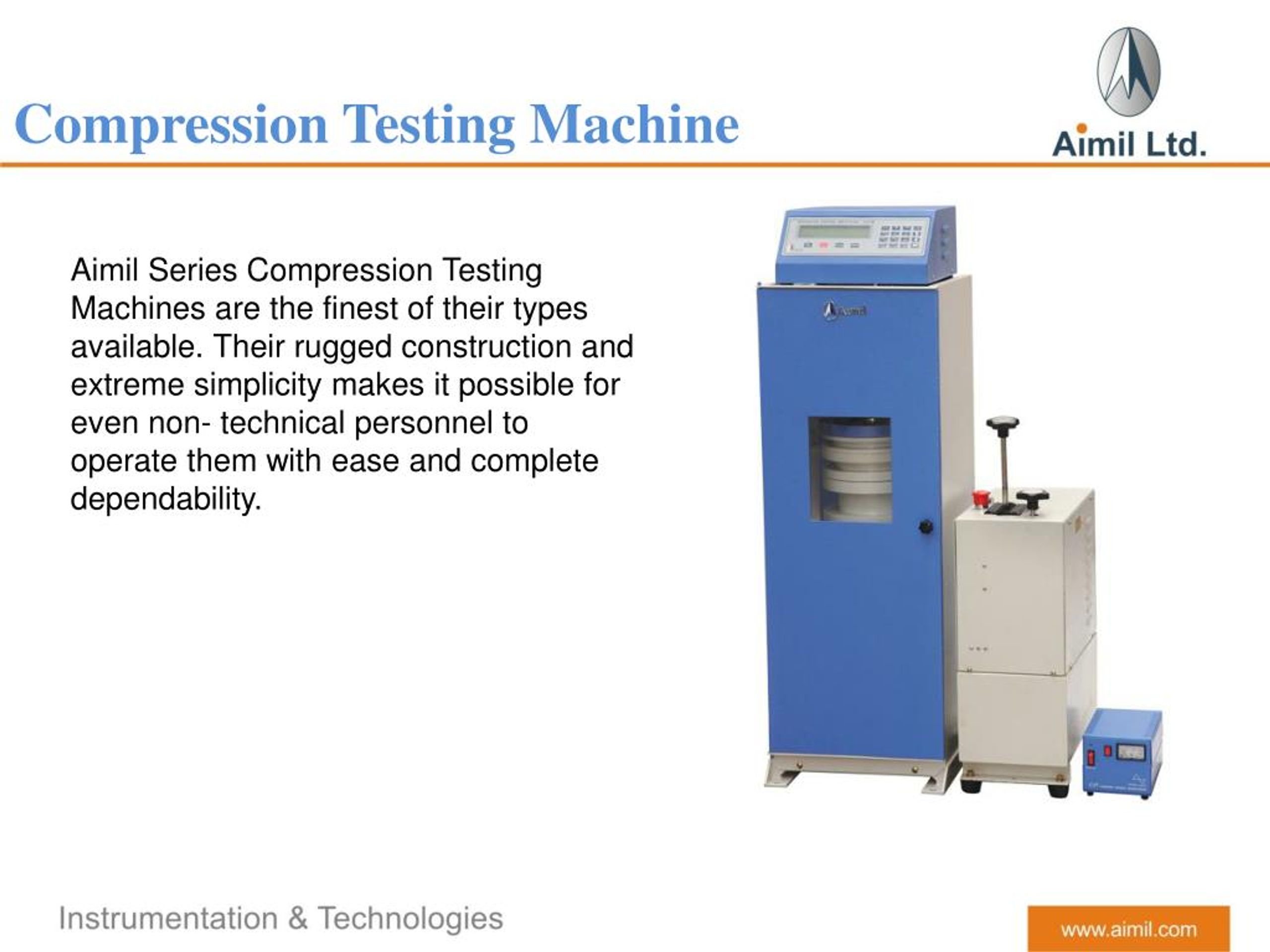

Aimil Series Compression Testing Machines are the finest of their types available. Their rugged construction and extreme simplicity makes it possible for even non- technical personnel to operate them with ease and complete dependability.

aimilltd
Télécharger la présentation

Compression Testing Machine (Aimil)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Compression Testing Machine Aimil Series Compression Testing Machines are the finest of their types available. Their rugged construction and extreme simplicity makes it possible for even non- technical personnel to operate them with ease and complete dependability.

  2. Features of Compression Testing Machine • High stability. • Self-aligning platen assembly. • Load Gauges are calibrated in kN against certified Proving Rings, traceable to NPL / NCCBM. • Suitable for testing cubes and cylinders of various sizes. • Using special platens, bricks can also be tested. • Logged data printing facility through a parallel port interface available in digital and micro controller based versions. • Calibration process accredited by NABL (National Accreditation Board for Laboratories). • Machines with CE mark also available, on special request. • Operator’s safety features like metal door with a Perspex window and overload tripping device are provided in all models.

  3. Types of Compression Testing Machine • Analogue Compression Testing Machine • Portable Compression Testing Machine • Digital Compression Testing Machine • Micro Controller Based CTM with Automatic Pace Rate Controller • Automatic Compression Testing Machine • Servo Controlled Compression Testing Machine

  4. Analogue Compression Testing Machine Key Features: • High Stability • Self-aligning platen assembly • Using special platens, bricks can also be tested. • Machines with CE mark also available, on special request. • Load Gauges are calibrated in kN against certified Proving Rings, traceable to NPL / NCCBM. Two main units of Analogue CTM: • Loading Unit • Pumping Unit • Manually Operated • Electrically Operated Analogue CTM is available in 50KN to 3000 KN ranges(50KN, 100 KN, 250KN, 500KN, 1000KN, 2000KN, 3000KN).

  5. Portable Compression Testing Machine The equipment consists of a Loading Unit, an integral double acting manually operated pumping unit fitted to the base of the machine and a calibrated Load Gauge is fitted with the top. It has a detachable Hydraulic Jack. The hydraulic cylinder is placed on the base of the Loading Unit. • Specifications: • Capacity : 1000kN • Max Vertical Clearance : 350mm • Max. Horizontal Clearance : 220mm • Platen Size : 165mm Square • Piston Dia : 152.4mm • Piston Stroke : 25mm Portable CTM is available in 50KN to 3000 KN ranges(50KN, 100 KN, 250KN, 500KN, 1000KN, 2000KN, 3000KN).

  6. Digital Compression Testing Machine Key Features: • Meets the key specifications of IS -516 & IS 14858, and other ASTM, EN and BS standards depending on platens and accessories chosen. • Automatic stress determination and display. • Overload safety protection. • Peak Load, Peak Stress, Unique Record No. is displayed. • EDI has provision to configure more than one Mode. • Dynamic Calibration • Data storage approx. 2000 records • CVT supplied to ensure constant voltage to digital indicator. Digital CTM is available in 50KN to 3000 KN ranges(50KN, 100 KN, 250KN, 500KN, 1000KN, 2000KN, 3000KN).

  7. Micro Controller Based CTM with Automatic Pace Rate Controller Key Features: • Automatic pace rate control at a present value. • Pave deviation bar graph. • Overload safety protection. • Dynamic Calibration. • Menu Driven sample details. • User can set break point. • Peak stress calculation based on sample type and shape. • Multifunctional keyboard. Micro Controlled based CTM is available in 50KN to 5000 KN ranges(50Kn, 100 KN, 250KN, 500KN, 1000KN, 2000KN, 3000KN, 5000KN).

  8. Automatic Compression Testing Machine Key Features: • Fully Auto Controlled - Operable with EDI • Mode-4 runs with Mode-1 calibration. • Peak stress calculation based on sample type and shape. • Automatic Pace rate control to set value • Peak Load, Peak Stress, Unique Record No. is displayed. • Desktop Computer with licensed Windows 7 -64 bit • The Horizon Software is designed for 32-bit & 64-bit operating systems running Windows Vista, Windows 7 or • Windows 8. It does Not support Windows XP and below. Automatic CTM is available in 50KN to 5000 KN ranges(50KN, 100 KN, 250KN, 500KN, 1000KN, 2000KN, 3000KN, 5000KN).

  9. Servo Controlled Compression Testing Machine Aimil series of Servo Controlled CTM are the finest of their types available. The rugged construction & extreme simplicity makes it possible for personnel with minimum training to operate them with ease & complete dependability. Aimil Servo Controlled CTM is a fully automated version of manual/semi-automatic CTM’s having provision of stress & strain controlled loading. Three main units of Servo Controlled CTM: • Loading Unit • Hydraulic Power Pack • Control Unit & Display Servo Controlled CTM is available in 50KN to 3000 KN ranges(50KN, 100 KN, 250KN, 500KN, 1000KN, 2000KN, 3000KN).

  10. Industries Compression Testing Machine operates in following Industries: • Civil Infrastructure • Education • Metal & Metallurgy • Special Applications • Traffic & Transportation
