  1. 20Electrical requirements ACT-ADDII-1: Students will prepare electrical plans • a) Understand general codes related to electrical plans.

  2. Electrical PLANS • Indicates a home’s outlets, switches and related electrical systems, such as phones, thermostats, and light fixtures

  3. Rule 1 • Duplex convenience outlets should be a maximum of 12ft. apart

  4. Rule 2 • Duplex outlets should be no more than 6 ft from a corner • There should be a duplex outlet in any wall over 2ft long

  5. Rule 3 • Consider furniture layout if possible, so that duplex outlets do not become inaccessible behind large pieces

  6. Rule 4 • Place a duplex outlet next to or behind a desk or table where a light Is needed, or near a probable reading area

  7. Rule 5 • Place a duplex outlet near a fireplace for an adjacent table light, for a vacuum, or for fireplace maintenance

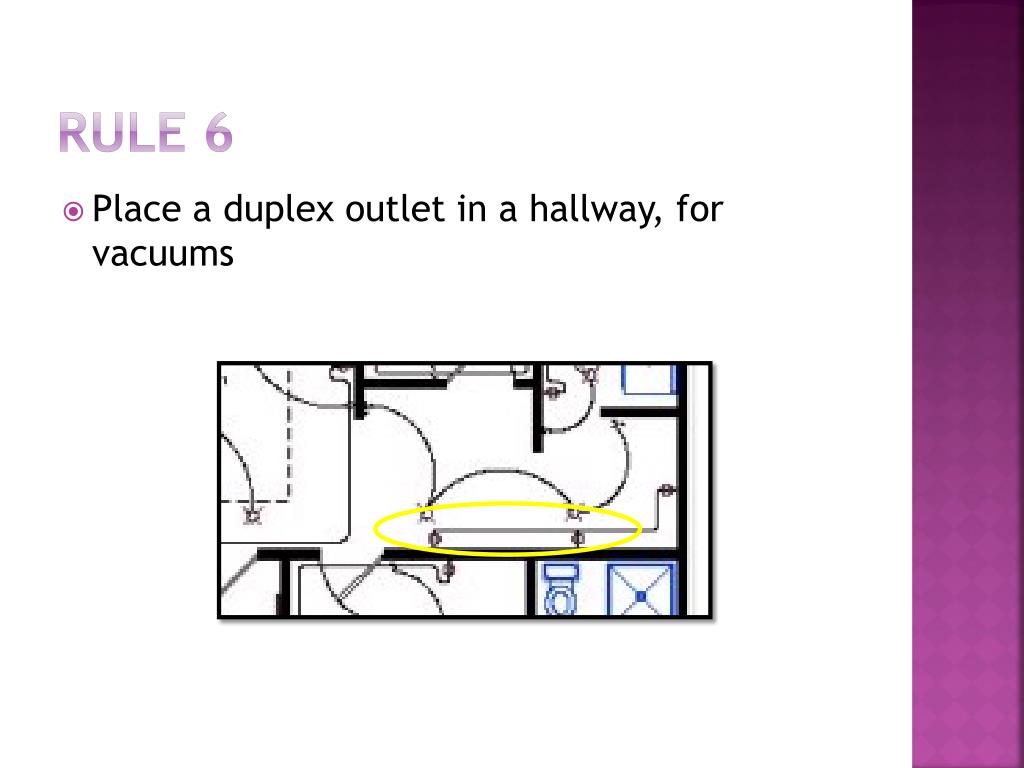

  8. Rule 6 • Place a duplex outlet in a hallway, for vacuums

  9. Rule 7 • Duplex outlets should be placed close together in kitchens. They are required every 4’ of counter space, and no more than 2’ from a corner

  10. Rule 8 • Each bath, sink, or make-up table should have a duplex outlet

  11. Rule 9 • Each enclosed bath or laundry room should have an exhaust fan • Rooms with operable windows do not require fans, although they are desirable

  12. Rule 10 • Any outlet within 5 ft. of water, outside, or in garages should be protected by the GFI (ground-fault circuit-interrupter)

  13. Rule 11 • A light outlet is necessary outside all entries and exterior doors

  14. Rule 12 • A waterproof duplex outlet should be placed at a convenient exterior location, such as a patio

  15. Rule 13 • Ceiling lights are common in children’s bedrooms for easy illumination; master bedrooms may have a switched duplex outlet for bedside lamp

  16. Rule 14 • The kitchen may have a light over the sink, although in a very well-lit kitchen this may be an extra light

  17. Rule 15 • Bathroom lights are generally placed above the vanity or in the center of the room • In a large bath recessed lights may be placed in the shower or above the tub

  18. Rule 16 • Place switches in a manner that provides easiest control of light

  19. Rule 17 • Locate lights in a large closet or in any alcove or pantry that requires light

  20. Rule 18 • Light stairwells

  21. Rule 19 • Place lights and outlets in garages or shops in relationship to their use

  22. Rule 20 • Place exterior lighting properly to illuminate walks, drives, patios, decks or other high use areas

  23. Note • Broken lines indicate connections between outlets and switches; they do not necessarily indicated the path of the wire

  24. Wiring diagram

  25. Electrical plan 1

  26. Electrical plan 2

  27. references • "Adding Electrical Symbols to a Floor Plan :: Curriculum :: CTE Online." CTE Online. N.p., n.d. Web. 2 Apr. 2012. <http://www.cteonline.org/portal/default/Curriculum/Viewer/Curriculum?action=2&cmobjid=199261&view=viewer&refcmobjid=132949>. • "Alpharetta Electrician Installs GFCI and AFCI 770-217-7527 | Alpharetta Electrician." Alpharetta Electrician | Thrasher Electrical, LLC serves Alpharetta, GA.. N.p., n.d. Web. 2 Apr. 2012. <http://electricianalpharettaga.com/alpharetta-electrician-installs-gfci-and-afci/>. • "Drawing Electrical Plans - Planning New Electrical Service - Home & Residential Wiring. DIY Advice." Do-It-Yourself Information for Home Improvement Projects. DIY Advice. N.p., n.d. Web. 2 Apr. 2012. <http://www.diyadvice.com/diy/electrical/new-install/planning/>. • "Home Theater Floor Plan." My Home Theater - Collins Cinema. N.p., n.d. Web. 2 Apr. 2012. <http://myhometheater.homestead.com/layoutdiagram.html>. • "Light Switch | Stock Photo | iStock." iStock Photo: Royalty Free Stock Photography, Vector Art Images, Music & Video Stock Footage | iStock. N.p., n.d. Web. 2 Apr. 2012. <http://www.istockphoto.com/stock-photo-5760440-light-switch.php>. • "Residential Wire Pro - Draw Detailed Electrical Floor Plans and more! ." Addiss Electric Supply - Books, Tools, Test Equipment, PPE and Supplies for Electricians and . N.p., n.d. Web. 2 Apr. 2012. <http://www.licensedelectrician.com/Store/CM/ResiWirePro.htm>. • Rongey, Dave. "Garage Electrical Wiring." How to Electrical Wiring and Electrical Repairs. N.p., n.d. Web. 2 Apr. 2012. <http://www.ask-the-electrician.com/garage-electrical-wiring.html>.
