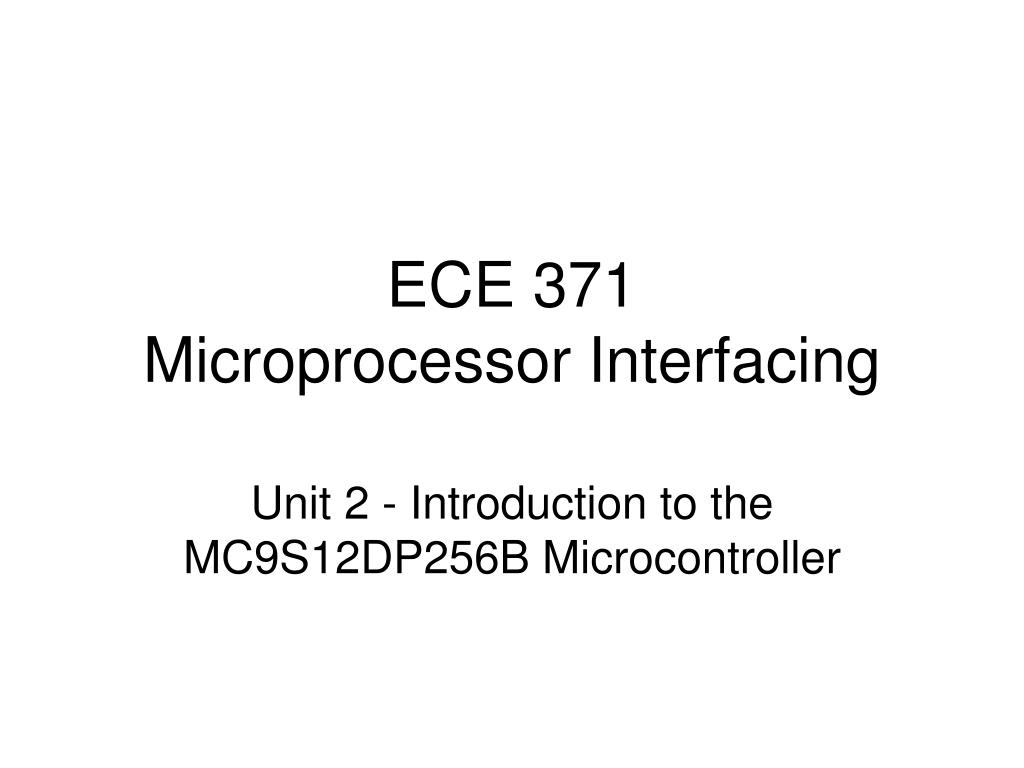

  1. ECE 371Microprocessor Interfacing Unit 2 - Introduction to the MC9S12DP256B Microcontroller

  2. 16-bit Microcontroller Family (Partial List) • MC9S12D64 • MC9S12DG128B • MC9S12DP256B (our chip) • MC9S12DP512

  3. Product Numbering System MC 9 S12 DP 256 B Status Memory type - 9:flash Core type Family Approximate memory size Flash revision

  4. HCS12 Variants

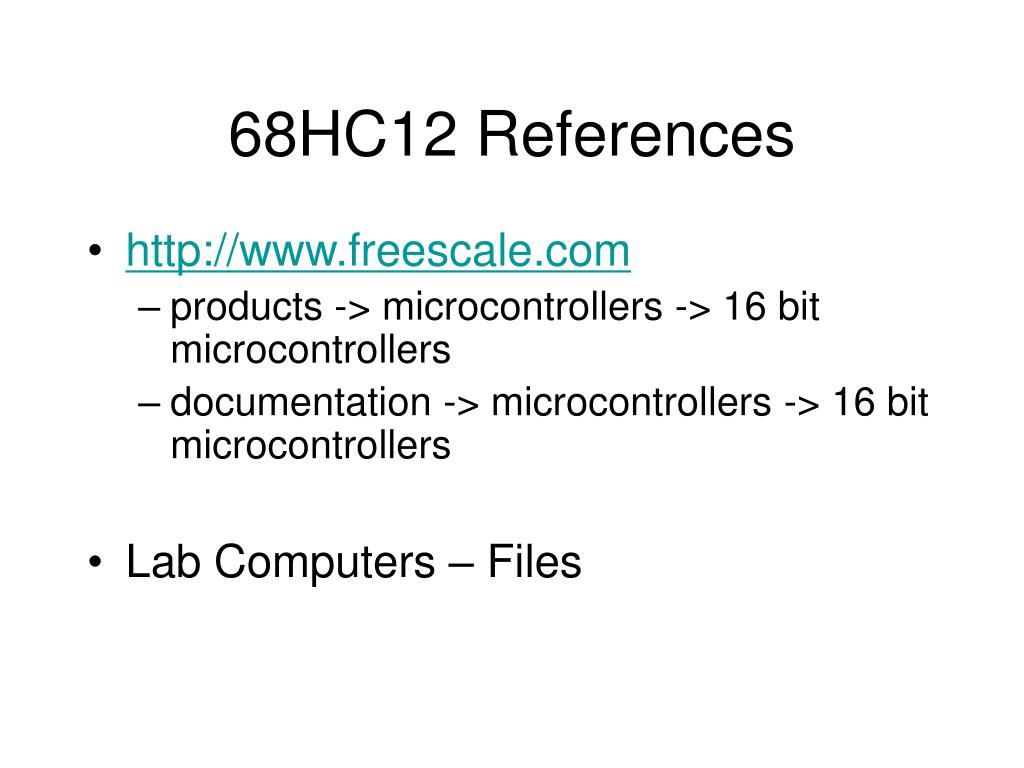

  5. 68HC12 References • http://www.freescale.com • products -> microcontrollers -> 16 bit microcontrollers • documentation -> microcontrollers -> 16 bit microcontrollers • Lab Computers – Files

  6. INTERNAL FEATURES OF MCS912DP256B (PARTIAL LIST) MEMORY A/D CONVERTER I/O PORTS PULSE-WIDTH MODULATON OUTPUTS SERIAL I/O WATCH DOG TIMER TIMER CONTROLLER AREA NETWORK (CAN) SIGNALS PULSEACCUMULATOR

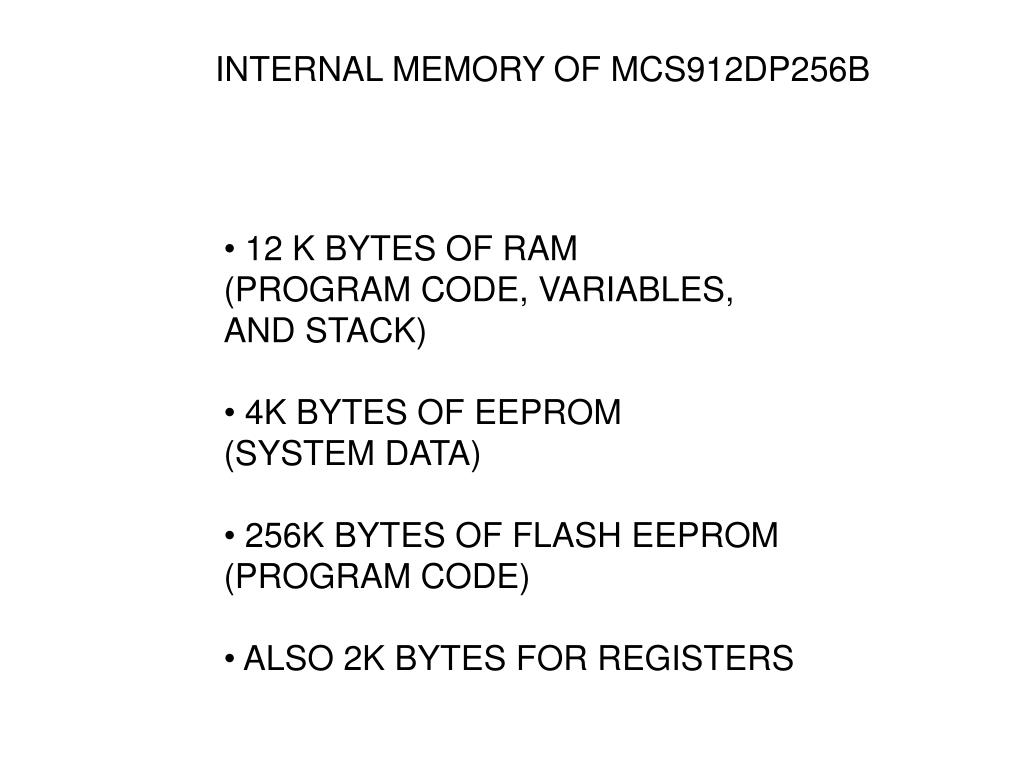

  7. INTERNAL MEMORY OF MCS912DP256B • 12 K BYTES OF RAM (PROGRAM CODE, VARIABLES, AND STACK) • 4K BYTES OF EEPROM (SYSTEM DATA) • 256K BYTES OF FLASH EEPROM (PROGRAM CODE) • ALSO 2K BYTES FOR REGISTERS

  8. Registers Programmable Memory Manager Internal SRAM CPU Internal EEPROM 16-bit Address 64K Internal Flash External SRAM 256K

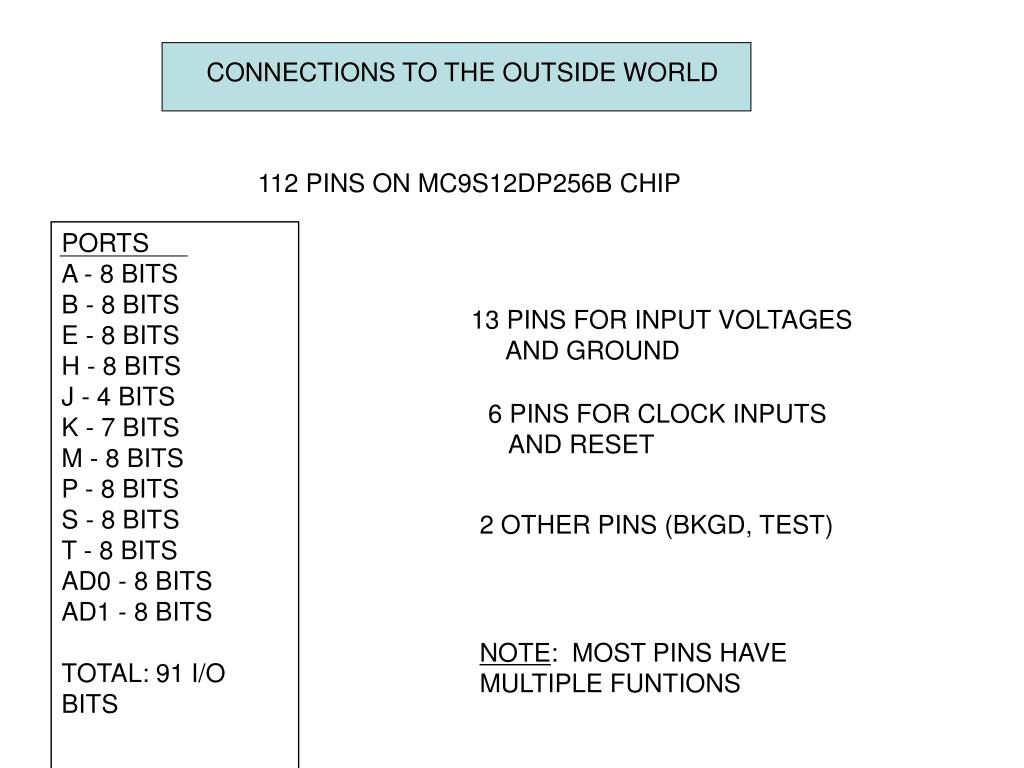

  9. CONNECTIONS TO THE OUTSIDE WORLD 112 PINS ON MC9S12DP256B CHIP PORTS A - 8 BITS B - 8 BITS E - 8 BITS H - 8 BITS J - 4 BITS K - 7 BITS M - 8 BITS P - 8 BITS S - 8 BITS T - 8 BITS AD0 - 8 BITS AD1 - 8 BITS TOTAL: 91 I/O BITS 13 PINS FOR INPUT VOLTAGES AND GROUND 6 PINS FOR CLOCK INPUTS AND RESET 2 OTHER PINS (BKGD, TEST) NOTE: MOST PINS HAVE MULTIPLE FUNTIONS

  10. ALTERNATE FUNCTIONS OF PORT PINS PORTS A AND B - EXTERNAL ADDRESS/DATA BUS PORT E - 8 BITS - CONTROL SIGNALS, MODE SELECTION, INTERRUPT REQUESTS, PORT T - 8 BITS - TIMER PINS PORT S - 8 BITS - ASYNCHRONOUS SERIAL I/O (SCI) PINS PORT H - 8 BITS - SYNCHRONOUS SERIAL I/O (SPI) PINS; INTERRUPT REQUESTS PORT M - 8 BITS SPECIAL SERIAL I/O (BDLC, CAN) PORT J - 4 BITS - INTERRUPT REQUESTS; CAN SIGNALS

  11. MORE ALTERNATE FUNCTIONS OF PORT PINS PORT P - 8 BITS - PULSE WIDTH MODULATION (PWM) OUTPUTS; INTERRUPT REQUESTS PORT K - 7 BITS - ADDRESS LINES A19-A14 FOR EXPANDED (EXTERNAL ACCESS MODE) PORT AD0 - 8 BITS - INPUTS TO A/D CONVERTER 0 PORT AD1 - 8 BITS - INPUTS TO A/D CONVERTER 1

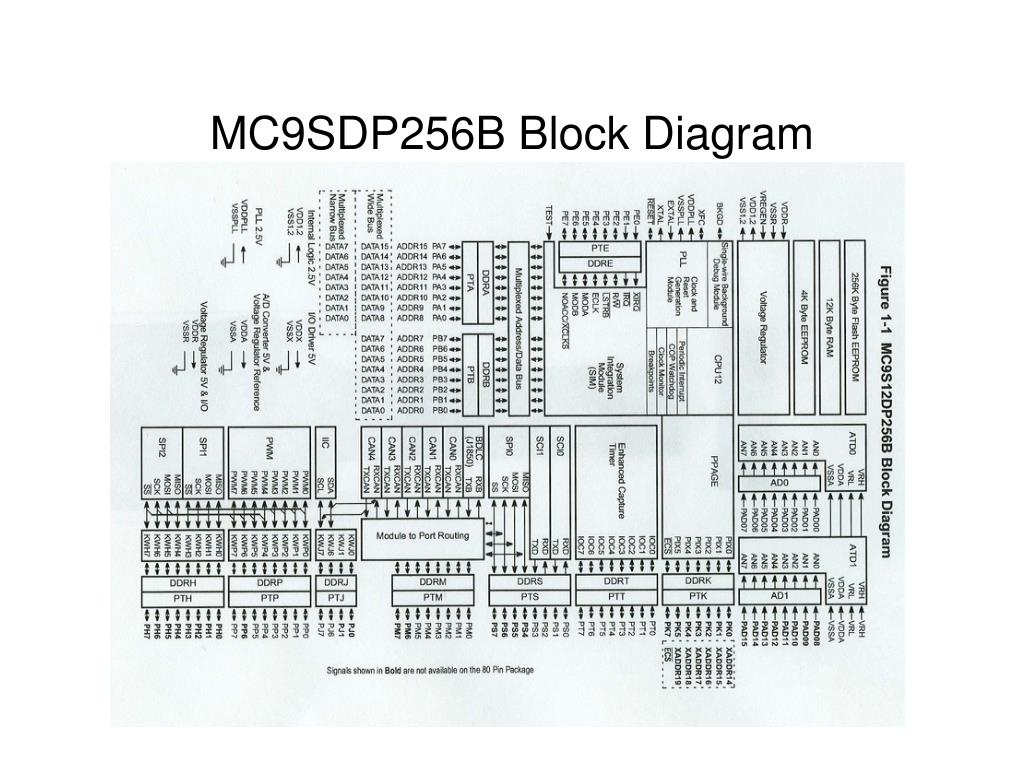

  12. MC9SDP256B Block Diagram

  13. Operating Modes • No External Addresses • No External Data Buses • Single Chip Stand Alone Mode • Port A – General Purpose I/O • Port B – General Purpose I/O • Selected by: - BKGD =1, MODB = 0, MODA = 0 • Operating Modes are Sensed at Reset Normal Single-Chip Mode

  14. Operating Modes Normal Expanded Wide Mode • Multiplexed 16-bit Address/16-bit Data Bus • Port A – High Address and Data Bits • Port B – Low Address and Data Bits • ADDR[7:0] and DATA[7:0] • Control Signals: R/W (from PE2) ECLK (from PE4) • Selected by: - BKGD =1, MODB = 1, MODA = 1

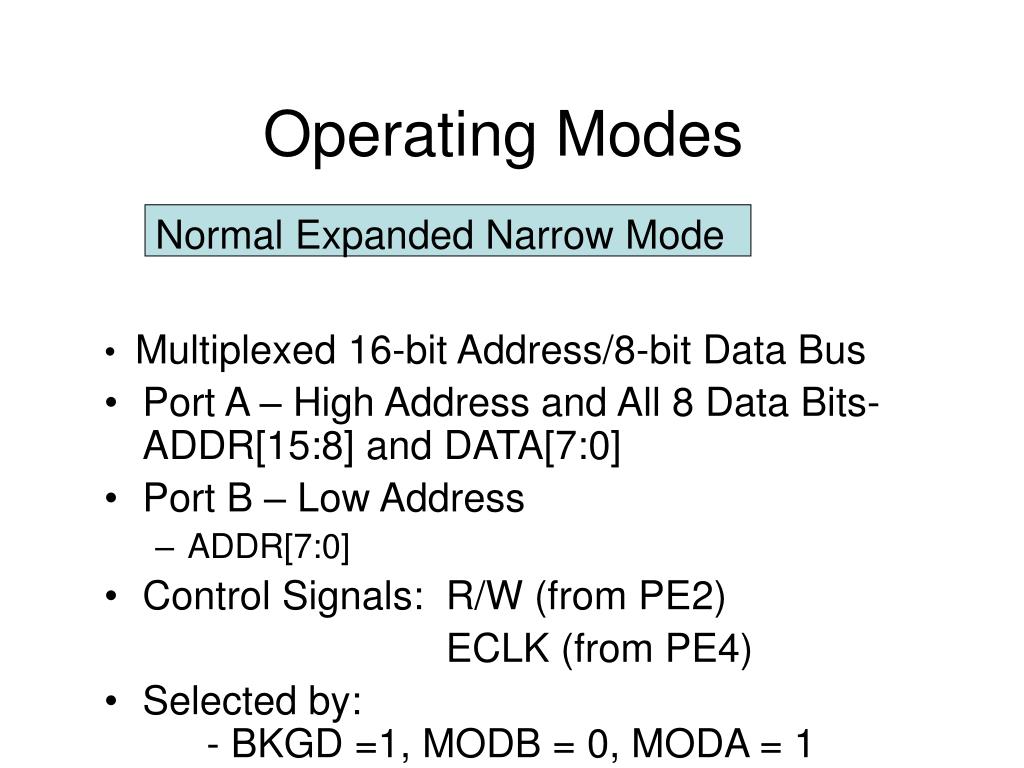

  15. Operating Modes Normal Expanded Narrow Mode • Multiplexed 16-bit Address/8-bit Data Bus • Port A – High Address and All 8 Data Bits- ADDR[15:8] and DATA[7:0] • Port B – Low Address • ADDR[7:0] • Control Signals: R/W (from PE2) ECLK (from PE4) • Selected by: - BKGD =1, MODB = 0, MODA = 1

  16. MULTIPLEXED WIDE BUS ADDR7 - ADDR0/ DATA7 - DATA0 PB7 - PB0 ADDR 15 - ADDR8/ DATA15 - DATA8 PA7 - PA0 PE2 R/W (EXTERNAL BUS CLOCK) PE4 ECLK LSTRB PE3

  17. MULTIPLEXED NARROW BUS ADDR7 - ADDR0 PB7 - PB0 PA7 - PA0 ADDR 15 - ADDR8/ DATA7 - DATA0 PE2 R/W PE4 ECLK

  18. Access Type vs. Bus Control Pins Table 12-5 Access Type vs. Bus Control Pins /LSTRB A0 R/W Type of Access 1 0 1 8-bit read of an even address 0 1 1 8-bit read of an odd address 1 0 0 8-bit write of an even address 0 1 0 8-bit write of an odd address 0 0 1 16-bit read of an even address 1 1 1 XXX 0 0 0 16-bit write to an even address 1 1 0 XXX

  19. Interface to 16-bit Data Bus A17 .. A1 A17 .. A1 /cs1 cs2 /oe /we /cs1 cs2 /oe /we 128K x 8 128K x 8 D15 .. D8 High Byte D7 .. D0 Low Byte

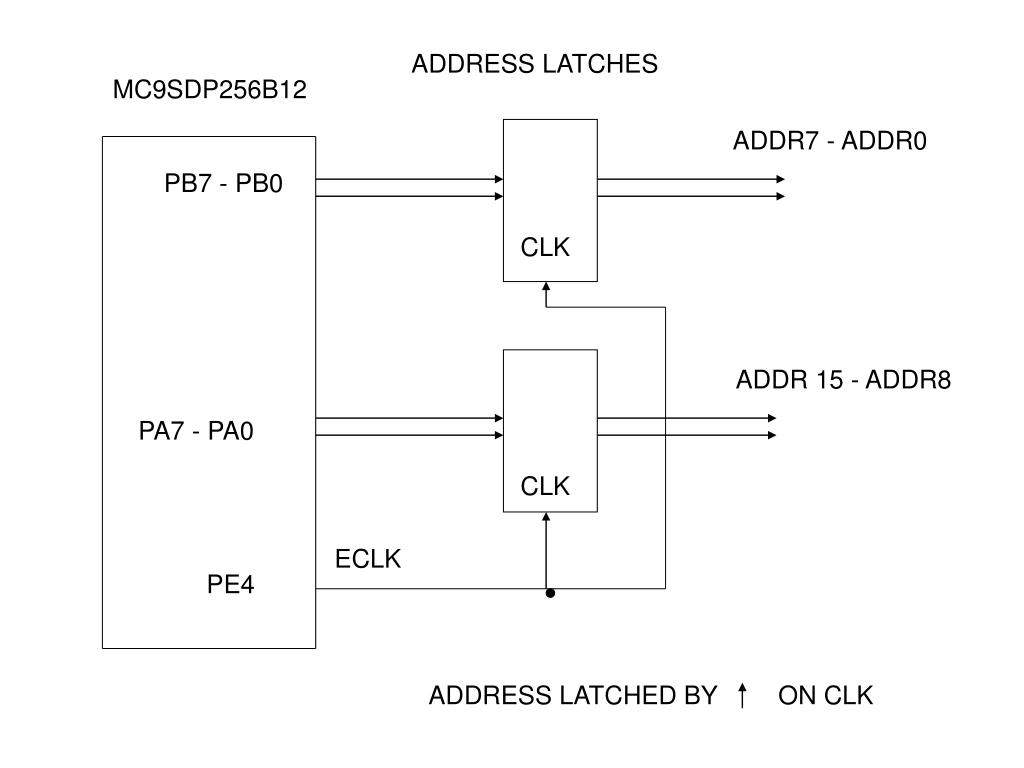

  20. ADDRESS LATCHES MC9SDP256B12 ADDR7 - ADDR0 PB7 - PB0 CLK ADDR 15 - ADDR8 PA7 - PA0 CLK ECLK PE4 ADDRESS LATCHED BY ON CLK

  21. DemultiplexedAddress ECLK ADR2 ADR3 ADR4 ADR1 DAT2 DAT3 DAT3 DAT1 Demultiplexed Address ADR1 ADR2 ADR3 ADR4

  22. PAGE ADDRESSING FOR EMULATION EXPANDED MODES MC9SDP256B12 PK5 - PK0 XADDR19 - XADDR 14 PK7 ECS (IF ECS = 0, USE XADDR19 - XADDR 14, ALONG WITH ADDR13 - ADDR0) (IF ECS = 1, USE ONLY ADDR15 - ADDR0)

  23. GENERATION OF READ AND WRITE SIGNALS FOR MEMORY INTERFACING ECLK WE R/W (WRITE) OE (READ)

  24. In the Normal Expanded Narrow Mode and the Normal Expanded Wide Mode, the Page Window Access Memory Region Can be Allocated Between External Memory and Internal Memory

  25. The ECS Signal is activated in the Emulation Expanded Narrow Mode and the Emulation Expanded Wide Mode when the Microcontroller Tries to Access Memory Through the Page Access Window Which Would Have Been Accessed Internally if the Normal Expanded Narrow Mode or the Normal Expanded Wide Mode, Respectively, Had Been Used.
