  1. Structures Initial Stress Wave and Buckling Calculations Ashley Lantz

  2. Presentation Outline • Stress Waves and Shock Waves • Dynamic Buckling • Conclusions Ashley Lantz

  3. Stress Waves • Change or discontinuity creates Shock Waves • Same velocity for Elastic Stress Waves • Where ce is the elastic stress wave velocity, E is Young’s Modulus and ρ is the density Ashley Lantz

  4. Stress Wave Velocity [m/s] Ashley Lantz

  5. Dynamic Buckling • Function of Elastic Stress Wave Velocity • Not Plastic Waves • Where σ is the stress in the material, L is the length of the penetrator, c is the elastic stress wave velocity, ρ is the density and h is the diameter Ashley Lantz

  6. Buckling Stress [m/s] Ashley Lantz

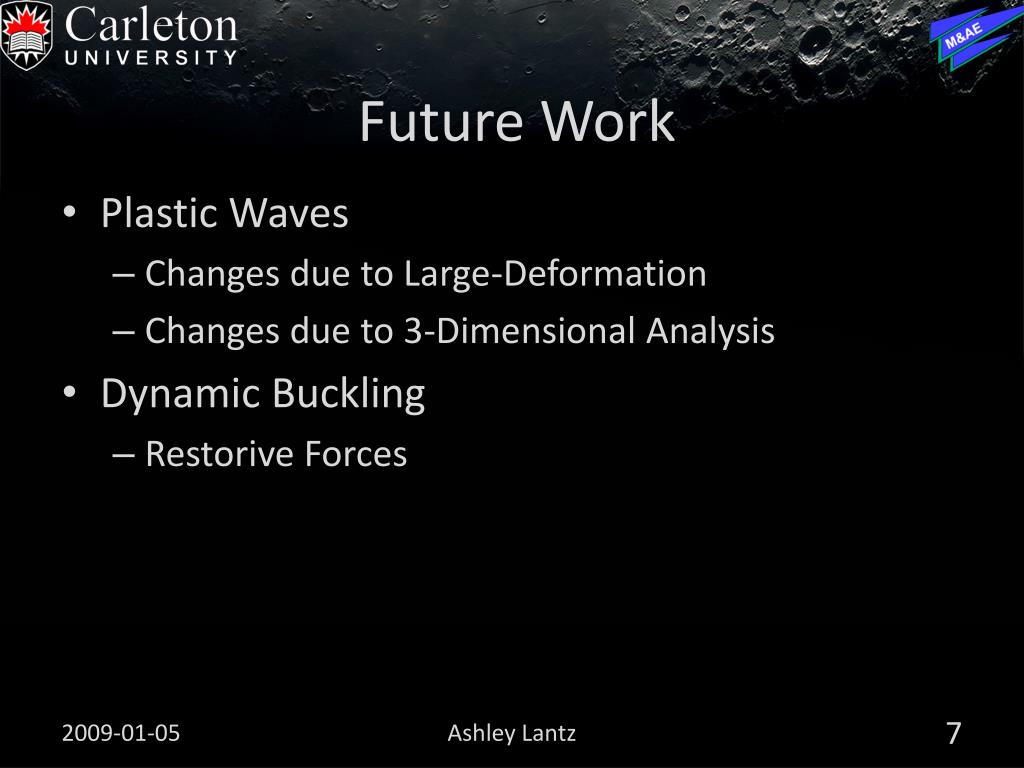

  7. Future Work • Plastic Waves • Changes due to Large-Deformation • Changes due to 3-Dimensional Analysis • Dynamic Buckling • Restorive Forces Ashley Lantz

  8. Questions?
