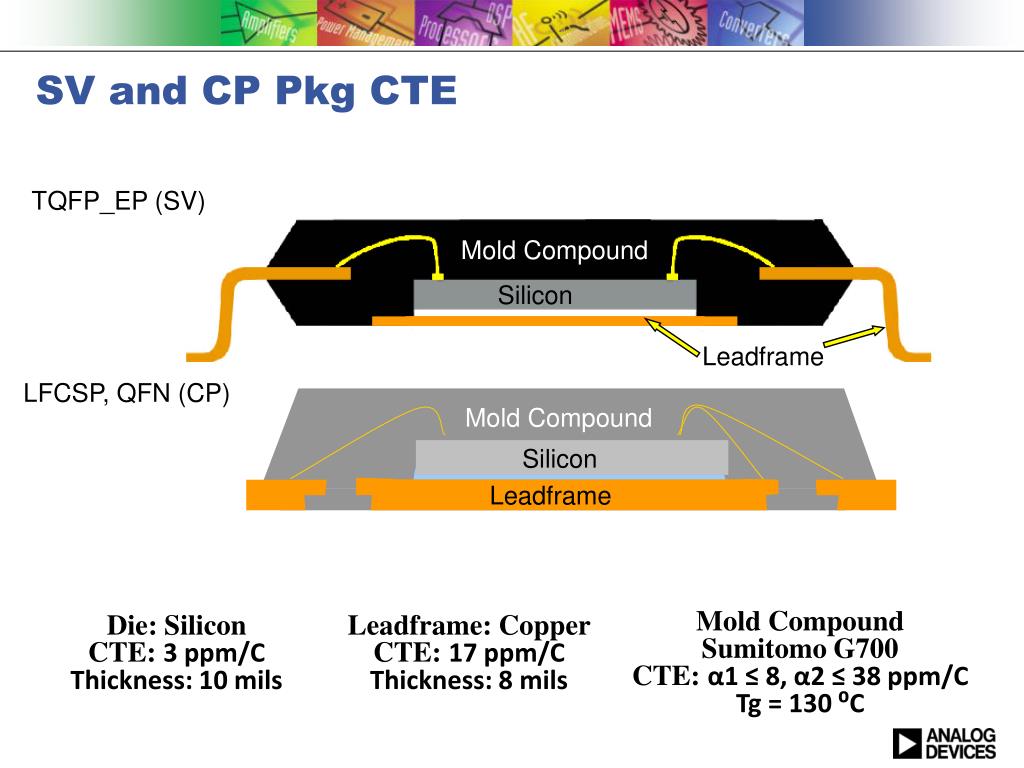

SV and CP Pkg CTE

SV and CP Pkg CTE. TQFP_EP (SV). Mold Compound. Silicon. Leadframe. LFCSP, QFN (CP). Mold Compound. Silicon. Leadframe. Mold Compound Sumitomo G700 CTE: α 1 ≤ 8, α 2 ≤ 38 ppm/C Tg = 130 ⁰ C. Die: Silicon CTE: 3 ppm/C Thickness: 10 mils. Leadframe: Copper CTE : 17 ppm/C

alika-dyer
Télécharger la présentation

SV and CP Pkg CTE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SV and CP Pkg CTE TQFP_EP (SV) Mold Compound Silicon Leadframe LFCSP, QFN (CP) Mold Compound Silicon Leadframe Mold Compound Sumitomo G700 CTE: α1 ≤ 8, α2 ≤ 38 ppm/C Tg = 130 ⁰C Die: Silicon CTE: 3 ppm/C Thickness: 10 mils Leadframe: Copper CTE: 17 ppm/C Thickness: 8 mils
