Chapter 3

1. Chapter 3 Parallel Programming Models

2. Abstraction • Machine Level • Looks at hardware, OS, buffers • Architectural models • Looks at interconnection network, memory organization, synchronous & asynchronous • Computational Model • Cost models, algorithm complexity, RAM vs. PRAM • Programming Model • Uses programming language description of process

3. Control Flows • Process • Address spaces differ - Distributed • Thread • Shares address spaces – Shared Memory • Created statically (like MPI-1) or dynamically during run time (MPI-2 allows this as well as pthreads).

4. Parallelization of a Program • Decomposition of the computations • Can be done at many levels (ex. Pipelining). • Divide into tasks and identify dependencies between tasks. • Can be done statically (at compile time) or dynamically (at run time) • Number of tasks places an upper bound on the parallelism that can be used • Granularity: the computation time of a task

5. Assignment of Tasks • The number of processes or threads does not need to be the same as the number of processors • Load Balancing: each process/thread having the same amount of work (computation, memory access, communication) • Have a tasks that use the same memory execute on the same thread (good cache use) • Scheduling: assignment of tasks to threads/processes

6. Assignment to Processors • 1-1: map a process/thread to a unique processor • many to 1: map several processes to a single processor. (Load balancing issues) • OS or programmer done

7. Scheduling • Precedence constraints • Dependencies between tasks • Capacity constraints • A fixed number of processors • Want to meet constraints and finish in minimum time

8. Levels of Parallelism • Instruction Level • Data Level • Loop Level • Functional level

9. Instruction Level • Executing multiple instructions in parallel. May have problems with dependencies • Flow dependency – if next instruction needs a value computed by previous instruction • Anti-Dependency – if an instruction uses a value from register or memory when the next instruction stores a value into that place (cannot reverse the order of instructions • Output dependency – 2 instructions store into same location

10. Data Level • Same process applied to different elements of a large data structure • If these are independent, the can distribute the data among the processors • One single control flow • SIMD

11. Loop Level • If there are no dependencies between the iterations of a loop, then each iteration can be done independently, in parallel • Similar to data parallelism

12. Functional Level • Look at the parts of a program and determine which parts can be done independently. • Use a dependency graph to find the dependencies/independencies • Static or Dynamic assignment of tasks to processors • Dynamic would use a task pool

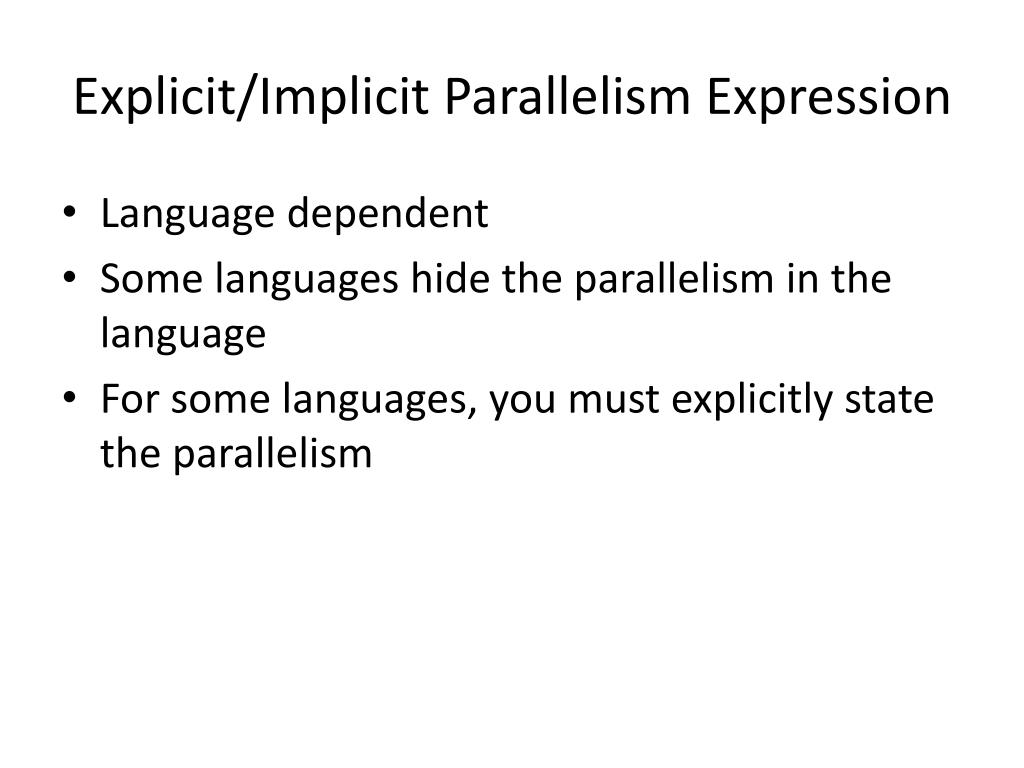

13. Explicit/Implicit Parallelism Expression • Language dependent • Some languages hide the parallelism in the language • For some languages, you must explicitly state the parallelism

14. Parallelizing Compilers • Takes a program in a sequential language and generates parallel code • Must analyze the dependencies and not violate them • Should provide good load balancing (difficult) • Minimize communication • Functional Programming Languages • Express computations as evaluation of a function with no side effects • Allows for parallel evaluation

15. More explicit/implicit • Explicit parallelism/implicit distribution • The language explicitly states the parallelism in the algorithm, but allows the system to assign the tasks to processors. • Explicit assignment to processors – do not have to worry about communications • Explicit Communication and Synchronization • MPI – additionally must explicitly state communications and synchronization points

16. Parallel Programming Patterns • Process/Thread Creation • Fork-Join • Parbegin-Parend • SPMD, SIMD • Master-Slave (worker) • Client-Server • Pipelining • Task Pools • Producer-Consumer

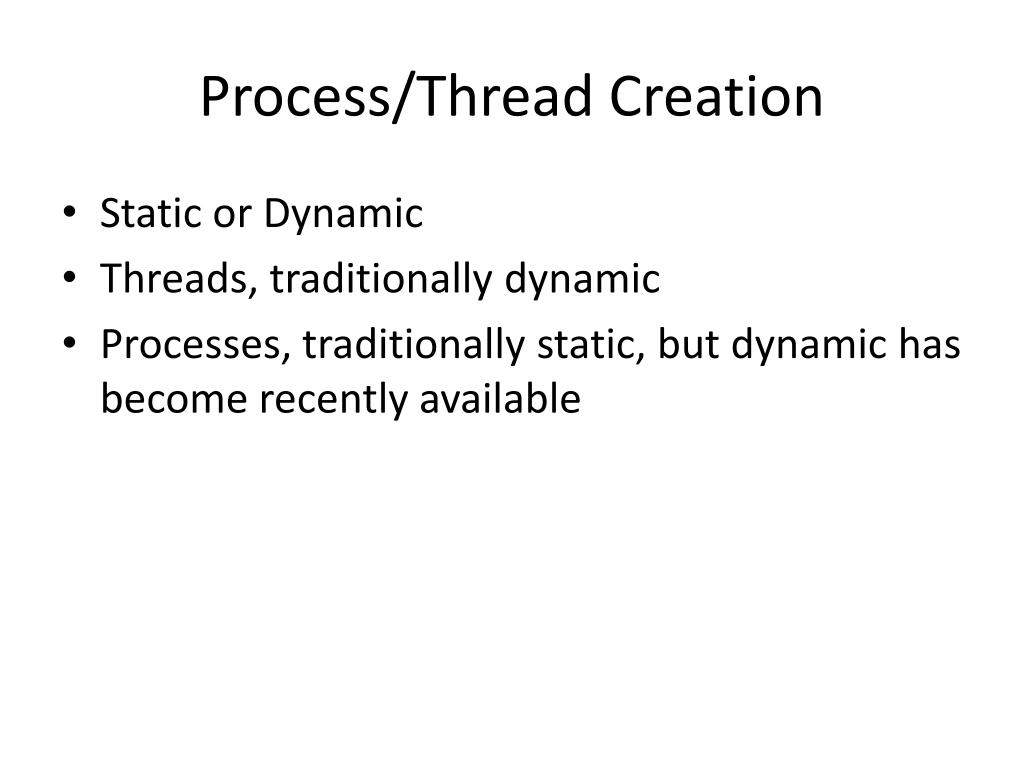

17. Process/Thread Creation • Static or Dynamic • Threads, traditionally dynamic • Processes, traditionally static, but dynamic has become recently available

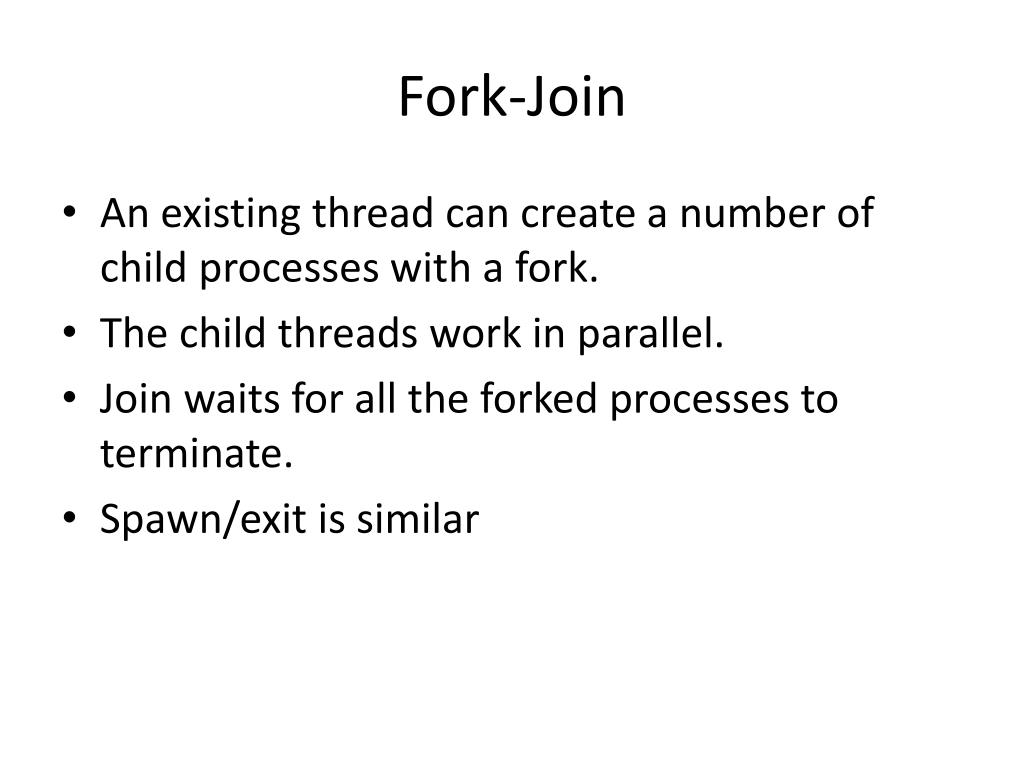

18. Fork-Join • An existing thread can create a number of child processes with a fork. • The child threads work in parallel. • Join waits for all the forked processes to terminate. • Spawn/exit is similar

19. Parbegin-Parend • Also called cobegin-coend • Each statement (blocks/function calls) in the cobegin-coend block are to be executed in parallel. • Statements after coend are not executed until all the parallel statement are complete.

20. SPMD – SIMD • Single Program, Multiple Data vs. Single Instruction, Multiple Data • Both use a number of threads/processes which apply the same program to different data • SIMD executes the statements synchronously on different data • SPMD executes the statements asynchronously

21. Master-Slave • One thread/process that controls all the others • If dynamic thread/process creation, the master is the one that usually does it. • Master would “assign” the work to the workers and the workers would send the results to the master

22. Client-Server • Multiple clients connected to a server that responds to requests • Server could be satisfying requests in parallel (multiple requests being done in parallel or if the request is involved, a parallel solution to the request) • The client would also do some work with response from server. • Very good model for heterogeneous systems

23. Pipelining • Output of one thread is the input to another thread • A special type of functional decomposition • Another case where heterogeneous systems would be useful

24. Task Pools • Keep a collection of tasks to be done and the data to do it upon • Thread/process can generate tasks to be added to the pool as well as obtaining a task when it is done with the current task

25. Producer Consumer • Producer threads create data used as input by the consumer threads • Data is stored in a common buffer that is accessed by producers and consumers • Producer cannot add if buffer is full • Consumer cannot remove if buffer is empty

26. Array Data Distributions • 1-D • Blockwise • Each process gets ceil(n/p) elements of A, except for the last process which gets n-(p-1)*ceil(n/p) elements • Alternatively, the first n%p processes get ceil(n/p) elements while the rest get floor(n/p) elements. • Cyclic • Process p gets data k*p+i (k=0..ceil(n/)) • Block cyclic • Distribute blocks of size b to processes in a cyclic manner

27. 2-D Array distribution • Blockwise distribution rows or columns • Cyclic distribution of rows or columns • Blockwise-cyclic distribution of rows or columns

28. Checkerboard • Take an array of size n x m • Overlay a grid of size g x f • g<=n • f<=m • More easily seen if n is a multiple of g and m is a multiple of f • Blockwise Checkerboard • Assign each n/g x m/f submatrix to a processor

29. Cyclic Checkerboard • Take each item in a n/g x m/f submatrix and assign it in a cyclic manner. • Block-Cyclic checkerboard • Take each n/g x m/f submatrix and assign all the data in the submatrix to a processor in a cyclic fashion

30. Information Exchange • Shared Variables • Used in shared memory • When thread T1 wants to share information with thread T2, then T1 writes the information into a variable that is shared with T2 • Must avoid 2 or more processes reading or writing to the same variable at the same time (race condition) • Leads to non-Deterministic behavior.

31. Critical Sections • Sections of code where there may be concurrent accesses to shared variables • Must make these sections mutually exclusive • Only one process can be executing this section at any one time • Lock mechanism is used to keep sections mutually exclusive • Process checks to see if section is “open” • If it is, then “lock” it and execute (unlock when done) • If not, wait until unlocked

32. Communication Operations • Single Transfer – Pi sends a message to Pj • Single Broadcast – one process sends the same data to all other processes • Single accumulation – Many values operated on to make a single value that is placed in root • Gather – Each process provides a block of data to a common single process • Scatter – root process sends a separate block of a large data structure to every other process

33. More Communications • Multi-Broadcast – Every process sends data to every other process so every process has all the data that was spread out among the processes • Multi-Accumulate – accumulate, but every process gets the result • Total Exchange-Each process provides p-data blocks. The ith data block is sent to pi. Each processor receives the blocks and builds the structure with the data in i order.

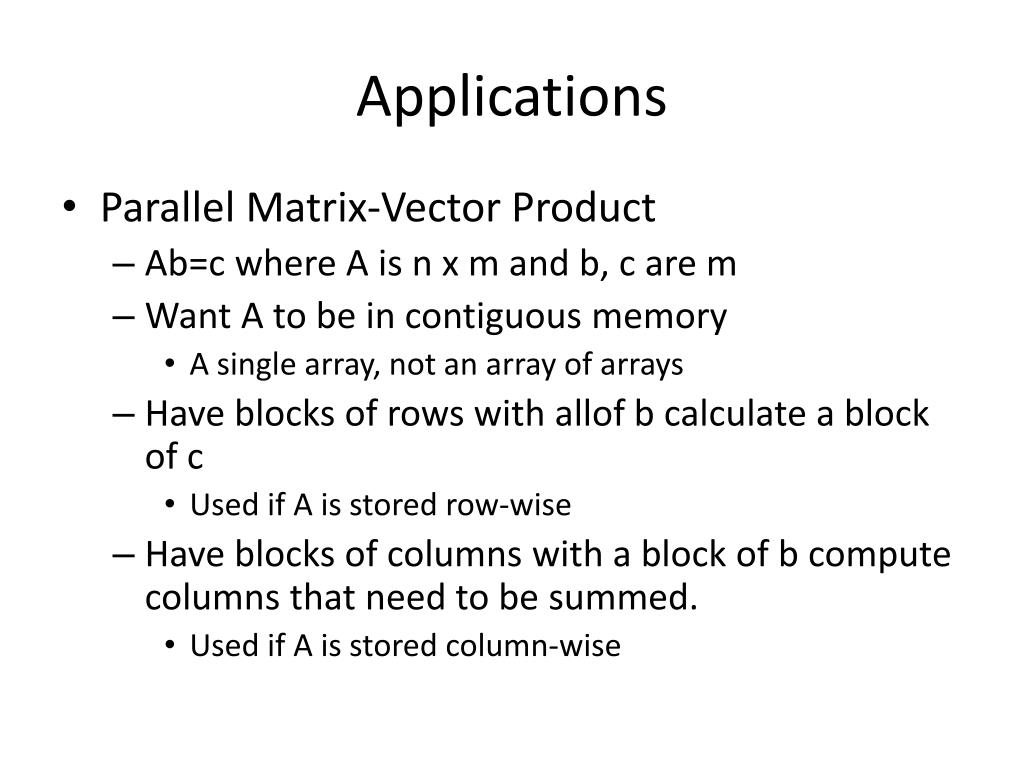

34. Applications • Parallel Matrix-Vector Product • Ab=c where A is n x m and b, c are m • Want A to be in contiguous memory • A single array, not an array of arrays • Have blocks of rows with allof b calculate a block of c • Used if A is stored row-wise • Have blocks of columns with a block of b compute columns that need to be summed. • Used if A is stored column-wise

35. Processes and Threads • Process – a program in execution • Includes code, program data on stack or heap, values of registers, PC. • Assigned to processor or core for execution • If there are more processes than resources (processors or memory) for all, execute in a round-robin time-shared method • Context switch – changing from one process to another executing on processor.

36. Fork • The Unix fork command • Creates a new process • Makes a copy of the program • Copy starts at statement after the fork • NOT shared memory model – Distributed memory model • Can take a while to execute

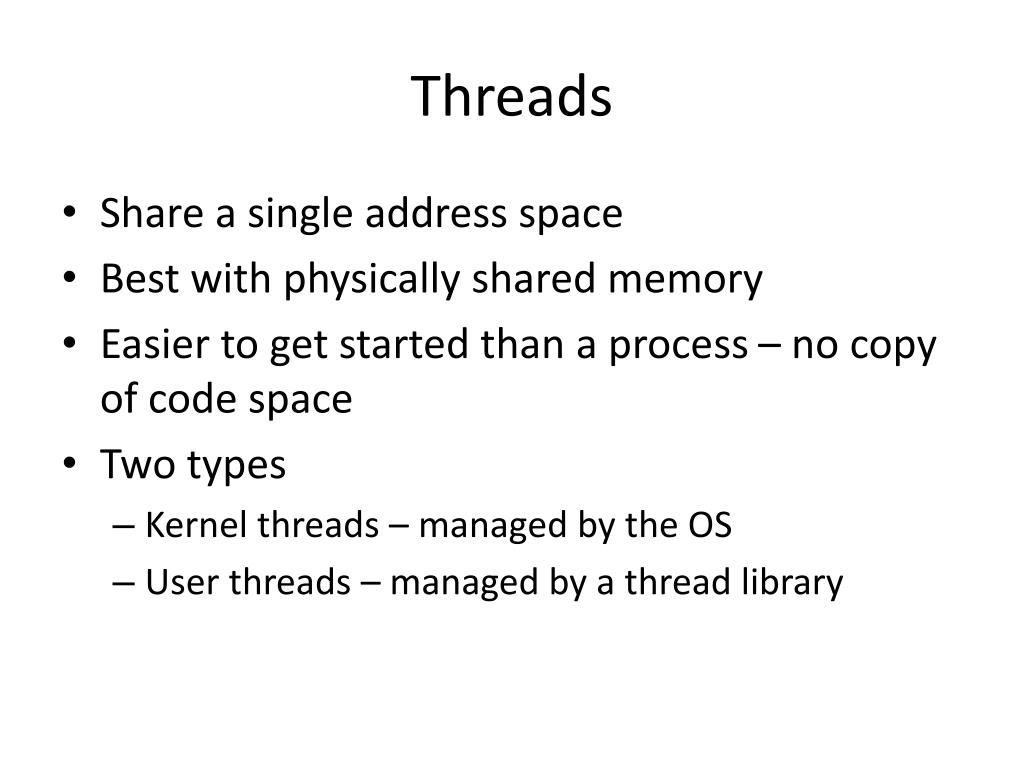

37. Threads • Share a single address space • Best with physically shared memory • Easier to get started than a process – no copy of code space • Two types • Kernel threads – managed by the OS • User threads – managed by a thread library

38. Thread Execution • If user threads are executed by a thread library/scheduler, (no OS support for threads) then all the threads are part of one process that is scheduled by the OS • Only one thread executed at a time even if there are multiple processors • If OS has thread management, then threads can be scheduled by OS and multiple threads can execute concurrently • Or, Thread scheduler can map user threads to kernel threads (several user threads may map to one kernel thread)

39. Thread States • Newly generated • Executable • Running • Waiting • Finished • Threads transition from state to state based on events (start, interrupt, end, block, unblock, assign-to-processor)

40. Synchronization • Locks • A process “locks” a shared variable at the beginning of a critical section • Lock allows process to proceed if shared variable is unlocked • Process blocked if variable is locked until variable is unlocked • Locking is an “atomic” process.

41. Semaphore • Usually a binary type but can be integer • wait(s) • Waits until the value of s is 1 (or greater) • When it is, decreases s by 1 and continues • signal(s) • Increments s by 1

42. Barrier Synchronization • A way to have every process wait until every process is at a certain point • Assures the state of every process before certain code is executed

43. Condition Synchronization • A thread is blocked until a given condition is established • If condition is not true, then put into blocked state • When condition true, moved from blocked to ready (not necessarily directly to a processor) • Since other processes may be executing, by the time this process gets to a processor, the condition may no longer be true • So, must check condition after condition satisfied

44. Efficient Thread Programs • Proper number of threads • Consider degree of parallelism in application • Number of processors • Size of shared cache • Avoid synchronization as much as possible • Make critical section as small as possible • Watch for deadlock conditions

45. Memory Access • Must consider writing values to shared memory that is held in local caches • False sharing • Consider 2 processes writing to different memory locations • SHOULD not be an issue since not shared by two cache memories • HOWEVER, if the memory locations are close to each other, they may be in the same cache line and actually have the different locations both be in the different caches
