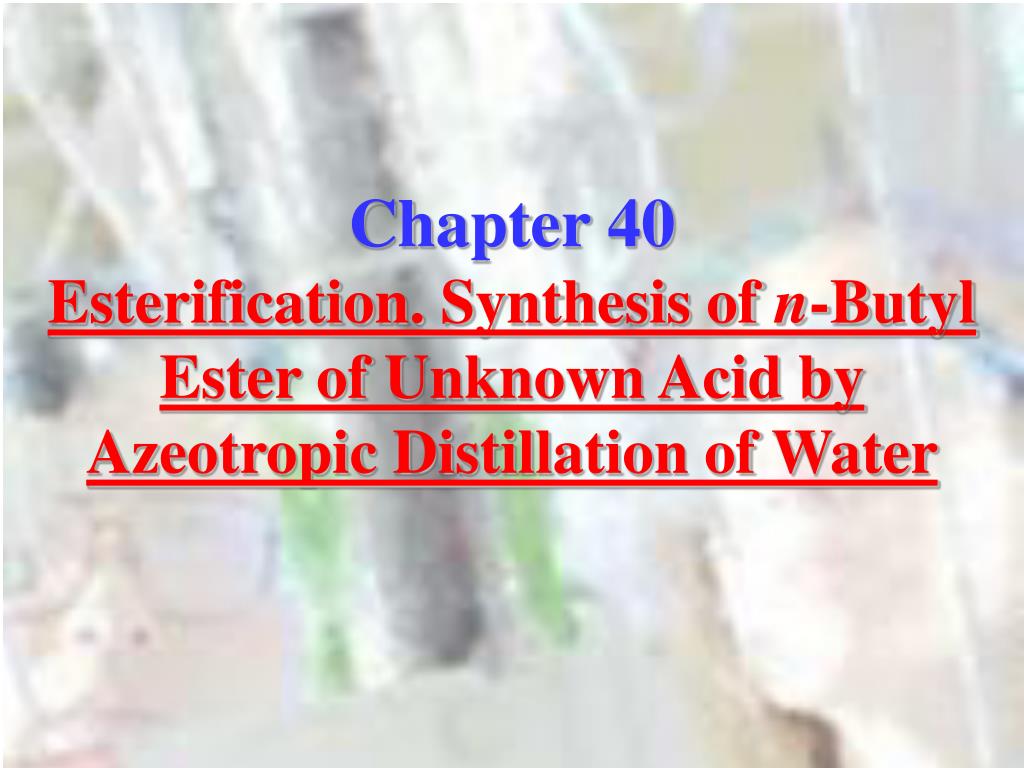

  1. Chapter 40 Esterification. Synthesis of n-Butyl Ester of Unknown Acid by Azeotropic Distillation of Water

  2. Purpose • In this experiment an Unknown carboxylic acid is esterified with butanol in the presence of an acid catalyst in an azeotropic distillation mode. • The product is isolated by: • withdrawing the reaction mixture from reaction flask with a Pasteur pipette to leave the catalyst behind and • extraction with aqueous NaHCO3 solution and ether.

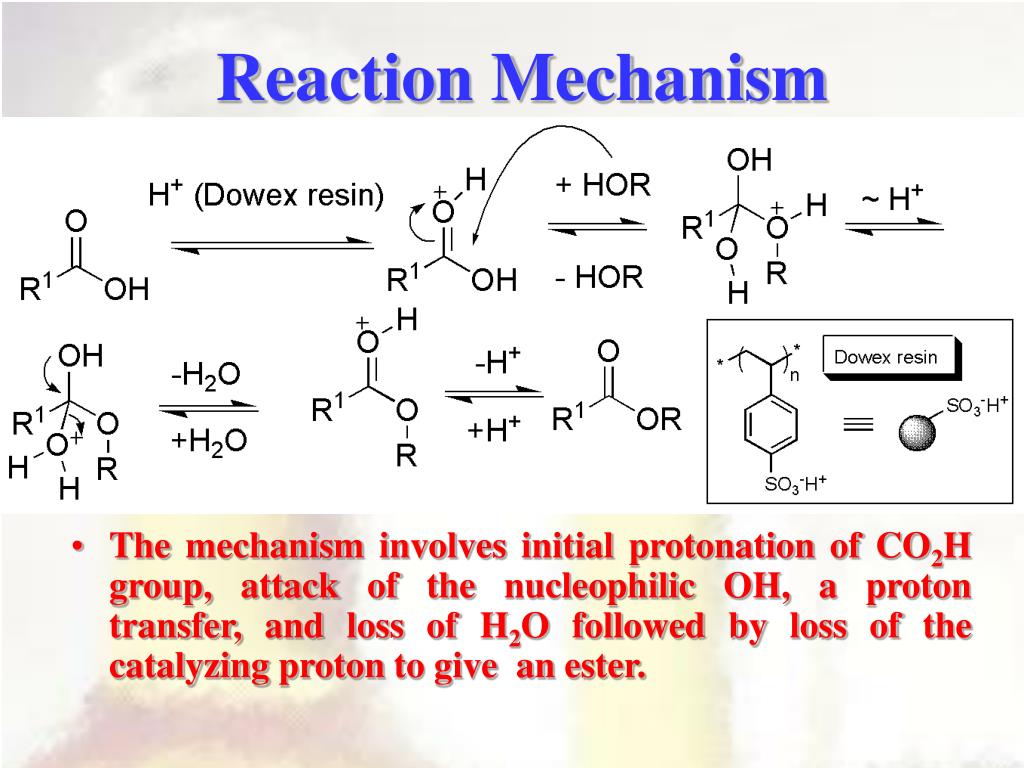

  3. Reaction Mechanism • The mechanism involves initial protonation of CO2H group, attack of the nucleophilic OH, a proton transfer, and loss of H2O followed by loss of the catalyzing proton to give an ester.

  4. Comments • Follow pp. 559-560 (microscale). • Follow the lab handout for all experimental procedures. • Unreacted acid should be removed by washing reaction mixture with aqueous NaHCO3 with following extraction. • Perform IR and GC/MS analysis of the product. Prepare sample for NMR. • Determine the structure of the Unknown acid from spectral data. • Calculate yield. High to moderate yields should be achieved.

  5. Safety • Flammable reagents are used in this experiment, keep away from open flame. • Acids are corrosive, avoid contact with skin and eyes. • Caution: Note ‘fruity’ fragrance of the final product (use wafting, do not inhale!). n-Butyl acetate can cause irritation of eyes, upper respiratory system and skin.Potential symptoms of overexposure are headache, drowsiness, narcosis. Do not inhale, avoid contact with skin and eyes.
