Technical Improvements Micra Range

Technical Improvements Micra Range. Name of project: Micra Vintage Boilers involved : Micra 2. Name of new boiler : Micra 2 The names will be the same as before The modifications will be intended as technical improvements The boiler codes will be same as for current models

alyssa
Télécharger la présentation

Technical Improvements Micra Range

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Technical Improvements Micra Range

  2. Name of project:Micra Vintage Boilers involved: Micra 2 • Name of new boiler:Micra 2 • The names will be the same as before • The modifications will be intended as technical improvements • The boiler codes will be same as for current models • No technical functions added

  3. AESTHETICS MICRA Current range Micra 2 New range Micra 2 • Same control panel • Same dimensions • Same aesthetics

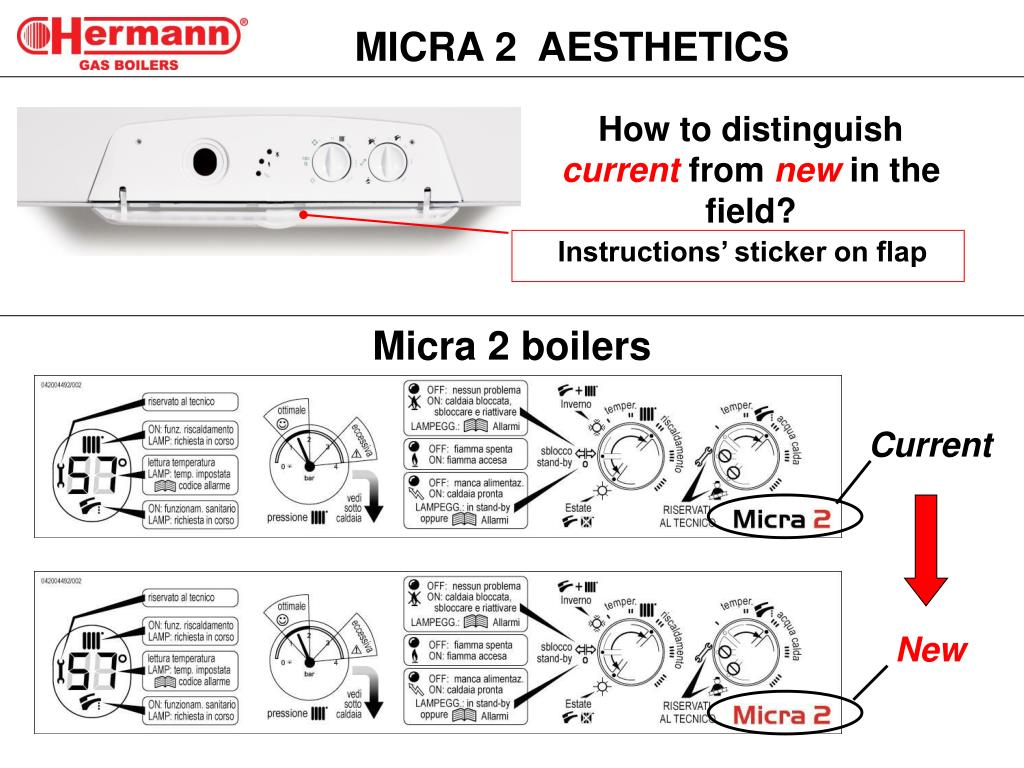

  4. MICRA 2 AESTHETICS How to distinguish current from new in the field? Instructions’ sticker on flap Micra 2 boilers Current New

  5. INTERNAL VIEW CURRENT NATURAL DRAUGHT FAN ASSISTED Micra 2 E Micra 2 SE

  6. INTERNAL VIEW NEW New

  7. HYDRAULICS Current Micra 2 New fixing way for DHW exchanger Electric 3-way valve New Micra 2 Flowmeter

  8. HYDRAULICS Current Micra 2 • The same Fixing Template as before New Micra 2

  9. HYDRAULICS New flowmeter for water detection • Pre-assembled by supplier (FITRE) ensuring functioning. • Opportunity to fit the liter-counter at the top • REED Contact • Tongues’ support to improve fixing and stability • Hexagonal base to avoid torsional stress Connections bracket Flowmeter’s base

  10. HYDRAULICS New 3-way motorized valve – Supplier “Giannoni”

  11. HYDRAULICS Heating NTC Supplier “EPCOS” Sparkling Igniter Supplier “ANSTOS” DHW NTC Supplier “EPCOS” The same features as in current version

  12. ELECTRONICS - main PCB Current Micra 2 Micra Condensing New Micra 2 Micra Condensing Supplier “Honeywell” Supplier “Nordgas” Same features and technical characteristics as in current version

  13. ELECTRONICS - main PCB 6 MICROSWITCHES

  14. ELECTRONICS - main PCB • How will microswitches be on boiler? • New boilers = All OFF (SW1 based on gas type) • Spares = All OFF SW6 = OFF --- Water automatic fill-in not enabled SW6 = ON --- Water automatic fill-in enabled (Must be OFF for your boilers) SW5 = OFF --- Working pump STANDARD SW5 = ON --- Working pump OFF during heating demand SW4 = OFF --- Max achievable temp on DHW demand OFF 75°C / ON 65°C (Standard) SW4 = ON --- Max achievable temp on DHW demandOFF Tset + 3°C / ON Tset +2°C SW3 = OFF --- Delay of 3 minutes before restarting, after heating demand SW3 = ON --- No delay setted SW2 = OFF --- Range temperature setting TA1 Standard: 35°C / 78°C SW2 = ON --- Range temperature setting TA1 Ridotta: 25°C / 45°C SW1 = OFF --- boiler works with NATURAL GAS SW1 = ON --- boilerworks with LPG

  15. ELECTRONICS – LCD Current Micra 2 New Micra 2 Supplier “Honeywell” Supplier “Nordgas” Same features and technical characteristics as in current version

  16. ACCESSORIES New Micra Vintage range will manage the same accessories as current Micra 2 range

  17. SUMMARY • ...will change: • Supplier of main PCB • Supplier of LCD • Supplier of NTC sensors • Supplier of Sparkling igniter • 3-way valve • Brass hydraulic group • DHW exchanger • DHW flowmeter • ...will not change: • Name and codes of boilers • Control panel • Combustion chamber • Gas valve • Dimensions • Accessories • Aesthetics
