Mutations

amauck avatar
amauck
24 diapositives · 278 Views · Jan 02, 2020

Mutations. Definition : Any change in the nucleotide sequence of DNA. What Causes It?. Changes in the environment OR mutagens (other sources of mutation are physical and chemical agents) a. Ultraviolet Light (UV) b. X-Rays c. Tar from tobacco d. Pollutants and chemicals

#mutations #mutations ppt #powerpoint #presentation
Mutations - slide 1
01 / 24Mutations
1 / 17

Télécharger la présentation

Mutations
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

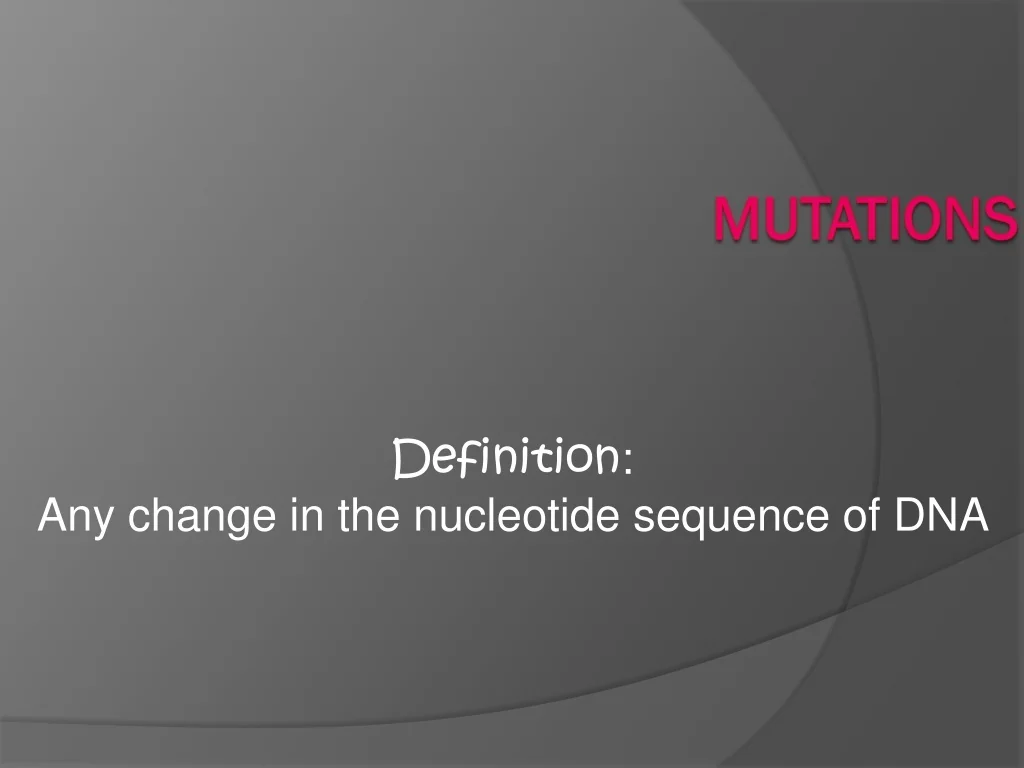

  1. Mutations Definition: Any change in the nucleotide sequence of DNA

  2. What Causes It? • Changes in the environment OR mutagens (other sources of mutation are physical and chemical agents) a. Ultraviolet Light (UV) b. X-Rays c. Tar from tobacco d. Pollutants and chemicals • Errors during replication, transcription or translation

  3. Chromosomal vs. Gene • Chromosomal Mutations: take place when the number of chromosomes changes or when structural changes occur in the chromosomes • Gene Mutations: a permanent change in the DNA sequence that makes up a gene

  4. Types of Gene Mutations • Point • Substitution • Frameshift • Deletion • Insertion

  5. Point Mutations A point mutation is when a single base pair is altered. http://en.wikipedia.org/wiki/Point_mutation

  6. Substitution The replacement of one base or nucleotide by another • Silent Mutation: Substitution mutation that has no effect • Missense Mutation: Changes of a single nucleotide that does change the amino acid coding • Nonsense Mutation: Change in an amino acid codon into a stop codon

  7. http://www.google.com/search?tbm=isch&hl=en&source=hp&biw=1366&bih=587&q=substitution+mutation&gbv=2&oq=Substitution+&aq=2&aqi=g10&aql=&gs_sm=3&gs_upl=1121l5088l0l9607l13l13l0l5l5l0l97l689l8l8l0&gs_l=img.3.2.0l10.1121l5088l0l9607l13l13l0l5l5l0l97l689l8l8l0.#hl=en&gbv=2&tbm=isch&sa=1&q=substitution+mutation&oq=substitution+mutation&aq=f&aqi=g2g-m2g-S2g-mS4&aql=&gs_sm=3&gs_upl=143846l154213l1l154699l15l15l0l1l0l0l130l1254l11.3l14l0&gs_l=img.3..0l2j0i5l2j0i24l2j0i5i24l4.143846l154213l1l154699l15l15l0l1l0l0l130l1254l11j3l14l0.&bav=on.2,or.r_gc.r_pw.r_qf.,cf.osb&fp=2421a2169344ff01&biw=1366&bih=587http://www.google.com/search?tbm=isch&hl=en&source=hp&biw=1366&bih=587&q=substitution+mutation&gbv=2&oq=Substitution+&aq=2&aqi=g10&aql=&gs_sm=3&gs_upl=1121l5088l0l9607l13l13l0l5l5l0l97l689l8l8l0&gs_l=img.3.2.0l10.1121l5088l0l9607l13l13l0l5l5l0l97l689l8l8l0.#hl=en&gbv=2&tbm=isch&sa=1&q=substitution+mutation&oq=substitution+mutation&aq=f&aqi=g2g-m2g-S2g-mS4&aql=&gs_sm=3&gs_upl=143846l154213l1l154699l15l15l0l1l0l0l130l1254l11.3l14l0&gs_l=img.3..0l2j0i5l2j0i24l2j0i5i24l4.143846l154213l1l154699l15l15l0l1l0l0l130l1254l11j3l14l0.&bav=on.2,or.r_gc.r_pw.r_qf.,cf.osb&fp=2421a2169344ff01&biw=1366&bih=587

  8. http://ghr.nlm.nih.gov/handbook/illustrations/nonsense http://www.google.com/search?tbm=isch&hl=en&source=hp&biw=1366&bih=587&q=substitution+mutation&gbv=2&oq=Substitution+&aq=2&aqi=g10&aql=&gs_sm=3&gs_upl=1121l5088l0l9607l13l13l0l5l5l0l97l689l8l8l0&gs_l=img.3.2.0l10.1121l5088l0l9607l13l13l0l5l5l0l97l689l8l8l0.#hl=en&gbv=2&tbm=isch&q=silent+mutation&revid=656048553&sa=X&ei=gotiT4CkAqjx0gGb37yGCA&ved=0CEAQ1QIoAw&bav=on.2,or.r_gc.r_pw.r_qf.,cf.osb&fp=2421a2169344ff01&biw=1366&bih=587 http://www.google.com/search?tbm=isch&hl=en&source=hp&biw=1366&bih=587&q=substitution+mutation&gbv=2&oq=Substitution+&aq=2&aqi=g10&aql=&gs_sm=3&gs_upl=1121l5088l0l9607l13l13l0l5l5l0l97l689l8l8l0&gs_l=img.3.2.0l10.1121l5088l0l9607l13l13l0l5l5l0l97l689l8l8l0.#hl=en&gbv=2&tbm=isch&q=missense+mutation&revid=1708114894&sa=X&ei=3ItiT6qNDsXg0QH3jeGNCA&ved=0CD0Q1QIoAA&bav=on.2,or.r_gc.r_pw.r_qf.,cf.osb&fp=2421a2169344ff01&biw=1366&bih=587

  9. Frame Shift Either addition or deletion of one or two nucleotide bases. When this occurs, the “reading frame” is changed so that all the codons read after the mutation are incorrect. http://evolution.berkeley.edu/evolibrary/article/mutations_03

  10. Deletion & Insertion • Deletion: To remove one or more nucleotides in a gene • Insertion: Adding one or more nucleotides into a gene Mutations involving the deletion or insertion of one or more nucleotides in a gene often have disastrous effects.

  11. Insertion Deletion http://evolution.berkeley.edu/evolibrary/article/mutations_03 http://learn.genetics.utah.edu/archive/mutations/mutatedna.html

  12. Guess which type of mutation… Normal: The princess looked beautiful in her dress. The princess looked beautiful in dress. The princess looked beatifulinherdress. her Deletion u Frame Shift

  13. Guess which type of mutation… The princess was beautiful in her dress. The princess looked very beautiful in her dress. was looked Substitution Insertion

  14. Types of Chromosomal Mutations • Inversion • Chromosomal Deletion • Translocation • Duplication

  15. Inversion Occurs when a chromosome breaks in two places and the resulting piece of DNA is reversed and re-inserted into the chromosome • Pericentric inversions: inversions that involve the centromere • Paracentric inversions: inversions that do not involve the centromere

  16. http://evolution.berkeley.edu/evolibrary/article/history_20 http://ghr.nlm.nih.gov/handbook/illustrations/inversion

  17. Chromosomal Deletion • Occurs when a chromosome breaks and some genetic material is lost http://ghr.nlm.nih.gov/handbook/illustrations/chromosomaldeletion

  18. Translocation Chromosomal abnormalities which occur when chromosomes break and the fragments rejoin to other chromosomes • In a balanced translocation, pieces of chromosomes are rearranged but no genetic material is gained or lost in the cell http://ghr.nlm.nih.gov/handbook/illustrations/balancedtranslocation

  19. Duplication A duplication occurs when part of a chromosome is copied (duplicated) abnormally, resulting in extra genetic material from the duplicated segment. http://ghr.nlm.nih.gov/handbook/illustrations/chromosomalduplication http://www.biology-online.org/2/7_mutations.htm

  20. Guess which type of mutation… Normal: The duck swam across the pond. The duck swam across swam across the pond. Duplication The duck swam pond the across. Inversion The duck swam the pond. Chromosomal Deletion across

  21. Guess which type of mutation… Normal: The duck swam across the pond. It looked tiring. The duck looked tiring. It swam across the pond. Translocation

  22. How else do mutations occur? • Errors can occur in the processes of mitosis and meiosis. • Nondisjunction: An accident of meiosis or mitosis in which a pair of homologous chromosomes or a pair of sister chromatids fail to separate at anaphase. • The result is gametes with abnormal numbers of chromosomes.

  23. http://www.genetic-diseases.net/down-syndrome/

  24. Sickle Cell Anemia • Sickle cell anemia is a hereditary disease that causes red blood cells to be shaped like moons. • This is due to a single amino acid substitution in the hemoglobin protein. http://www.ornl.gov/sci/techresources/Human_Genome/posters/chromosome/hbb.shtml http://www.unitedhealthdirectory.com/diseases-and-conditions/sickle-cell-anemia/
