  1. Assignment Strategies O-C-O O-C-O H-C-H O-H H-C-H O-H H-C-H H-C-H H-C-H H-C-H -N-Ca-CO-N-Ca-CO- -N-Ca-CO-N-Ca-CO- H H H H H H H H • Homonuclear • Two steps needed • Scalar coupling within each amino acid • Dipolar coupling between amino acids • Heteronuclear • Build up one atom at a time • Scalar coupling within and between each amino acid; some experiments provide intra- and inter-residue peaks

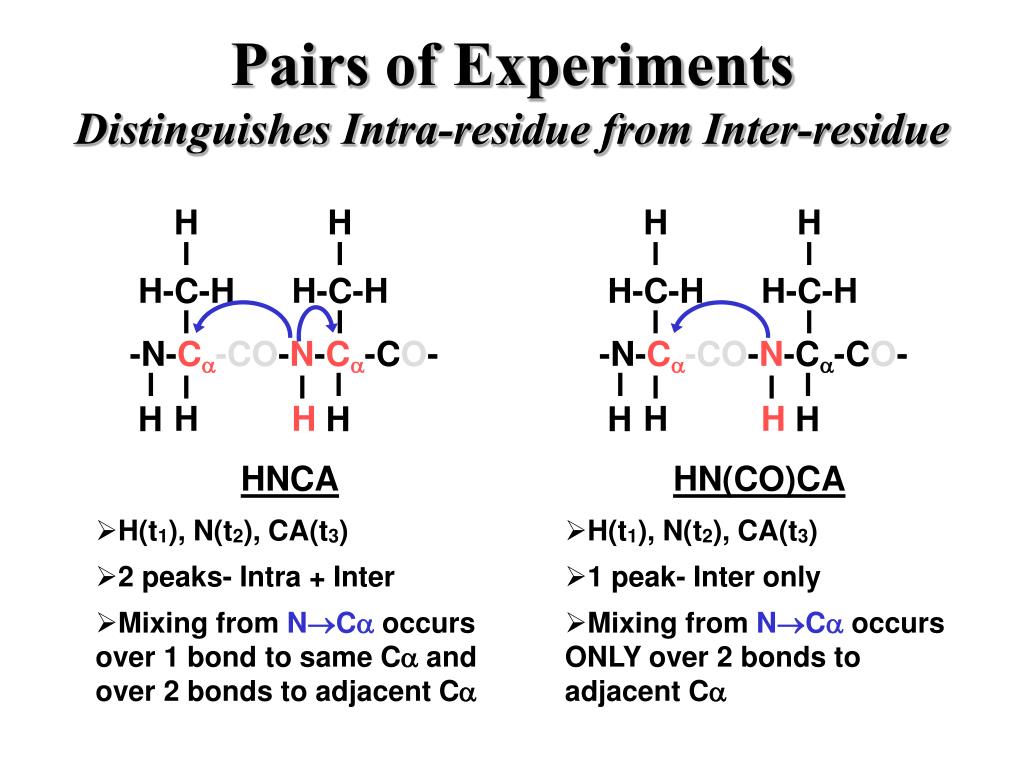

  2. Pairs of ExperimentsDistinguishes Intra-residue from Inter-residue H H H H H-C-H H-C-H H-C-H H-C-H -N-Ca-CO-N-Ca-CO- -N-Ca-CO-N-Ca-CO- H H H H H H H H • HNCA • H(t1), N(t2), CA(t3) • 2 peaks- Intra + Inter • Mixing from NCa occurs over 1 bond to same Ca and over 2 bonds to adjacent Ca • HN(CO)CA • H(t1), N(t2), CA(t3) • 1 peak- Inter only • Mixing from NCa occurs ONLY over 2 bonds to adjacent Ca

  3. Pairs of ExperimentsDistinguishes Intra-residue from Inter-residue H H H H H-C-H H-C-H H-C-H H-C-H -N-Ca-CO-N-Ca-CO- -N-Ca-CO-N-Ca-CO- H H H H H H H H • HNCACB • H(t1), N(t2), CA and CB(t3) • 4 peaks- intra + inter • Mixing from NCa occurs over 1 bond to same Ca and over 2 bonds to adjacent Ca • HN(CO)CACB • H(t1), N(t2), CA and CB(t3) • 2 peaks- inter only • Mixing from NCa occurs ONLY over 2 bonds to adjacent Ca

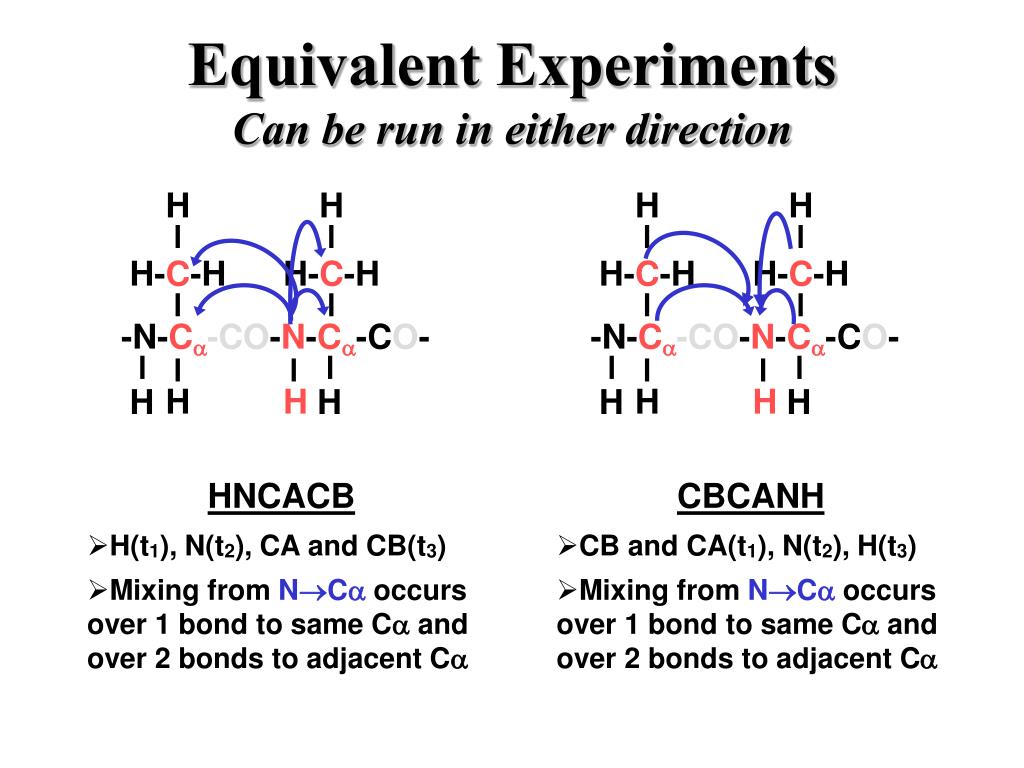

  4. Equivalent ExperimentsCan be run in either direction H H H H H-C-H H-C-H H-C-H H-C-H -N-Ca-CO-N-Ca-CO- -N-Ca-CO-N-Ca-CO- H H H H H H H H • HNCACB • H(t1), N(t2), CA and CB(t3) • Mixing from NCa occurs over 1 bond to same Ca and over 2 bonds to adjacent Ca • CBCANH • CB and CA(t1), N(t2), H(t3) • Mixing from NCa occurs over 1 bond to same Ca and over 2 bonds to adjacent Ca
