Lecture 7 From NFA to DFA. DFA. For every string x , there is a unique path from initial state and associated with x . x is accepted if and only if this path ends at a final state. . x. NFA.

Télécharger la présentation
## Lecture 7 From NFA to DFA

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

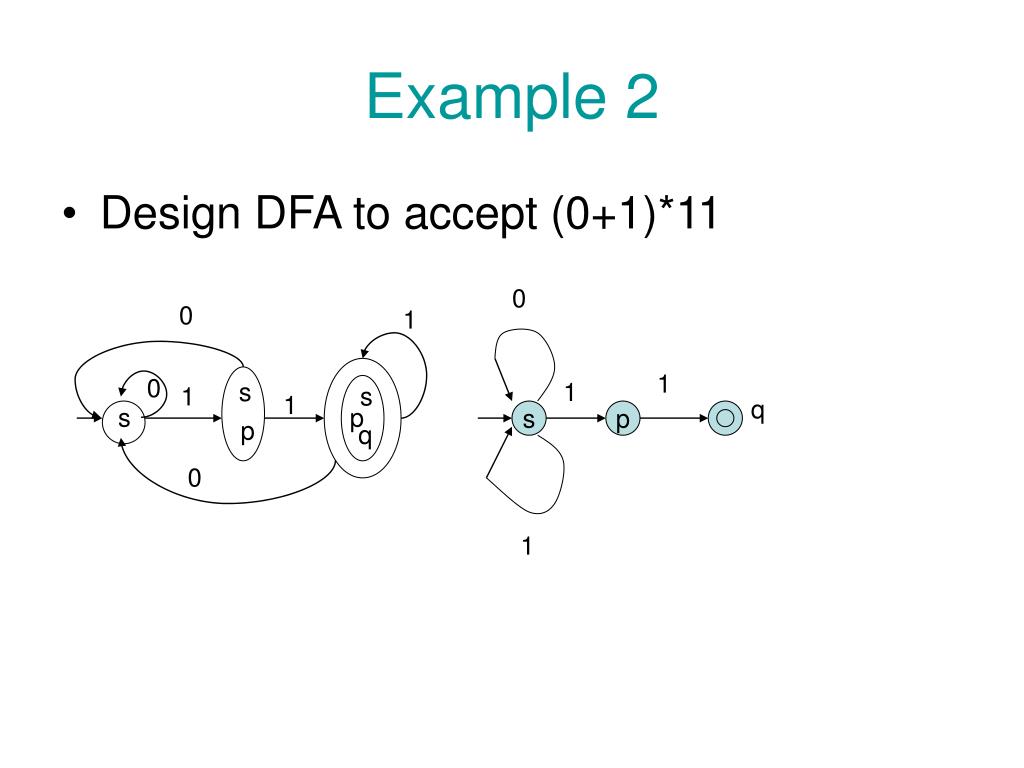

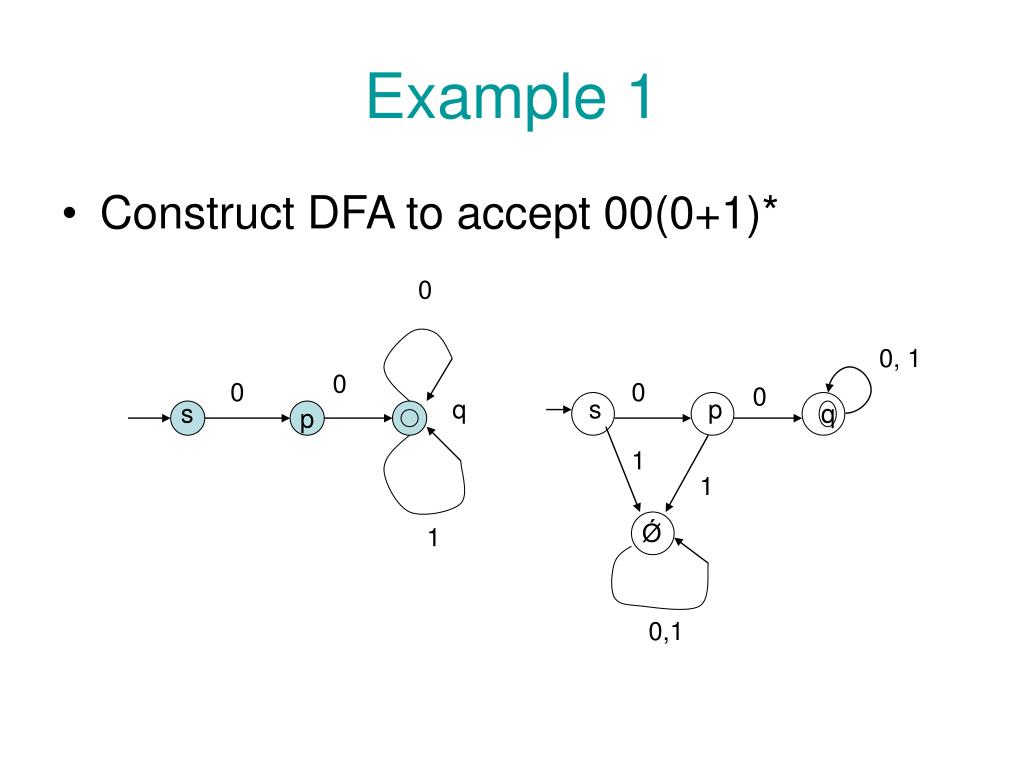

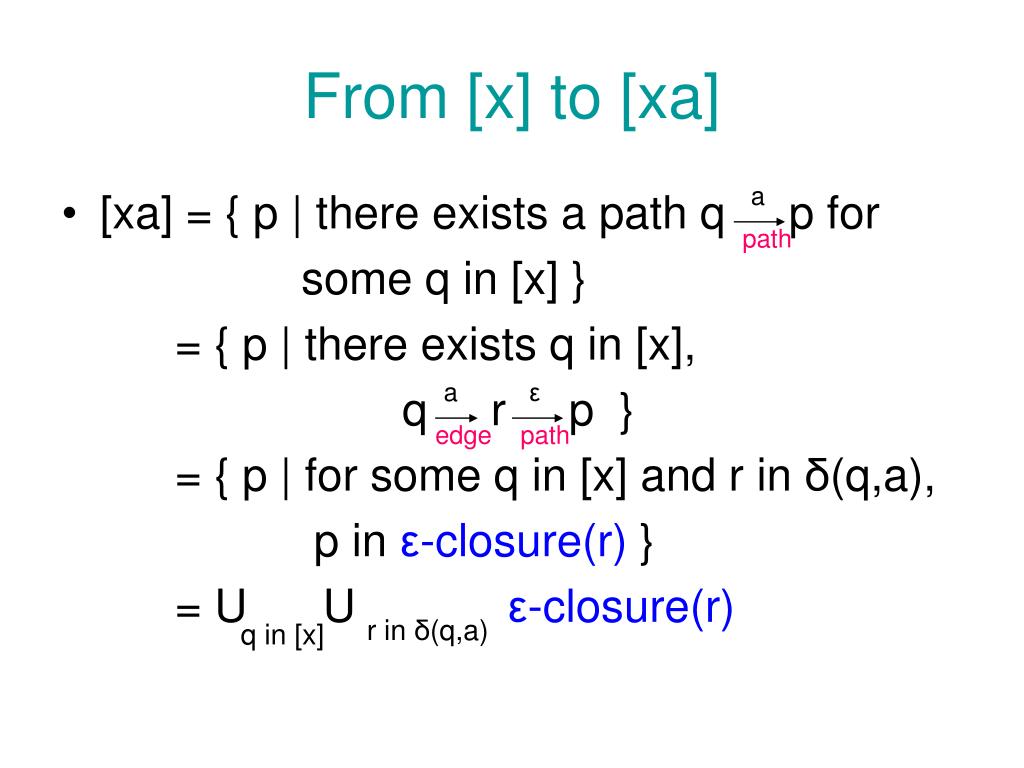

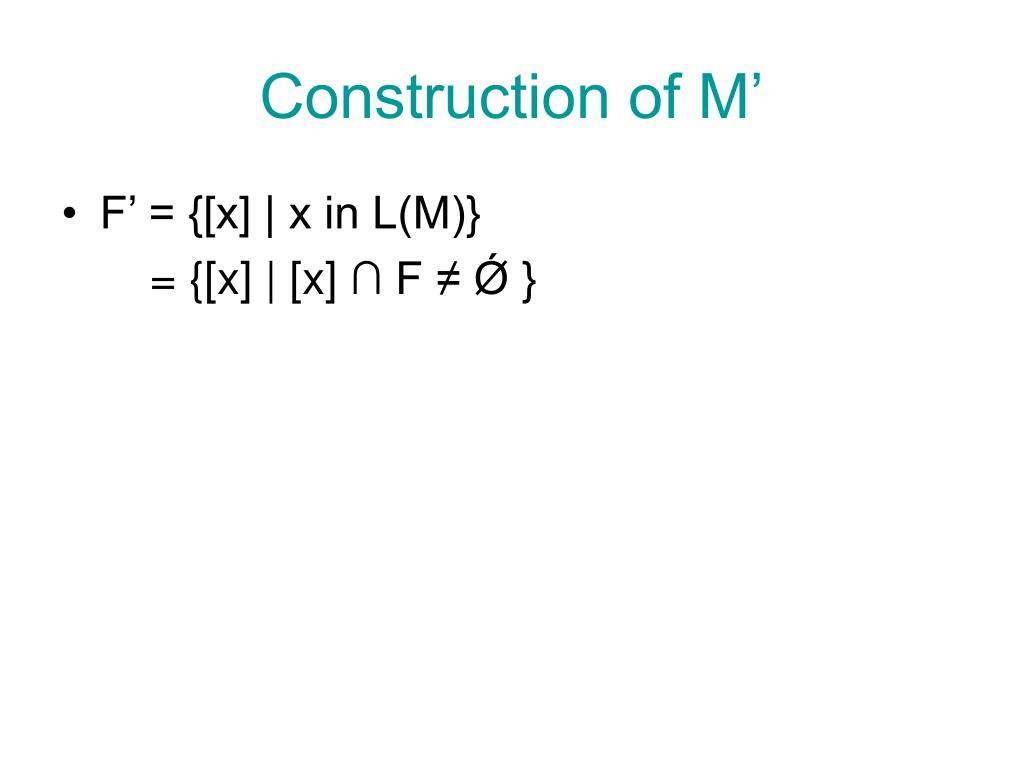

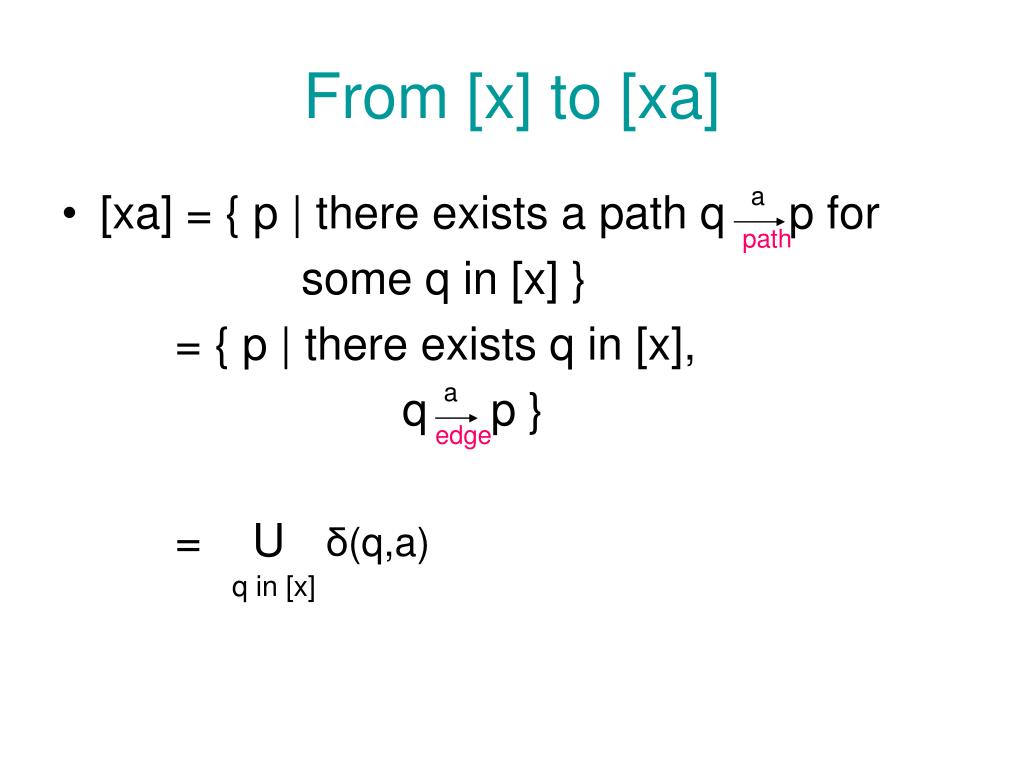

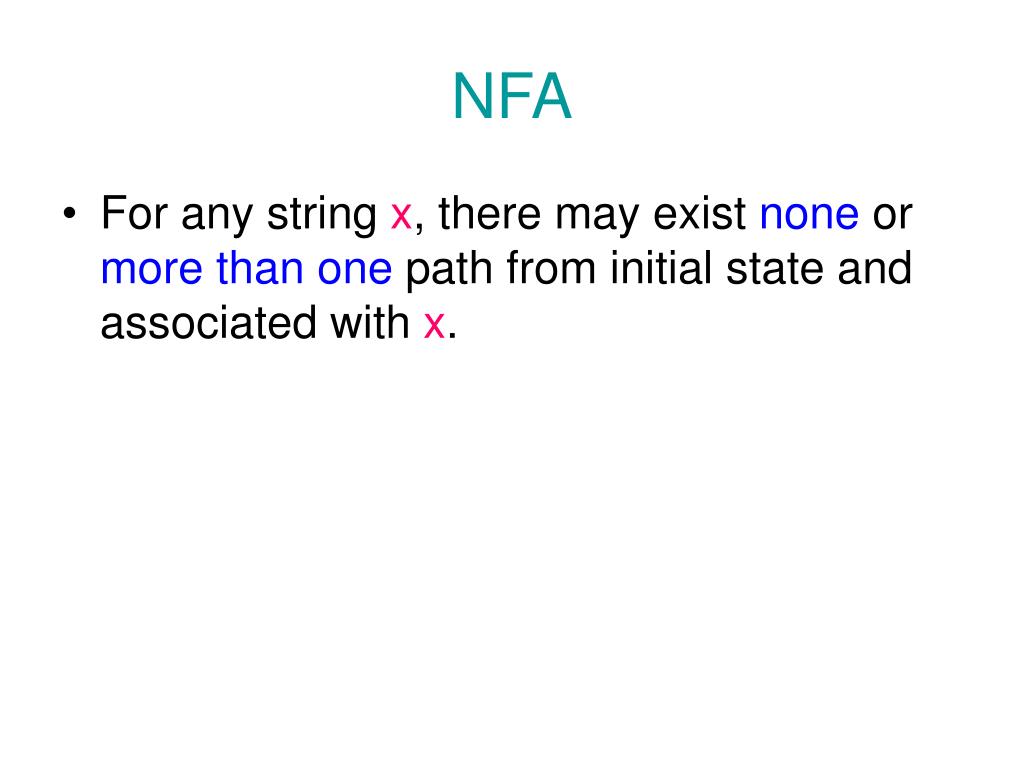

**DFA**• For every string x, there is a unique path from initial state and associated with x. x is accepted if and only if this path ends at a final state. x**NFA**• For any string x, there may exist none or more than one path from initial state and associated with x.**NFA DFA**• Consider an NFA M=(Q, Σ, δ, s, F). • For x in Σ*, define [x] = {q in Q | there exists a path s q} • Define DFA M’=(Q’, Σ, δ’, s’, F’}: Q’ = { [x] | x in Σ* }, δ ([x], a) = [xa] for x in Σ* and a in Σ, s’ = [ε], F’ = { [x] | x in L(M) } x**Construction of M’**Special Case: M has no ε-move. • [ε] = {s} • Suppose [x] is known. How to get [xa] for a in Σ?**From [x] to [xa]**a • [xa] = { p | there exists a path q p for some q in [x] } = { p | there exists q in [x], q p } = U path a edge δ(q,a) q in [x]**Construction of M’**• F’ = {[x] | x in L(M)} = {[x] | [x] ∩ F ≠ Ǿ }**Example 1**• Construct DFA to accept 00(0+1)* 0 0, 1 0 0 0 0 q s p s q p 1 1 Ǿ 1 0,1**Example 2**• Design DFA to accept (0+1)*11 0 0 1 1 0 s 1 1 s 1 q s p s p p q 0 1**Example 3**• Design DFA to accept 00(0+1)*11 0 0 0 1 1 t s p q r 0,1 Ǿ 1 1 1 0 1 q 1 q 1 0 0 s r q p t r 0 0**Example 4**• Construct DFA M for L(M)=ε. Is this a DFA? s 0,1 0 s Ǿ 1**Example 5**• Construct DFA M for L(M)=Ǿ. Is it a DFA? s 0 s 0,1 Ǿ 0,1 1**Construction of M’**• For q in Q, define ε-closure(q) = {p | there exists a path q p} • [ε] = {q | there is a path s q} = ε-closure(s) • Suppose [x] is known. How to get [xa] for a in Σ? ε path ε path**From [x] to [xa]**a • [xa] = { p | there exists a path q p for some q in [x] } = { p | there exists q in [x], q r p } = { p | for some q in [x] and r in δ(q,a), p in ε-closure(r) } = U U ε-closure(r) path a ε edge path r in δ(q,a) q in [x]**Construction of M’**• F’ = {[x] | x in L(M)} = {[x] | [x] ∩ F ≠ Ǿ }**Example 6**• Construct DFA M for L(M)=(0+1)*. 0,1 ε ε s p q 0,1 0,1 s 0 p p q q 1**Example 7**• Convert the following NFA to DFA. 0 q 0 0 s ε q r 0 1 ε s 0 r s ε p p r p 1 1 1 0 0 q, r, p 1**0**0,1 0 0 0 0 1 1 1 1 e s a b c d 1 0 0 0 0 0 s,a s,a,b s,a,b,c s,a,b,c,d s,a,b,c,d,e s 1 5 s,b 2 =32 How many states? 1 s,c 4 How many final states? 2 = 16 1 s,d 1 No, it is minimum! Can we simplify it? s,e
