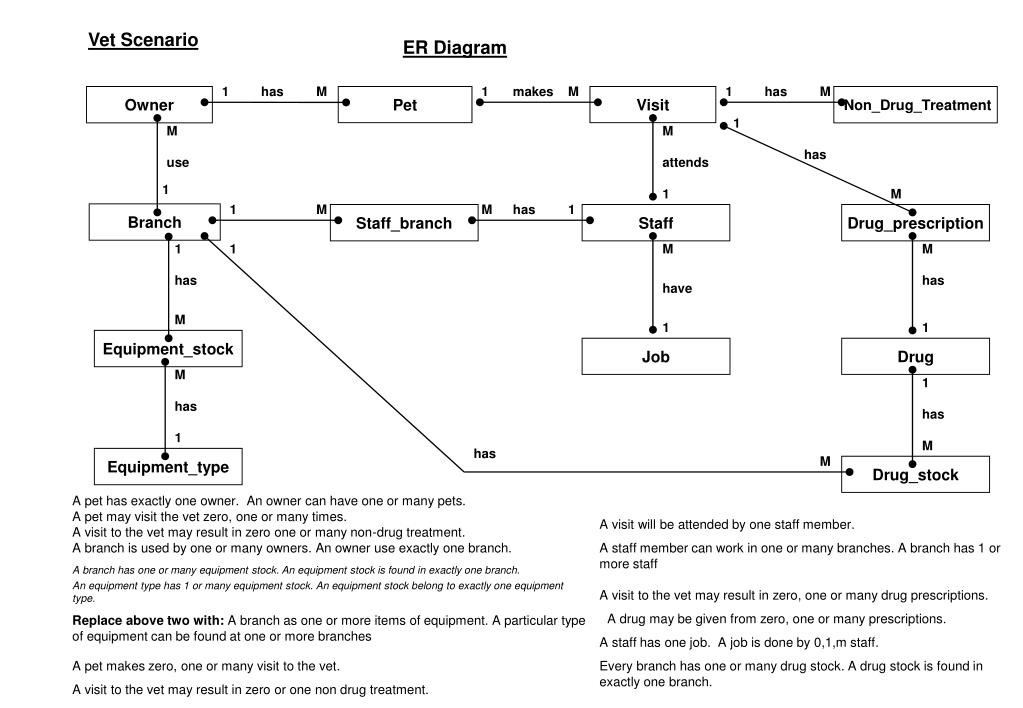

Vet Scenario ER Diagram 1 has M 1 makes M 1 has M Owner Pet Visit Non_Drug_Treatment 1 M M has use attends 1 1 M 1 M M has 1 Branch Staff_branch Staff Drug_prescription 1 1 M M has has have M 1 1 Equipment_stock Job Drug M 1 has has 1 M has

andrew
Télécharger la présentation

Branch

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Vet Scenario ER Diagram 1 has M 1 makes M 1 has M Owner Pet Visit Non_Drug_Treatment 1 M M has use attends 1 1 M 1 M M has 1 Branch Staff_branch Staff Drug_prescription 1 1 M M has has have M 1 1 Equipment_stock Job Drug M 1 has has 1 M has Equipment_type M Drug_stock A pet has exactly one owner. An owner can have one or many pets. A pet may visit the vet zero, one or many times. A visit will be attended by one staff member. A visit to the vet may result in zero one or many non-drug treatment. A branch is used by one or many owners. An owner use exactly one branch. A staff member can work in one or many branches. A branch has 1 or more staff A branch has one or many equipment stock. An equipment stock is found in exactly one branch. An equipment type has 1 or many equipment stock. An equipment stock belong to exactly one equipment type. Replace above two with: A branch as one or more items of equipment. A particular type of equipment can be found at one or more branches A visit to the vet may result in zero, one or many drug prescriptions. A drug may be given from zero, one or many prescriptions. A staff has one job. A job is done by 0,1,m staff. A pet makes zero, one or many visit to the vet. Every branch has one or many drug stock. A drug stock is found in exactly one branch. A visit to the vet may result in zero or one non drug treatment.

  2. Equipment_Branch (EquipmentNO, BranchNO, ……) Equipment_type (EquipmentNo, Description, ……) StaffBranch (StaffNo, BranchNo, ..….) Prescription (DrugNo, VisitNO, Dosage_amt ……) NDT (TreatNo, VisitNO, Description, ……) Visit (VisitNo, PetNo, StaffNO, VisitDate, ..….) Pet (PetNo, OwnerNo, Pet_Name, DOB, Status, ……) Drug_stock(DrugNo, BranchNo, Re-order_level, ……) Drug (DrugNo, Dname, Rec_dosage, ……) Job (JobNo, Job description , job_title,salary_range ……) Owner (OwnerNo, Fname, Lname, Address, Postcode, Town, BranchNo, ……) Branch (BranchNo, AreaCode, Address, Town, PostalCode….) Staff (StaffNo, Fname , Lname, Address, jobNo, ……..)
