Delayed Branch

Delayed Branch. All problems solved? NO, what will happen if...... b loop add $4 $6 $1 .. . loop sub. Add. B loop. Zero ext. =. =. Branch logic. 0. A. ALU. 4. B. +. =. =. 31. +. Sgn/Ze extend. sub. Add. B loop. Zero ext. =. =. Branch logic. 0. A. ALU. 4.

garrison-neal
Télécharger la présentation

Delayed Branch

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Delayed Branch • All problems solved? NO, what will happen if...... b loop add $4 $6 $1 .. . loop sub

  2. Add B loop Zeroext. = = Branch logic 0 A ALU 4 B + = = 31 + Sgn/Ze extend

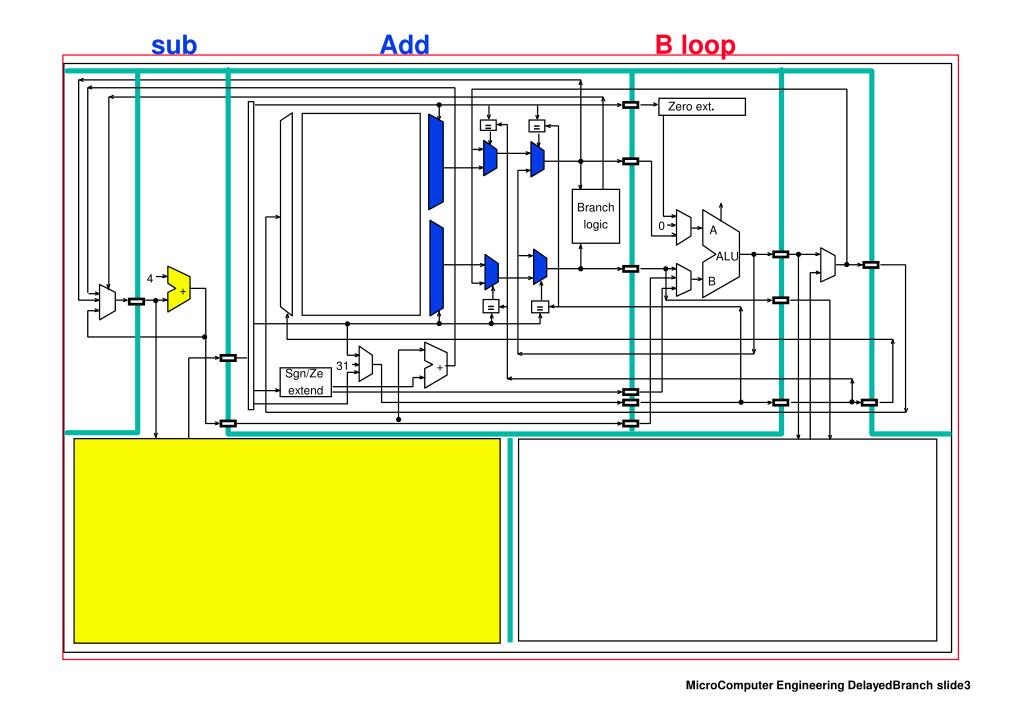

  3. sub Add B loop Zeroext. = = Branch logic 0 A ALU 4 B + = = 31 + Sgn/Ze extend

  4. Delayed Branch - Throughput might decrease, (nop). - Assembler/Compiler dependent. + Keep critical path short

  5. All problems solved now? NO, what will happen if...... .. bal loop add $4 $6 $1 xor .... loop: sub ... .. j $ra

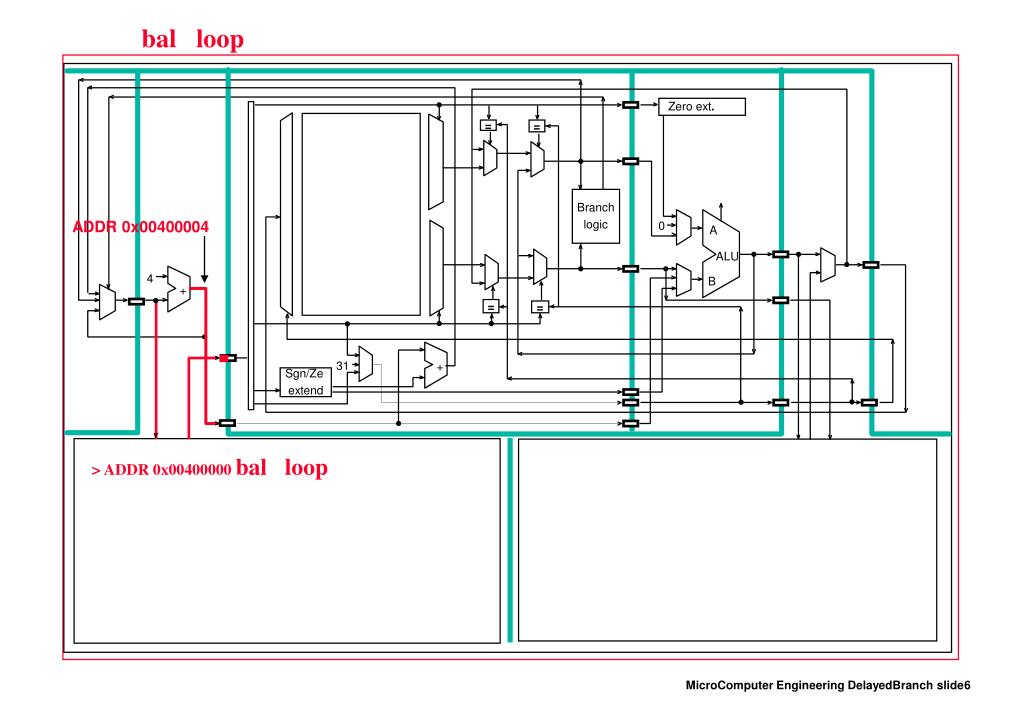

  6. bal loop Zeroext. = = Branch logic ADDR 0x00400004 0 A ALU 4 B + = = 31 + Sgn/Ze extend > ADDR 0x00400000 bal loop

  7. bal loop add Zeroext. = = Branch logic 0 A ALU 4 B + = = 31 + Sgn/Ze extend ADDR 0x00400004 ADDR 0x00400000 bal loop > ADDR 0x00400004 add

  8. bal loop sub add Zeroext. = = Branch logic ADDR 0x00400004 0 A ADDR 0x00400004 ALU 4 B + = = 31 + Sgn/Ze extend • ADDR 0x00400000 bal loop ADDR 0x00400004 add >loop: sub

  9. jr $ra ADDR 0x00400004 Zeroext. = = Branch logic 0 A ALU 4 B + = = 31 + Sgn/Ze extend sub .. .. j $ra

  10. Zeroext. = = Branch logic 0 A ALU 4 B + = = 31 + Sgn/Ze extend Oooh not again!!! 0x00400004 add

  11. Continue at 0x00400008 bal loop sub add Zeroext. = = Branch logic ADDR 0x00400004 4 A ADDR 0x00400008 ALU 4 B + = = 31 + Sgn/Ze extend

  12. jr $ra ADDR 0x00400008 Zeroext. = = Branch logic 0 A ALU 4 B + = = 31 + Sgn/Ze extend sub .. .. j $ra

  13. All Hazards Fixed but: • One “delayed branch” slot

  14. What about “delayed Branch” • Can we avoid it? • How?

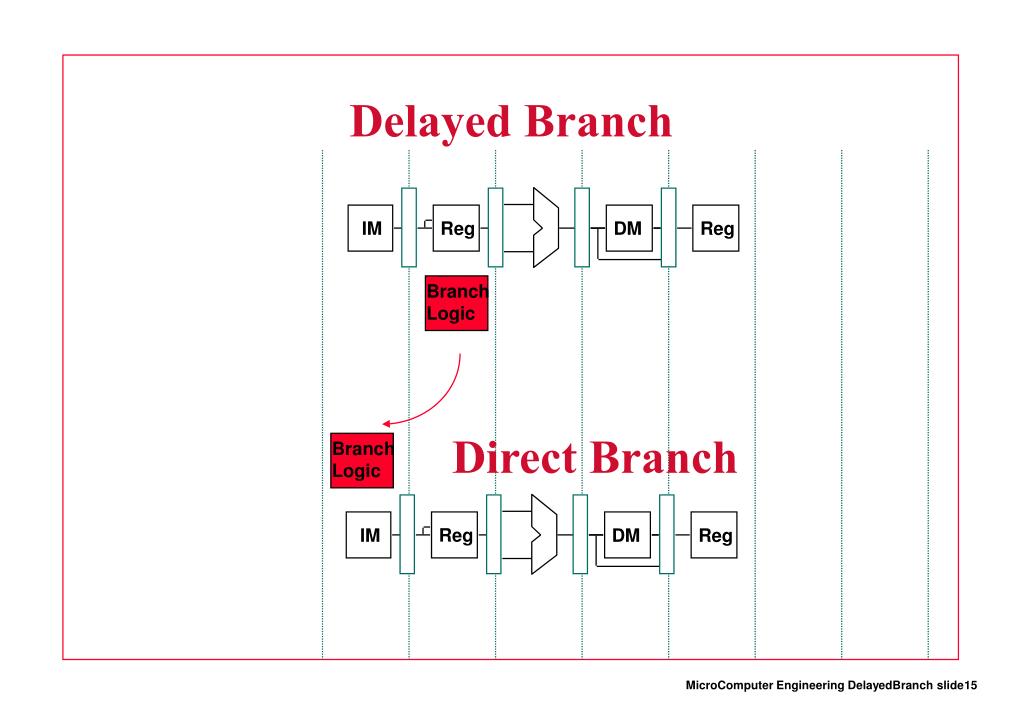

  15. Delayed Branch Reg IM DM Reg Branch Logic Direct Branch Branch Logic Reg IM DM Reg

  16. Delayed Branch Zeroext. = = Branch logic 0 A ALU 4 B + = = 31 + Sgn/Ze extend

  17. Direct Branch Zeroext. = = Branch logic Branch logic 0 A ALU 4 B + = = 31 + Sgn/Ze extend

  18. What about the instruction set? • beq $t0 $t0 label? • jr $ra? • NO, DE is not in path! • b label? • OK, but the new branch logic needs an ALU to compute the address

  19. Different branch logic? • Can both branch types coexist? • Yes, no problem, but: • Old type still uses “delay slot”
