Frantic About Frances

1. Frantic About Frances Richard H. Grumm and John LaCorte National Weather Service State College, PA 16803

2. Introduction • Significant Hurricane as approached Florida • Had a big impact on Florida • Raised issues of impacts as it moved north • Would the track and timing be better than with…Charlie? • Big issue was the transition stage • Heavy rains, tornadoes, and winds • Frances was a large storm lots of anomalies in wind, moisture and pressure fields • And timing of heavy rain, tornadoes, and wind • Timing was in doubt due to model differences in the speed of movement • Heavy rains on north and west side of the storm in Pennsylvania, New York, and Ohio • Cold conveyor rains (heavy) in western New York, PA, and OH.

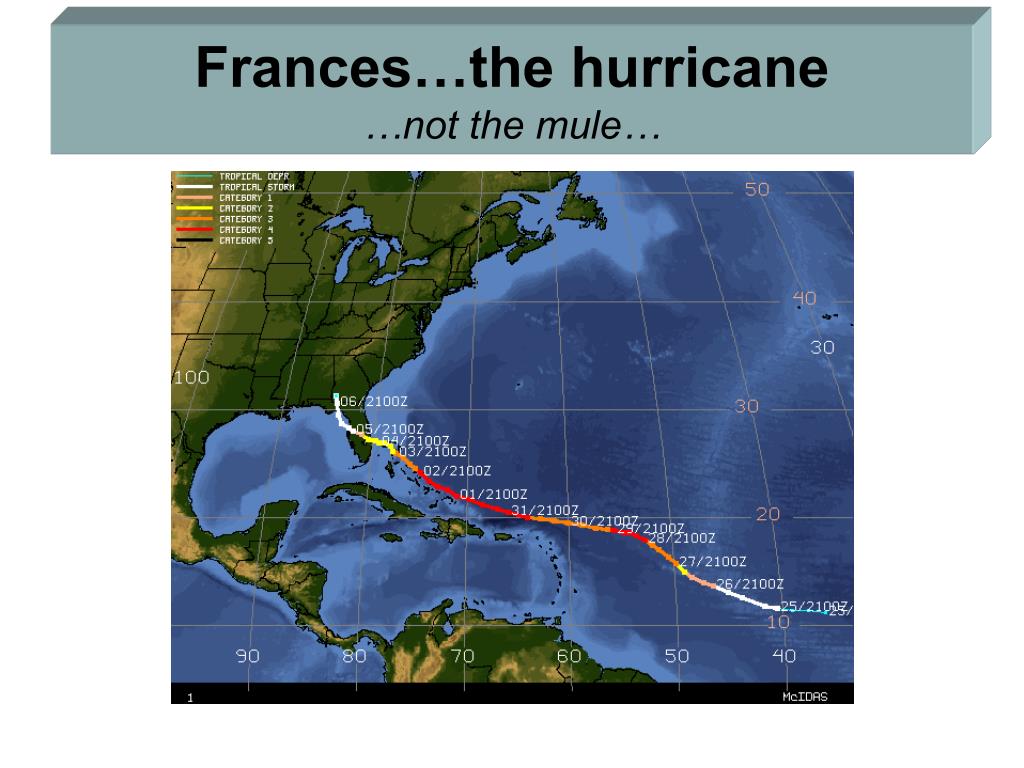

3. Frances…the hurricane…not the mule…

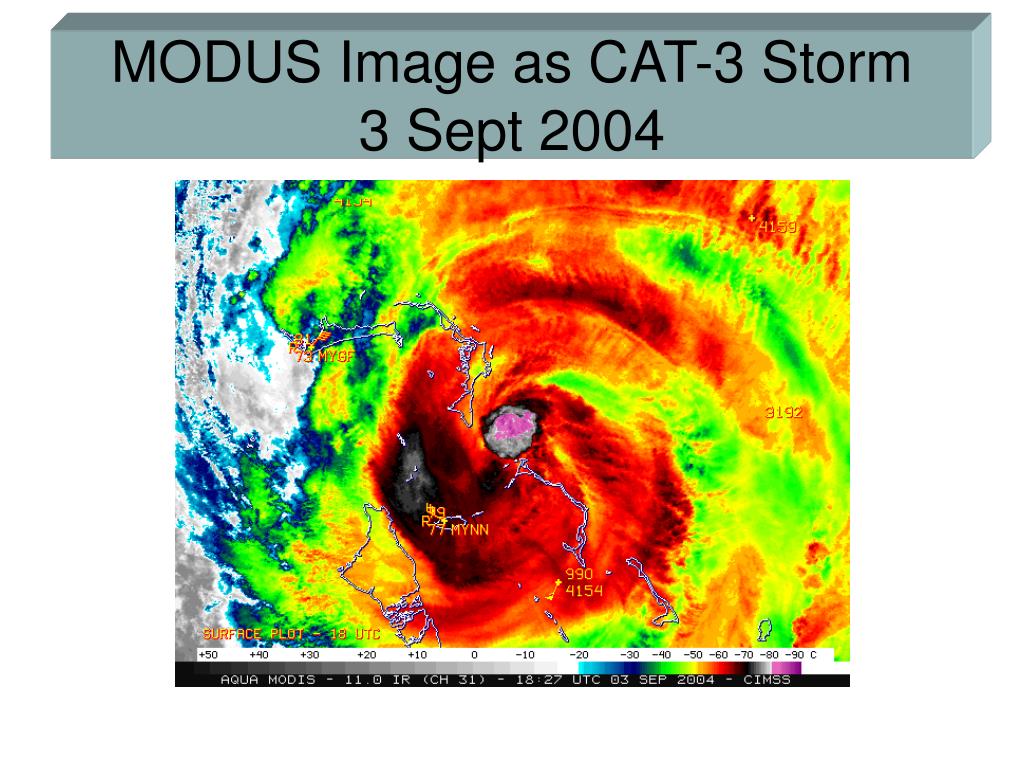

4. MODUS Image as CAT-3 Storm3 Sept 2004

5. 4 Sept GOES-12

6. Track through transitionbased on TPC and John LaCorte’s analyses

7. Florida and beyond • Big impact of Big Storm Florida’s East Coast • Winds and rain • Tornadoes • Expectations of storm as it moved northward • Charlie had a bad “track” record (more on this later!) • Where would it rain and would there be significant winds etc. • Tornadoes were a problem too • Mainly in the feeder bands within the warm tropical air mass. • Okay, Ivan, terrible as it was…produced more tornadoes.

8. Tornadoes on the 6th

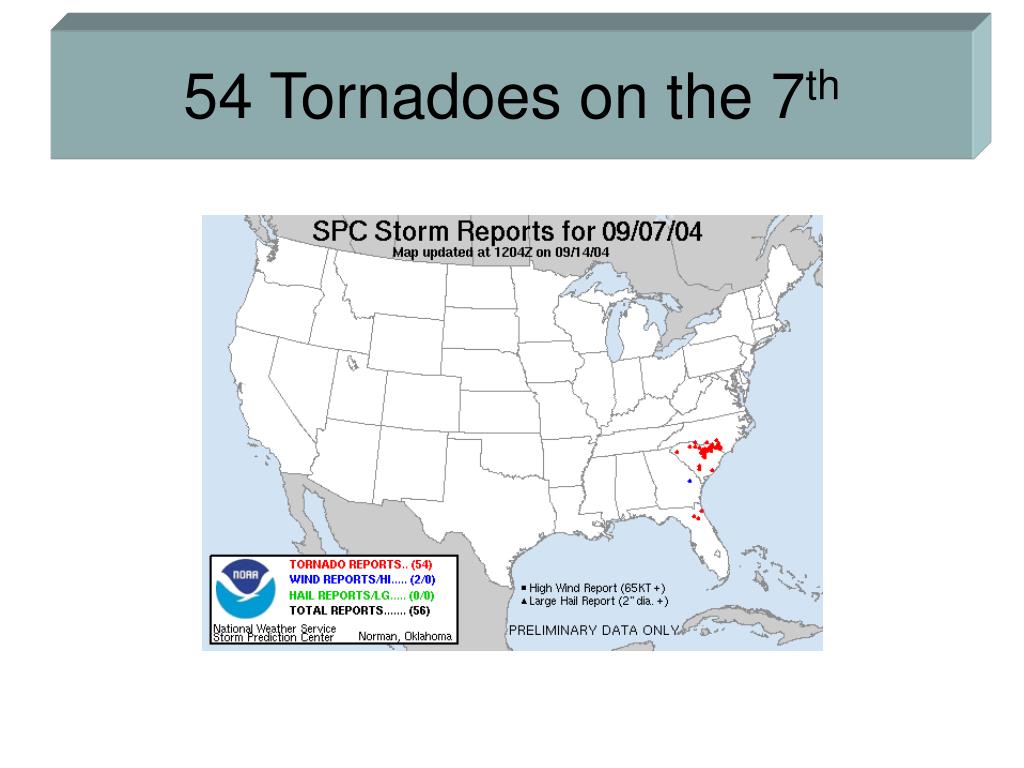

9. 54 Tornadoes on the 7th

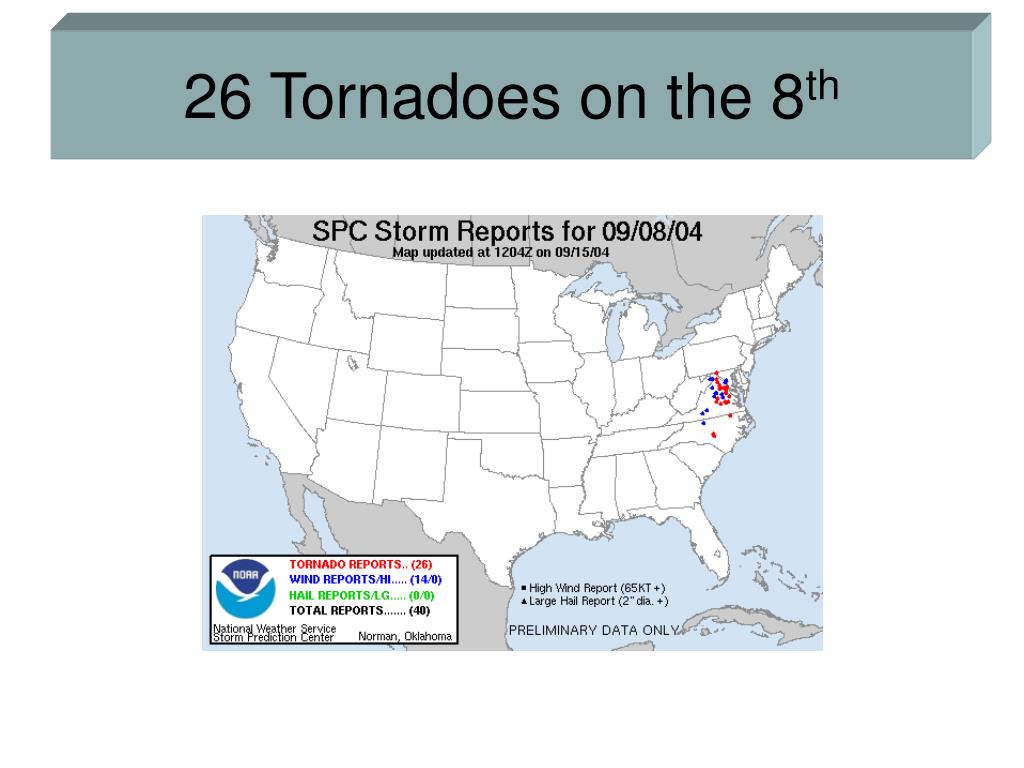

10. 26 Tornadoes on the 8th

11. Eta 00-hour 850 hPa wind anomalies0000 UTC 8 September • Extremely anomalous southerly winds ahead of the system • 5-6 Standard Deviation above normal winds • Strong shear produced tornadoes • The strong wind anomalies persisted, though weakened as the storm moved northward • Note evolving easterly jet north of the cyclone…focus for heavy rains

12. 850 Winds 9 September 0000 UTC • Still had anomalously strong low-level winds in the warm sector east of the surface low center • Last day of tornadoes in Mid-Atlantic region • Tornadoes in the feeder bands and in the warm tropical air • The easterly jet was now well-developed north and west of the main low • Cold conveyor belt area of heavy rainfall • Well north of the cyclone center and removed from the tropical air at low-levels

13. 0000 UTC 9 September • Low up western slopes Appalachians • Anomalous precipitable water • Even in the cool air in western PA and OH • Strong LLJ into Mid-Atlantic • Strong northeasterly jet • Cold conveyor

14. KCCX Storm Total Estimated Rainfall • Heaviest rains were well to the west • Western PA and Ohio hard hit • Not nearly as much rainfall in the warmer air to the east • The cold conveyor rain effect dominated in this event.

15. KPBZ estimated Rainfallreal rainfall shown later • More reliance on tropical Z-R • There was some very heavy rain in eastern Ohio • Same overall pattern as KCCX though this extends farther west

16. GFS Forecasts For Frances

17. Eta Forecasts For FrancesEta taken it slowly?

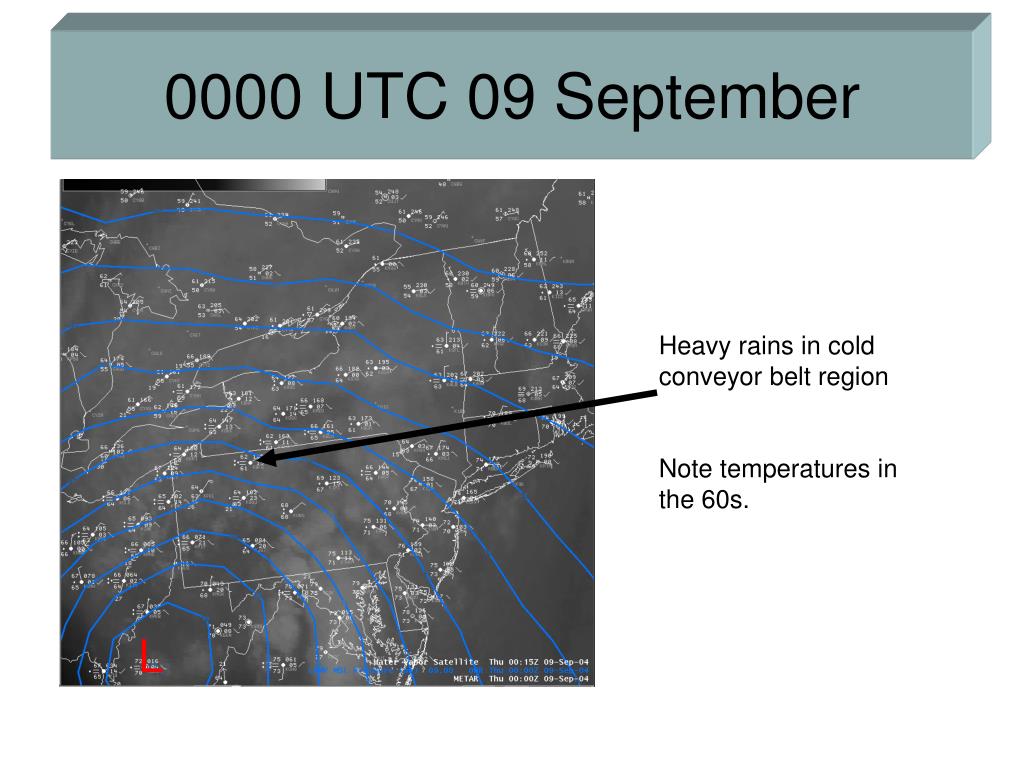

18. 0000 UTC 09 September Heavy rains in cold conveyor belt region Note temperatures in the 60s. L

19. 0000 UTC 09 September Heavy rains in cold conveyor belt region Note temperatures in the 60s. L Tropical air

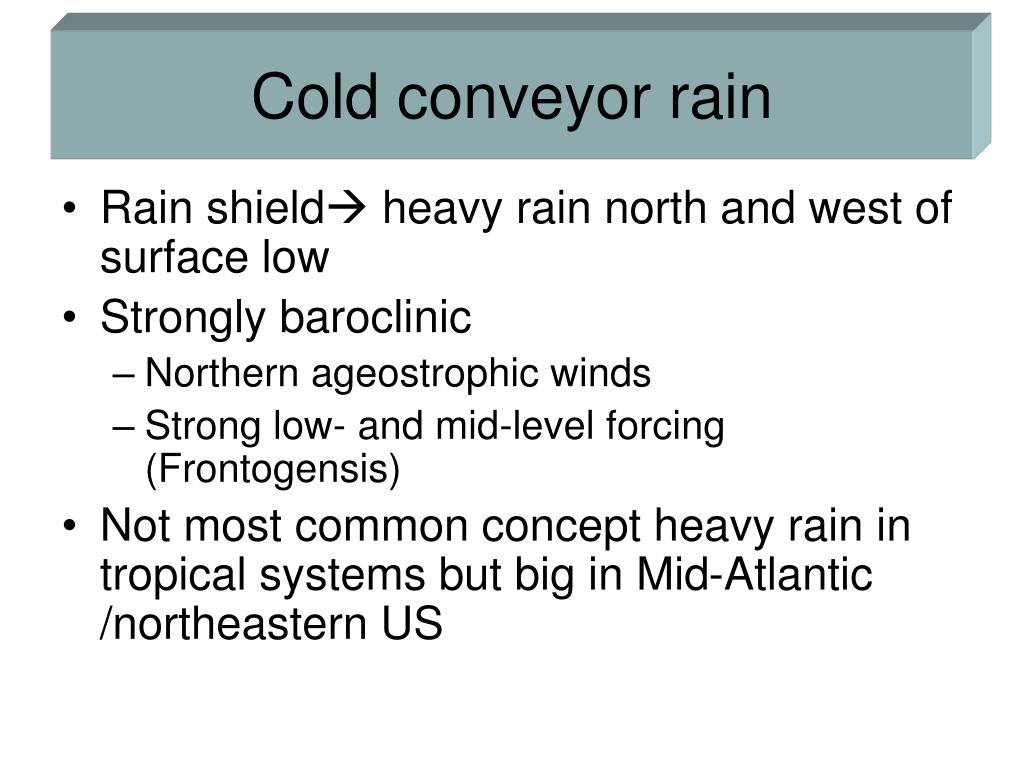

20. Cold conveyor rain • Rain shield heavy rain north and west of surface low • Strongly baroclinic • Northern ageostrophic winds • Strong low- and mid-level forcing (Frontogensis) • Not most common concept heavy rain in tropical systems but big in Mid-Atlantic /northeastern US

21. Frontogenetic Rains0000 UTC 9 Sept 850 FGEN/OBS/AGE 1000 hPa

22. ETA 0600 UTC 9 Sep

23. 1200 UTC 9 Sept

24. RUC FGEN and OBS

25. 0500 UTC RUC

26. 0800 UTCrain/FGEN anchored in cold airmoving north

27. 1200 UTC 9 Septrain about over in PA! L

28. 1800 UTC 9 September L

29. Eta Forecasts For FrancesEta got faster with time but initially missed Oswego area locaiton!

30. The Eta and Tropical Storm Tracks • The Eta was too slow with Frances • The GFS did a better job and was more consistent • SREFS were good too…. • This lead to rainfall forecasts and flood products talking about rainfall into the day of the 9th in PA • The rain ended in most locations before 1200 UTC • Lets look at the woeful Eta forecasts for Charlie

31. Eta Tracks with Charlieall valid 12Z 15 August initialized different times

32. GFS Tracks of Charlie all valid 12Z 15 August initialized different times

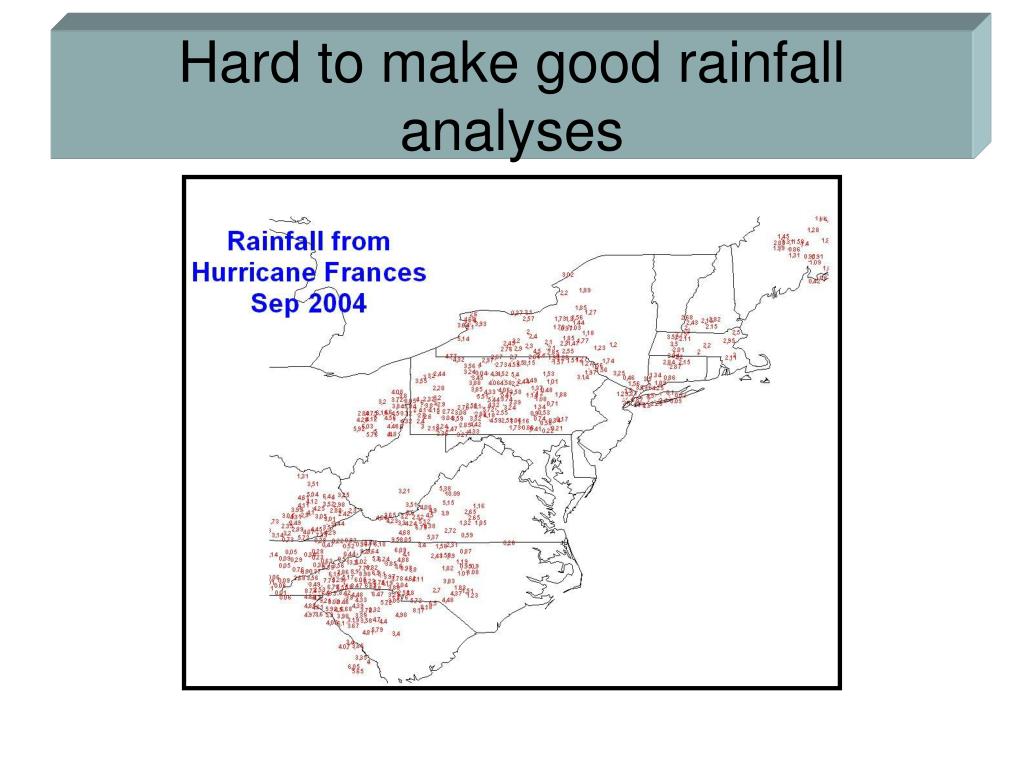

33. Hard to make good rainfall analyses

34. Central Appalachian Zoomed in viewpower of databases and arcview

35. Central Pennsylvania

36. New York

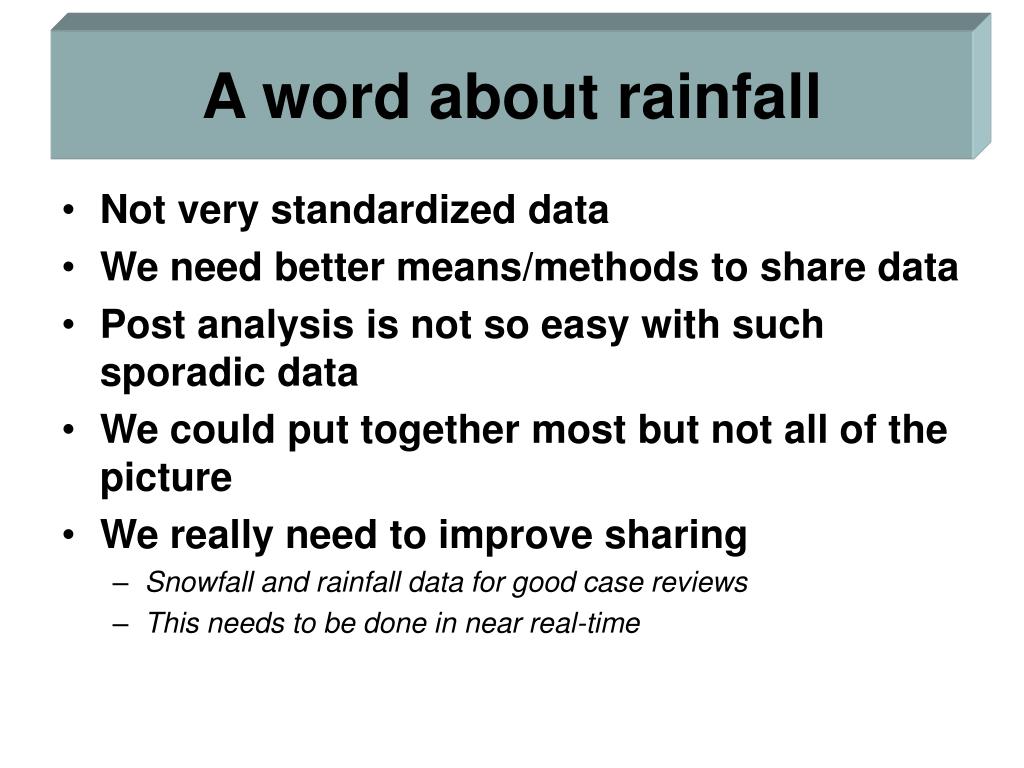

37. A word about rainfall • Not very standardized data • We need better means/methods to share data • Post analysis is not so easy with such sporadic data • We could put together most but not all of the picture • We really need to improve sharing • Snowfall and rainfall data for good case reviews • This needs to be done in near real-time

38. Conclusions • Frances wreaked some havoc • In Florida as a hurricane • In the southeast-Mid-Atlantic as • Rain and tornado machine • Central PA had mainly a cold rain • Remained in cool low-level air when the heavy rains arrived • Track of the storm • The GFS was faster with storm progression and better than the track of the Eta • The Eta has this slow bias with moving tropical storms….what's up with that? • Ensembles (not shown) are a better way to go.
