Neutron Conversion Factors

Neutron Conversion Factors. E (meV) = 81.80 λ -2 (Å -2 ) E (meV) = 2.072 k 2 (Å -2 ) E (meV) = 5.227 × 10 6 τ -2 (m 2 / μ sec 2 ) T (K) = 11.604 E (meV). where τ is the time of flight, or inverse velocity ( τ = 1/v). E i , k i. φ. E f , k f. Inelastic Scattering Processes.

anoush
Télécharger la présentation

Neutron Conversion Factors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Neutron Conversion Factors • E (meV) = 81.80 λ-2 (Å-2) • E (meV) = 2.072 k2 (Å-2) • E (meV) = 5.227 × 106τ-2(m2/μsec2) • T (K) = 11.604 E (meV) where τis the time of flight, or inverse velocity (τ= 1/v).

  2. Ei, ki φ Ef, kf Inelastic Scattering Processes Conservation of energy Conservation of “momentum”

  3. Reciprocal Space Construction The scattering triangle

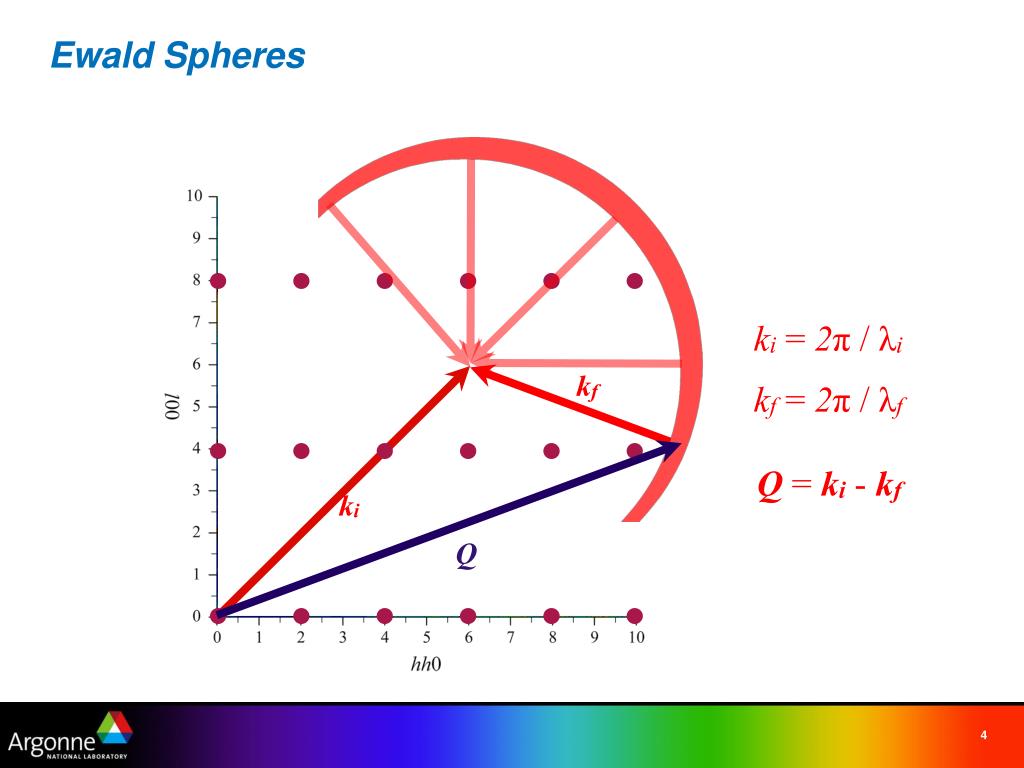

  4. kf Q ki Ewald Spheres ki= 2π / λi kf= 2π / λf Q = ki- kf

  5. ψ ki -kf Q Kinematic Range From the scattering triangle, we can see that from which it follows that and so putting Ef =Ei - ε we get This equation gives us the locus of (Q, ε) for a given scattering angle ψ. (N.B. we can write ℏ2/2m=2.072 for E(meV) and Q in Å-1).

  6. ψ ki -kf Q Locus of Neutrons in (Q,ε) Space ε= Ei ψ = 118° Q→2ki ψ = 2.5°

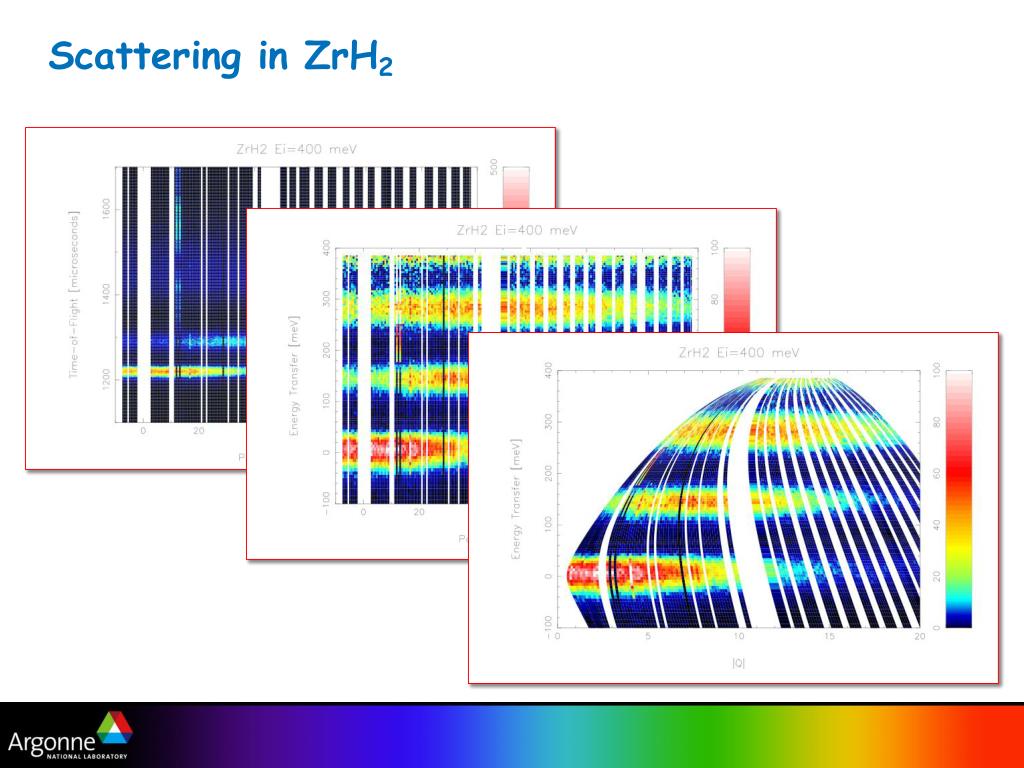

  7. Scattering in ZrH2

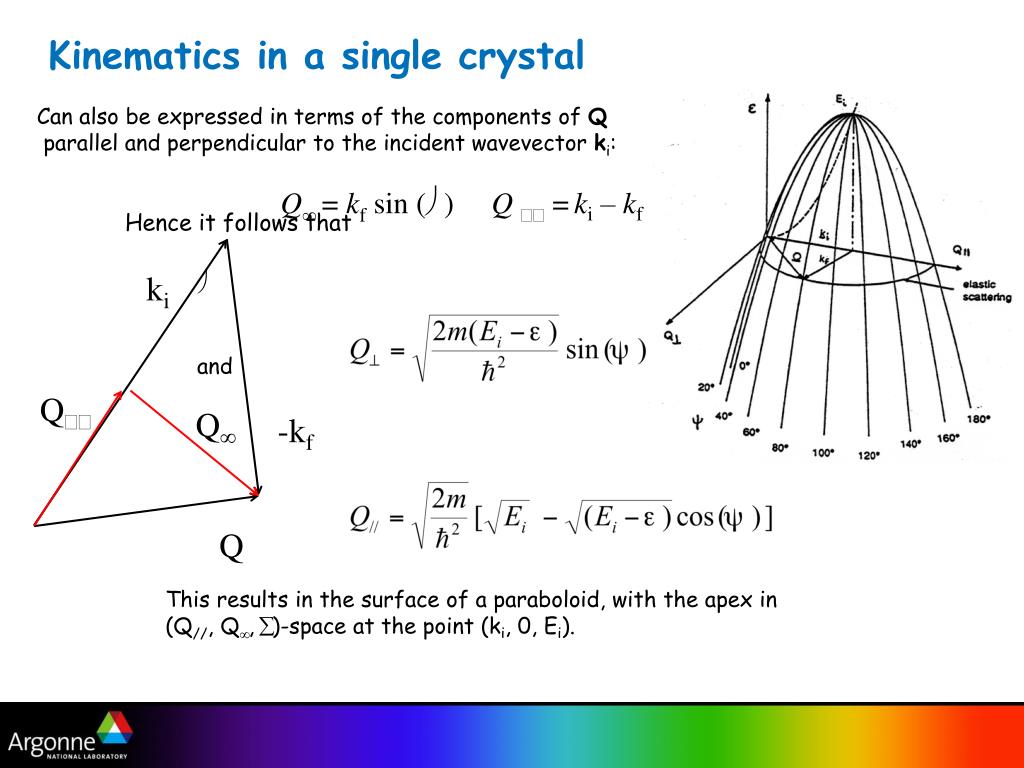

  8. ki ψ Q⎜⎜ Q⊥ -kf Q Kinematics in a single crystal Can also be expressed in terms of the components of Q parallel and perpendicular to the incident wavevector ki: Hence it follows that and Q⊥ = kf sin (ψ) Q ⎜⎜ =ki – kf cos (ψ) This results in the surface of a paraboloid, with the apex in (Q//, Q⊥,ε)-space at the point (ki, 0, Ei).

  9. Kinematics in a Single Crystal (contd) In a single crystal experiment,we need to superimpose the scattering triangle on the reciprocal lattice. Locus of constant w is a Q-circle of radius kf centered on Q = ki ki [0,k,0] Q -kf [h,0,0]

  10. hω kI kF Q|| Q Q⊥ La0.7Pb0.3MnO3 - CMR Ferromagnet

  11. Specification: • 20meV< EI< 2000meV • lmod-chop = 10m • lsam-det = 6m • low angle bank: 3°-20° high angle bank: → 60° • Δhω/EI = 1- 5% (FWHH) • ~ 50% more flux • or ~ 25% better resln. • 40,000 detector elements • 2500 time channels • →108 pixels ≡ 0.4GBdatasets MAPS spectrometer Background chopper Monochromating chopper Sample position Position sensitive detector array cf SEQUOIA and ARCS at SNS

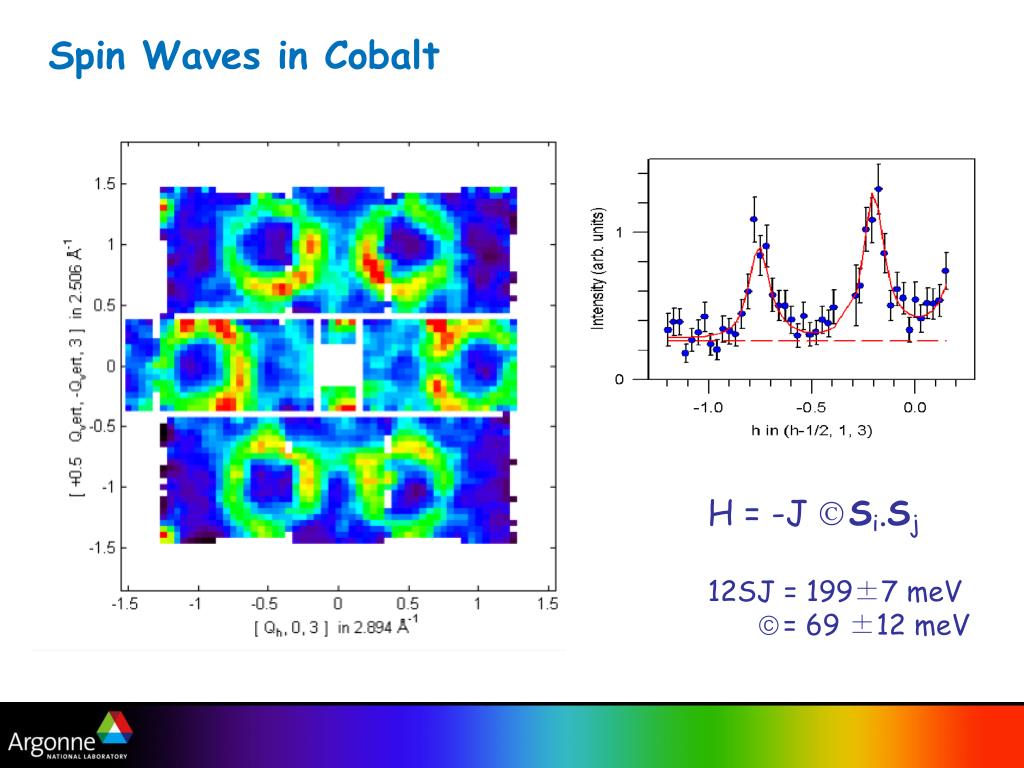

  12. Spin Waves in Cobalt H = -J ΣSi.Sj 12SJ = 199±7 meV γ = 69 ±12 meV
