Array Photometer Circuit Design and Interface

april-fernandez avatar
april-fernandez
24 diapositives · 440 Views · Nov 05, 2014

CDR Meeting, July 2001. Array Photometer Circuit Design and Interface. Tohoku University. Data acquisition mode a. Sprite 1 Mode : S_MODE_SPRITE2 sampling rate= 20KHz , fc(LPF)=10 KHz b. Sprite 2 Mode : S_MODE_SPRITE20 sampling rate= 2KHz , fc(LPF)=10KHz

#array photometer circuit design and interface #array photometer circuit design and interface ppt #powerpoint #presentation
Array Photometer Circuit Design and Interface - slide 1
01 / 24Array Photometer Circuit Design and Interface
1 / 17

Télécharger la présentation

Array Photometer Circuit Design and Interface
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

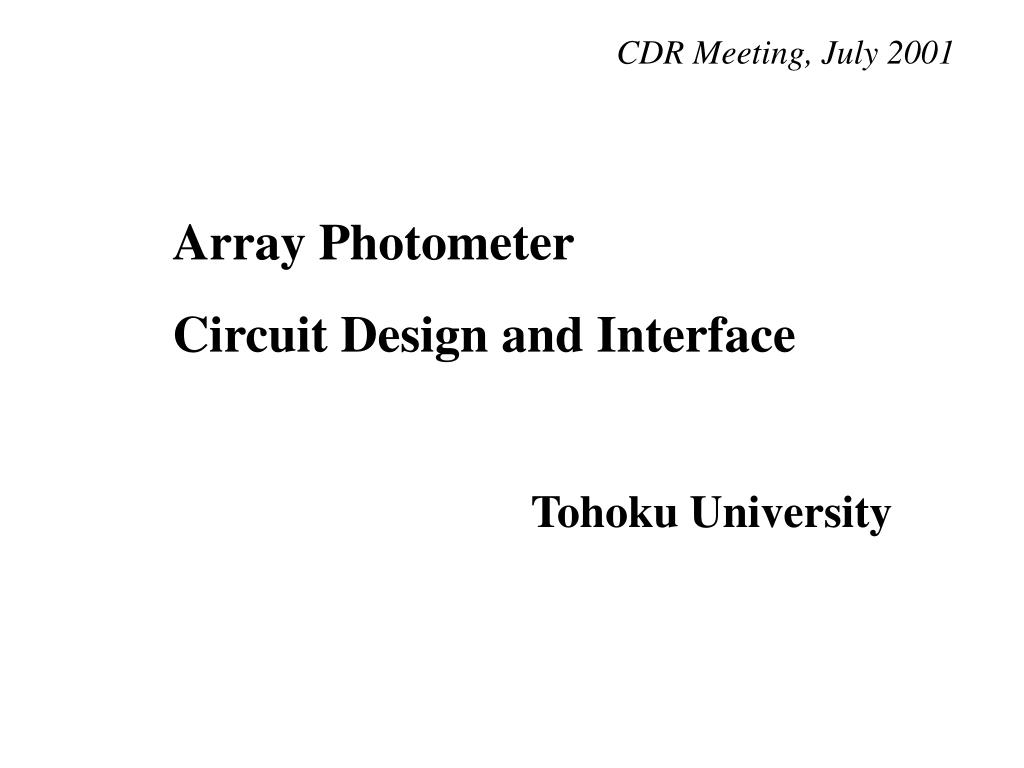

  1. CDR Meeting, July 2001 Array Photometer Circuit Design and Interface Tohoku University
