  1. DRDL GROUP CONTROL CENTRE K. Suchendar, Sc ‘E’, DRDL

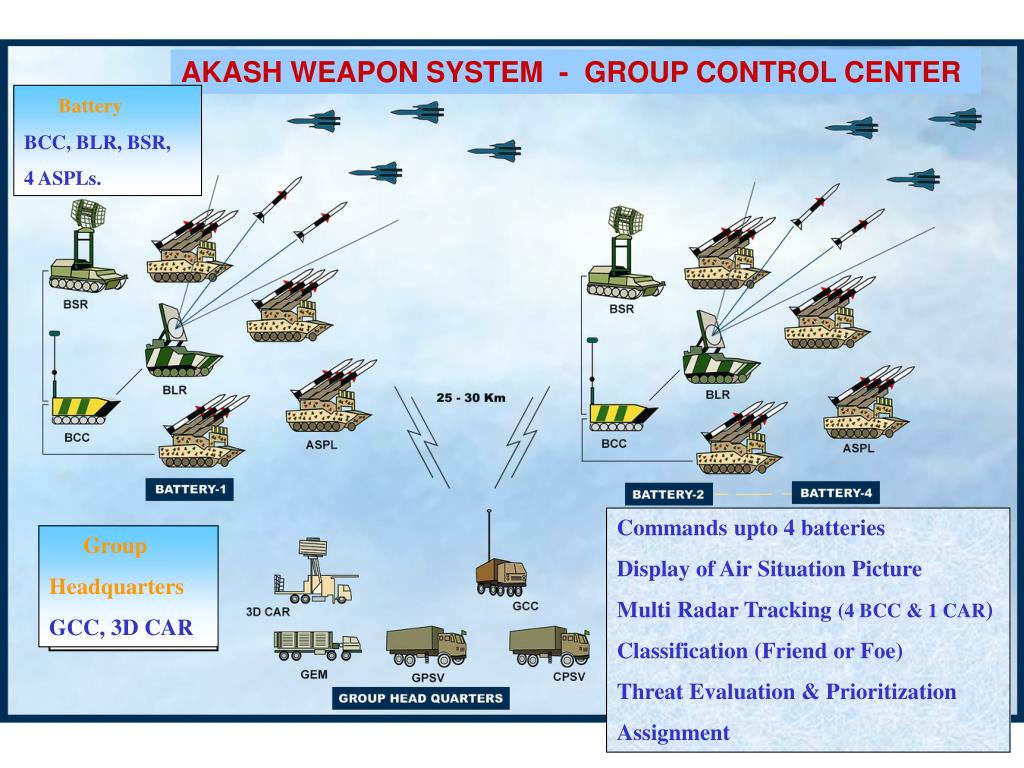

  2. AKASH WEAPON SYSTEM - GROUP CONTROL CENTER Battery BCC, BLR, BSR, 4 ASPLs. Commands upto 4 batteries Display of Air Situation Picture Multi Radar Tracking (4 BCC & 1 CAR) Classification (Friend or Foe) Threat Evaluation & Prioritization Assignment Group Headquarters GCC, 3D CAR

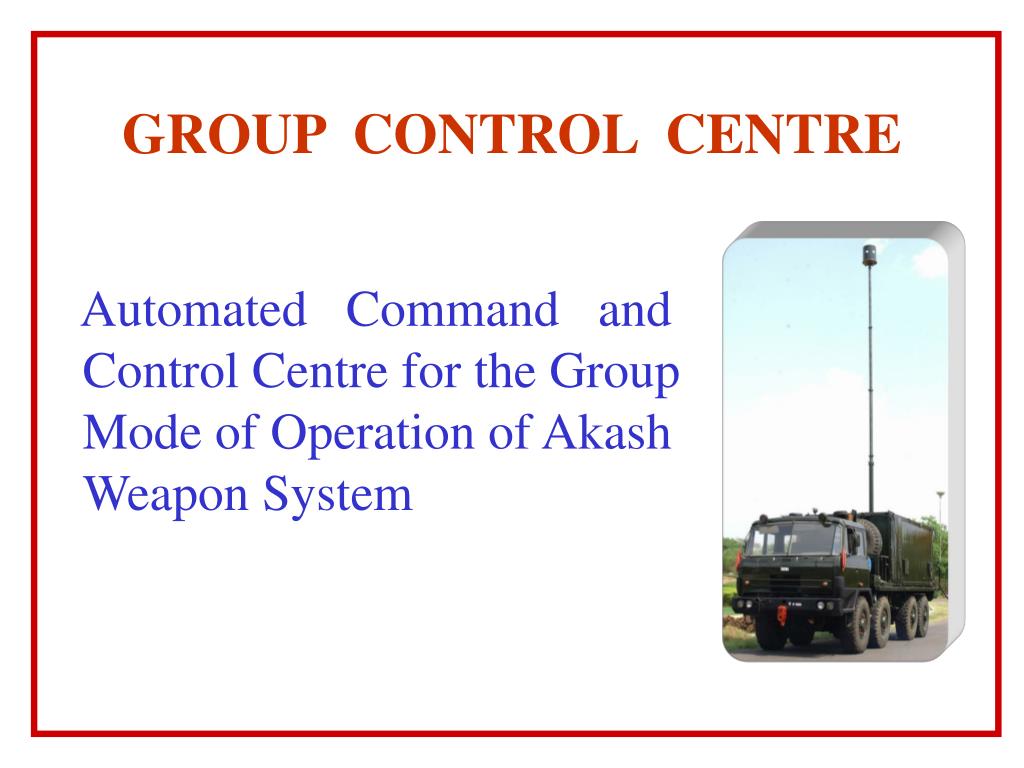

  3. GROUP CONTROL CENTRE Automated Command and Control Centre for the Group Mode of Operation of Akash Weapon System

  4. C4I, DCCRS, DRDL GCC C4I Software Command & Control Software Operator Workstation Combat Control Simulation Software Integrated Air Situation Picture Generation Communication Software

  5. C4I, DCCRS, DRDL GCC SOFTWARE • Multi-Radar Tracking • Association • Fusion • Classification • IFF • Flight Plan • ADWFA sectors • Threat assessment • Time Factor • Group Factor • Height Factor • Sector Factor • Jam Factor • Target Assignment • Candidate Batteries • Selection of best battery • Battery Level Radar Control • Target Cue • Radar slew

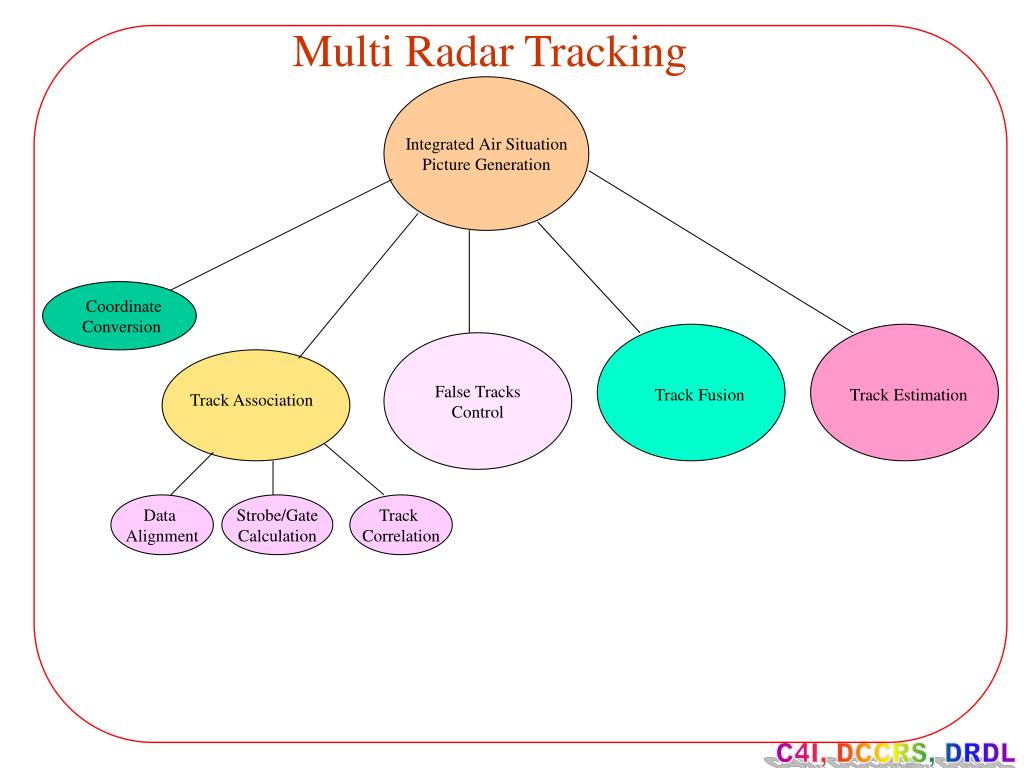

  6. C4I, DCCRS, DRDL Multi Radar Tracking Integrated Air Situation Picture Generation Coordinate Conversion False Tracks Control Track Fusion Track Estimation Track Association Data Alignment Strobe/Gate Calculation Track Correlation

  7. C4I, DCCRS, DRDL Combat Control Combat Control Target Classification Radar Control Battery Control Target Engagement Search on / off BLR Slew Time Sync Targets Acquisition cue Target De-assignment Battery Link Mode of Operation Battery Health Check Battery Readiness Control Threat Assessment And Prioritization Target Assignment Battery Selection

  8. C4I Topics for IISc interaction • Optimal resource allocation for air defence application • AI based decision support for Command & Control Systems • Multi Sensor Data Fusion for maneuvering targets • False track discrimination • Real time Communication system simulator for Air Defence application
