  1. “CodeTrack” Bar Code Tracking For Ro Ro Port and Terminal Operations

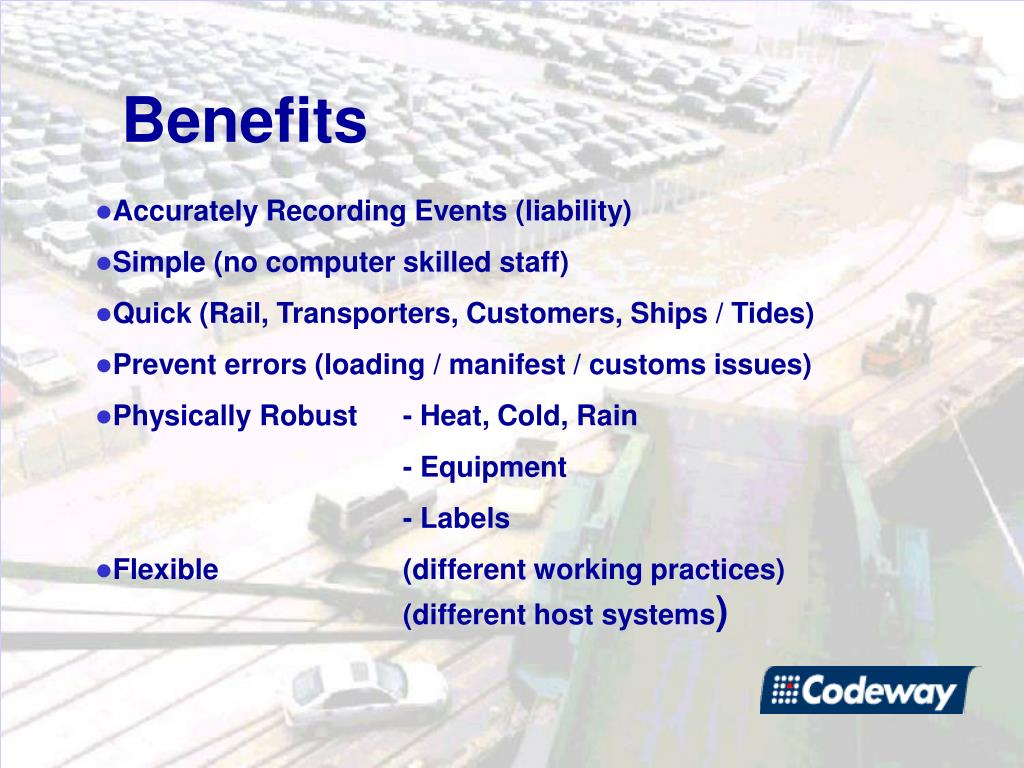

  2. Benefits • Accurately Recording Events (liability) • Simple (no computer skilled staff) • Quick (Rail, Transporters, Customers, Ships / Tides) • Prevent errors (loading / manifest / customs issues) • Physically Robust - Heat, Cold, Rain - Equipment - Labels • Flexible (different working practices) (different host systems)

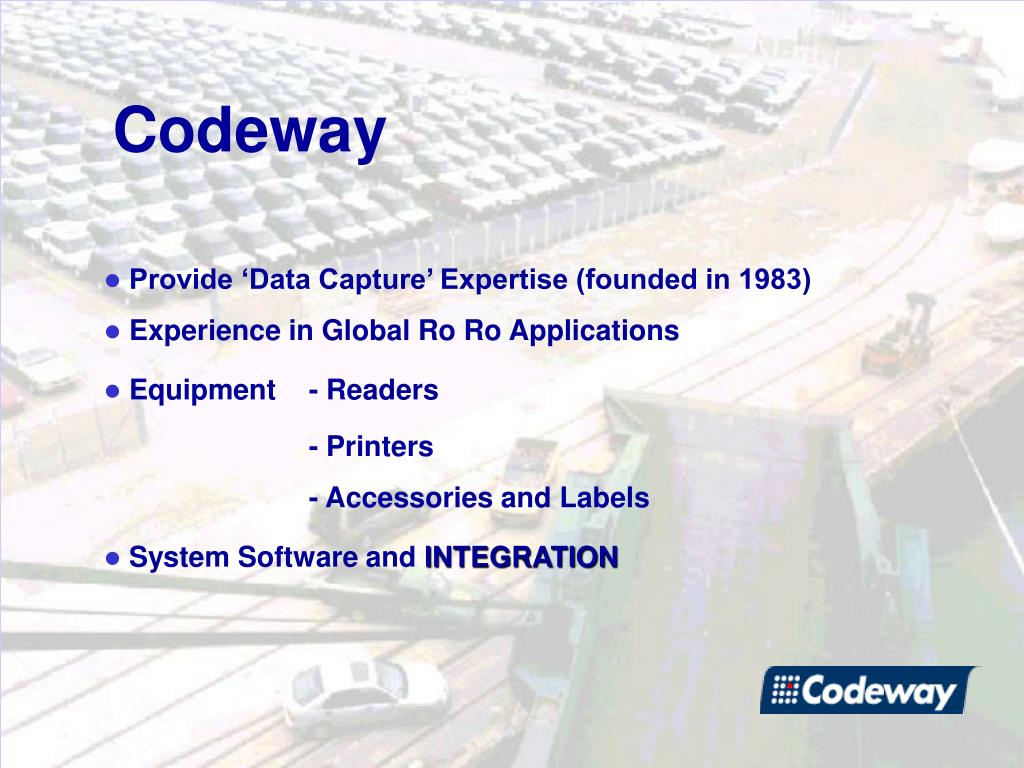

  3. Codeway • Provide ‘Data Capture’ Expertise (founded in 1983) • Experience in Global Ro Ro Applications • Equipment - Readers - Printers - Accessories and Labels • System Software and INTEGRATION

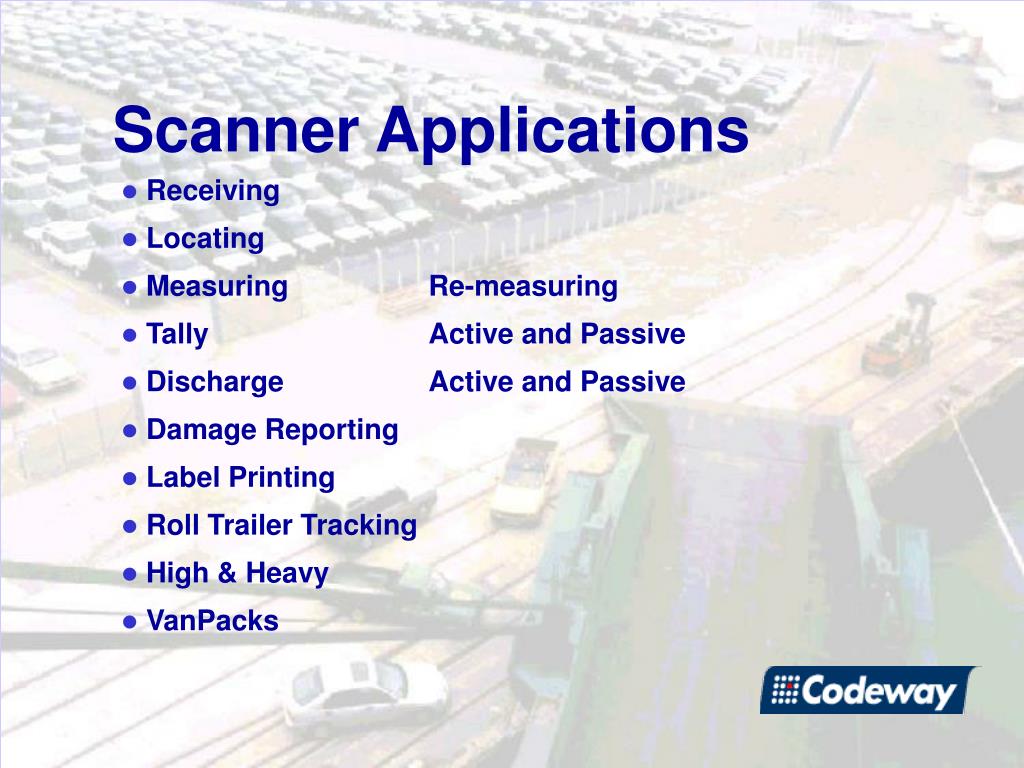

  4. Scanner Applications • Receiving • Locating • Measuring Re-measuring • Tally Active and Passive • Discharge Active and Passive • Damage Reporting • Label Printing • Roll Trailer Tracking • High & Heavy • VanPacks

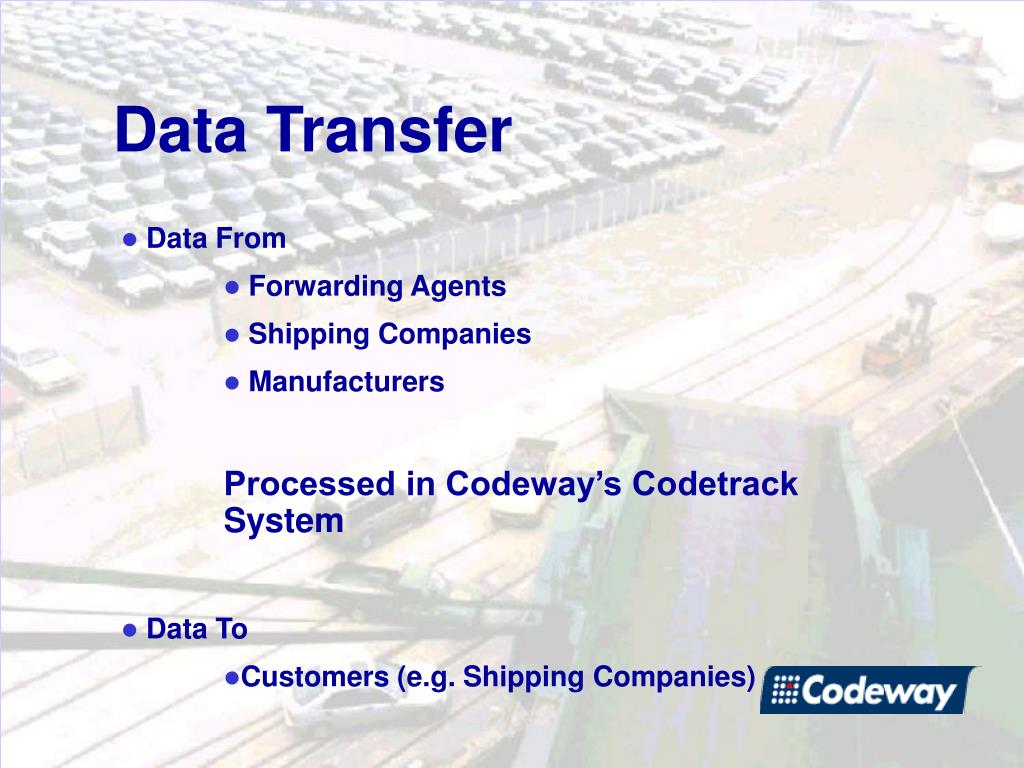

  5. Data Transfer • Data From • Forwarding Agents • Shipping Companies • Manufacturers Processed in Codeway’s Codetrack System • Data To • Customers (e.g. Shipping Companies)

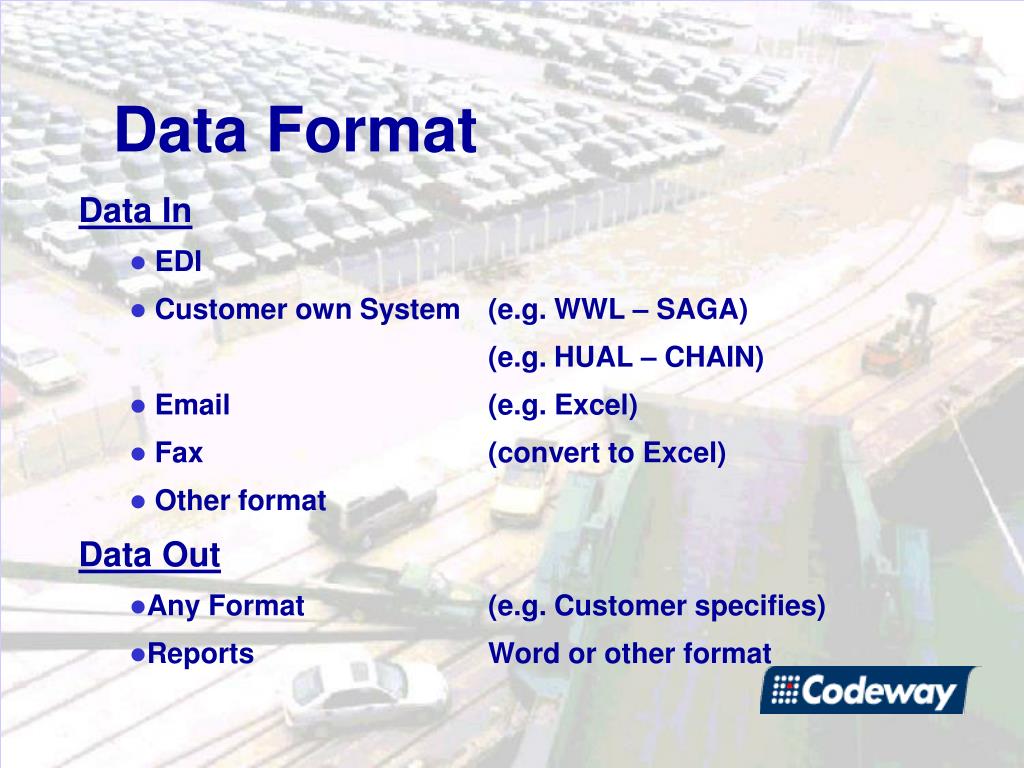

  6. Data Format Data In • EDI • Customer own System (e.g. WWL – SAGA) (e.g. HUAL – CHAIN) • Email (e.g. Excel) • Fax (convert to Excel) • Other format Data Out • Any Format (e.g. Customer specifies) • Reports Word or other format

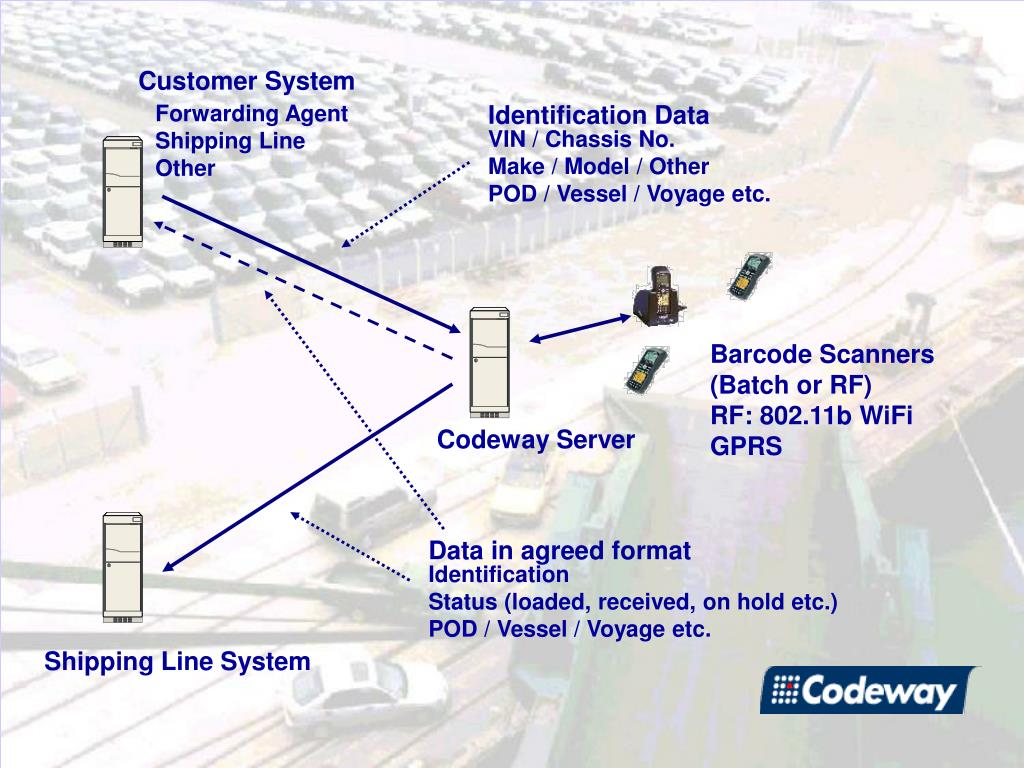

  7. Customer System Forwarding Agent Shipping Line Other Identification Data VIN / Chassis No. Make / Model / Other POD / Vessel / Voyage etc. Barcode Scanners (Batch or RF) RF: 802.11b WiFi GPRS Codeway Server Data in agreed format Identification Status (loaded, received, on hold etc.) POD / Vessel / Voyage etc. Shipping Line System

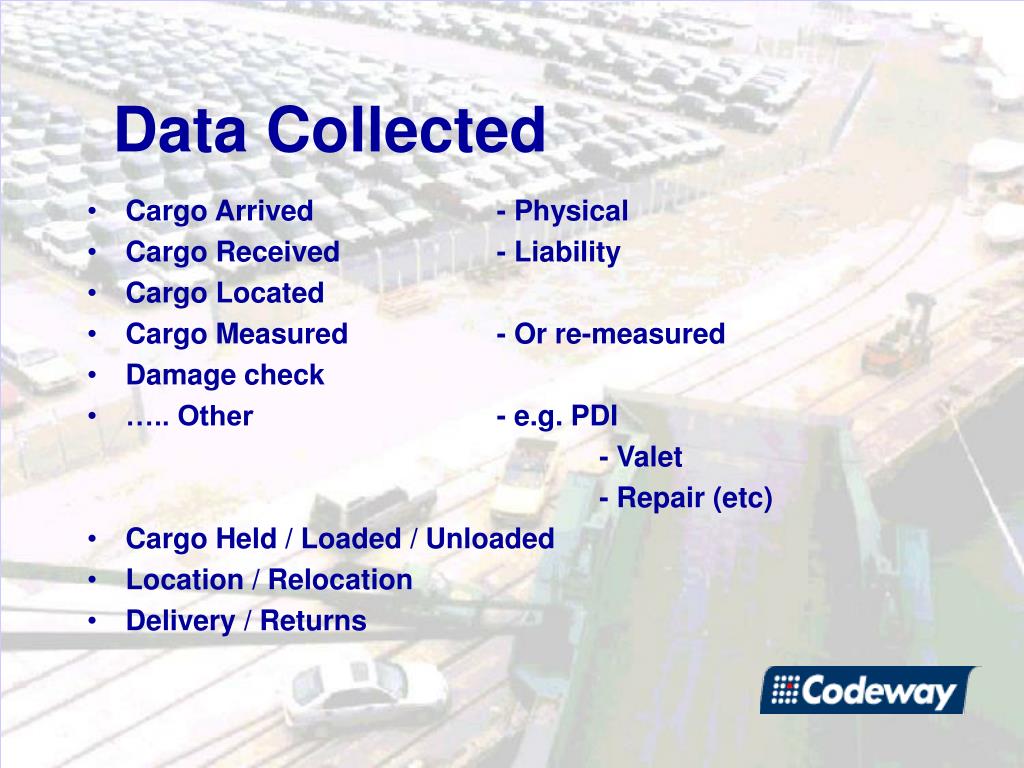

  8. Data Collected • Cargo Arrived - Physical • Cargo Received - Liability • Cargo Located • Cargo Measured - Or re-measured • Damage check • ….. Other - e.g. PDI • - Valet • - Repair (etc) • Cargo Held / Loaded / Unloaded • Location / Relocation • Delivery / Returns

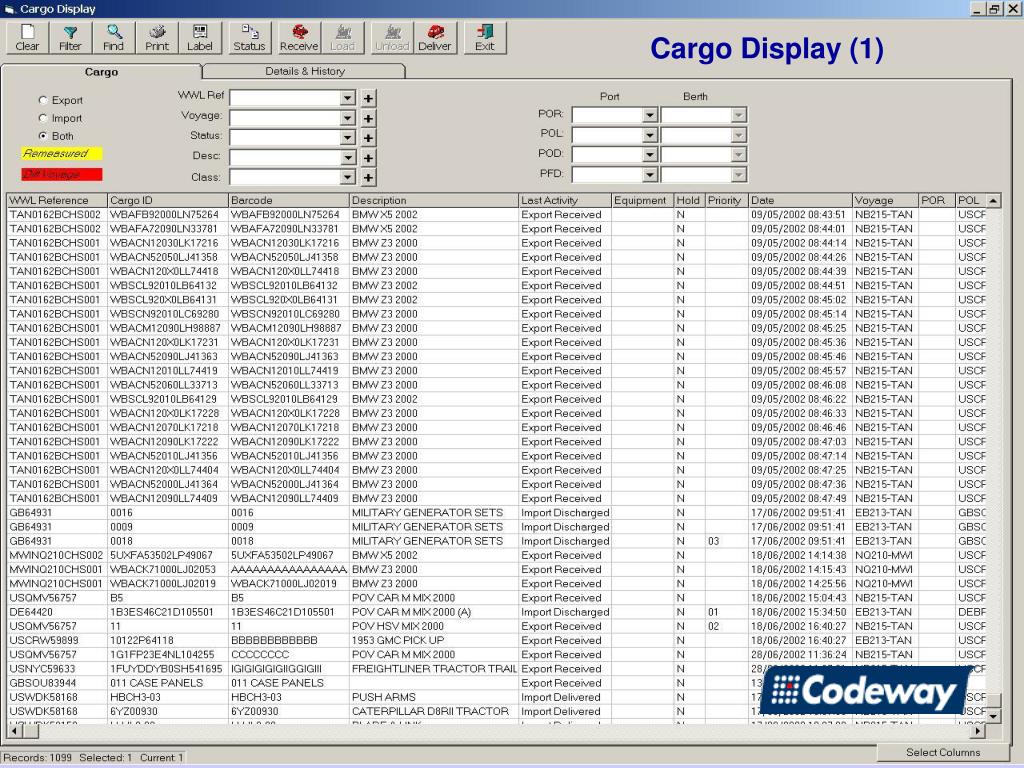

  9. Cargo Display (1)

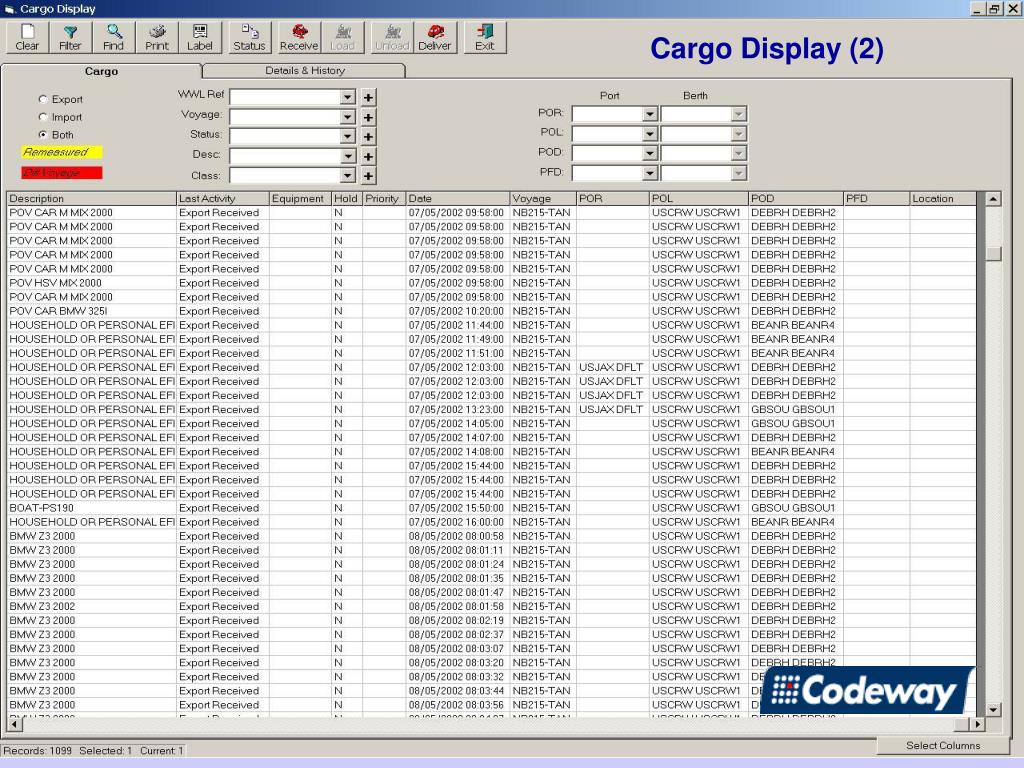

  10. Cargo Display (2)

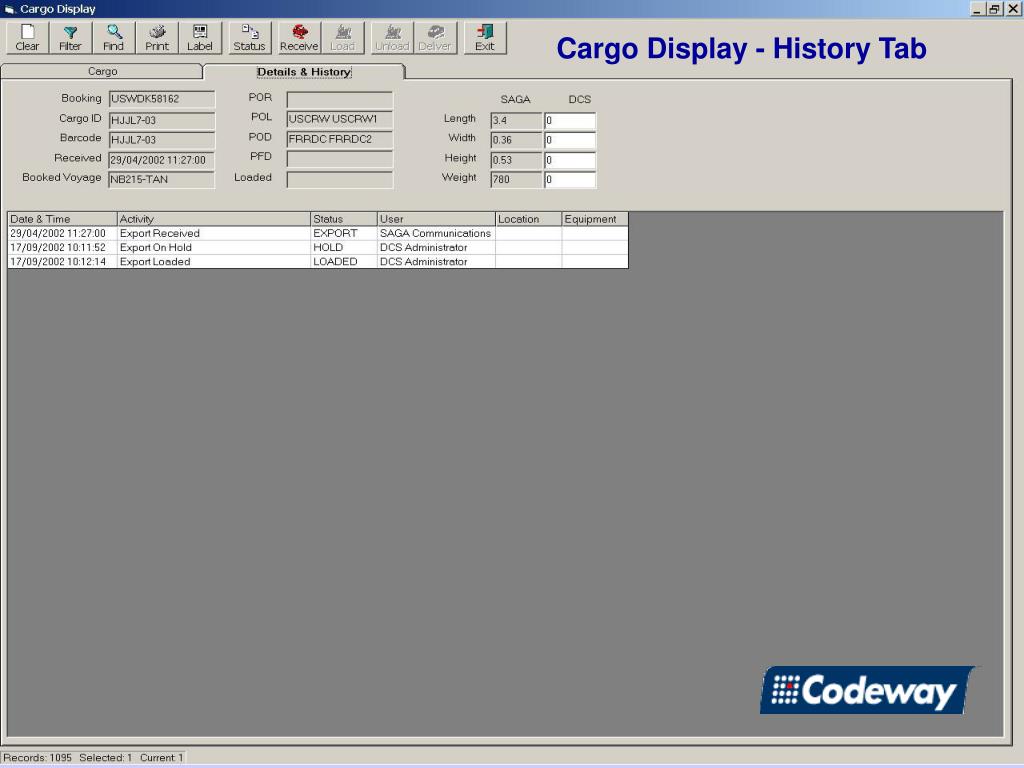

  11. Cargo Display - History Tab

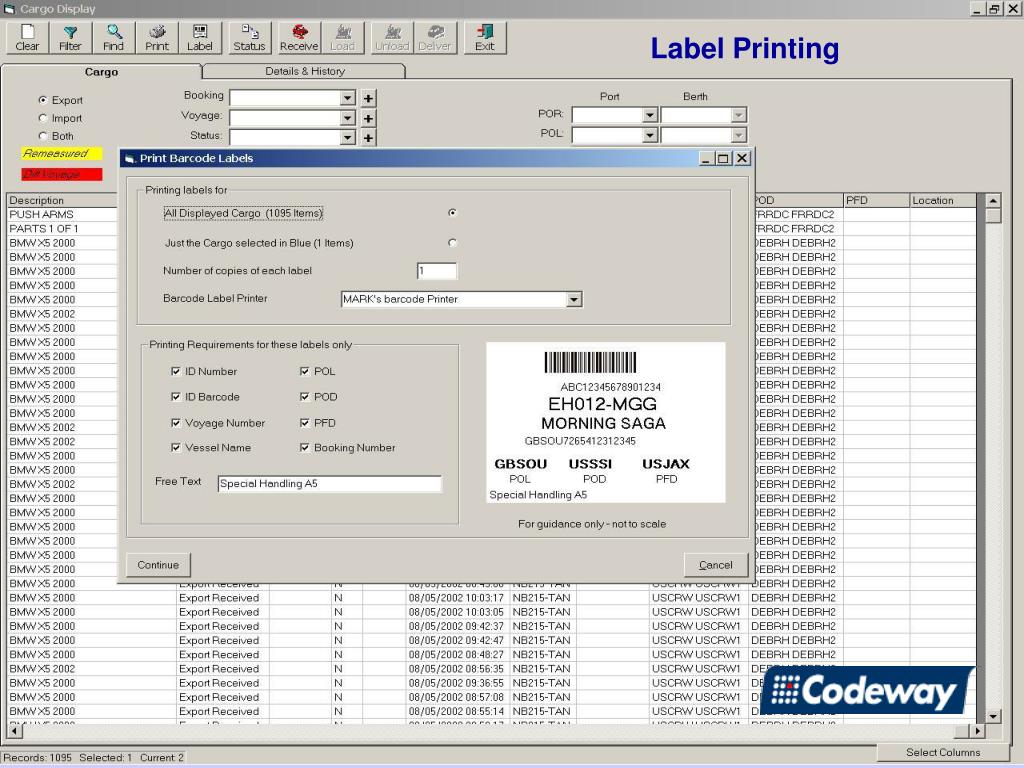

  12. Label Printing

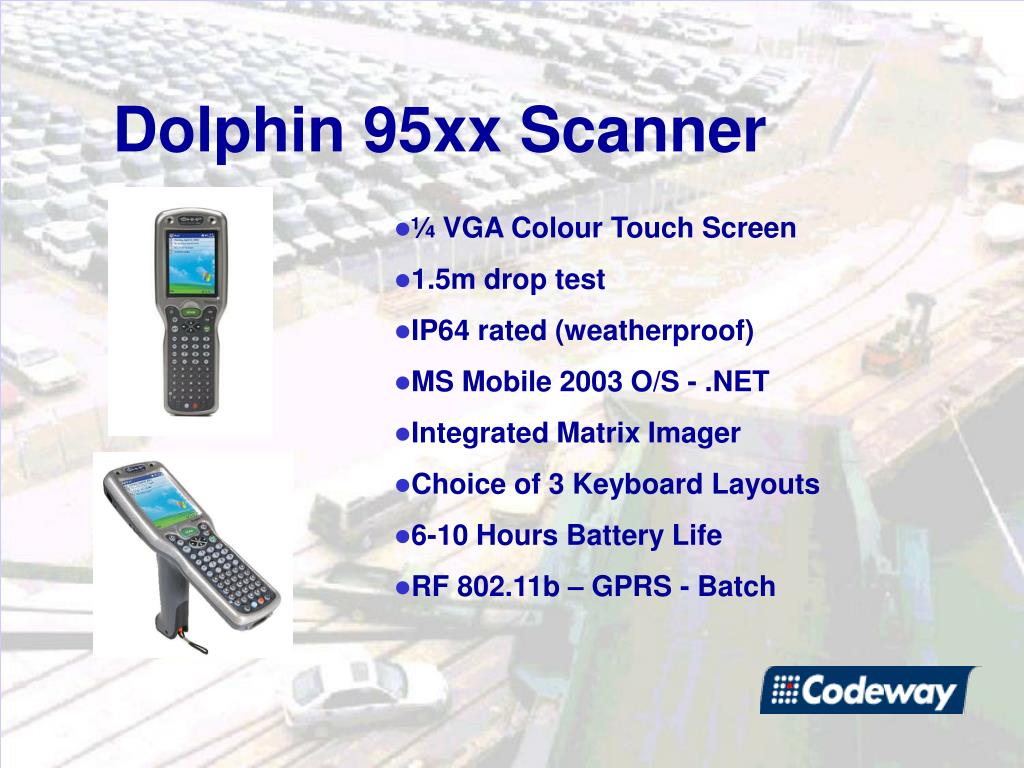

  13. Dolphin 95xx Scanner • ¼ VGA Colour Touch Screen • 1.5m drop test • IP64 rated (weatherproof) • MS Mobile 2003 O/S - .NET • Integrated Matrix Imager • Choice of 3 Keyboard Layouts • 6-10 Hours Battery Life • RF 802.11b – GPRS - Batch

  14. Prepared by: Kees SpittersCodeway Ltd.Telford Way COLCHESTER CO4 9QP United Kingdom Ph: DDI: + 44 (0)1206-756 736Ph: main: + 44 (0)1206 - 751 300Fax: + 44 (0)1206-845618Mobile: + 44 (0)7860-731403email: .com ksp@codeway.com Web: www.codeway.com
