Presentation Transcript

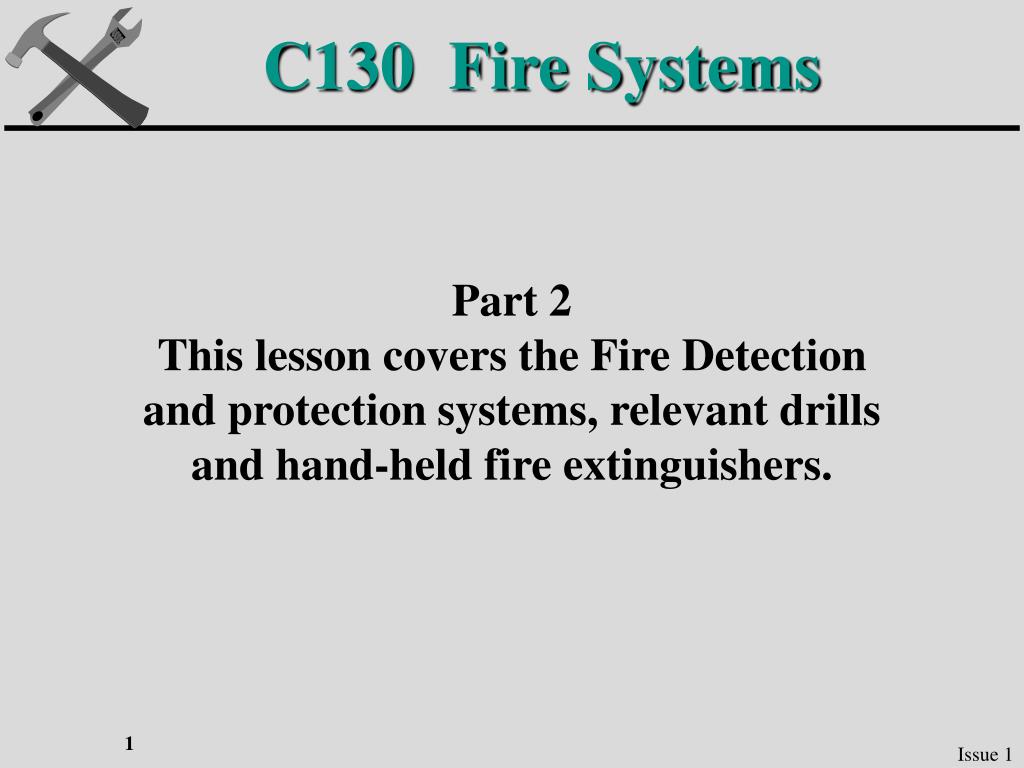

  1. C130 Fire Systems Part 2 This lesson covers the Fire Detection and protection systems, relevant drills and hand-held fire extinguishers. Issue 1

  2. OBJECTIVES Describe the Engine & GTC Fire detection system. Describe the Engine & GTC Fire isolation system. Describe the Engine & GTC Fire extinguisher system.

  3. OBJECTIVES State the Immediate Action drill for an Emergency Engine Shut-down. State the Immediate Action drill for a GTC fire. (In use & not in use). Describe and locate the hand-held fire extinguishers.

  4. TO CONTROLLER IN HOG’S TROUGH SENSING ELEMENT REDUCTION GEARBOX TURBINE AREA COMBUSTION AREA COMPRESSOR AREA ACCESSORY DRIVE HOUSING FIRE DETECTION FIREWALL AIR INLET

  5. TO CONTROLLER IN HOG’S TROUGH SENSING ELEMENT GTC EXHAUST COMBUSTION AREA COMPRESSOR AREA AIR INLET FIRE DETECTION

  6. Fire Control Units No #1 No #2 GTC No #3 No #4 Hog’s Trough

  7. FIRE WIRE INCONEL TUBE (CONNECTED TO EARTH) CERAMIC CORE CURRENT CARRYING CENTRE WIRE

  8. FIRE WIRE A D A P T O R U N I T CONTROL UNIT

  9. FIRE WIRE SINGLE BREAK A D A P T O R U N I T CONTROL UNIT FULL PROTECTION

  10. FIRE WIRE PROTECTION LOST A D A P T O R U N I T MULTIPLE BREAKS CONTROL UNIT

  11. FLASHING - OVERHEAT STEADY - FIRE FIRE ENGINE FIRE

  12. FLASHING - OVERHEAT STEADY - FIRE FIRE GTC FIRE

  13. FIRE SYSTEMS CIRCUIT PROTECTION

  14. FIRE SYSTEM TEST REFER TO FRCs - 14A CARD 3, ITEM 17.

  15. FIRE SYSTEM TEST GTC AND ENGINE FIRE EMERGENCY CONTROL HANDLE TEST SWITCHES

  16. FIRE SYSTEM TEST Purpose To check operation of:- The whole system: The sensing element. The Control unit. System continuity.

  17. TURBINE OVERHEAT TEST AUDIBLE WARNING TEST ENGINE FIRE TEST FLASHING - OVERHEAT STEADY - FIRE NORM NORMAL SILENCE NORMAL OVERHEAT DETECTORS G.T.C. NONE FIRE SYSTEM TEST FIRE

  18. TURBINE OVERHEAT TEST AUDIBLE WARNING TEST ENGINE FIRE TEST FLASHING - OVERHEAT STEADY - FIRE NORM NORMAL SILENCE NORMAL OVERHEAT DETECTORS G.T.C. NONE FIRE SYSTEM TEST FIRE

  19. TURBINE OVERHEAT TEST AUDIBLE WARNING TEST ENGINE FIRE TEST NORM NORMAL SILENCE NORMAL OVERHEAT DETECTORS G.T.C. NONE FIRE SYSTEM TEST FLASHING - OVERHEAT STEADY - FIRE FIRE

  20. FIRE WARNING HORN FIRE BOTTLE INDICATORS HORN IN FLIGHT DECK ROOF

  21. TURBINE OVERHEAT TEST AUDIBLE WARNING TEST ENGINE FIRE TEST FLASHING - OVERHEAT STEADY - FIRE NORM NORMAL SILENCE NORMAL OVERHEAT DETECTORS G.T.C. NONE FIRE SYSTEM TEST FIRE

  22. FLASHING - OVERHEAT STEADY - FIRE FIRE SYSTEM TEST TURBINE OVERHEAT TEST AUDIBLE WARNING TEST ENGINE FIRE TEST NORM NORMAL SILENCE NORMAL FIRE OVERHEAT DETECTORS G.T.C. NONE

  23. TURBINE OVERHEAT TEST AUDIBLE WARNING TEST ENGINE FIRE TEST FLASHING - OVERHEAT STEADY - FIRE NORM NORMAL SILENCE NORMAL OVERHEAT DETECTORS G.T.C. NONE FIRE SYSTEM TEST FIRE

  24. FIRE EMERGENCY CONTROL HANDLES ENGINE P- Propeller feathered. O - Oil shut off. S - Start circuits isolated. H - Hydraulics shut off. B - Bleed air shut off. E - Extinguisher discharge switch armed. E - Extinguisher valves routed. F - Fuel shut off (firewall & FCU)

  25. M M M M ENGINE FIRE EMERGENCY CONTROL HANDLE Engine No1 Fire Shut-off Valves Engine Bleed Air valves No 1 Fire Emergency Control Handle No 1 Engine Nacelle CLOSE Bleed Air No 1 CLOSE PULLED OPEN NORMAL OPEN Engine Bleed Air valve 2 8 v o l t s E S S D C To Cargo Compt Air Cond To Cab Airflow & Press Cont CLOSE Anti-icing system Control panel Oil OPEN Firewall S.O.V. Relay No1 Oil Sump S.O.V. Relay Outer wing Hyd S.O.V. Co-Pilot’s Instrument Panel Fire Emergency Control Panel CLOSE Eng No1 Pump Switch OFF Hydraulic OPEN ON Hydraulic Firewall S.O.V. CLOSE Fuel Ice Detector Panel OPEN Co-Pilot’s Side CB Panel Fuel Firewall S.O.V.

  26. M M M M ENGINE FIRE EMERGENCY CONTROL HANDLE Engine No1 Fire Shut-off Valves Engine Bleed Air valves No 1 Fire Emergency Control Handle No 1 Engine Nacelle CLOSE Bleed Air No 1 CLOSE PULLED OPEN NORMAL OPEN Engine Bleed Air valve 2 8 v o l t s E S S D C To Cargo Compt Air Cond To Cab Airflow & Press Cont CLOSE Anti-icing system Control panel Oil OPEN Firewall S.O.V. Relay No1 Oil Sump S.O.V. Relay Outer wing Hyd S.O.V. Co-Pilot’s Instrument Panel Fire Emergency Control Panel CLOSE Eng No1 Pump Switch OFF Hydraulic OPEN ON Hydraulic Firewall S.O.V. CLOSE Fuel Ice Detector Panel OPEN Co-Pilot’s Side CB Panel Fuel Firewall S.O.V.

  27. M M M M ENGINE FIRE EMERGENCY CONTROL HANDLE Engine No1 Fire Shut-off Valves Engine Bleed Air valves No 1 Fire Emergency Control Handle No 1 Engine Nacelle CLOSE Bleed Air No 1 CLOSE PULLED OPEN NORMAL OPEN Engine Bleed Air valve 2 8 v o l t s E S S D C To Cargo Compt Air Cond To Cab Airflow & Press Cont CLOSE Anti-icing system Control panel Oil OPEN Firewall S.O.V. Relay No1 Oil Sump S.O.V. Relay Outer wing Hyd S.O.V. Co-Pilot’s Instrument Panel Fire Emergency Control Panel CLOSE Eng No1 Pump Switch OFF Hydraulic OPEN ON Hydraulic Firewall S.O.V. CLOSE Fuel Ice Detector Panel OPEN Co-Pilot’s Side CB Panel Fuel Firewall S.O.V.

  28. FIRE EMERGENCY CONTROL HANDLES APU C- Control switch isolated. O - Oil shut off. D - Door actuation circuit de-energized. B - Bleed air shut off. E - Extinguisher discharge switch armed. E - Extinguisher valves routed. F - Fuel shut off (solenoid & motor)

  29. Fire Extinguisher System Fire Extinguishing Agent - BCF Contained in - - - - Two Bottles Quantity of Agent - - - 19.0 lbs Fully charged bottle weighs - 31.6 lbs Nitrogen charge pressure @ 70oF 585-655 psi References - ACM, Pt 1, Ch 3, Paras 64 & 65 & AP 101B-0701/0703 - 1K Sect vii

  30. FIRE BOTTLE LOCATION FIRE BOTTLES FIRE BOTTLES INSPECTION HATCH

  31. FWD FIRE BOTTLE LOCATION No 2 Bottle No 1 Bottle Pressure Gauge Pressure Gauge Squibs No 1 Directional Control Valve

  32. Directional Control Valve To GTC From Fire Bottles Normally Closed position NC NO Normally Open position Operating Solenoid To Engines

  33. FIRE CONTROL VALVES DIRECTIONAL CONTROL VALVES FIRE EXTINGUISHER VALVE CONTROL ASSEMBLY FIRE BOTTLES

  34. Fire Extinguisher Valve Control Assembly Battery Bus Bar ‘T’ Handle Indicator Fuses Nacelle No 1 Nacelle No 2 No 1 No 2 To GTC Nacelle No4 Nacelle No 3 57(R) Sqn 89

  35. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  36. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  37. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  38. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3 Valves routed to No 4 Engine

  39. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  40. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  41. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  42. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  43. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  44. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  45. FIRE CONTROL VALVES AGENT DISCHARGE No 1 No 1 No 2 OFF FIRE EXT BOTTLES DISCHARGED NO 2 No #4 FIRE EMERGENCY CONTROL HANDLE GTC No 1 No 2 ENG 1 ENG 4 ENG 2 ENG 3

  46. Post Mod 5218 Bromochlorodiflouromethane (Purple Brown Bottle) Temperature Gauge Reading lbs/in2 -50 -58 385 455 -40 -40 409 479 -30 -22 434 504 -20 -4 461 531 -10 14 489 559 0 32 521 591 10 50 552 622 20 68 585 655 30 86 618 688 40 101 657 727 50 122 702 772 60 140 757 827 70 158 821 891 80 176 895 965 Fire Bottle Pressures Flight Servicing Schedule AP 101B-701-5B1 Annex 3

  47. FIRE AGENT DISCHARGE PRESSURE GAUGE 500 0 1000 KNIFE-EDGE DISC CUTTER AGENT DISCHARGE No 1 OFF SPRING NO 2

  48. FIRE AGENT DISCHARGE PRESSURE GAUGE 500 0 1000 KNIFE-EDGE DISC CUTTER AGENT DISCHARGE No 1 OFF SPRING NO 2

  49. FIRE AGENT DISCHARGE PRESSURE GAUGE 500 0 1000 KNIFE-EDGE DISC CUTTER AGENT DISCHARGE No 1 OFF SPRING AGENT DISCHARGE TO ENGINE OR GTC NO 2

  50. CIRCUIT PROTECTION FIRE EXT CONTROL FIRE EXTINGUISHER BOTTLES
