34-mm long capillary extension (3 mm i .d. ). 1 bar. 2 mbar. He. ~10 mm. Transfer quadrupole. 300-µm inlet orifice. LTP. 500-µm orifice. MS Inlet. Figure S1. Diagram of experimental setup. Drawing is approximately to scale. (H 2 O) 3 H + , Square wave, 10 Hz , 0 kV to 3 kV.

armen
Télécharger la présentation

LTP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

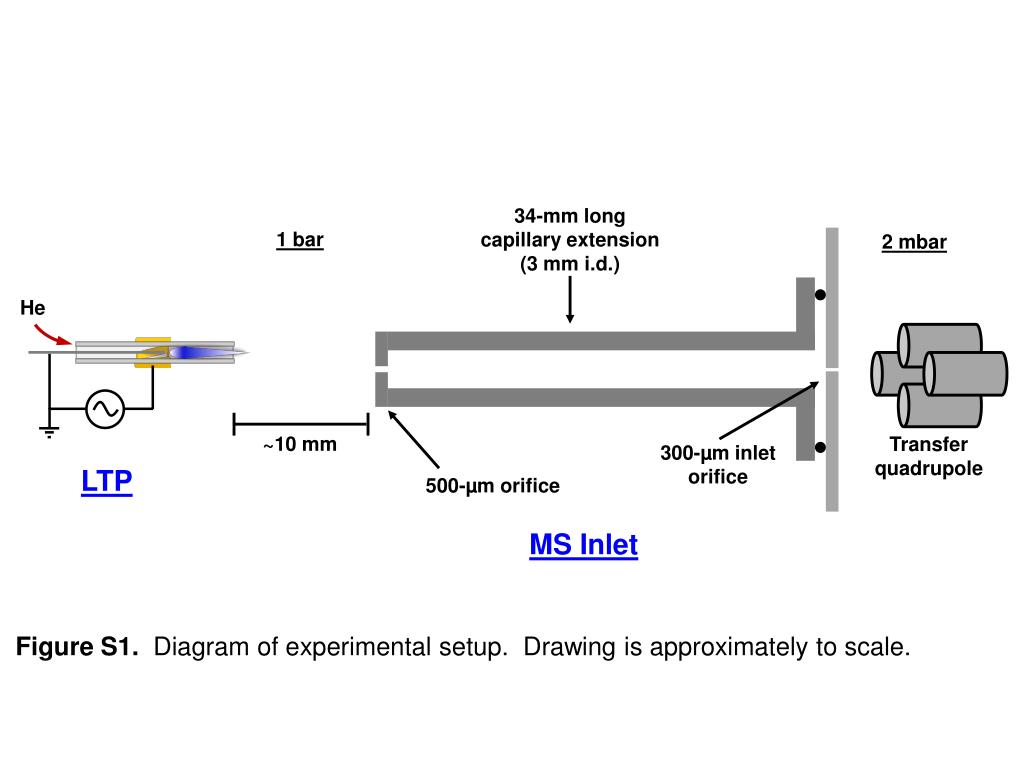

  1. 34-mm long capillary extension (3 mm i.d.) 1 bar 2 mbar He ~10 mm Transfer quadrupole 300-µm inlet orifice LTP 500-µm orifice MS Inlet Figure S1. Diagram of experimental setup. Drawing is approximately to scale.

  2. (H2O)3H+, Square wave, 10 Hz, 0 kV to 3 kV Figure S2. Frequency spectrum of (H2O)3H+ ion signal from a 10-Hz, square-wave LTP from 0 kV to 3 kV. The base peak at 10 Hz indicates that only one plasma pulse occurs per cycle. In contrast, a square wave from -3 kV to +3 kV produced two pulses per cycle.

  3. a) (H2O)3H+, Triangle wave, 10 Hz, -3 kV to 3 kV b) (H2O)3H+, Square wave, 10 Hz, -3 kV to 3 kV (H2O)3H+, Sine wave, 10 Hz, -3 kV to 3 kV (H2O)3H+, Sawtooth wave, 10 Hz, -3 kV to 3 kV c) d) Figure S3. Fourier spectra of (H2O)3H+ ion signal for an LTP powered with a (a) sine, (b) triangle, (c) sawtooth, and (d) square wave. Note, other reagent ions produced similar frequency spectra for each waveform.

  4. Figure S4. Selected-ion chronograms for NO+ (blue), (H2O)3H+ (black), and the MH+ for acetone (red) in the presence of acetone vapor. LTP used in this case was powered with a 10-Hz, 6 kVp-p square-wave. Note that the trace for protonated acetone closely matches the profile for the protonated water cluster.
