  1. DYNAMOMETER RE-INSTALLATION CBC AUTOMOTIVE TECHNOLOGY DEPARTMENT

  2. PURPOSE OF DYNAMOMETER • DUPLICATES WORKING LOAD • PERMITS STATIONARY ROAD TEST • PERMITS ALL SYSTEMS TO BE ANALYZED WHILE VEHICLE IS STATIONARY • ABSORBS POWER WITH POWER ABSORBPTION UNIT

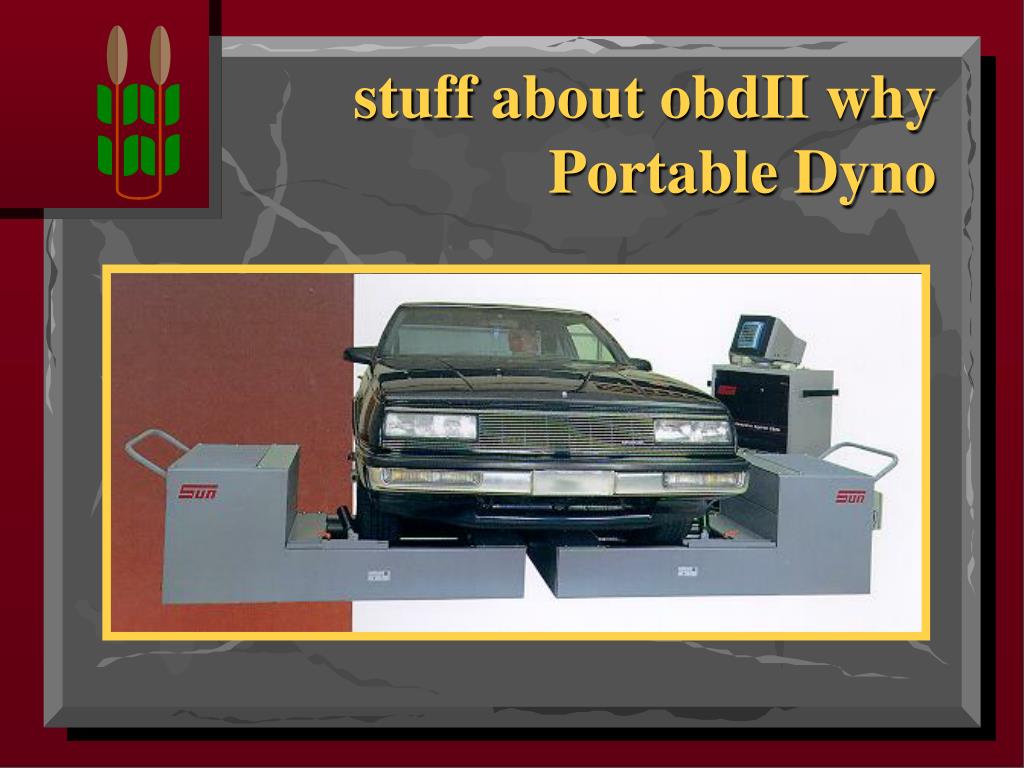

  3. stuff about obdII why Portable Dyno

  4. SUN PERMANENT DYNAMOMETER

  5. HOW DOES IT WORK? • MAIN PORTION OF DYNO CONSISTS OF TWO ROLLERS • POWER ABSORPTION UNIT • MEASURES BRAKE HORSEPOWER/SPEED • SAFTEY FACTORS • WATER SUPPLY • AIR SUPPLY • ELECTRICAL SUPPLY

  6. ADVANTAGES FOR STUDENTS • NEW FEDERAL MANDATE OF DRIVE CYCLE TESTING (OBDII) • SAFER ROAD TESTING • IN DEPTH UNDERSTANDING OF VEHICLE SYSTEMS • TIME SAVER FOR INSTRUCTION • VERY FEW SCHOOLS IN NORTHWEST PROVIDES DYNO TRAINING.

  7. HISTORY • WAS REMOVED DURING REMODEL • COST OVERRUNS PREVENTED RELOCATION OF DYNAMOMETER

  8. CHASSIS DYNAMOMETER • LOW COST TO RE-INSTALL • CLAYTON DYNO • 30 YEARS OLD BUT USEABLE • COST OF NEW IS PROHIBITIVE • USED BY FACTORIES

  9. PROJECTED COST • COST FOR REINSTALLTION VERSUS NEW DYNO

  10. NEW $30.000 TO $40, 000 TIME FACTOR OUR CLAYTON LOW COST $3000.00 TO REFURBISH AND UPGRADE ADDITION OF DYNO STALL CREATED CLASS ROOM SPACE FOR INDUSTRY NEW VS. PRESENT

  11. DYNO STALL • REMODEL PLANS • WALLS • UTILITIES • DRAIN • CLASSROOM ITEMS • NOISE • EXHAUST DISPOSAL • FLUSH FLOOR
