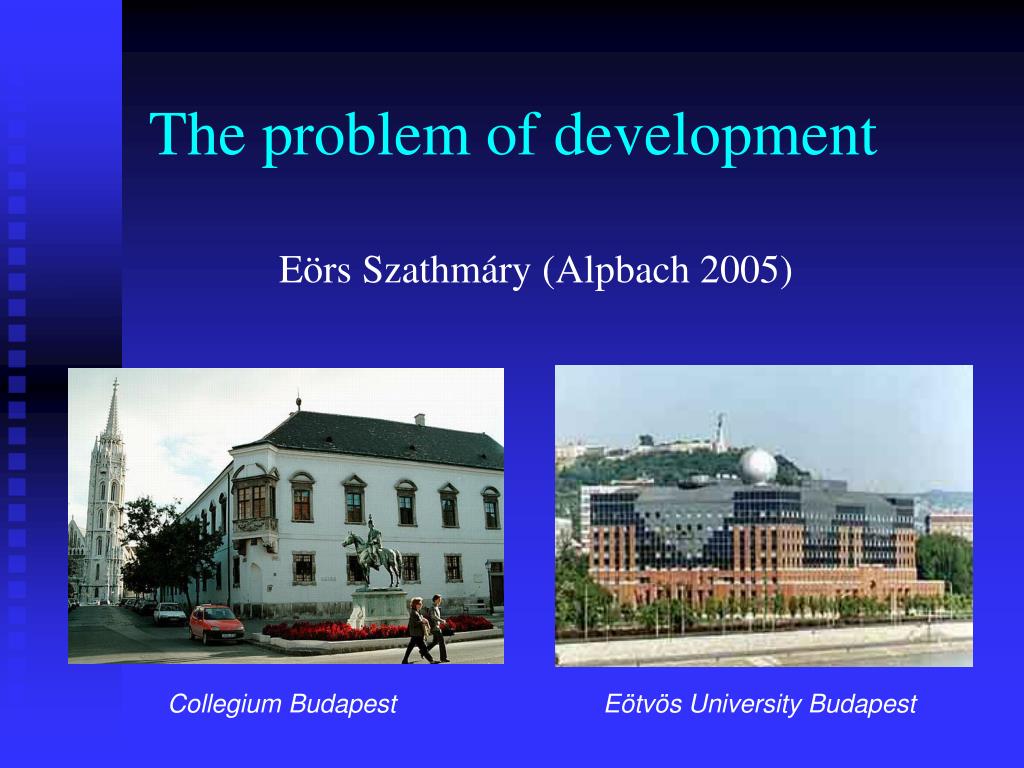

  1. The problem of development Eörs Szathmáry (Alpbach 2005) Collegium Budapest Eötvös University Budapest

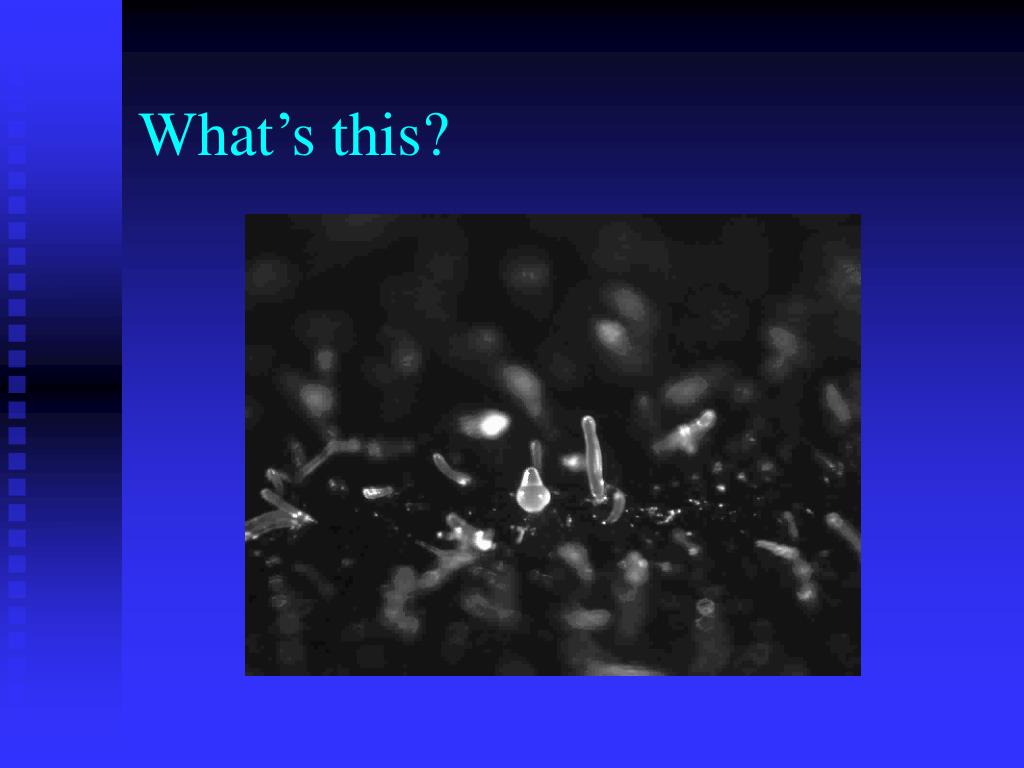

  2. What’s this?

  3. Let’s take another look!

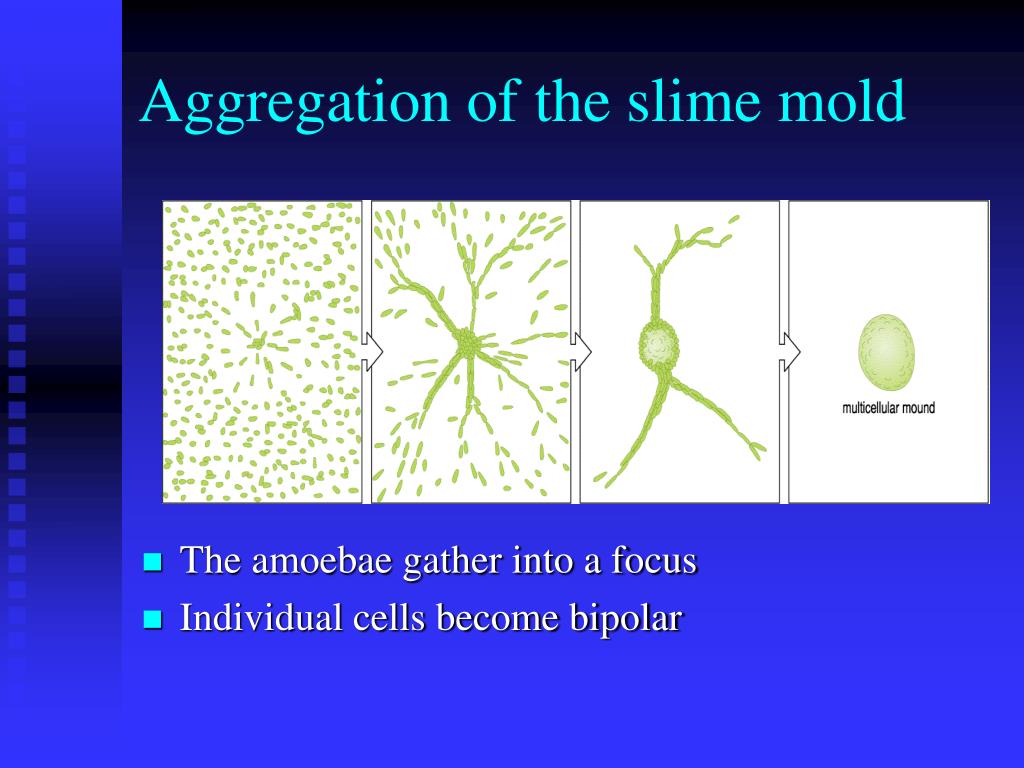

  4. Aggregation of the slime mold • The amoebae gather into a focus • Individual cells become bipolar

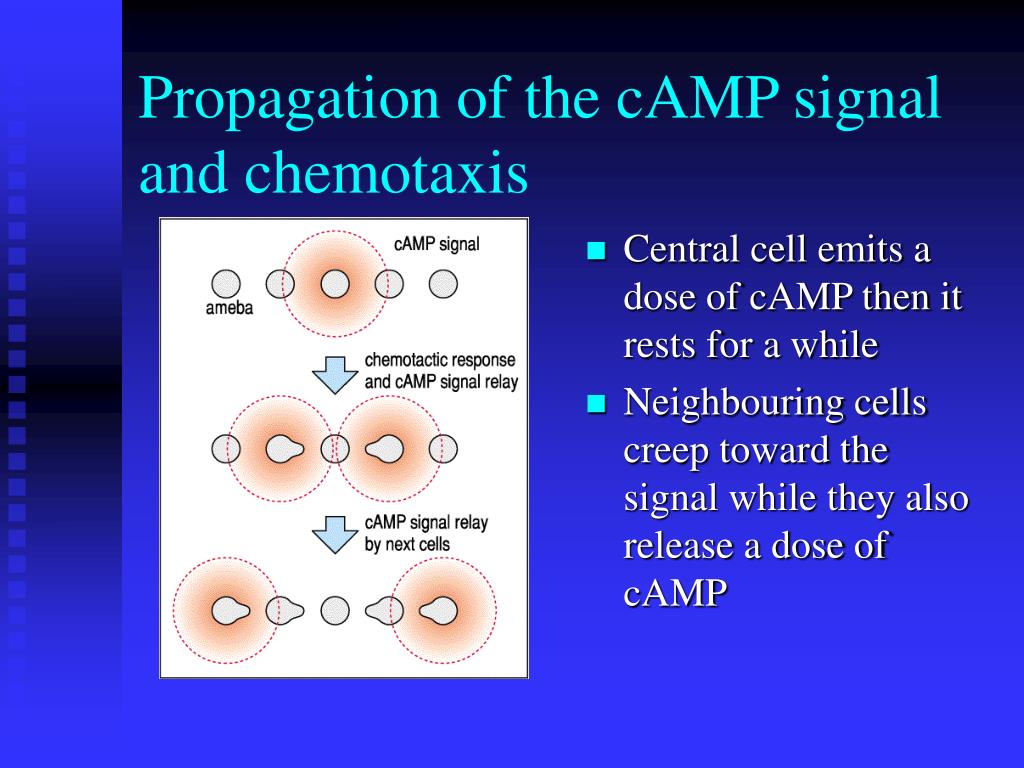

  5. Propagation of the cAMP signal and chemotaxis • Central cell emits a dose of cAMP then it rests for a while • Neighbouring cells creep toward the signal while they also release a dose of cAMP

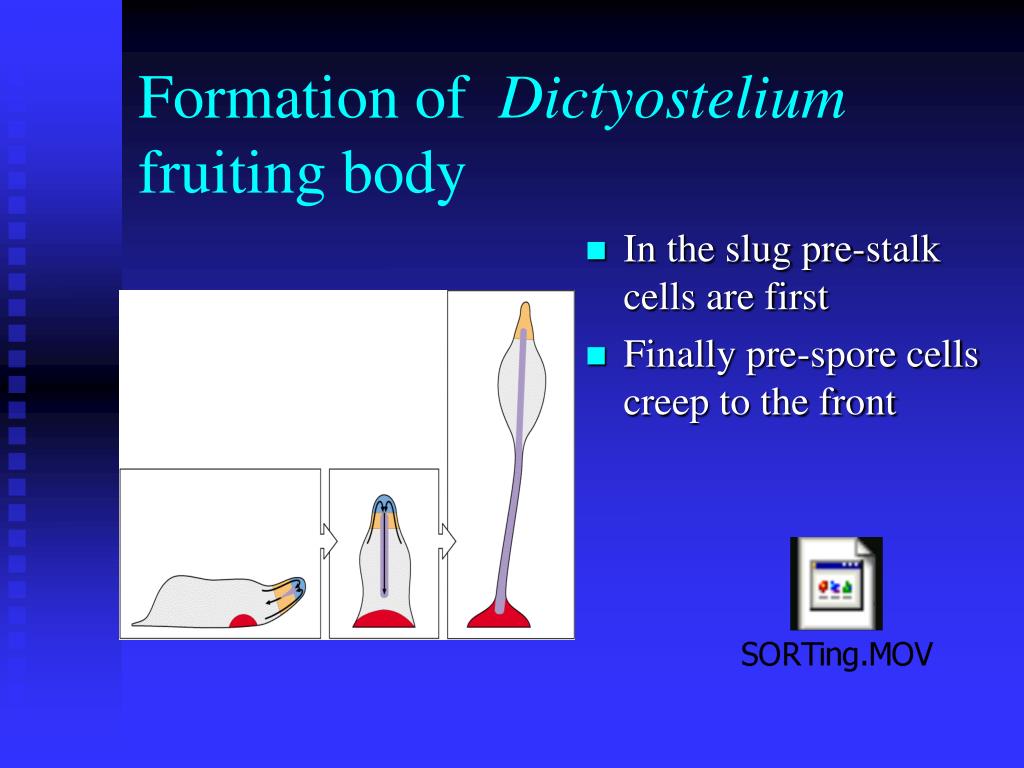

  6. Formation of Dictyostelium fruiting body • In the slug pre-stalk cells are first • Finally pre-spore cells creep to the front

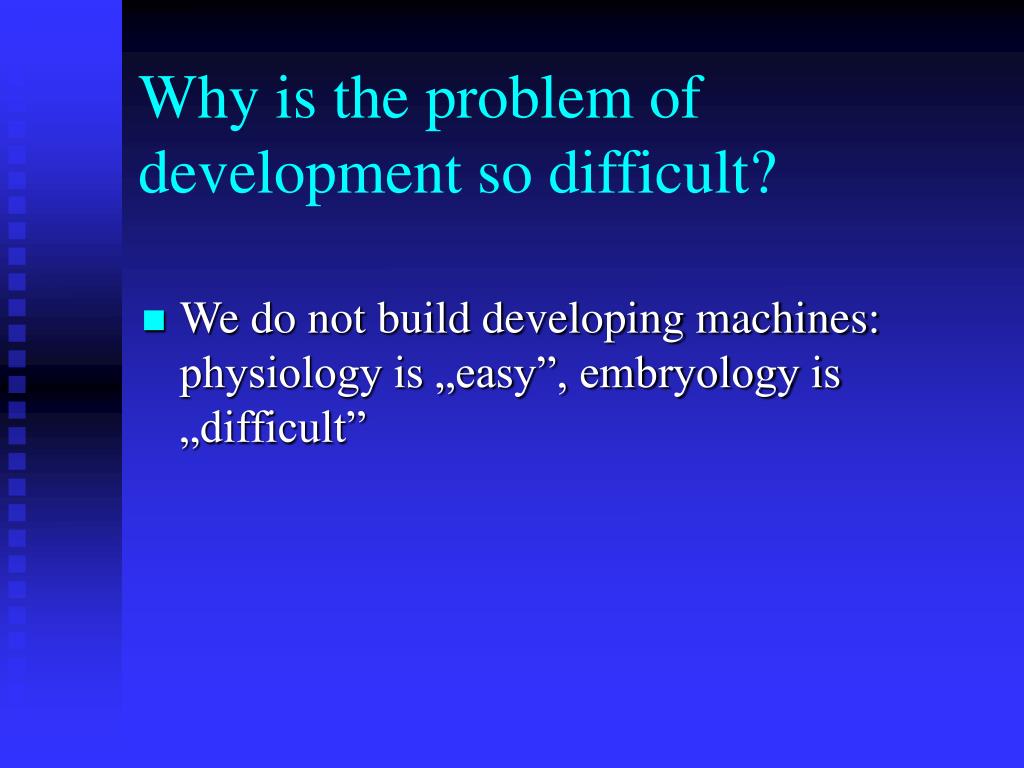

  7. Why is the problem of development so difficult? • We do not build developing machines: physiology is „easy”, embryology is „difficult”

  8. Preformation versus epigenesis • Homonculus in the sperm • Epigenetics: complexity truly increases

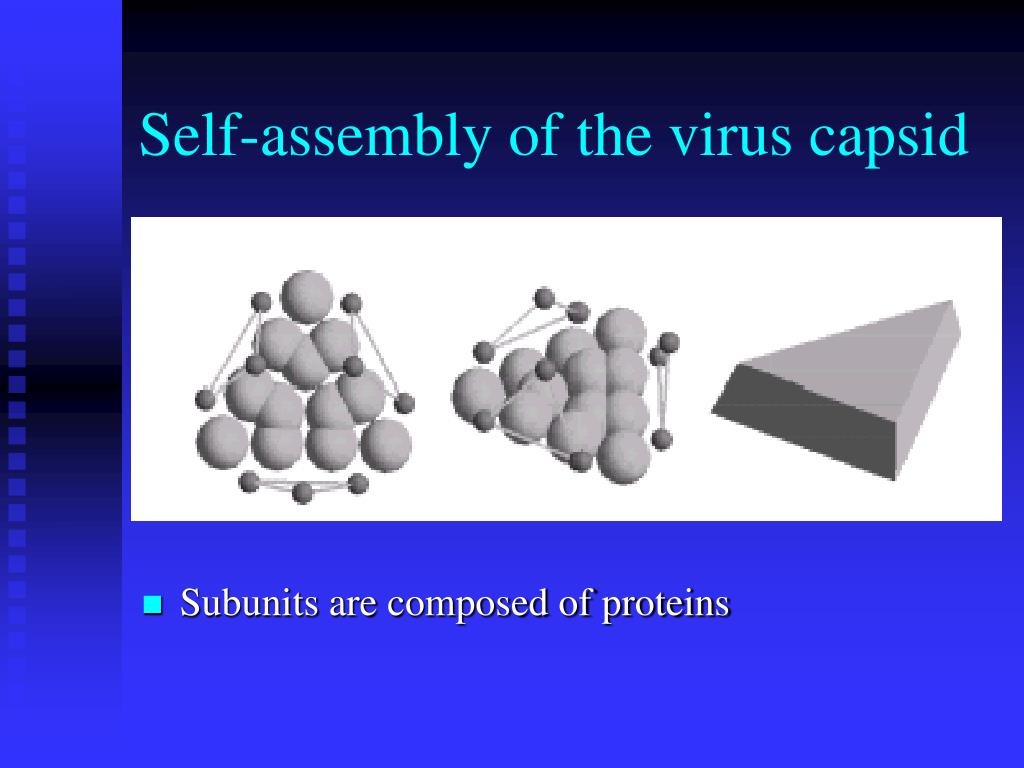

  9. Self-assembly of the virus capsid • Subunits are composed of proteins

  10. The process of aggregation

  11. Formation of the antero-posterior axis of Drosophila

  12. Do the genes programme ontogenesis? • In a sense yes, BUT • A bag of elephant proteins is not an elephant • Structure that self-assemble • Virus particles • The formation of sponges • Limitations of the jigsaw puzzle principle

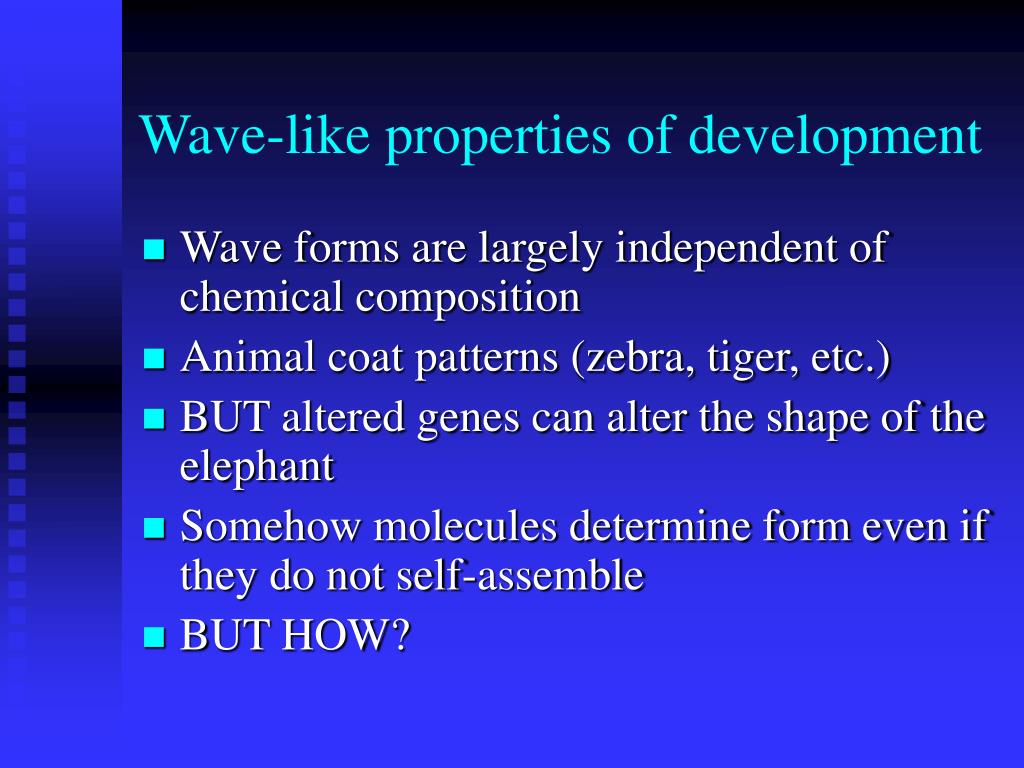

  13. Wave-like properties of development • Wave forms are largely independent of chemical composition • Animal coat patterns (zebra, tiger, etc.) • BUT altered genes can alter the shape of the elephant • Somehow molecules determine form even if they do not self-assemble • BUT HOW?

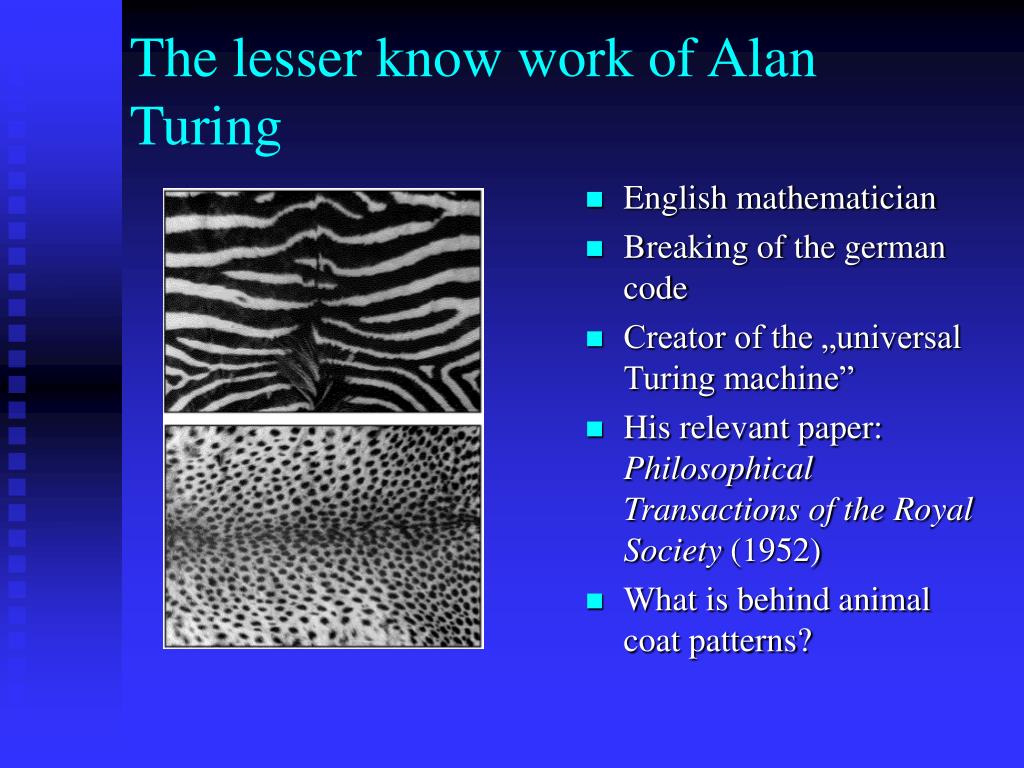

  14. The lesser know work of Alan Turing • English mathematician • Breaking of the german code • Creator of the „universal Turing machine” • His relevant paper: Philosophical Transactions of the Royal Society (1952) • What is behind animal coat patterns?

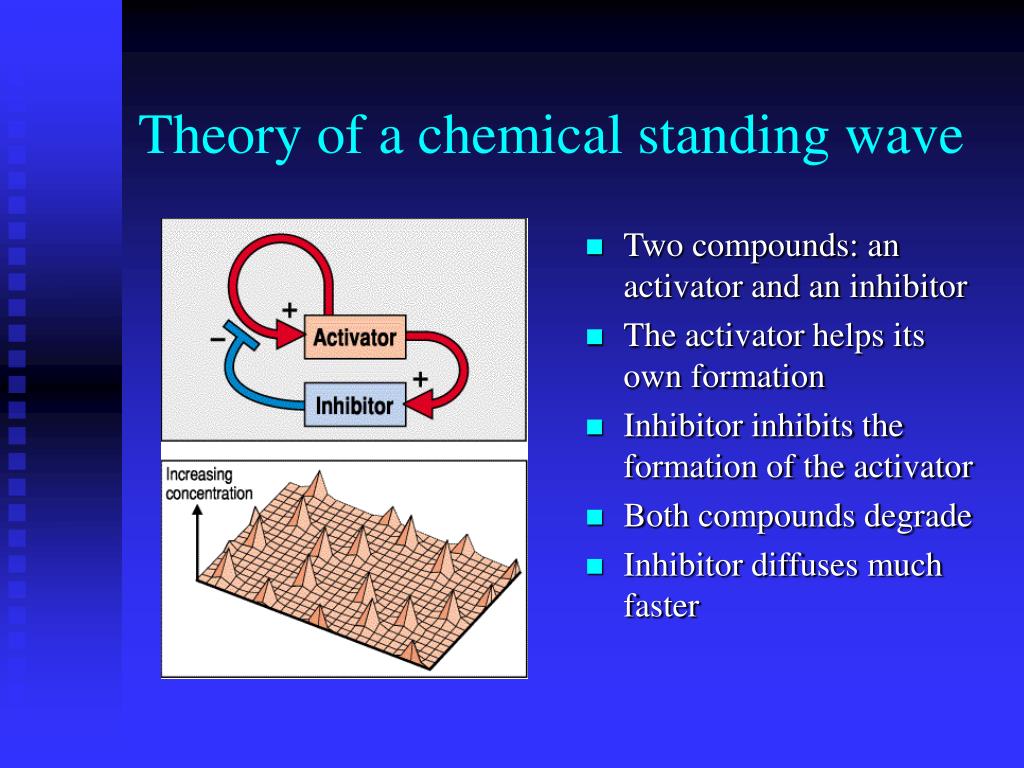

  15. Theory of a chemical standing wave • Two compounds: an activator and an inhibitor • The activator helps its own formation • Inhibitor inhibits the formation of the activator • Both compounds degrade • Inhibitor diffuses much faster

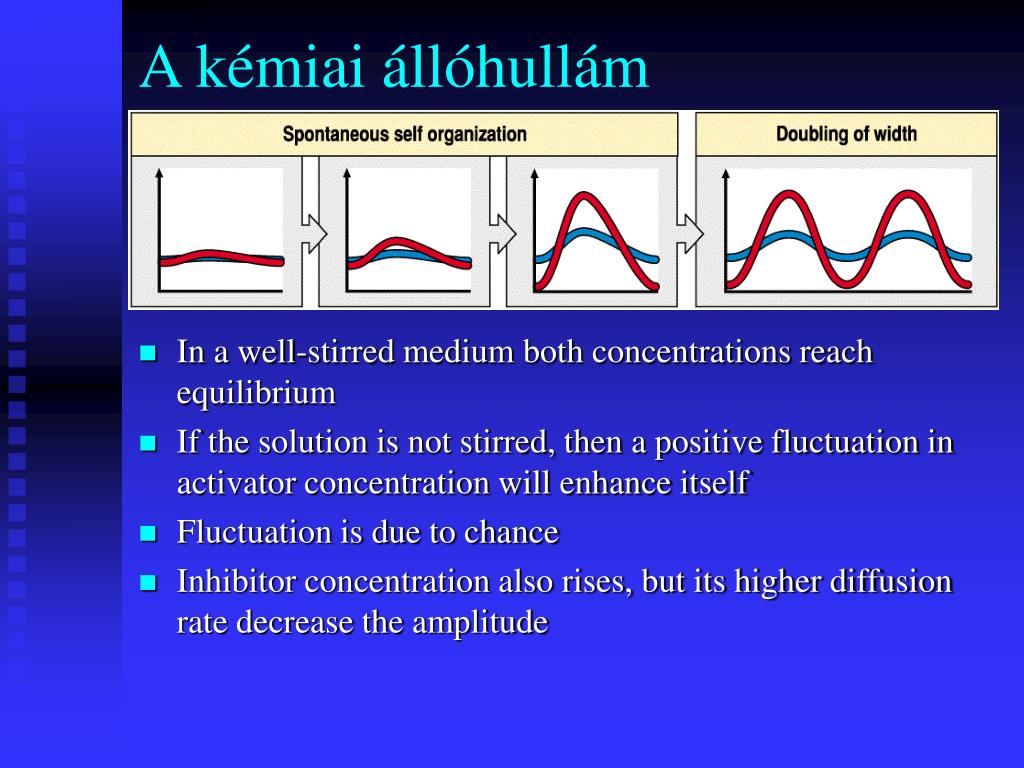

  16. A kémiai állóhullám • In a well-stirred medium both concentrations reach equilibrium • If the solution is not stirred, then a positive fluctuation in activator concentration will enhance itself • Fluctuation is due to chance • Inhibitor concentration also rises, but its higher diffusion rate decrease the amplitude

  17. The coat of a fish • Growth as well as REGENARATION seems to follow a Turing mechanism • Reaction-diffusion systems

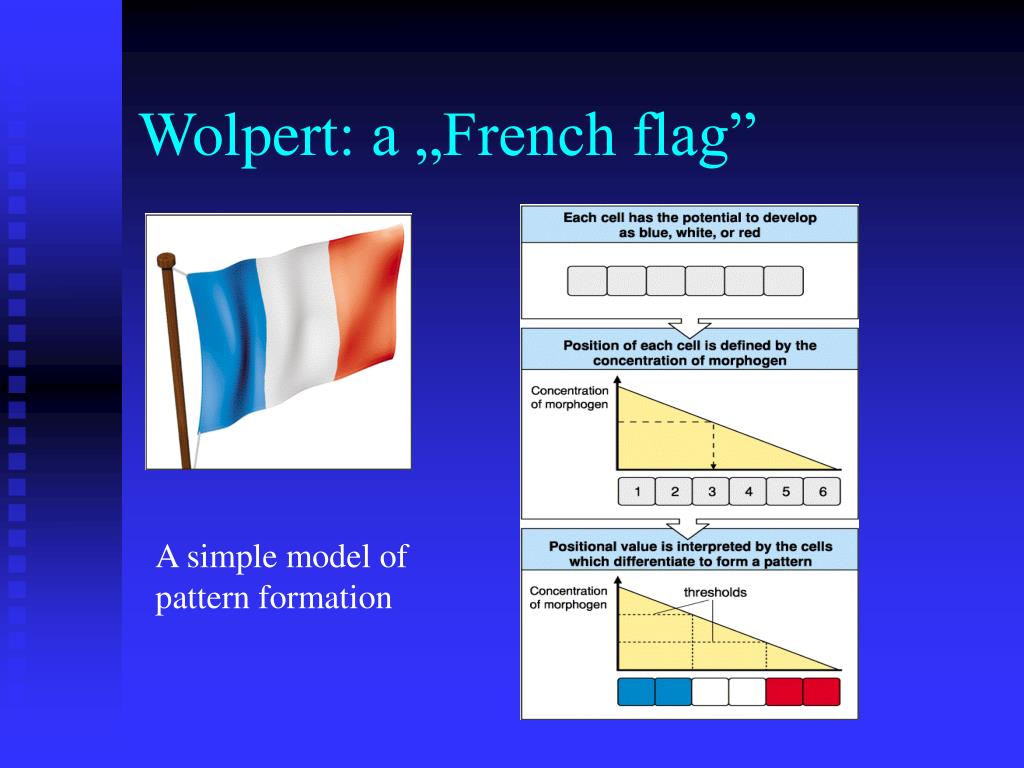

  18. Wolpert: a „French flag” A simple model of pattern formation

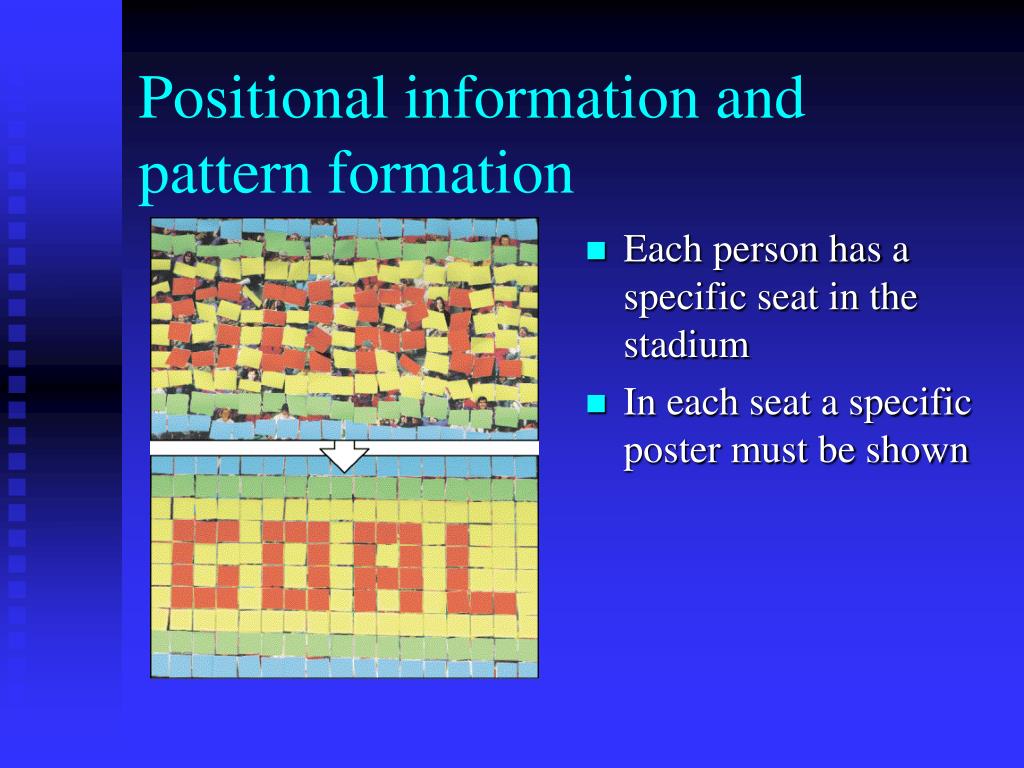

  19. Positional information and pattern formation • Each person has a specific seat in the stadium • In each seat a specific poster must be shown

  20. Hair patterns in Oncopeltus as indicator of polarity • Hairs point backwards on the cuticule • Removal of segment boundary reverses the direction of hair growth

  21. Development of the chick limb • The zone of polarizing activity (ZPA) directs the formation of the order of digits

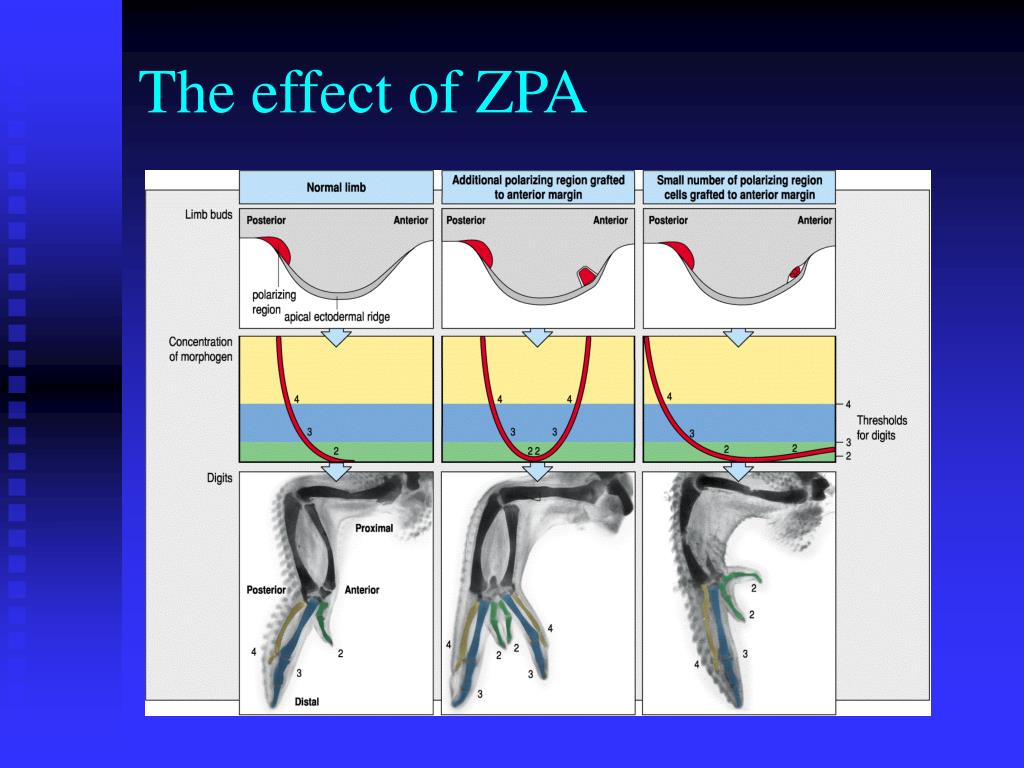

  22. The effect of ZPA

  23. Prepattern and consequence • Morphogen is the sonic hedgehog protein

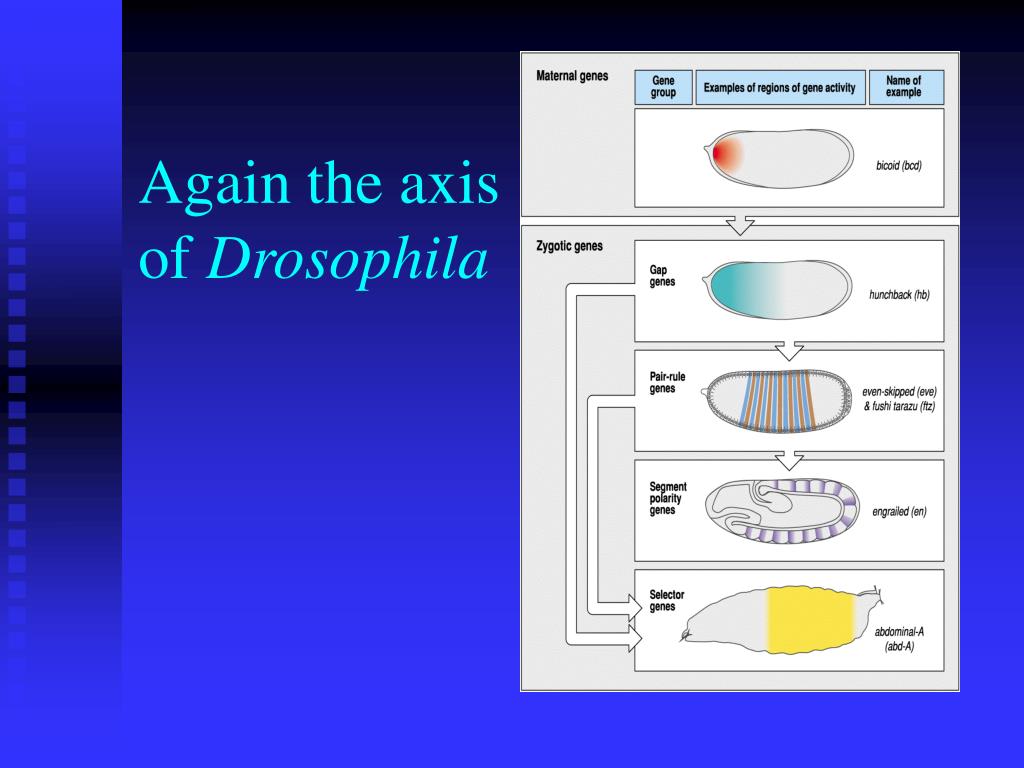

  24. Again the axis of Drosophila

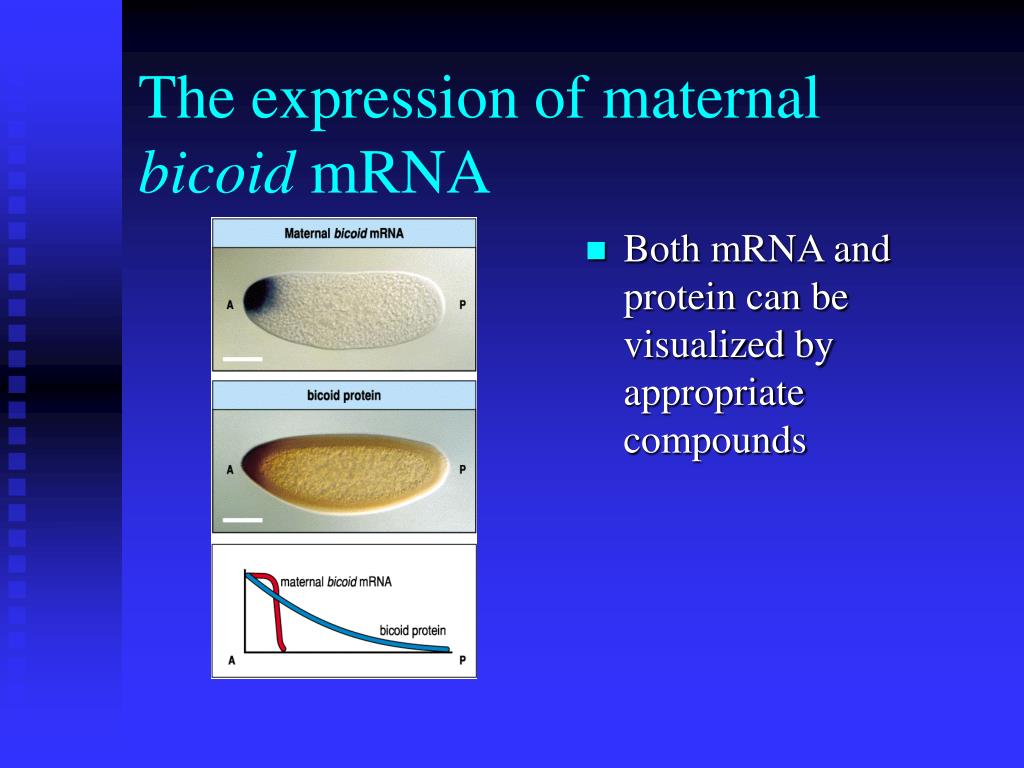

  25. The expression of maternal bicoid mRNA • Both mRNA and protein can be visualized by appropriate compounds

  26. Determination of the 2nd even-skipped (eve) stripe • Bicoid and hunchback proteins activate • Giant and Krüppel inhibit • Not too elegant!

  27. Gene expression and pattern • Combinatorial determination

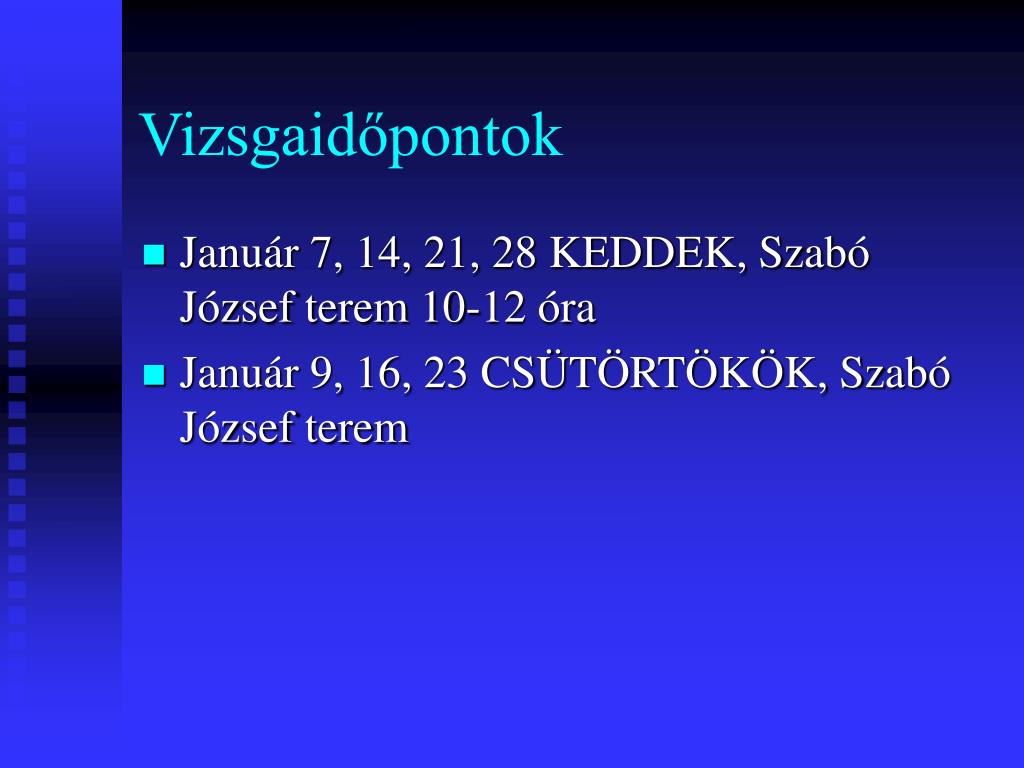

  28. Vizsgaidőpontok • Január 7, 14, 21, 28 KEDDEK, Szabó József terem 10-12 óra • Január 9, 16, 23 CSÜTÖRTÖKÖK, Szabó József terem
