  1. Chapter 10 Muscle Tissue (Mostly Skeletal Muscle)

  2. Muscle tissue: skeletal cardiac smooth bones heart “hollow organs”

  3. Muscle tissue: skeletal muscle functions move skeleton maintain balance/posture support soft tissues guard entrances/exits maintain body temp store nutrients

  4. Muscle tissue: muscle contains muscle cells connective tissue nerves (axons) blood vessels

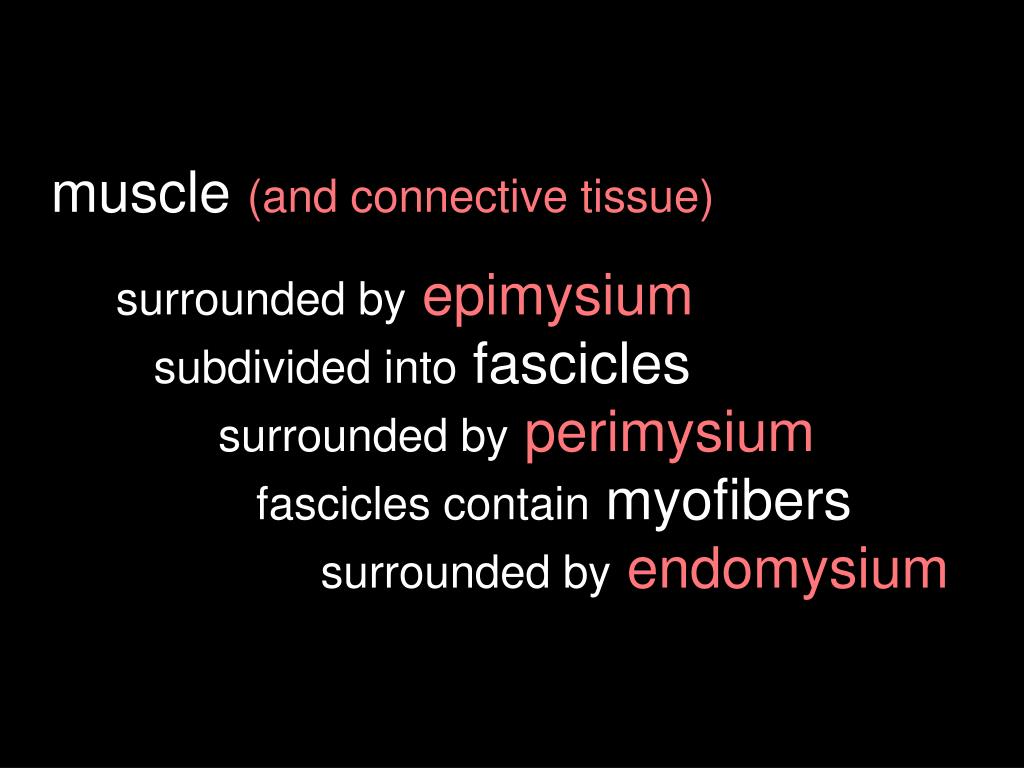

  5. muscle (and connective tissue) surrounded byepimysium subdivided into fascicles surrounded byperimysium fascicles contain myofibers surrounded byendomysium

  6. fig. 10-1

  7. three connective tissues: epimysium perimysium endomysiyum • blend into each other, • and the end of the muscle • blend into the tendon

  8. three connective tissues: contain: blood vessels and nerves that supply the muscle

  9. skeletal muscle voluntary muscle although many are also controlled subconsciously too

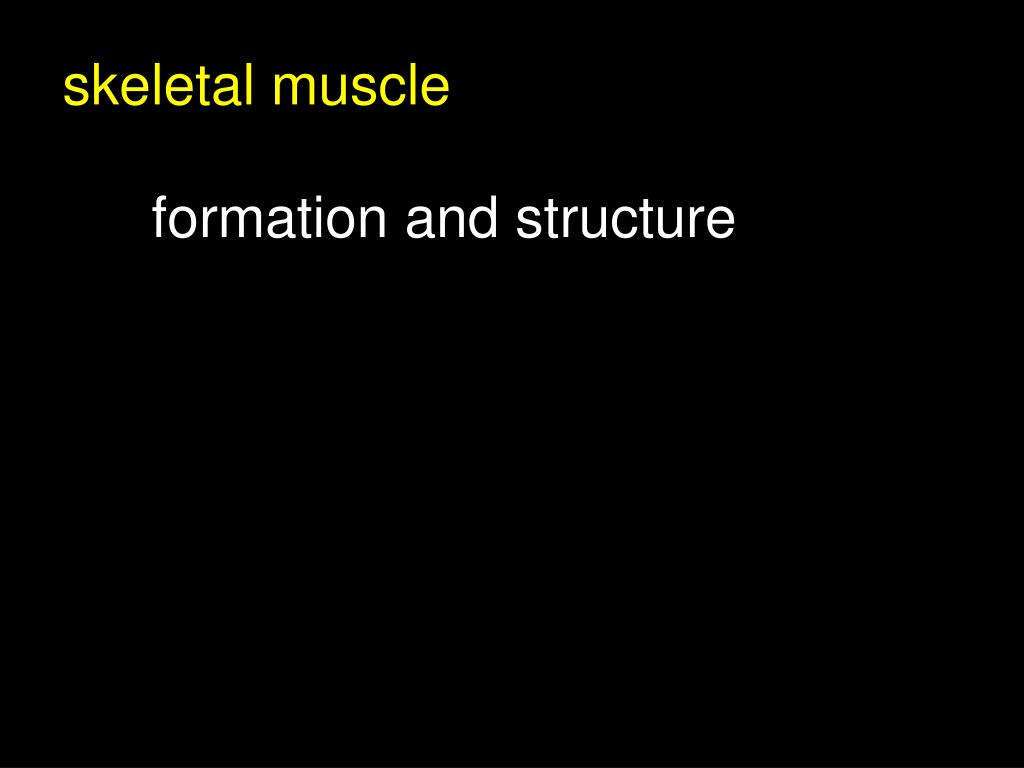

  10. skeletal muscle formation and structure

  11. fig. 10-2 myoblast fuse forming large multinucleated cells (myofibers)

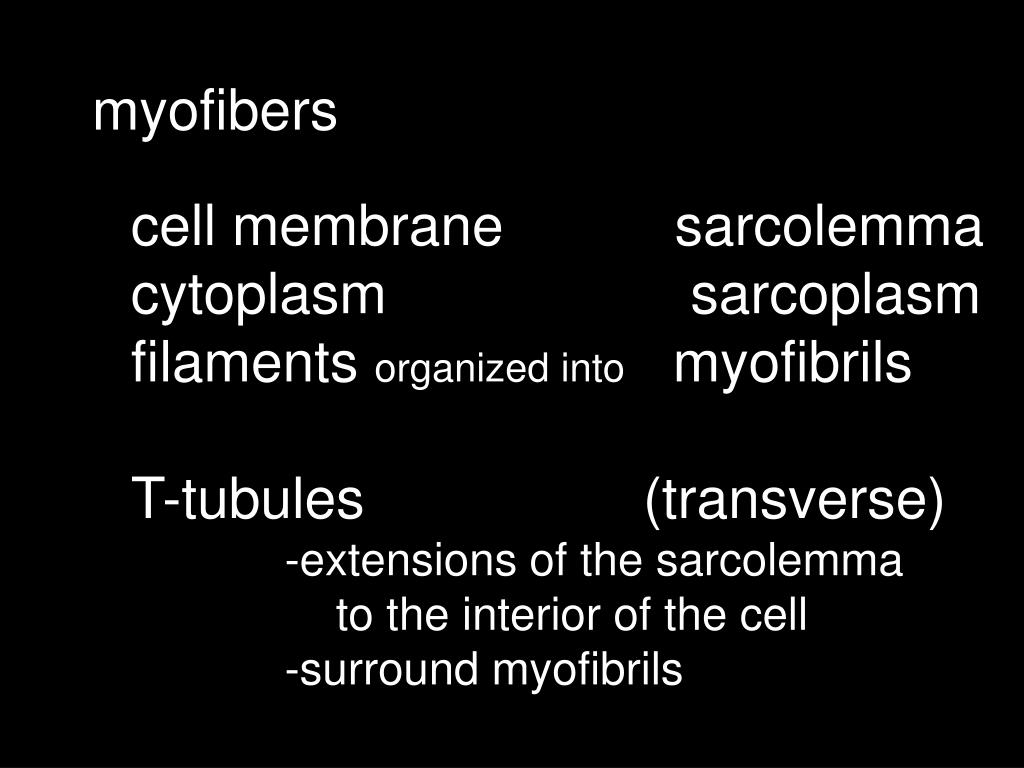

  12. myofibers • cell membrane sarcolemma • cytoplasm sarcoplasm • filaments organized into myofibrils • T-tubules (transverse) • -extensions of the sarcolemma • to the interior of the cell • -surround myofibrils

  13. fig. 10-3

  14. sarcoplasmic reticulum (SR) • modified sER • (smooth endoplasmic reticulum) • also surrounds myofibrils • expanded ends called • terminal cisternae • gather and store Ca2+

  15. fig. 10-3 myofibril T tc tc

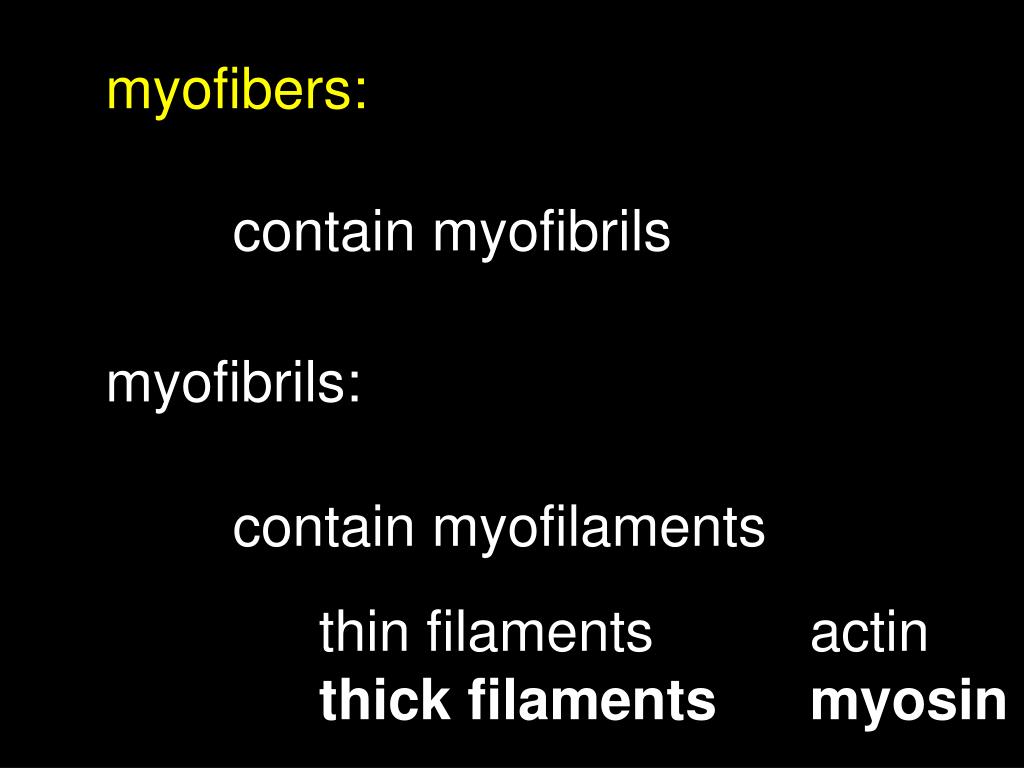

  16. myofibers: contain myofibrils myofibrils: contain myofilaments thin filaments thick filaments actin myosin

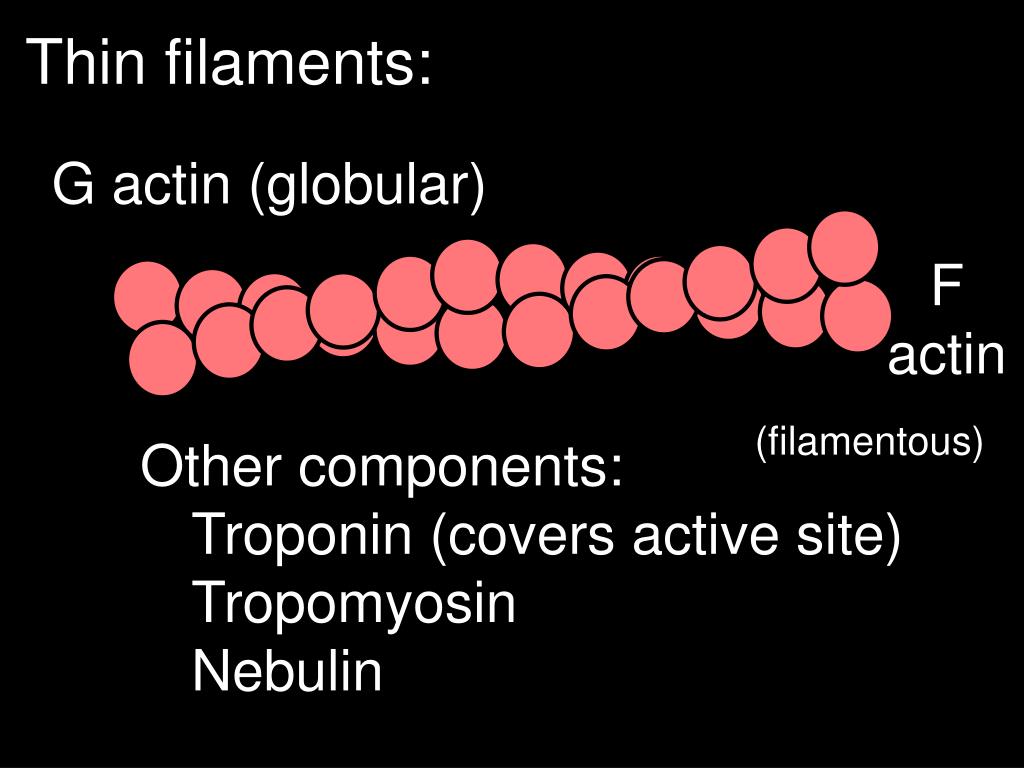

  17. Thin filaments: G actin (globular) F actin (filamentous) • Other components: • Troponin (covers active site) • Tropomyosin • Nebulin

  18. Thin filaments: fig. 10-7b

  19. fig. 10-7a, b

  20. Thick filaments: myosin head tail

  21. Thick filaments: binds to active site on thin filaments fig. 10-7d

  22. fig. 10-7c, d

  23. fig. 10-7c, d

  24. to here Monday 2/5 lec # 13

  25. fig. 10-6 muscle fascicles myofibers myofibrils thick & thin filaments

  26. fig. 10-4 A band A band I band myosin I band A band Z line Z line actin actin actin actin

  27. from Z line to Z line sarcomere where myosin is A band center of A band M line muscle structure terms where actin isn’t center of A band H zone where myosin isn’t Z line in center I band actin and myosin overlap

  28. T tc tc triad titin

  29. fig. 10-5

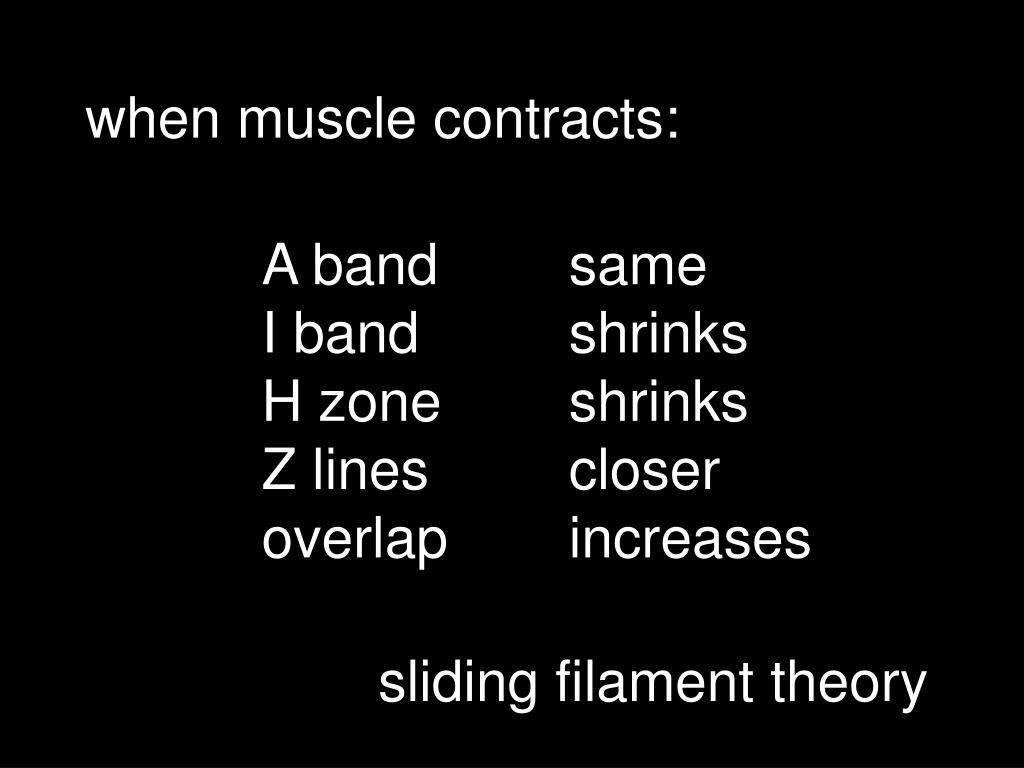

  30. when muscle contracts: A band same I band shrinks H zone shrinks Z lines closer overlap increases sliding filament theory

  31. fig. 10-8

  32. The contraction of skeletal m. background physics: tension pull towards compression push away overcome resistance • muscle cells only pull (produce tension) • generate force by getting shorter

  33. OVERVIEW motorneuron AP release nt AP in myofiber release Ca2+ thick/thin interact contraction tension fig. 10-9

  34. control of skeletal muscle motorneurons in CNS synapse with myofiber • neuromuscular junction • aka myoneural junction • aka motor end plate (mep) each myofiber is innervated by a myelinated motorneuron fig. 10-9

  35. neuromuscular junction (nmj) axon terminal with ACh synaptic cleft • postsynaptic membrane • (aka sarcolemma) junctional folds AChR and AChE

  36. fig. 10-10

  37. neuronal AP myofiber AP contraction ? Excitation-Contraction Coupling

  38. myofiber AP (depolarization of sarcolemma) depolarization of the T-tubules • release of Ca2+ • from sacroplasmic reticulum

  39. release of Ca2+ • from sacroplasmic reticulum Ca2+ interacts with troponin (on thin filaments) exposing active site (myosin will now bind)

  40. remember structure: fig. 10-7b fig. 10-5

  41. myosin heads fig. 10-11

  42. Now we are ready for the contraction cycle (almost) fig. 10-7

  43. fig. 10-12

  44. AP AP Ca2+ 2 1 expose active site form cross-bridges fig. 10-12

  45. “POWER STROKE” 3 4 cross bridge detachment re”energize” the myosin fig. 10-12

  46. 5 re energize myosin fig. 10-12

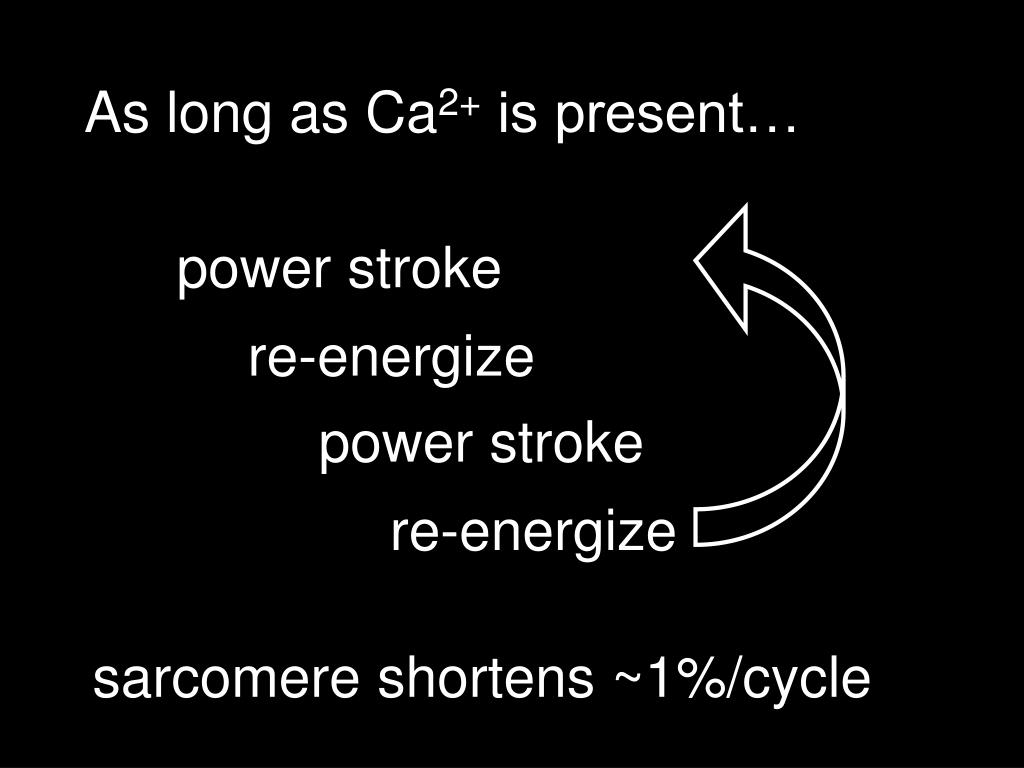

  47. As long as Ca2+ is present… power stroke re-energize power stroke re-energize sarcomere shortens ~1%/cycle

  48. tug-of-war energize reach grab pull cross-bridge power stroke release release

  49. tug-of-war repeat cycle reach grab pull release what if everybody released at the same time?

  50. Z line Z line actin myosin sarcomere
