5.2 Oxidation Numbers

barb avatar
barb
91 diapositives · 1.4K Views · Aug 25, 2014

5.2 Oxidation Numbers. What we need to learn… determine the following: the oxidation number of an atom in a chemical species the change in oxidation number an atom undergoes when it is oxidized or reduced whether an atom has been oxidized or reduced by its change in oxidation number

#5.2 oxidation numbers #5.2 oxidation numbers ppt #powerpoint #presentation
5.2 Oxidation Numbers - slide 1
01 / 915.2 Oxidation Numbers
1 / 17

Télécharger la présentation

5.2 Oxidation Numbers
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

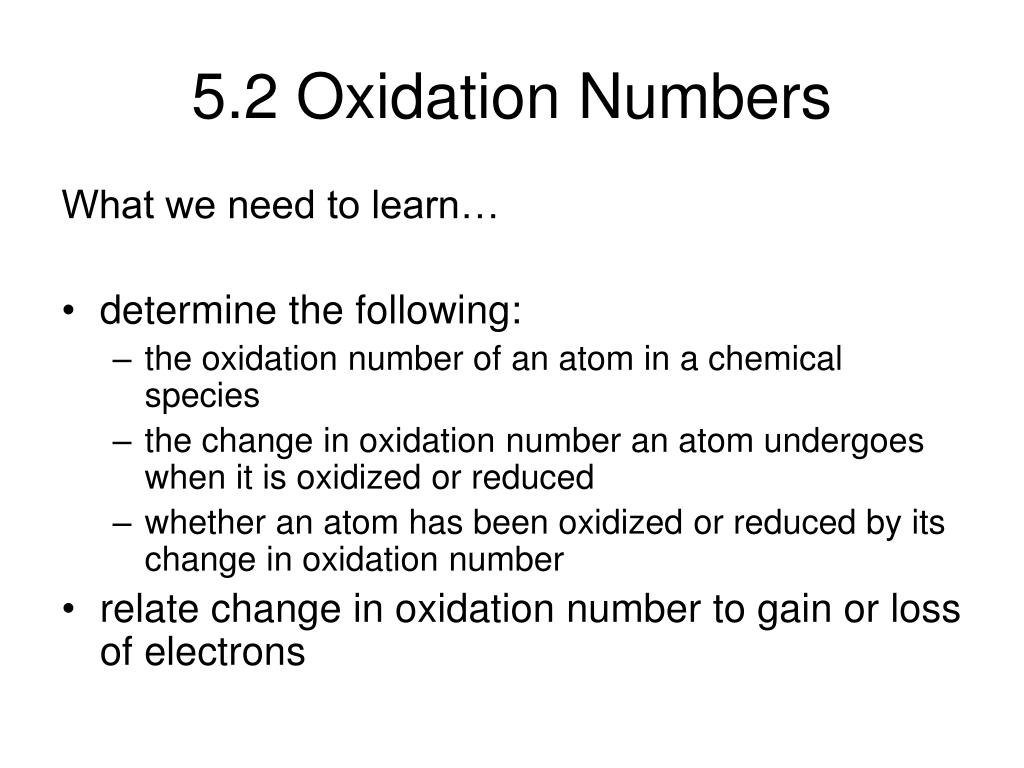

  1. 5.2 Oxidation Numbers What we need to learn… • determine the following: • the oxidation number of an atom in a chemical species • the change in oxidation number an atom undergoes when it is oxidized or reduced • whether an atom has been oxidized or reduced by its change in oxidation number • relate change in oxidation number to gain or loss of electrons

  2. Oxidation Numbers HV2O4- V6+ Is the above equation oxidation or reduction? Oxidation numbers are used to quickly determine if oxidation or reduction has occurred in a redox reaction. OXIDATION NUMBER: The charge that an atom would possess if the species containing the atom were made up of ions.Oxidation numbers are a somewhat fictitious concept, but, by using them, we can create half-reactions and use them in situations where no such half-reactions actually exist The use of both half-reactions and oxidation numbers are simply procedures which can be used to get us to a balanced REDOX equation; whether the half-reactions or oxidation numbers are real is irrelevant.

  3. Rules for Oxidation NumbersOxidation # 1. All elements are zero:

  4. Rules for Oxidation NumbersOxidation # 1. All elements are zero: N2

  5. Rules for Oxidation NumbersOxidation # 1. All elements are zero: N20

  6. Rules for Oxidation NumbersOxidation # 1. All elements are zero: N20 Pb

  7. Rules for Oxidation NumbersOxidation # 1. All elements are zero: N20 Pb 0

  8. Rules for Oxidation NumbersOxidation # 1. All elements are zero: N20 Pb 0 Na

  9. Rules for Oxidation NumbersOxidation # 1. All elements are zero: N20 Pb 0 Na 0

  10. Rules for Oxidation NumbersOxidation # 1. All elements are zero: N20 Pb 0 Na 0 O2

  11. Rules for Oxidation NumbersOxidation # 1. All elements are zero: N20 Pb 0 Na 0 O20

  12. Rules for Oxidation NumbersOxidation # 2. Ions are their charge Na+

  13. Rules for Oxidation NumbersOxidation # 2. Ions are their charge Na++1

  14. Rules for Oxidation NumbersOxidation # 2. Ions are their charge Na++1 Br-

  15. Rules for Oxidation NumbersOxidation # 2. Ions are their charge Na++1 Br--1

  16. Rules for Oxidation NumbersOxidation # 2. Ions are their charge Na++1 Br--1 MgSO4

  17. Rules for Oxidation NumbersOxidation # 2. Ions are their charge Na++1 Br--1 MgSO4+2

  18. Rules for Oxidation NumbersOxidation # 2. Ions are their charge Na++1 Br--1 MgSO4+2 Al2O3

  19. Rules for Oxidation NumbersOxidation # 2. Ions are their charge Na++1 Br--1 MgSO4+2 Al2O3-2

  20. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2. Na2O

  21. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2. Na2O-2

  22. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2. Na2O-2 CO2

  23. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2. Na2O-2 CO2-2

  24. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2. Na2O-2 CO2-2 O2

  25. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2. Na2O-2 CO2-2 O20

  26. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2. Na2O-2 CO2-2 O20 CH3COOH

  27. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2. Na2O-2 CO2-2 O20 CH3COOH -2

  28. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2 or in peroxides-1. Na2O-2 CO2-2 O20 CH3COOH -2 HOOH

  29. Rules for Oxidation NumbersOxidation # 3. The oxidation number of O in a compound is –2 or in peroxides-1. Na2O-2 CO2-2 O20 CH3COOH -2 HOOH exception -1

  30. Rules for Oxidation NumbersOxidation # 4. The oxidation number for H in a compound is +1.

  31. Rules for Oxidation NumbersOxidation # 4. The oxidation number for H in a compound is +1. H2O

  32. Rules for Oxidation NumbersOxidation # 4. The oxidation number for H in a compound is +1. H2O +1

  33. Rules for Oxidation NumbersOxidation # 4. The oxidation number for H in a compound is +1 H2O +1 C12H24O11

  34. Rules for Oxidation NumbersOxidation # 4. The oxidation number for H in a compound is +1 H2O +1 C12H24O11+1

  35. Rules for Oxidation NumbersOxidation # 4. The oxidation number for H in a compound is +1 H2O +1 C12H24O11+1 H2

  36. Rules for Oxidation NumbersOxidation # 4. The oxidation number for H in a compound is +1 H2O +1 C12H22O11+1 H20

  37. Rules for Oxidation NumbersOxidation # 4. The oxidation number for H in a compound is +1 or in metal hydrides -1. H2O +1 C12H24O11+1 H20 NaH

  38. Rules for Oxidation NumbersOxidation # 4. The oxidation number for H in a compound is +1 or in metal hydrides -1. H2O +1 C12H24O11+1 H20 NaH -1

  39. Rules for Oxidation NumbersOxidation # 5.All alkali and Alkali Earth metals within a chemical species will be their traditional combining capacity (group 1 [= +1] and 2 [+2] on PT) 6. Most often the halogens (group 17) will be their traditional charge within a chemical species (-1) NaCl (+1 and -1 respectively) HClO3 (+1, +5* and -2 respectively) *not always -1

  40. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # SO42-

  41. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # oxidation #s SO42-

  42. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # oxidation #s -2 SO42-

  43. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # oxidation #s -2 SO42- Total charge

  44. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # oxidation #s -2 SO42- Total charge-8

  45. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # oxidation #s -2 SO42- Total charge-8 = -2

  46. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # oxidation #s -2 SO42- Total charge+6-8 = -2

  47. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # oxidation #s +6-2 SO42- Total charge+6-8 = -2

  48. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # oxidation #s +6-2+6 SO42- Total charge+6-8 = -2

  49. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # PO43-

  50. Rules for Oxidation Numbers 5. All other oxidation numbers are assigned so that the sum of all of the oxidation numbers is equal to the charge on the chemical species. Oxidation # oxidation #s PO43-
