Module 11: Managing Data Storage

Module 11: Managing Data Storage. Overview. Managing File Compression Configuring File Encryption Configuring EFS Recovery Agents Implementing Disk Quotas. Lesson: Managing File Compression. What Is File Compression? What Is the compact Command?

barbara-beasley
Télécharger la présentation

Module 11: Managing Data Storage

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Module 11: Managing Data Storage

  2. Overview • Managing File Compression • Configuring File Encryption • Configuring EFS Recovery Agents • Implementing Disk Quotas

  3. Lesson: Managing File Compression • What Is File Compression? • What Is the compact Command? • What Are the Effects of Moving and Copying Compressed Files and Folders? • Best Practices for Compressing Files or Folders • Practice: Managing File Compression

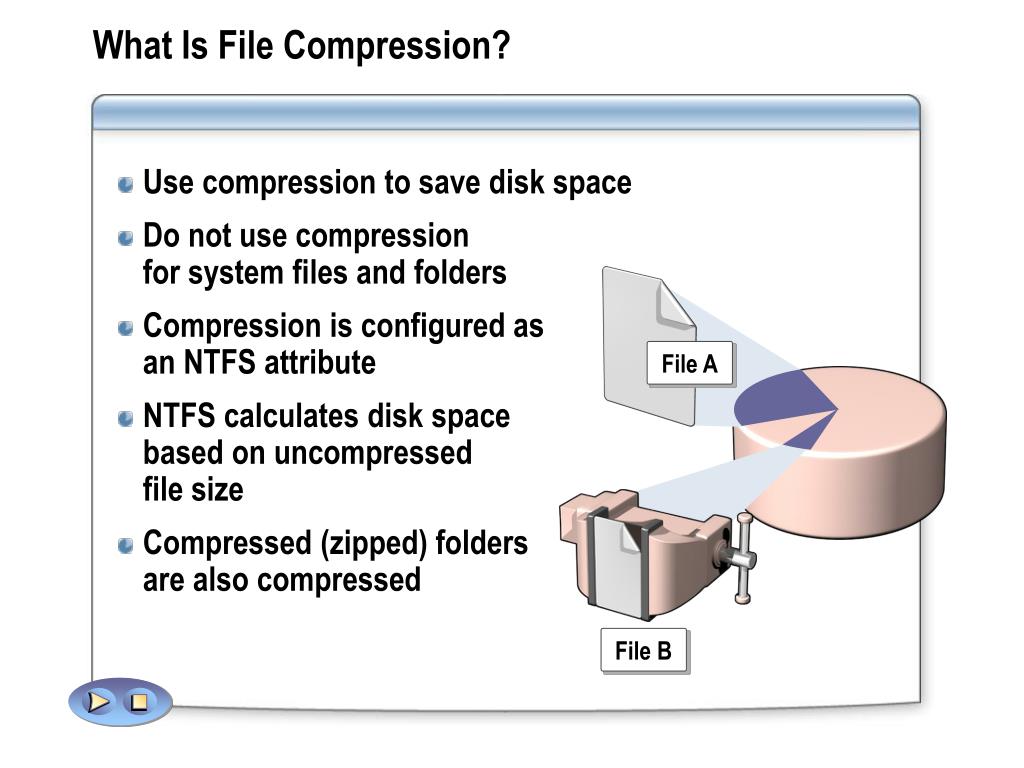

  4. What Is File Compression? File A File B • Use compression to save disk space • Do not use compression for system files and folders • Compression is configured asan NTFS attribute • NTFS calculates disk spacebased on uncompressed file size • Compressed (zipped) foldersare also compressed

  5. What Is the compact Command? A command-line tool for compressing files and folders • Provides a good overview of compression states • Allows multiplefile names andwildcards

  6. What Are the Effects of Moving and Copying Compressed Files and Folders? Within an NTFS Partition Within an NTFS Partition A B Copy Move From NTFS Partitions To NTFS Partitions C Copy Move From NTFS Partition To FAT Partition D Copy Move Inherits Retains Inherits No Compression

  7. Best Practices for Compressing Files or Folders • Identify files that will benefit from compression • Do not compress system files • Do not compress already-compressed files • Compress static data rather than data that changes frequently

  8. Practice: Managing File Compression In this practice, you will: • Compress files • Move and copy compressed files

  9. Lesson: Configuring File Encryption • What Is EFS Encryption? • What Is Public-Key Encryption? • How EFS Uses Encryption • How EFS Uses Certificates • What Are the Effects of Moving and Copying Encrypted Files or Folders? • Sharing an Encrypted Folder • Practice: Configuring File Encryption

  10. What Is EFS Encryption? EFS encryption makes data unintelligible without a decryption key • EFS encrypts data • Encryption keys are automatically generated if required • Opening and saving encrypted files is transparent to users • Use the cipher command to display or alter encryption of folders and files on NTFS volumes

  11. What Is Public-Key Encryption? • Public key • Private key • Certification authorities • Automated certificate creation

  12. How EFS Uses Encryption • Symmetric encryption protects the file • Symmetric encryption is strong and fast • Public-key encryption protects the symmetric key • A copy is stored for each user • A copy is stored for the recovery agent

  13. How EFS Uses Certificates • Certificate identifies user • EFS generates a certificate • Requests from CA • Self-signed if CA not available • EFS renews certificates if required

  14. What Are the Effects of Moving and Copying Encrypted Files and Folders? Copy Copy Move = = = Unencrypted Folder to Encrypted Folder Unencrypted File to Encrypted Folder A B Encrypted Folder to Unencrypted Folder C

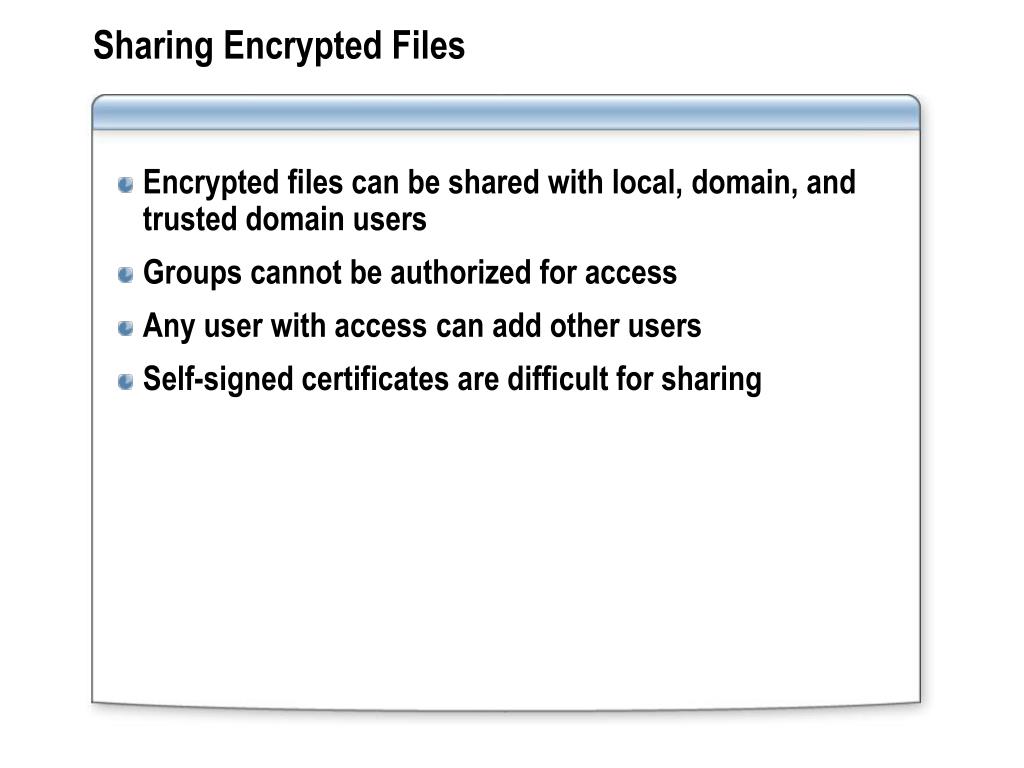

  15. Sharing Encrypted Files • Encrypted files can be shared with local, domain, and trusted domain users • Groups cannot be authorized for access • Any user with access can add other users • Self-signed certificates are difficult for sharing

  16. Practice: Configuring File Encryption In this practice, you will: • Encrypt a folder • Share an encrypted file • Identify the effects of moving and copying compressed files and folders

  17. Lesson: Configuring EFS Recovery Agents • What Is an EFS Recovery Agent? • Recovering Encrypted Files • Practice: Configuring EFS Recovery Agents

  18. What Is an EFS Recovery Agent? • Authorized to decrypt data • Required when users are deleted • Required when local user passwords are reset • The recovery key can be exported

  19. Recovering Encrypted Files • Log on as recovery agent • Recovery policies define the recovery agent • Default recovery agent is the domain Administrator account • Back up the recovery key

  20. Practice: Configuring EFS Recovery Agents In this practice, you will: • Configure an EFS recovery agent • Export an EFS recovery certificate

  21. Lesson: Implementing Disk Quotas • Multimedia: What Are Disk Quotas? • What Are Disk-Quota Settings? • Practice: Implementing Disk Quotas

  22. Multimedia: What Are Disk Quotas? • This presentation explains the use of disk quotas as a method for managing data storage space and illustrates how disk quotas operate • After viewing this presentation, you will be able to explain how to use disk quotas

  23. What Are Disk-Quota Settings? • Track and control user NTFS volume space • Restrict storage to quotas • Trigger log events • Calculated with uncompressed file size • Quota entries

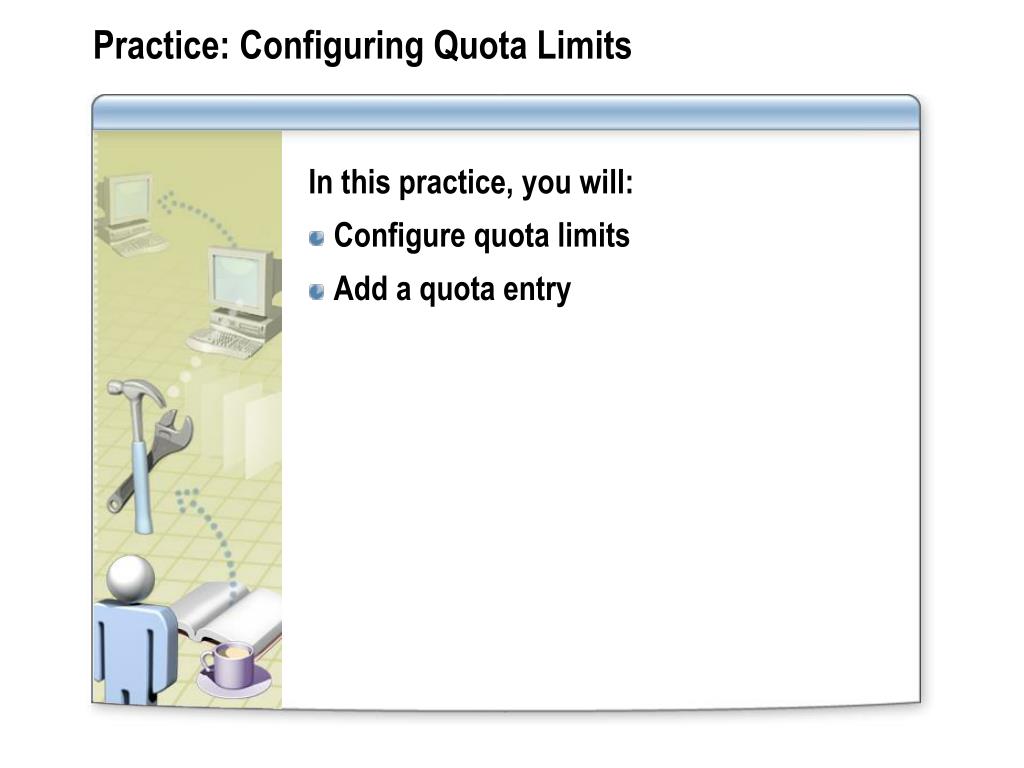

  24. Practice: Configuring Quota Limits In this practice, you will: • Configure quota limits • Add a quota entry

  25. Lab: Managing Data Storage In this lab, you will: • Troubleshoot disk-quota entries • Recover an encrypted file
