Metals Processing 110 Shop Safety

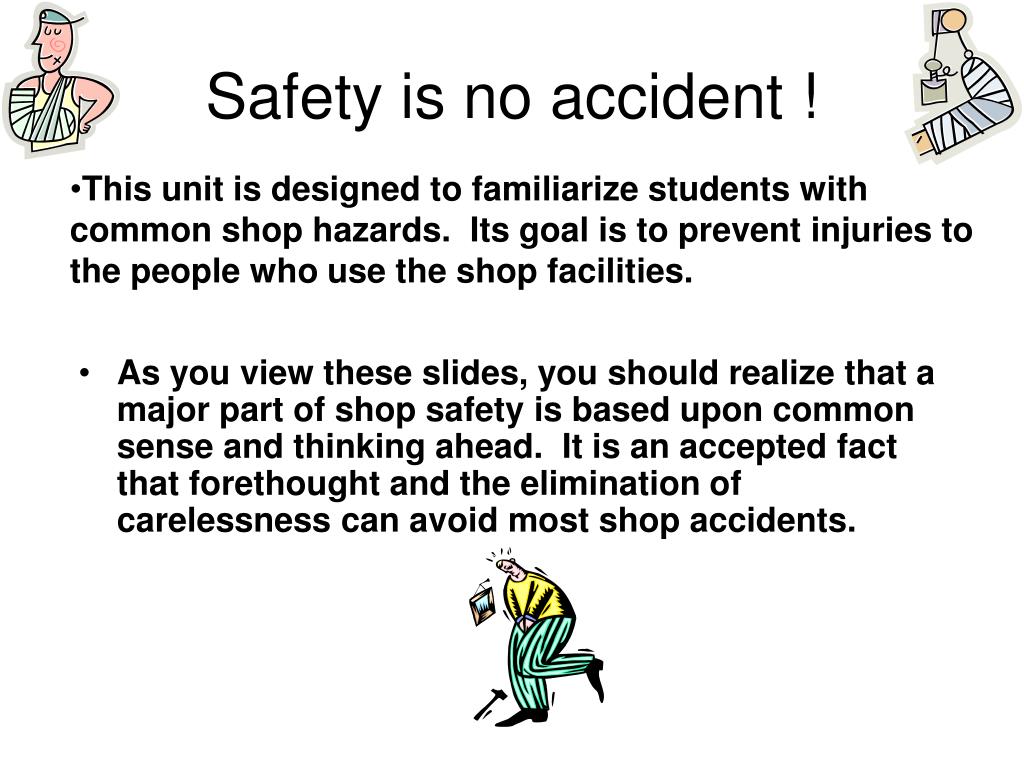

As you view these slides, you should realize that a major part of shop safety is based upon common sense and thinking ahead. It is an accepted fact that forethought and the elimination of carelessness can avoid most shop accidents. Safety is no accident ! • This unit is designed to familiarize students with common shop hazards. Its goal is to prevent injuries to the people who use the shop facilities.
Mass Spectrometry Search Faculty by Discipline General Information General Information Research Faculty NMR Courses TA Teaching and Training X-Ray Faculty Research Areas All About Your TA's Electronics Shop Chemistry Awards Research Graduate Undergrads Computing Facilities Publications Emeri Staff Stores Facilities Grad Studets Instrumentation Postdoctoral Fellows IPEM Lab Queen's Library Undergrad Students Research Assistants Others Safety Symbols Flammable Reactive Compressed Gas Bio-Hazardous Dangerously Reactive Toxic Corrosive Poison
Wear clothing appropriate for the job. DO NOT WEAR: • Sandals • Shorts, or cutoffs • Tank tops, muscle shirts, etc. • Neckties • Loose or torn clothing • Rings, watches, bracelets, or other jewelry that could get caught in moving machinery • Long sleeves (Machines can easily grab loose clothing in rotating parts.)
Wear your hair suitable for the trade. You may protect long hair by: Don’t be “hair-brained”! 1. Tying it neatly behind your head 2. Wearing a hair net .
General Safety Tips • Do not operate any machine unless authorized to do so by an instructor or under an instructor's supervision. • Do not set up or operate any machinery unless an instructor is in the shop. • Use the proper tool for the job. Many cuts in the shop occur when a wrench slips and a hand hits a sharp cutting tool. • Check tools before use to assure they are safe. • Aisles should be clear at all times to avoid tripping or other accidents. • Keep the floor free of oil, grease, or any other type of liquid. Clean up spilled liquids immediately: they are slipping hazards. • Put tools away when not in use. • Place all scrap pieces in the correct containers. • Never handle chips with your hands or fingers. Chips are extremely sharp. Use a brush to remove chips.
Never wear gloves or use rags to clean the work piece or any part of a machine that is running. Rotating tools or parts can grab gloves and rags and pull you into the machine. Never use compressed air to clean any machine. Do not run in the shop; there should be no “fooling around”. Get first aid immediately for any injury. Be careful around a person operating machinery: you may bump or startle him or her and cause an accident. Make all adjustments with the machine off and locked out. Do not use machines without proper guards in place. General Safety Tips (continued)
Cutting fluid can cause slippery floor conditions. Use a material to soak up the liquid (speedy dry, cat-litter, sawdust) when needed.
Safety Glasses • All persons must wear safety glasses in the shop area. • If you wear prescription eye glasses, they must be covered by an approved safety glass.
Be aware! Cutting metal pieces can generate heat; gloves may be needed.
Receive instruction before using. Remove rings, watch, and roll up sleeves. Wear safety glasses. Make adjustments with power off. Adjust upper guide 1/8 inch above material being cut. Do not leave machine running unattended. Band Saw Safety
Adjust upper guide 1/8 inch above material being cut. adjustment dial
Receive instruction before using. Remove rings, watch, and roll up sleeves. Wear safety glasses. Make adjustments with power off. Finish cut close to the chuck or against a shoulder by hand feed only. Rotate spindle by hand to check clearance before engaging power. Keep hands away from chips. Shut off power, and clean lathe before you leave it. Lathe Safety
Brush away metal chips. Never use your hand, a rag, a glove, or compressed air.
Receive instruction before using. Remove rings, watch, and roll up sleeves. Wear safety glasses. Make adjustments with power off. Check the location of chuck key before turning on power. Adjust the table and drill to avoid drilling into table. Ensure all belts and pulleys are covered with guards. Drill Press Safety
Keep vice handles to the left. For holes 1\2 inch in diameter or larger, the vice should be held securely in place by using the cam clamps or bolting through the table slots.
Cutoff Saw Safety • Receive instruction before using. • Remove rings, watch, and roll up sleeves. • Wear safety glasses. • Make adjustments with power off. • Make sure all guards are in place. • Depress safety start button on side of handle • Stand to one side of the saw as you cut. • Apply consistent downward pressure while cutting.
Cutoff Saw The safety switch must be depressed before the saw can start. safety switch button

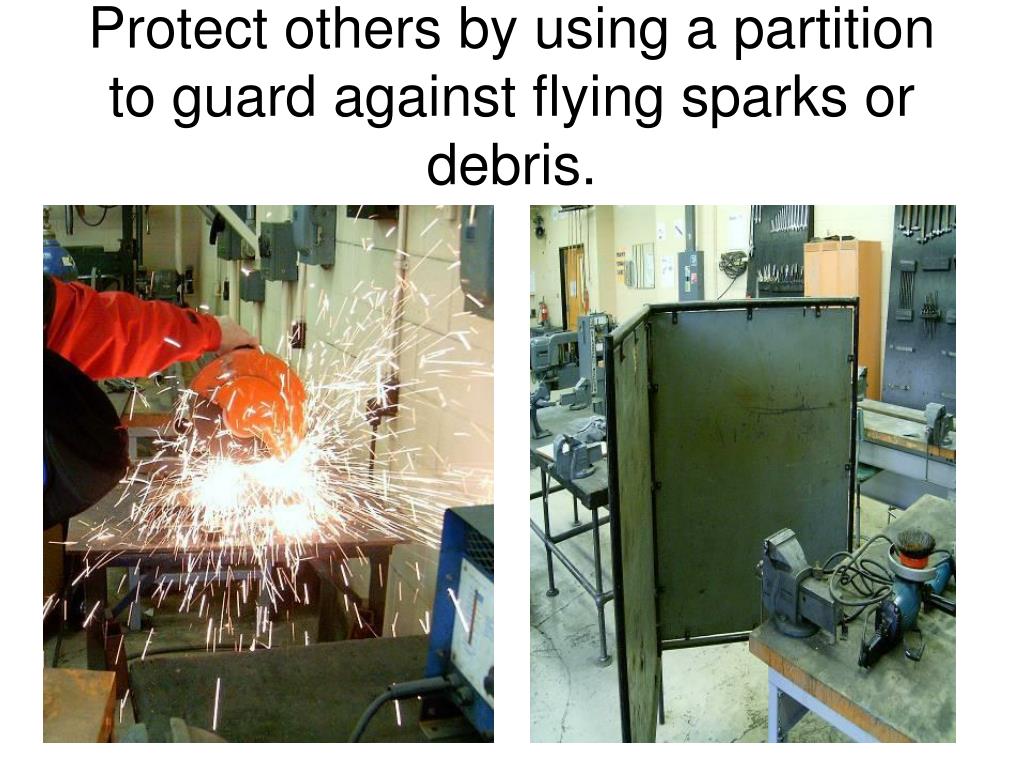

Protect others by using a partition to guard against flying sparks or debris.
Grinders • Receive instruction before using. • Remove rings, watch, and roll up sleeves. • Wear safety glasses. • Make adjustments with power off. • Make sure all guards are in place. • Adjust tool rest to 1/16 inch from the wheel. • Stand to one side when starting grinder. • Inspect grinder wheels for cracks or chips and replace if needed.
