Presentation Transcript

  1. Parallel Computing 1Motivation & ContextsOndřej JaklInstitute of Geonics, Academy of Sci. of the CR

  2. Outline of the lecture • Motivation for parallel processing • Recent impulses • Parallel versus distributed computing • XXX-Computing • Levels of parallelism • Implicit parallelism

  3. ILLIAC IV Why parallel processing? (1) • Despite of their increasing power, (sequential) computers are not powerful enough • at least their users think so • Interest in parallel processing since the very ancient era of computers • R. Feynman’s “parallel” calculations on electro-mechanical tabulators in the Manhattan Project developing the atomic bomb during WW2 • ILLIAC IV (1964-1982) had 64 processors[next lecture] • In fact, natural attitude to cope with demanding work in everyday life • house construction, call centre, assembly line in manufacturing, etc. • stacking/reshelving a set of library books • digging a well?

  4. Why parallel processing? (2) • The idea: Let us divide the computing load among several co-operating processing elements. Then, the task can be larger and the computation will finish sooner. • In other words: Parallel processing promises increase of • performance and capacities but also • performance/cost ratio • reliability • programming productivity • etc. • Parallel program • gives rise to at least two simultaneous and cooperating tasks (processes, threads), usually running on different processing elements • the tasks cooperate: synchronization and/or data exchange based on interprocess communication/interaction (message passing, data sharing)

  5. 2000's Performance 1990's 1980's 1970's Price New impulses for parallel processing (1) • Today’s commodity processors are efficient and cheap • very large scale integration, massive production etc. • if coupled, they can surpass in raw power any uniprocessors (having a single processing element) saturation point Price/performance diagramon the computer market in the last decades Note the shift of the “saturation point”

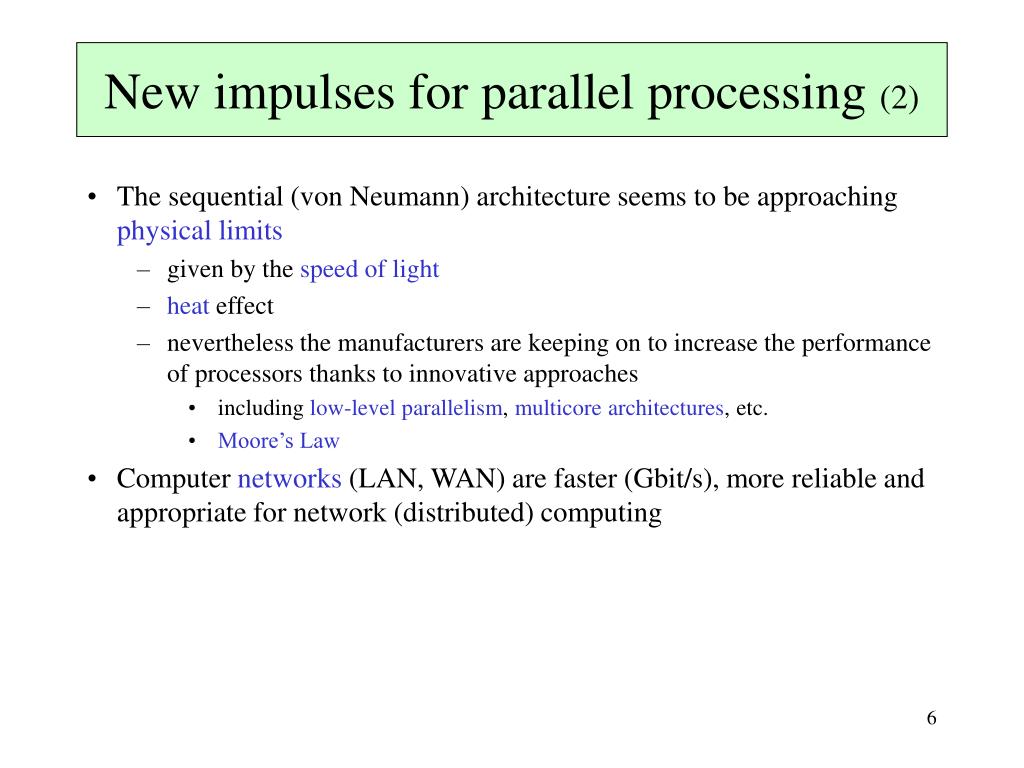

  6. New impulses for parallel processing (2) • The sequential (von Neumann) architecture seems to be approaching physical limits • given by the speed of light • heat effect • nevertheless the manufacturers are keeping on to increase the performance of processors thanks to innovative approaches • including low-level parallelism, multicore architectures, etc. • Moore’s Law • Computer networks (LAN, WAN) are faster (Gbit/s), more reliable and appropriate for network (distributed) computing

  7. New impulses for parallel processing (3) • New (commercial) applications drive the demand on computer power • data-intensive: videoconferencing, virtual reality, data mining, speech recognition, etc. • computing-intensive: scientific applications – numerical simulation of complex processes: manufacturing, chemistry, etc. • merging of data-intensive and computing-intensive applications • Grand Challenge problems, games and entertainment, etc. • On-going standardization eases the development and maintenance of parallel software

  8. Recent impulse: multi-core • 2005-2006: advent of multi-core chips in PC • greater transistor densities • more than one processing element (instruction execution engine) can be placed on a single chip • cheap, are replacing processors with a single processing element • End of the “free lunch” • software developers have enjoyed steadily improving performance for decades • programs that cannot exploit multi-core chips do not realize any performance improvements • in general the case of the existing software • most programmers do not know how to write parallel programs • era of programmers not caring about what is under the hood is over

  9. Other opportunities for concurrency • Supercomputers • no single-processor systems in TOP500 since 1997 • thousands of processing elements • High Performance Computing (HPC)  parallel computing • Clusters • popular since 1990s • relatively inexpensive • Server farms • collections of networked computers • provide remote services (web hosting, search engines, etc.) • Grids • collections of physically dispersed machines Parallel computing Distributed computing

  10. Parallel vs. distributed (1) • Both approaches make use of multiple concurrent activities • concurrent activities = logically simultaneous activities • not necessarily at the same exact instant • possible in single-processor environment (multitasking) • parallel activities = physically simultaneous activities • Parallel applications lay emphasis on temporal aspect of concurrency • work decomposed to ≥ 2 processors within a single (virt.) parallel computer • mostly data decomposition • employing several processes or threads • created by the same program • motivated by performance – short uptime • Distributed systems underline spatial aspect of concurrency • work decomposed to ≥ 2 processes usually not on the same computer • mostly functional decomposition • employing several processes (not threads) • created by separate programs • motivated by resource sharing, convenience (availability, reliability, physical distribution, etc.) – long uptime

  11. Parallel vs. distributed (2) [Hughes04] Parallel Distributed tightly coupled loosely coupled Another view: parallel = shared memory, distributed = private memory

  12. Parallel & distributed Service layers in P/D systems Application: parallel or distributed Applications, services Middleware: layer of sw which offers convenient programming model to application programmers (e.g. masks heterogeneity) Middleware Operating system Platform: lowest-level hw and sw layers providing fundamental services including communication and coordination between processes; e.g. Intel x86/Linux, PowerPC/AIX Computer and network hardware [Coulouris 2005]

  13. Middleware • Processes, objects, daemons in a set of computers that interact with each other to implement concurrency, communication and resource-sharing support, and infrastructural servicesfor P/D applications e.g. • point-to-point, collective communication • notification of events • remote method invocation • replication of shared objects • naming, security, persistent storage, ... • Examples • Sun RPC • Java RMI • CORBA • web services • DCOM • Globus • PVM • MPICH • MATLAB PCT/DCE

  14. Scientific- XXX- Computing Parallel- High-Performance- Super- Grid- Distributed- Concurrent-

  15. Levels of parallelism • Level of jobs • More processing units make it possible to simultaneously process several jobs, mutually independent • The throughput of the system is increased, the run time of jobs is not affected • Level of tasks/threads • Jobs are divided into cooperating processes/threads running in parallel • Opportunity to decrease the execution time • Level of machine instructions (next slide)

  16. Instruction level parallelism • The source of acceleration of processor chips • together with increasing clock speed • retarded by limitations of the memory technology • transparently available to sequential programs • hidden, implicit parallelism – preserves the illusion of sequential execution • seems to have reached the point of diminishing returns • Modern processors are highly parallel systems • Separate wires and caches for instruction and data • Pipelined execution: more instructions processed at once – each in another stage [next slide] • Superscalarexecution: more (arithmetic) instructions executed at once – on multiplied execution units [next slide] • Out-of-order execution, speculative execution, etc.

  17. Pipelined execution [Amarasinghe]

  18. Superscalar execution [Amarasinghe]

  19. Further study • Books with unifying optics for both parallel and distributed processing: • [Andrews 2000] Foundations of Multithreaded, Parallel, and Distributed Programming • [Hughes 2004] Parallel And Distributed Programming Using C++ • [Dowd 1998] High Performance Computing deals with many contexts of HPC, not only parallelism

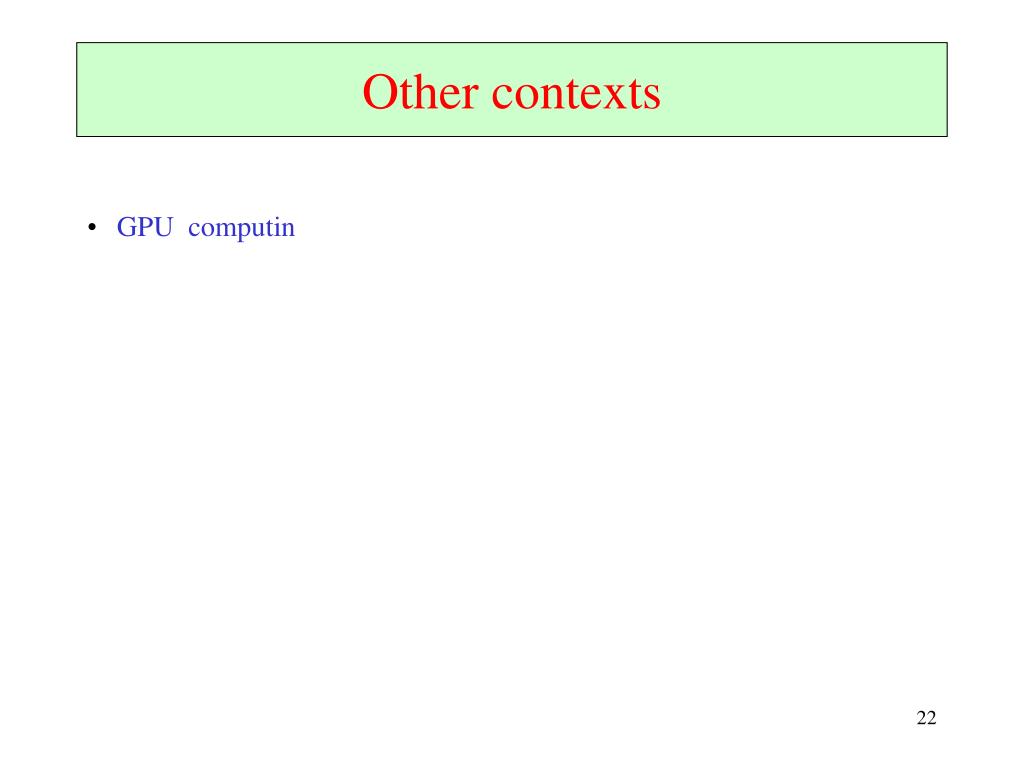

  20. Other contexts • GPU computin
