RF Coil Design Optimization in Cervical Carotid Imaging

benito avatar
benito
26 diapositives · 484 Views · Sep 22, 2014

RF Coil Design Optimization in Cervical Carotid Imaging. Rock Hadley MIRL Symposium Sundance September 13, 2002. Go Take A Hike!. Available Carotid Coils. 4-channel commercial Neurovascular volume coil. home-built bilateral 4-element carotid Phased-array coil.

#rf coil design optimization in cervical carotid imaging #rf coil design optimization in cervical carotid imaging ppt #powerpoint #presentation
RF Coil Design Optimization in Cervical Carotid Imaging - slide 1
01 / 26RF Coil Design Optimization in Cervical Carotid Imaging
1 / 17

Télécharger la présentation

RF Coil Design Optimization in Cervical Carotid Imaging
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

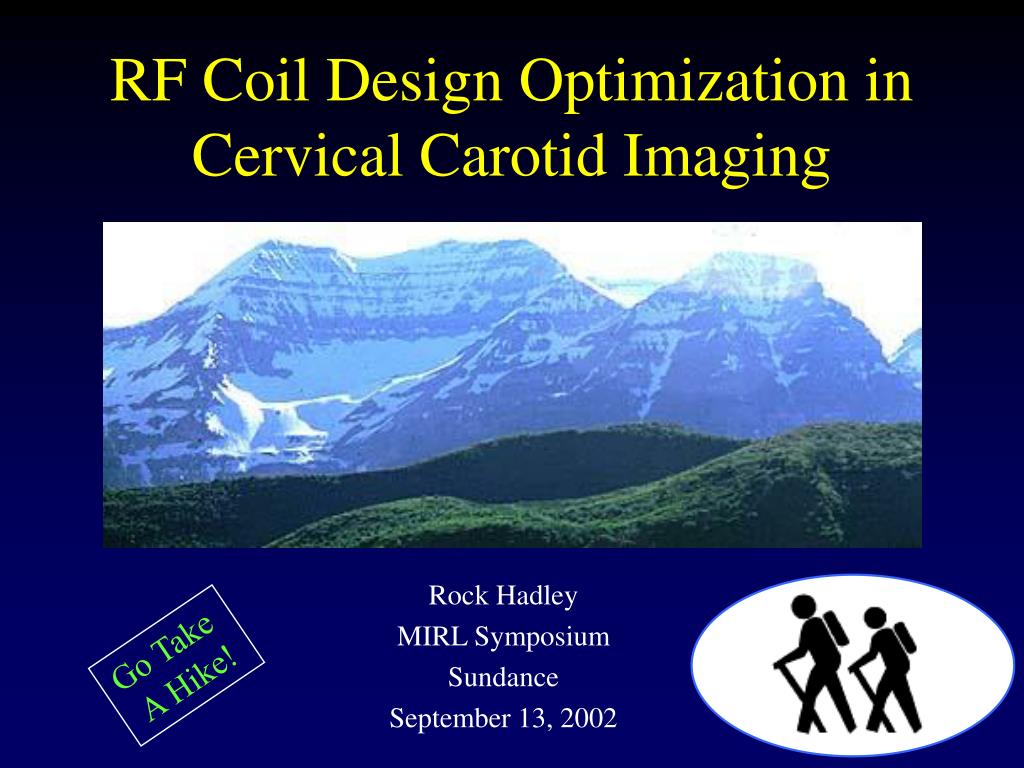

  1. RF Coil Design Optimization in Cervical Carotid Imaging Rock Hadley MIRL Symposium Sundance September 13, 2002 Go Take A Hike!

  2. Available Carotid Coils 4-channel commercial Neurovascular volume coil home-built bilateral 4-element carotid Phased-array coil

  3. bilateral 4-element carotid PA coil 300% SNR improvement over anterior neck coil commercial anterior neck coil Dedicated Carotid Coils

  4. carotid bifurcation circle of Willis relative SNR aortic arch image slice number Coil Comparisons

  5. Magnetic Field of a Circular Loop cross-sectional contour plots coil axis coil signal shadow magnitude (all field components) axial-component (signal component)

  6. Coil Design Issues 12 11 45cm vessel length 25cm vessel length 10 5cm vessel length 1cm vessel length 9 8 7 optimized coil radius (cm) 6 5 4 3 2 1 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 vessel depth (cm) long vessels opt coil radius = vessel depth very short vessels opt coil diameter = vessel depth

  7. Simulation Model s = 0, er = 1 (air) coil x surface coil axis depth vessel aortic arch bifurcation circle of Willis s = 0.3, er = 73 (muscle) figure of merit = average SNR along entire vessel (weighting of specific vessel points optional)

  8. Simulation Model

  9. Example Simulation • 24 cm vessel length • - 6 cm depth at aortic arch • - 3 cm depth at carotid bifurcation • - 9 cm depth at circle of Willis • Results:

  10. Coil 1 Coil 2 Coil 3 Coil 4 Coil 5 0 flat surface bifurcation 2 4 circle of Willis 6 aortic arch vessel depth (cm) 8 simulated vessel structure 10 12 14 0 5 10 15 20 25 vessel position (cm)

  11. Simulation Results

  12. Conclusions • This simulation tool provides a method for the study of optimum coil arrays for various carotid artery anatomy • Number of channels needed for optimal carotid imaging is about 16 – 20 channels

  13. Minimize magnetic and electric coupling between coils to determine proper coil overlap Adapt to non-planer surfaces to more closely match the anatomy of the shoulders, head, and neck Future Work

  14. Coil Properties magnetic field of a circular loop (cross-sectional contour plots) coil axis coil signal shadow magnitude (all field components) axial-component (signal component)

  15. Simulation Results optcoil.results.24fov.639realvessel 1 0.95 0.9 0.85 0.8 max SNR 0.75 0.7 0.65 0.6 0.55 1 2 3 4 5 6 7 8 9 10 # of coils

  16. RF Coil Design Optimization in Cervical Carotid Imaging Rock Hadley MIRL Symposium Sundance September 13, 2002 Go Take A Hike!

  17. Coil Options for Carotid Imaging commercial neurovascular volume coil home-built bilateral 4-element carotid Phased-array coil

  18. Methods: Neurovascular Coil

  19. C2 C2 C3 C3 C2 C2 C1 C2 C1 C2 L L D1 Gap on back side of copper substrate l /4 triax balun cables Coil layout Dual PA Coil (Hayes et al. Magn Reson Med 18:309-319, 1991)

  20. Methods: Ladder Coil Set UP coil 3 / 5 slabs coil 2 / 3 slabs coil 1 / 4 slabs

  21. Torso PA Inverted Dual PA Chest Dual PA Carotid PA Head Dual PA + GE standard head coil (GE Head) + Commercial Neurovascular PA coils (NVPA)

  22. Develop a coil for MRA screening from the aortic arch to the top of the head Use dedicated coil elements for each section of specific anatomy Ability to use the same coil for high-resolution imaging of suspect regions Purpose
