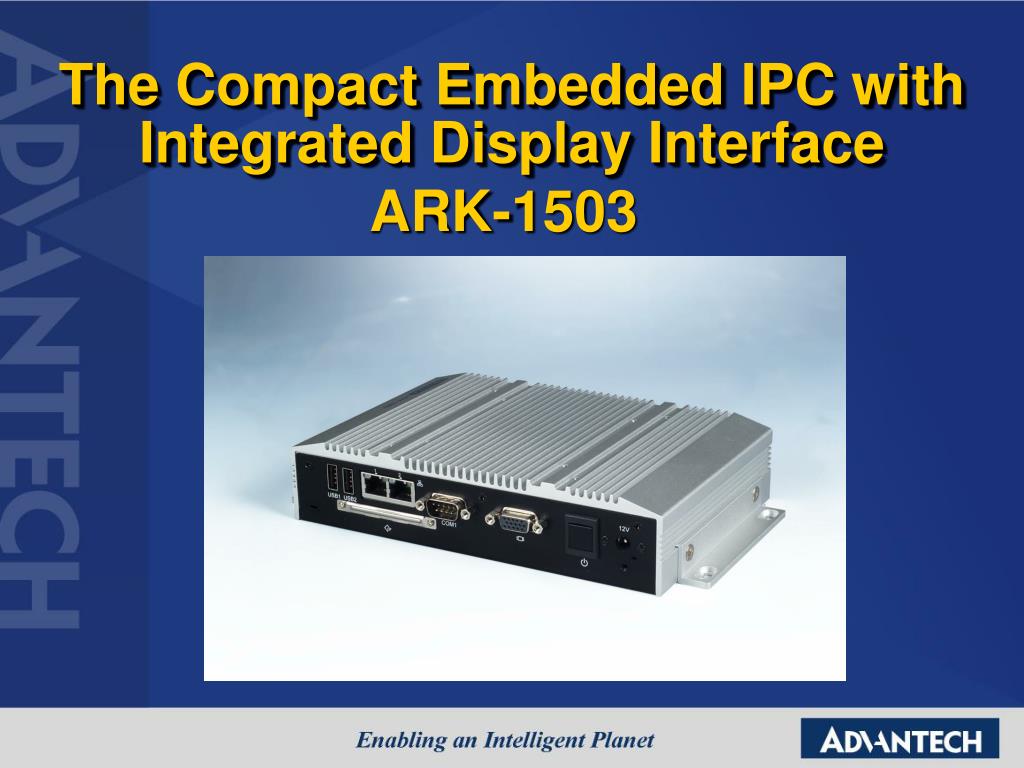

  1. The Compact Embedded IPC with Integrated Display Interface ARK-1503

  2. Intel®ATOM D425/D525 High Value Compact Automation Control Box with Integrated Display Interface • Fanless, Intel® ATOM D425/D525 1.8 GHz Compact Embedded Box IPC • Integrated display interface – I-Panel Link & golden finger inter face for ITM-5115. The interface includes LVDS and touch signals for touch panel. • Easy integration, easy maintenance • MiniPCIe expansion for communication module, i.e. HSDPA, WLAN • Supports up to 2 x GbE, 4 x USB 2.0 and 2 x COMs ports, 8-bit DIO and Line-out • Support 1 x CF socket and 1 x 2.5” SATA HDD (9.5mm height)

  3. ARK-1503 : Product Detail Spec.

  4. ARK-1503 Product Spec.

  5. ARK-1503 Front I/O

  6. ARK-1503 Rear I/O ARK-1503F ARK-1503P

  7. CPU Performance Comparison *SiSoft Sandra 2008 *Intel Atom D525 1.8GHz CPU performance is higher than Atom N270 1.6GHz for 55.6% on ALU and 21.3% on FPU * Intel Atom D525 1.8GHz CPU performance is higher Atom D510 1.66GHz for 6.8% on ALU and 7.8% on FPU

  8. Graphic Performance *3DMARK2003

  9. Selling Point of ARK-1503 (1/3) • Integrated display interface • ARK-1503F : I-Panel Link • Connector type: 36pin SCSI connector • Signal type: 24-bit LVDS, USB, Tx/Rx for touch screen, 12V DC power for panel • Compatible Panel: ITM-5115R-LA1E

  10. Selling Point of ARK-1503 (2/3) • Integrated display interface • ARK-1503F : Golden Finger Display Interface • Connector type: 164pin golden finger • Signal type: 24-bit LVDS, USB, Tx/Rx, for touch screen, 12V DC power for panel, SMBus, Audio, UART, HDMI/Display port • Compatible Panel: ITM-5115R-PA1E

  11. Selling Point of ARK-1503 (3/3) • Fanless embedded system with Intel D525/D425 CPU • Intel Atom D525 1.8GHz CPU performance is higher than Atom N270 1.6GHz for 55.6% on ALU and 21.3% on FPU • Excellent chassis design to dissipate the heat of D525 CPU and support -20~60 ℃ • Compact size with sufficient IO function • The height of ARK-1503 is only 44.4mm • ARK-1503 can support Compact Flash and 2.5” SATA HDD (9.5mm) • Support up to 2 x COM, 4 x USB, 2 x Giga-LAN, DIO, Line-out, LVDS • MiniPCIe expansion for wireless module • easily install with wireless modules in the system • WLAN (802.11b/g/n) – P/N: AMO-WIFI01E

  12. Power adapter locker for ARK-1503 models • ARK-1503 series already add power adapter locker in accessory box. It can be used with the 1757003553 adapter to avoid power connector fall off.

  13. Target Markets Kiosk Easy to integrate with touch panel and easy for installing Multi USBs Support WLAN Embedded Control System Serial ports (RS-232/422/485 w/ auto flow control) 2GLAN 8bit DIO Factory/Machine Control System Easy to integrate with touch panel and easy for installing 2GLAN Multi serial ports (RS-232/422/485 w/ auto flow control)

  14. Application in the Multi COMs Outdoor Rent-A-Bike Kiosk ATM Self-service Checking Counter Touch Screen I-Panel Link Golden Finger Display Interface VGA USB COM USB Card reader Display Key Pad Thermal Printer

  15. Application Scenario – Machine Automation Server Touch Screen Alarm I-Panel Link Golden Finger Display Interface DIO LAN ARK-1503 Machine Serial Ports

  16. Application Scenario – Factory Automation I-Panel Link Golden Finger Display Interface Server Touch Screen Mobile System RFID Reader LAN WIFI Barcode Reader USB Serial Ports ARK-1503

  17. Optional Kits

  18. Optional Kits
