Embedded Wireless Textile Display

This project presents a prototype of a flexible textile display integrated into a jacket. It wirelessly receives text data from a nearby computer, which is then displayed on an LED matrix through a series of 8-bit shift registers. The project involved comprehensive hardware and software design, including Arduino coding and wireless communication implementation. Challenges faced included timing issues and the complexity of soldering components. Future directions aim for improved screen efficiency and washability. This innovative technology holds potential applications in fields such as healthcare, military, and aerospace.

shalin
Télécharger la présentation

Embedded Wireless Textile Display

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Raymond Welch Forrest Holub Sean Brooks Advisor: Dr. Gayatri Mehta Embedded Wireless Textile Display

  2. The Team • Raymond Welch • Display code and testing, poster, progress presentation, final report and presentation • Forrest Holub • Proposal, research, parts ordering, progress report, wireless implementation, construction • Sean Brooks • Proposal, research, progress report, shopping runs, construction

  3. Abstract • This project is a prototype flexible display attached to a jacket that receives text wirelessly from a nearby computer and outputs it to an LED display matrix by multiplexing the text data through a series of 8-bit shift registers.

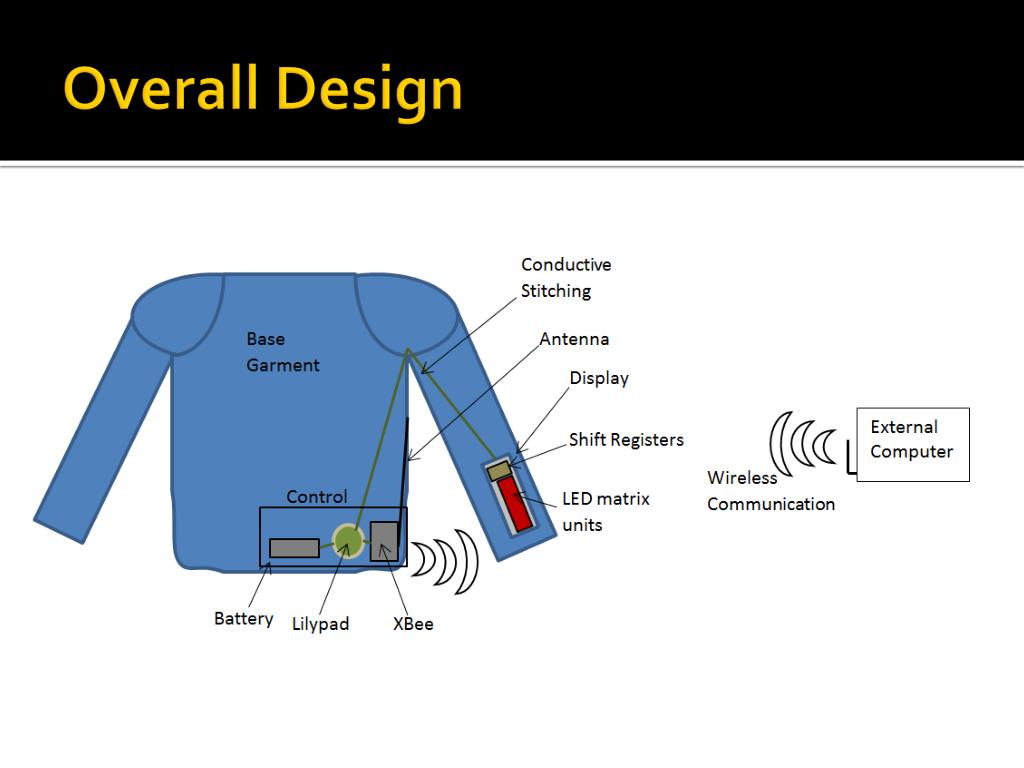

  4. Overall Design

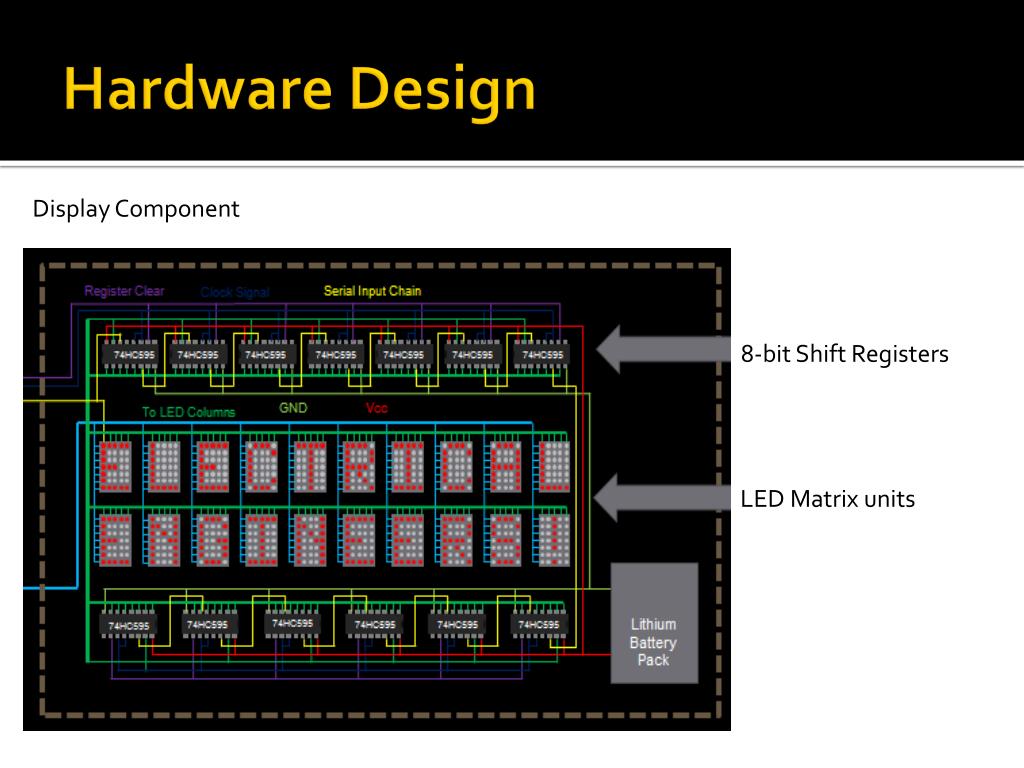

  5. Hardware Design Display Component 8-bit Shift Registers LED Matrix units

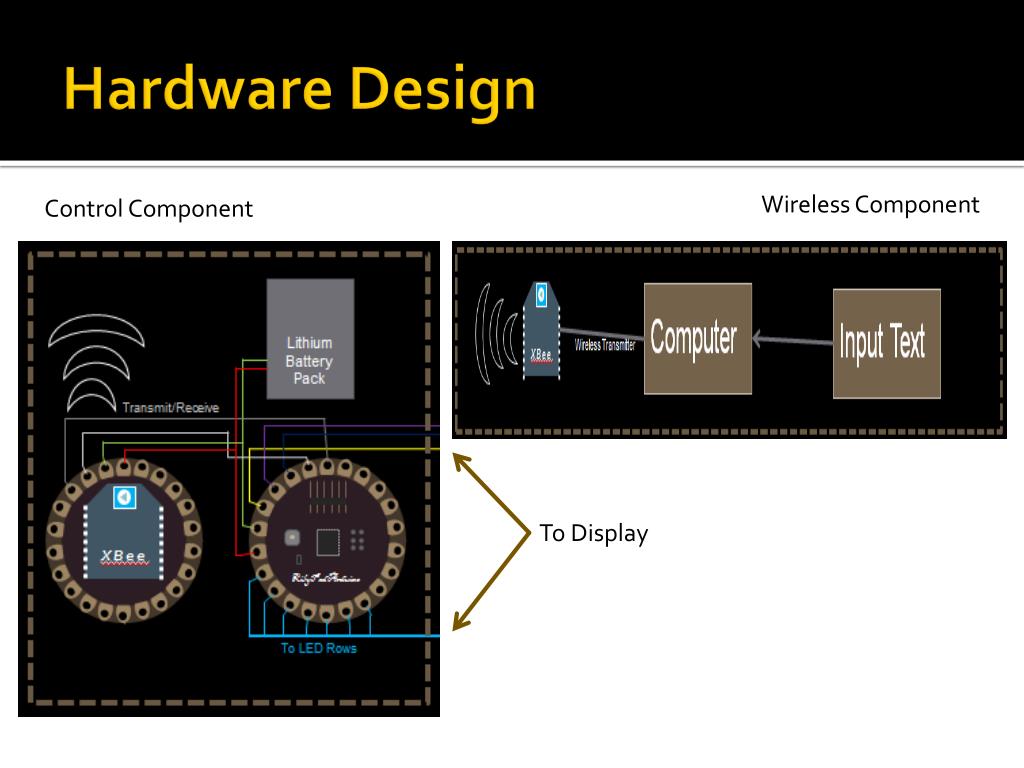

  6. Hardware Design Wireless Component Control Component To Display

  7. Software Design • Arduino Code • 3 functions • Get Input from Xbee • Trim to display width • Convert input to display pixels • Look up characters in table • Refresh display • Controls clock signals and row updates • Synchronized

  8. Timing Diagram

  9. Time Frame • Construction took longer and got started later than anticipated • Ended up ordering parts later because of broken components

  10. Construction • Attached LED units to jacket sleeve • Soldered shift registers to PCB • Sewed bus lines from display to control with conductive thread • Attached Lilypad and Xbee with thread • Connected PCB and LED units • Attached batteries

  11. Testing • Single LED unit and single shift register • Added more units and registers • Changed from hardcoded input to dynamic strings • Added wireless capability • Polished timing issues and finalized wiring • Tested connectivity and voltage on jacket

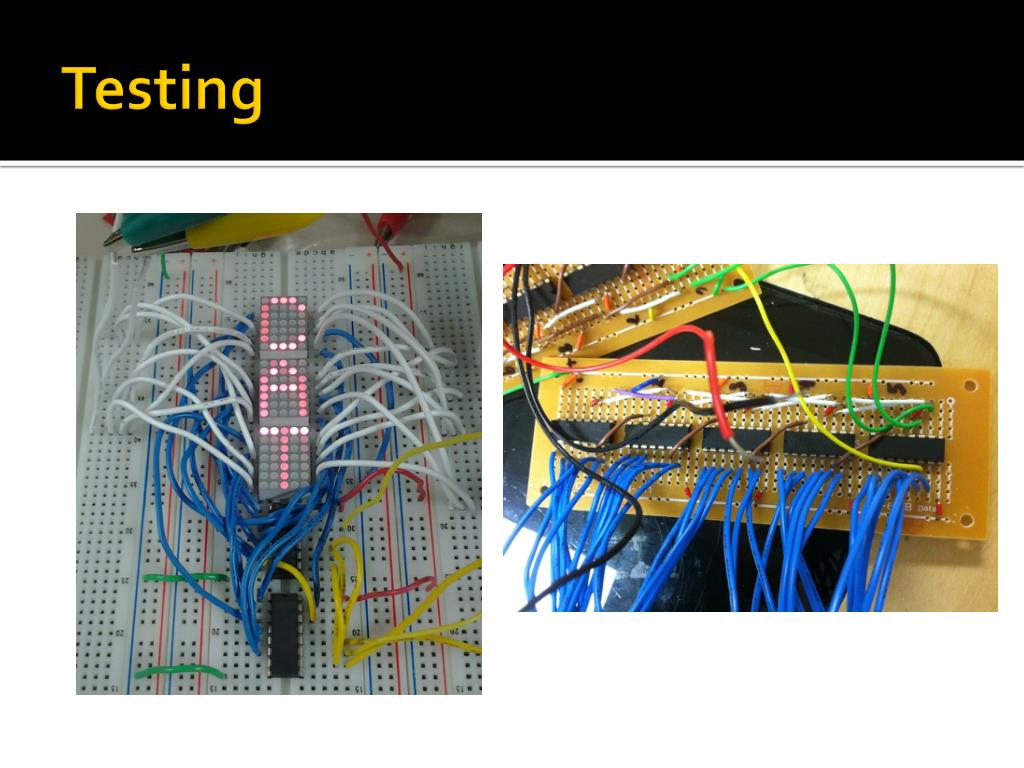

  12. Testing

  13. Results • Working display • Working wireless • Ran out of time embedding on jacket

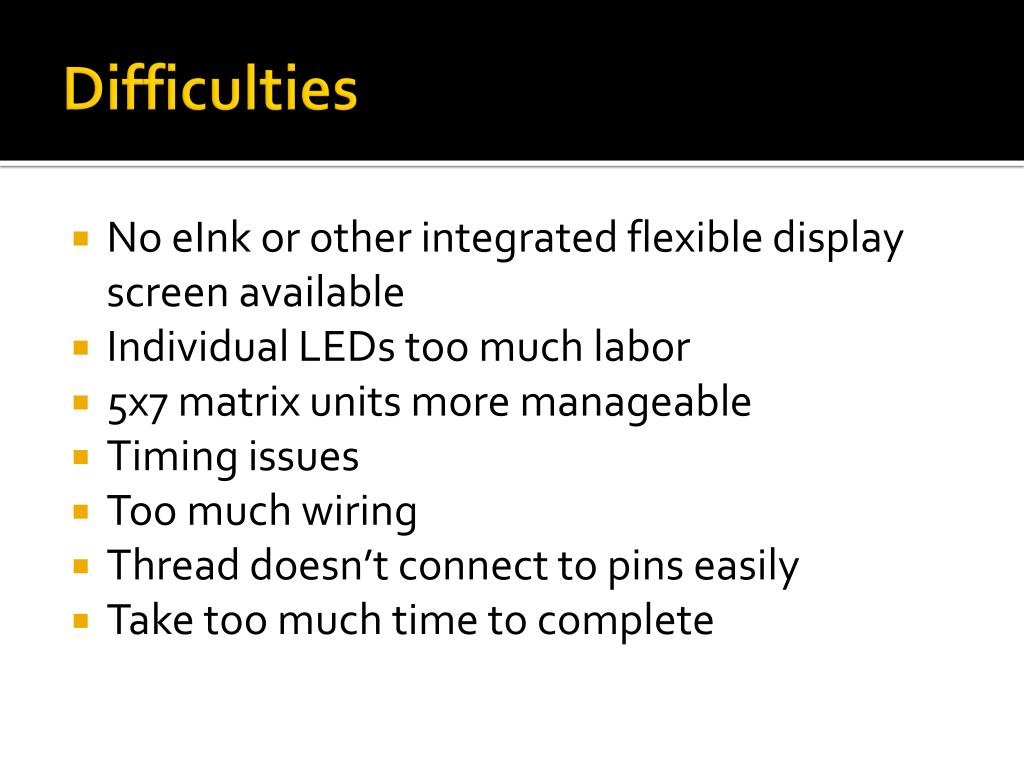

  14. Difficulties • No eInkor other integrated flexible display screen available • Individual LEDs too much labor • 5x7 matrix units more manageable • Timing issues • Too much wiring • Thread doesn’t connect to pins easily • Take too much time to complete

  15. The Future • This project • Detatchable components for washability • More efficient screen • Better wireless • Applications • Doctors • Soldiers • Astronauts

  16. Engineering Standards • We used the IEEE 802.15.4 standard which specifies the media access control for low-rate wireless personal area networks (LR-WPANs) using the XBee Series 1 transceiver.

  17. Ethical Issues • User safety • Sharp edges • Exposed wires/thread • Possible heat dissipation • Waterproofing

  18. Acknowledgements We would like to thank: • AtluriSri Harsha • Dr. GayatriMehta • Alex Lin • Dr. MuraliVaranasi • KaushaniDasgupta • UNT Department of Electrical Engineering
