Plate Tectonics

Plate Tectonics. Earth back then…. Earth Now. Pangea. World used to be a “super continent’ PANGEA. Proof of Pangea. Fossil Evidence – only a few places in the world Fossils – Remains of skeletons preserved in rock seen in multiple continents; walk or swim?. Proof of Pangea.

bian
Télécharger la présentation

Plate Tectonics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

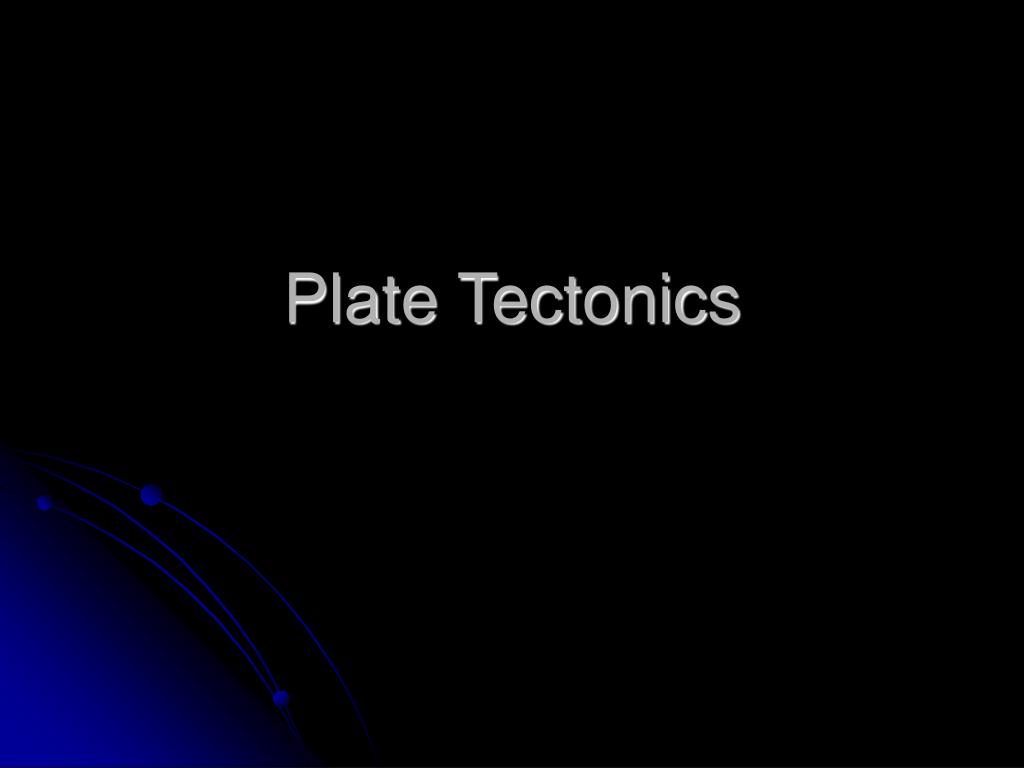

  1. Plate Tectonics

  2. Earth back then….

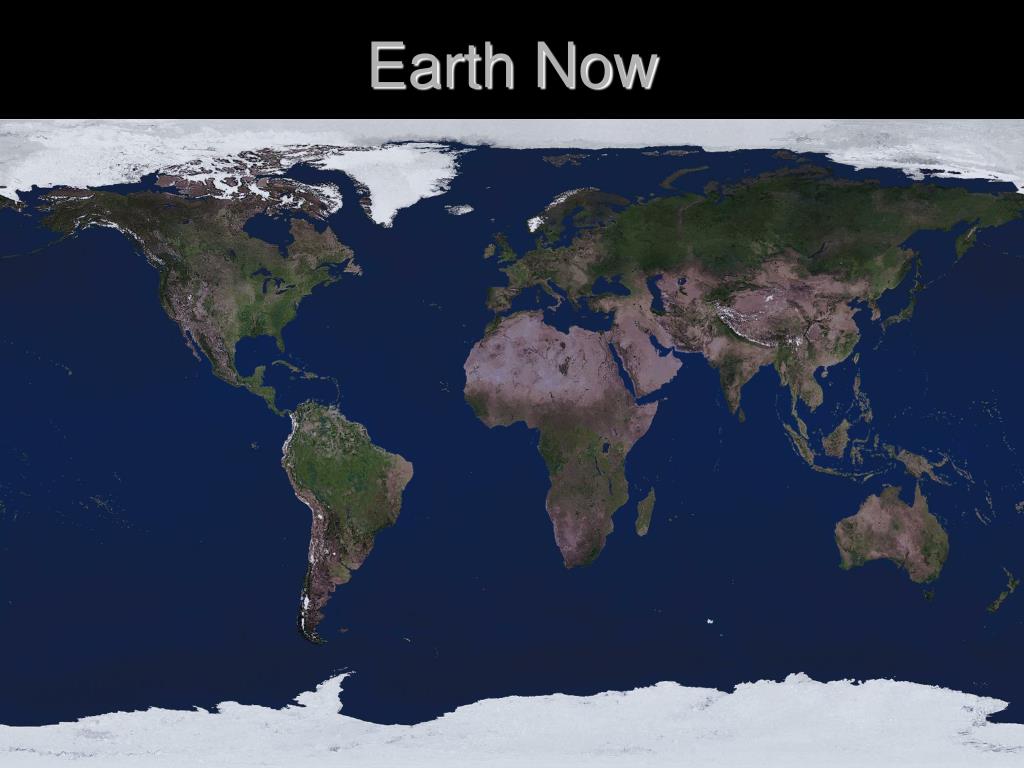

  3. Earth Now

  4. Pangea • World used to be a “super continent’ • PANGEA

  5. Proof of Pangea • Fossil Evidence – only a few places in the world • Fossils – Remains of skeletons preserved in rock seen in multiple continents; walk or swim?

  6. Proof of Pangea • Glacier Evidence (from ice age) • Large valleys, scratches on rocks seen in multiple places

  7. Proof of Pangea • Glacier Evidence – scratches on rocks

  8. Proof of Pangea • Glacier Evidence – scratches in warm places…. Any better explanation?

  9. How did we get to now?

  10. Theory of Continental Drift • Alfred Wegner • Earths plates floated • Drifted apart over millions of years

  11. Recall the layers…. Upper mantle + crust = ???? Lithosphere • Asthenosphere • - Fluid layer

  12. Theory of Plate Tectonics • Land masses existed as plates that MOVE

  13. Theory of Plate Tectonics • How movement occurs • Convection currents • Heating • Some places hotter than others • Different materials heat differently • Difference causes pushing

  14. Thoery of Plate Tectonics • Plate boundaries & their interactions

  15. Evidence for Plate Tectonics • Pieces of earth move & some will collide • Earthquakes & volcanoes provide evidence • Earthquakes & volcanic eruptions occur at plate boundaries

  16. What happens when the plates move?

  17. Plate boundaries & interactions • 3 possibilities exist • Divergent Plate Boundaries • Convergent plate boundaries • Transform plate boundaries

  18. Plate boundaries & interactions • Divergent Plates • Plates move apart • Rising magma pushes crust • Old rock pushed farther away • New rock at spreading - Ridge (ocean) / Rift (land)

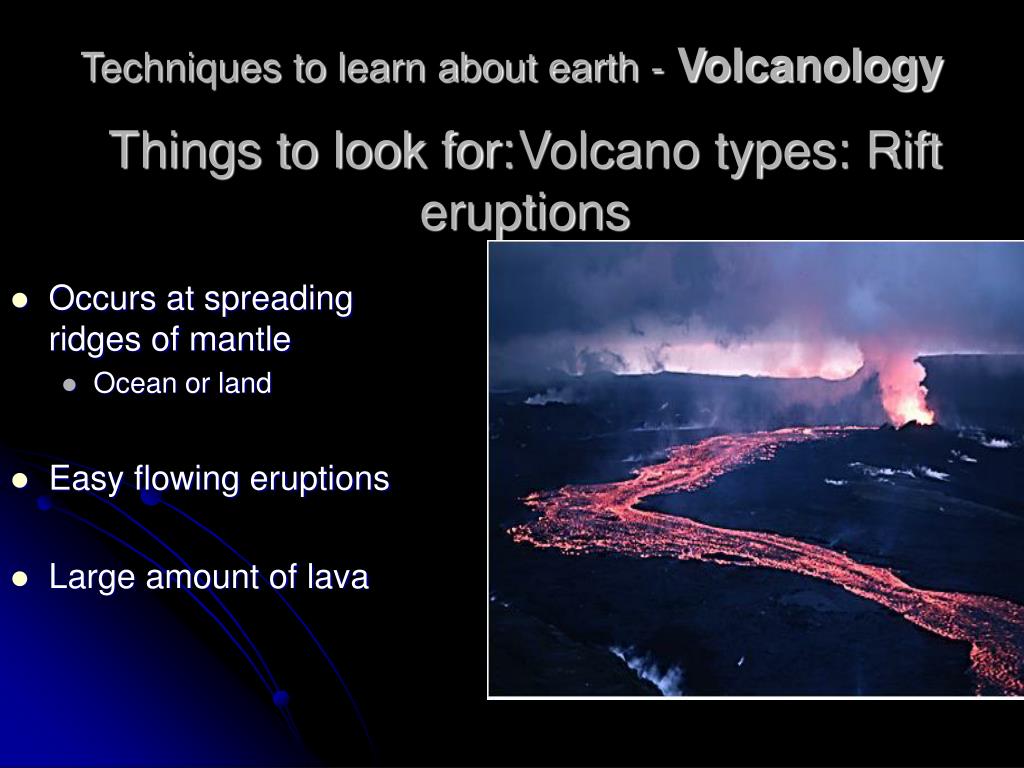

  19. Techniques to learn about earth -Volcanology Things to look for: Volcano types: Rift eruptions • Occurs at spreading ridges of mantle • Ocean or land • Easy flowing eruptions • Large amount of lava

  20. http://www.seed.slb.com/en/scictr/watch/living_planet/mountains.htmhttp://www.seed.slb.com/en/scictr/watch/living_planet/mountains.htm

  21. Plate boundaries & interactions • 3 types of collisions: • Oceanic – continental • Oceanic – oceanic • Continental – continental • Convergent Plates • Plates move closer together • 2 types of rock • Oceanic - under water • Continental - above water • Possible combinations???

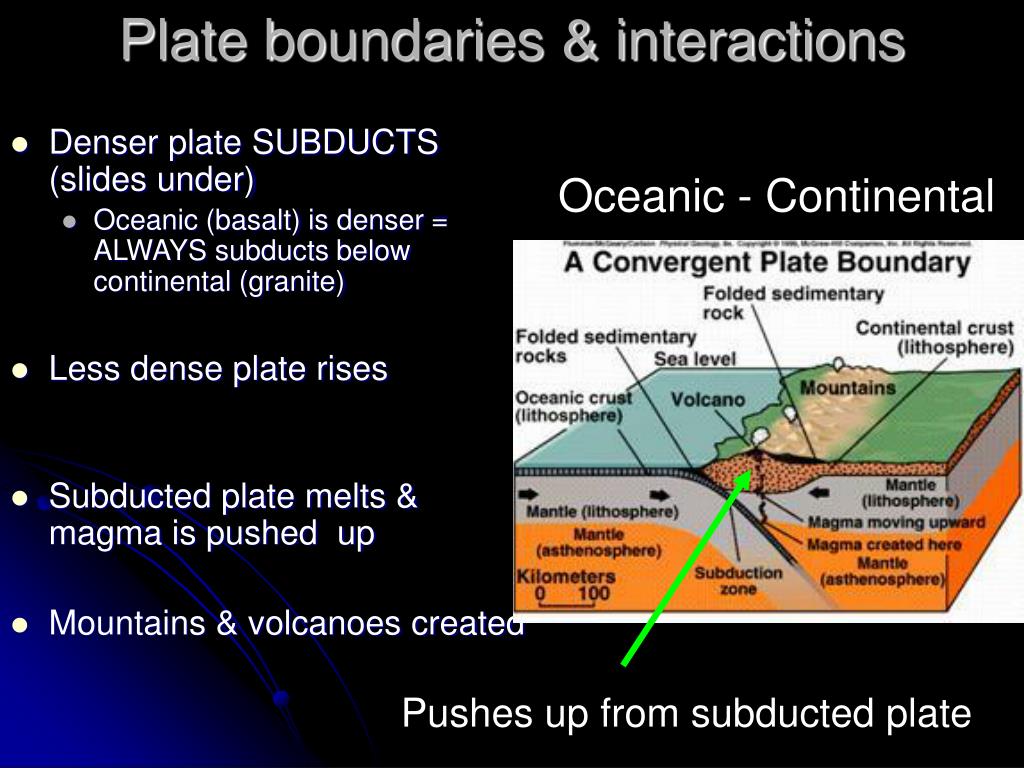

  22. Plate boundaries & interactions Oceanic - Continental • Denser plate SUBDUCTS (slides under) • Oceanic (basalt) is denser = ALWAYS subducts below continental (granite) • Less dense plate rises • Subducted plate melts & magma is pushed up • Mountains & volcanoes created Pushes up from subducted plate

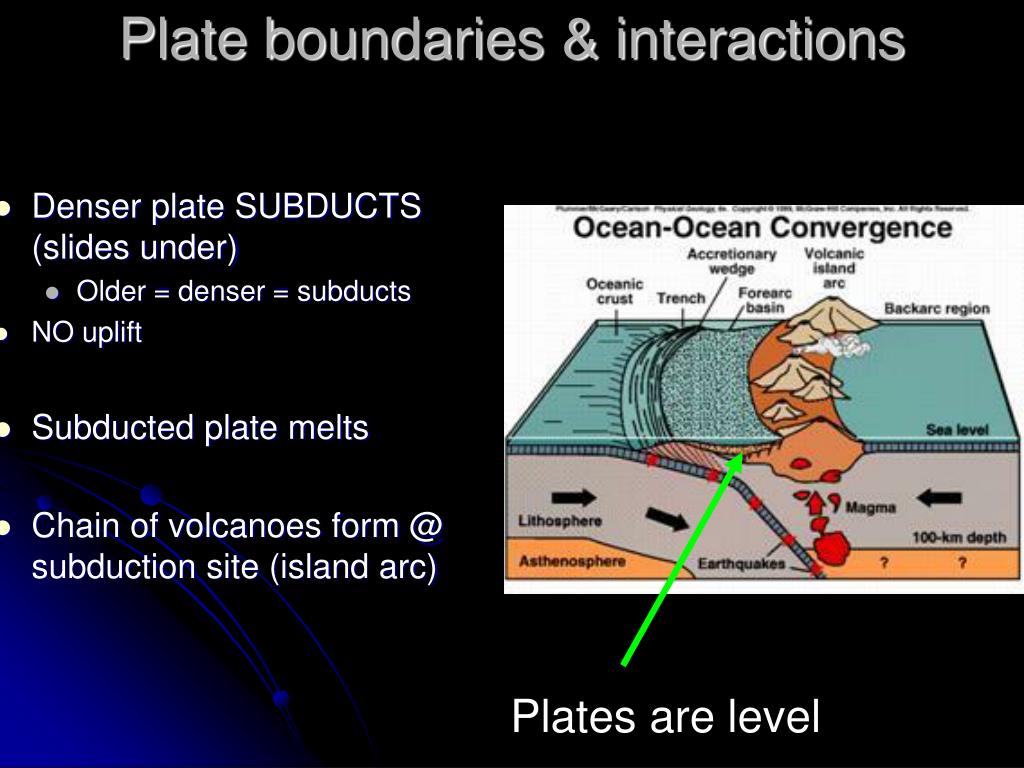

  23. Plate boundaries & interactions • Denser plate SUBDUCTS (slides under) • Older = denser = subducts • NO uplift • Subducted plate melts • Chain of volcanoes form @ subduction site (island arc) Plates are level

  24. Plate boundaries & interactions Continental - Continental • NO subduction because of similar density • Crushing & crumbling of rocks • Mountain formation

  25. Plate boundaries & interactions • Transform plate boundaries • Sliding past each other • NO new land forms • Produce earthquakes
