1. Is the Ratio of Development and Recapitulation Length to Exposition Length in Mozart’s and Haydn’s Work  Equal to the Golden Ratio?  Ananda Jayawardhana

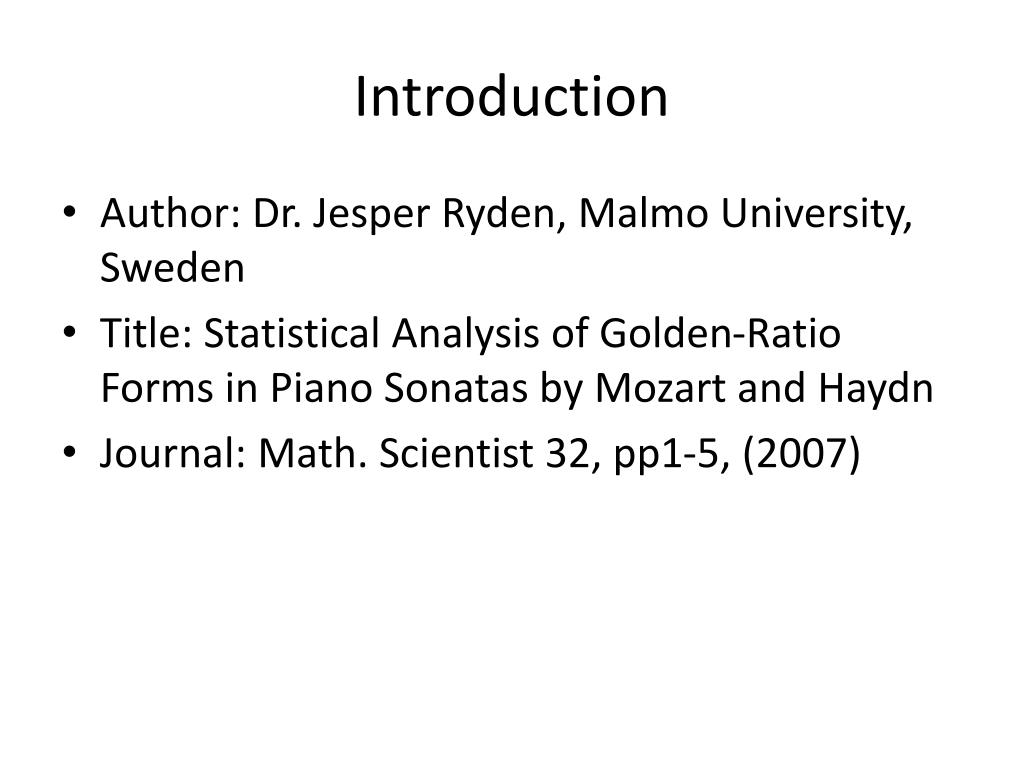

2. Introduction • Author: Dr. Jesper Ryden, Malmo University, Sweden • Title: Statistical Analysis of Golden-Ratio Forms in Piano Sonatas by Mozart and Haydn • Journal: Math. Scientist 32, pp1-5, (2007)

3. Abstract • The golden ratio is occasionally referred to when describing issues of form in various arts. • Among musicians, Mozart (1756-1791) is often considered as a master of form. • Introducing a regression model, the author carryout a statistical analysis of possible golden ratio forms in the musical works of Mozart. • He also include the master composer Haydn (1732-1809) in his study.

4. Part I Probability and Statistics Related Work

5. Fibonacci (1170-1250) Numbers and the Golden Ratio

6. Golden Ratiohttp://en.wikipedia.org/wiki/Golden_ratio

7. Construction of the Golden Ratiohttp://en.wikipedia.org/wiki/Golden_ratio

9. Fibonacci Numbers and the Golden Ratio1, 1, 2, 3, 5, 8, 13,………….. http://en.wikipedia.org/wiki/Golden_ratio

10. The Mona Lisahttp://www.geocities.com/jyce3/leo.htm

11. Example from Probability and Statistics • Consider the experiment of tossing a fair coin till you get two successive Heads • Sample Space={HH, THH, TTHH,HTHH,TTTHH, HTTHH, THTHH, TTTTHH, HTTTHH, THTTHH, TTHTHH, HTHTHH, …} • Number of Tosses: 2, 3, 4, 5, 6, 7, … • # of Possible orderings: 1, 1, 2, 3, 5, 8, … • Number of possible orderings follows Fibonacci numbers.

12. Probability density function: where or or

13. Proof

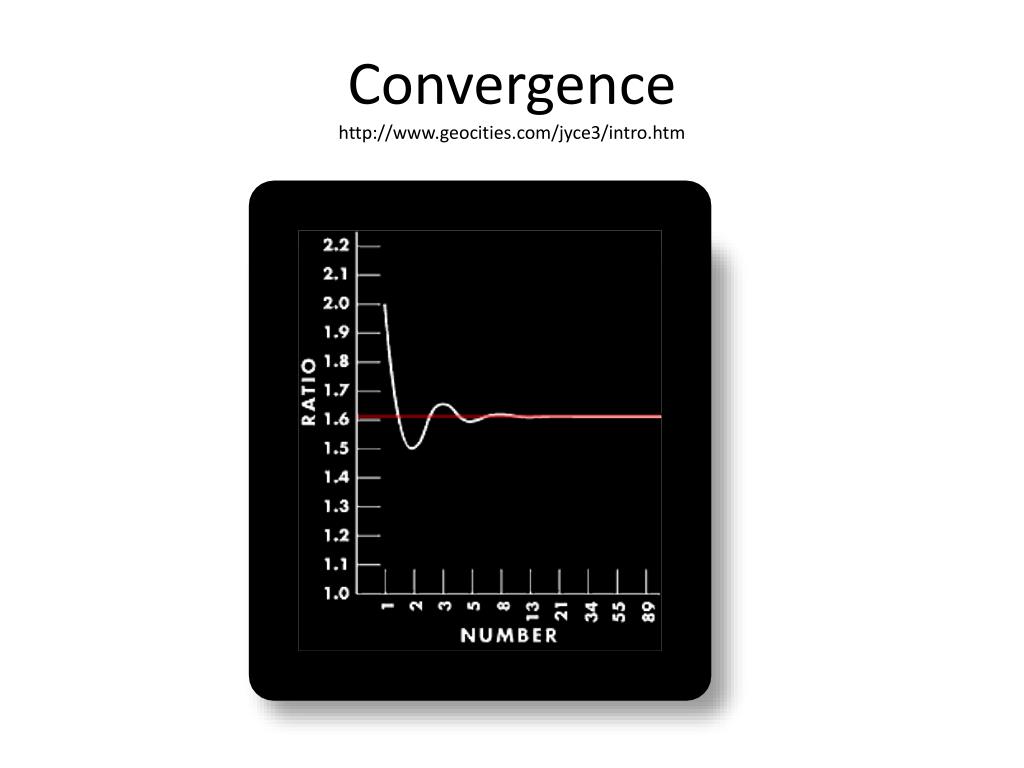

14. Convergencehttp://www.geocities.com/jyce3/intro.htm

15. Origins • The Fibonacci numbers first appeared, under the name mātrāmeru (mountain of cadence), in the work of the Sanskrit grammarianPingala (Chandah-shāstra, the Art of Prosody, 450 or 200 BC). Prosody was important in ancient Indian ritual because of an emphasis on the purity of utterance. The Indian mathematicianVirahanka (6th century AD) showed how the Fibonacci sequence arose in the analysis of metres with long and short syllables. Subsequently, the Jain philosopher Hemachandra (c.1150) composed a well-known text on these. A commentary on Virahanka's work by Gopāla in the 12th century also revisits the problem in some detail. • http://en.wikipedia.org/wiki/Fibonacci_number

16. Part II Applied Statistics Application of Linear Regression

17. Wolfgang Amadeus Mozart (1756-1791)http://w3.rz-berlin.mpg.de/cmp/mozart.html

18. Franz Joseph Haydn (1732-1809)http://www.classicalarchives.com/haydn.html

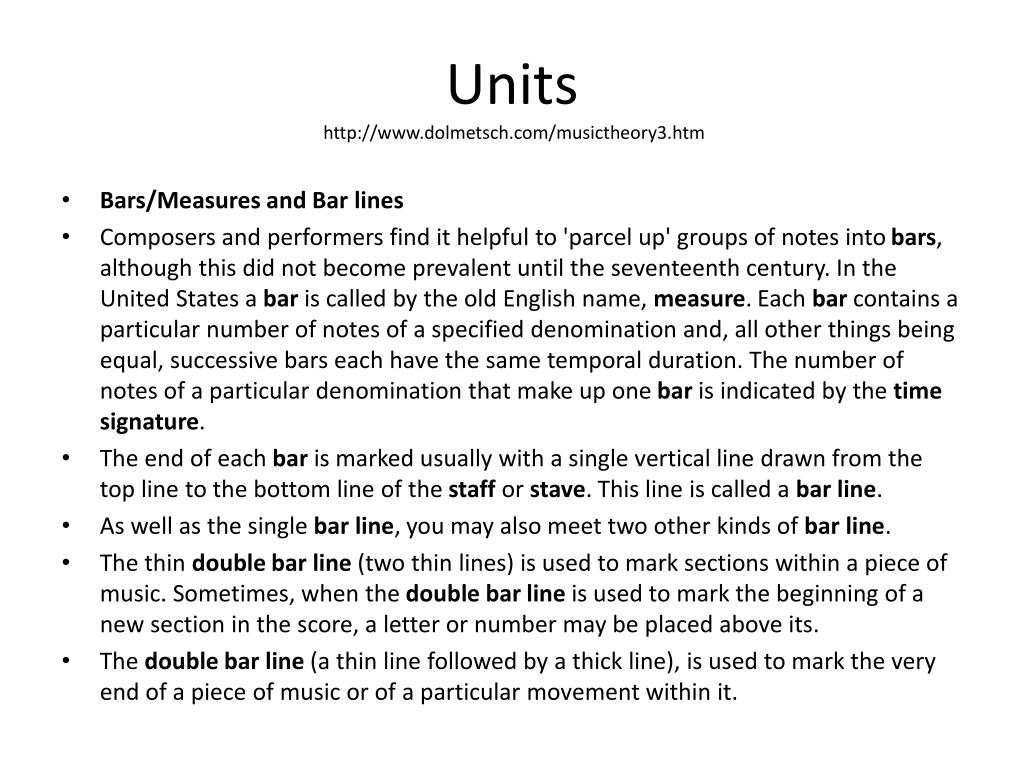

19. Units http://www.dolmetsch.com/musictheory3.htm • Bars/Measures and Bar lines • Composers and performers find it helpful to 'parcel up' groups of notes into bars, although this did not become prevalent until the seventeenth century. In the United States a bar is called by the old English name, measure. Each bar contains a particular number of notes of a specified denomination and, all other things being equal, successive bars each have the same temporal duration. The number of notes of a particular denomination that make up one bar is indicated by the time signature. • The end of each bar is marked usually with a single vertical line drawn from the top line to the bottom line of the staff or stave. This line is called a bar line. • As well as the single bar line, you may also meet two other kinds of bar line. • The thin double bar line (two thin lines) is used to mark sections within a piece of music. Sometimes, when the double bar line is used to mark the beginning of a new section in the score, a letter or number may be placed above its. • The double bar line (a thin line followed by a thick line), is used to mark the very end of a piece of music or of a particular movement within it.

20. Bar Lines

21. Scatterplot of the Data

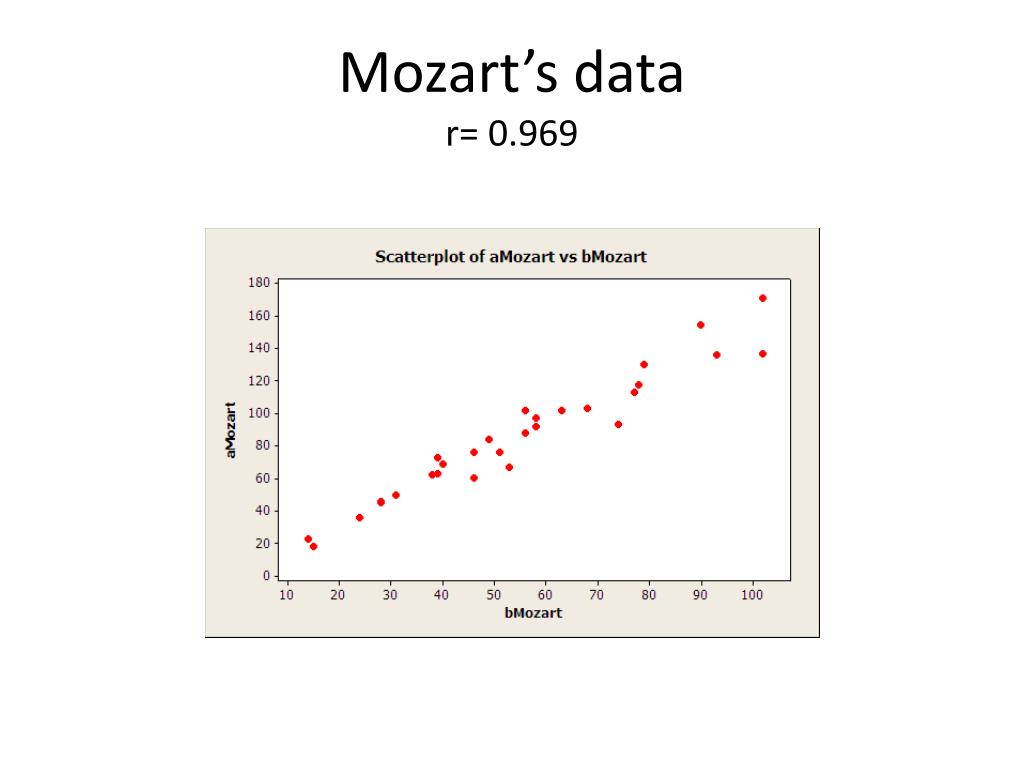

22. Mozart’s datar= 0.969

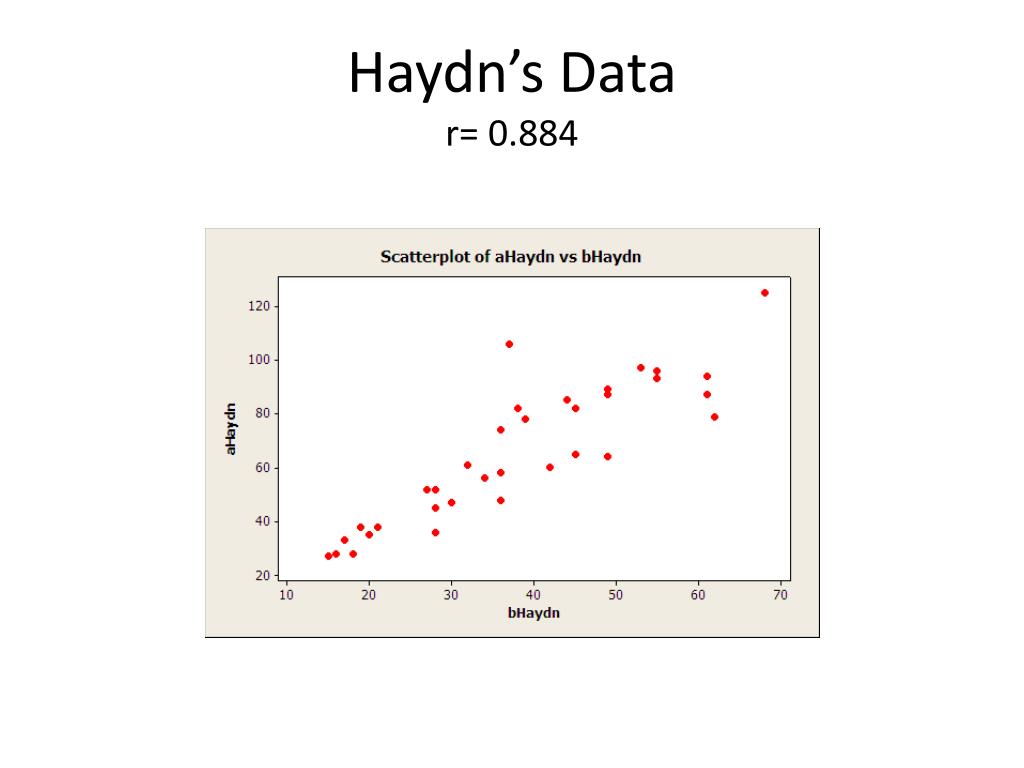

23. Haydn’s Datar= 0.884

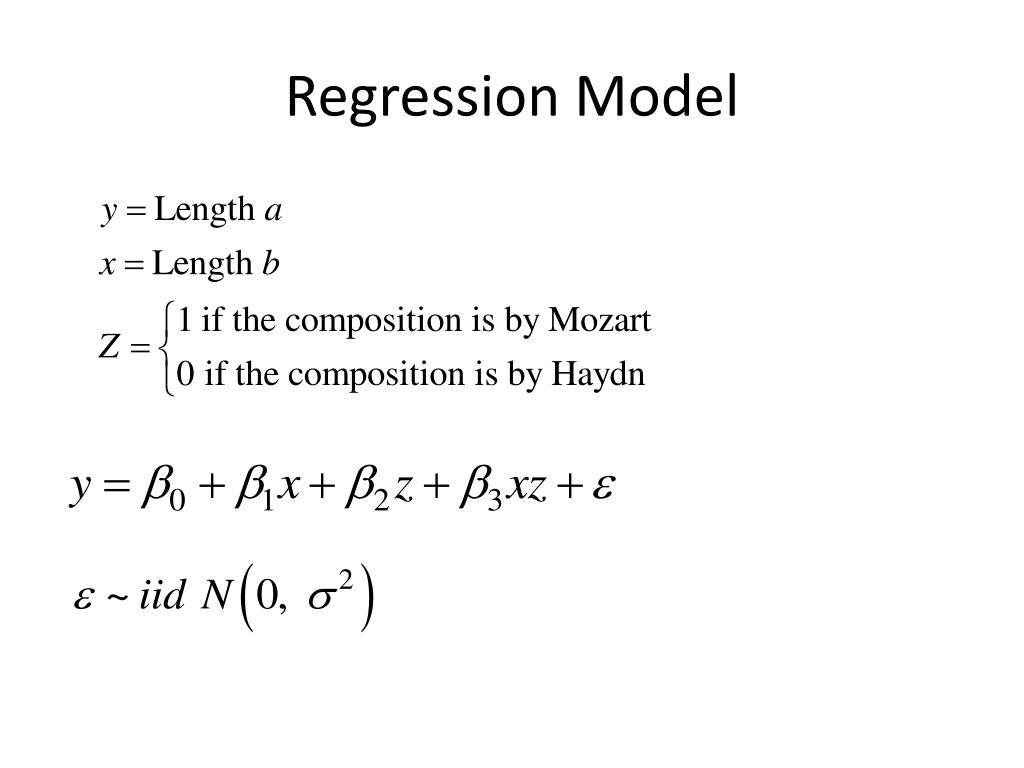

24. Regression Model

25. Interaction Model The regression equation is y = 7.27 + 1.53 x - 4.04 z - 0.032 xz Predictor Coef SE Coef T P Constant 7.271 5.194 1.40 0.167 x 1.5310 0.1285 11.91 0.000 z -4.036 7.275 -0.55 0.581 xz -0.0319 0.1540 -0.21 0.837 S = 10.9993 R-Sq = 89.5% R-Sq(adj) = 88.9% Analysis of Variance Source DF SS MS F P Regression 3 61706 20569 170.01 0.000 Residual Error 60 7259 121 Total 63 68965

26. Model with the Indicator Variable Z The regression equation is y = 8.11 + 1.51 x - 5.41 z Predictor Coef SE Coef T P Constant 8.109 3.230 2.51 0.015 x 1.50884 0.07024 21.48 0.000 z -5.406 2.996 -1.80 0.076 S = 10.9126 R-Sq = 89.5% R-Sq(adj) = 89.1% Analysis of Variance Source DF SS MS F P Regression 2 61701 30851 259.06 0.000 Residual Error 61 7264 119 Total 63 68965

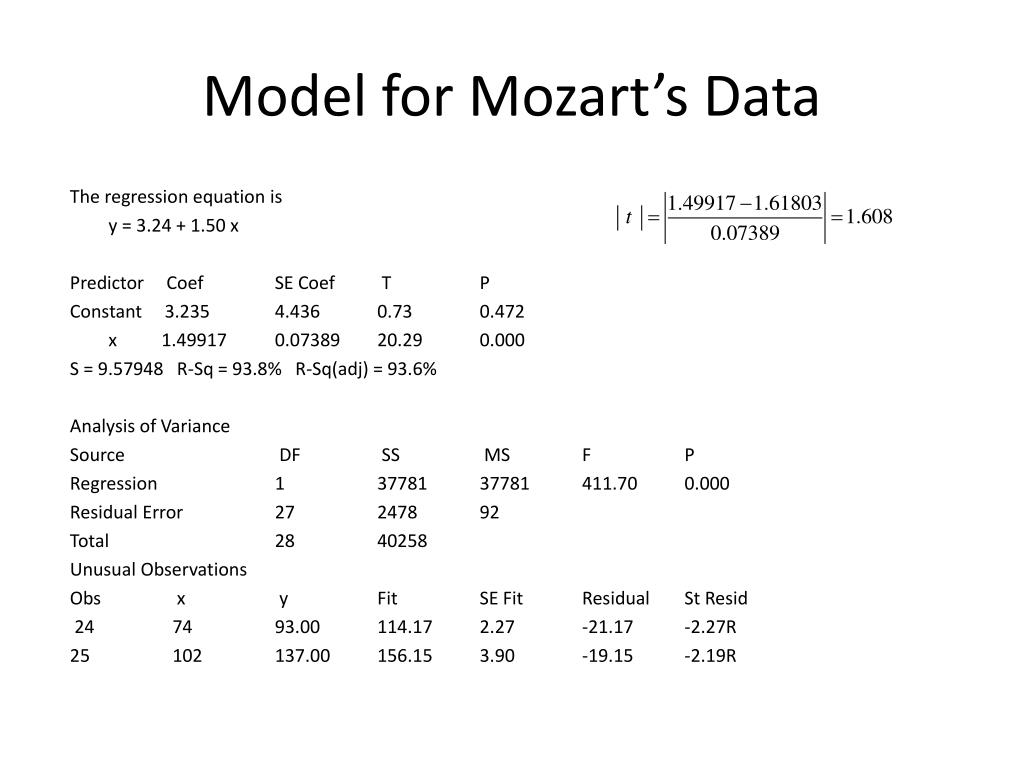

27. Model for Mozart’s Data The regression equation is y = 3.24 + 1.50 x Predictor Coef SE Coef T P Constant 3.235 4.436 0.73 0.472 x 1.49917 0.07389 20.29 0.000 S = 9.57948 R-Sq = 93.8% R-Sq(adj) = 93.6% Analysis of Variance Source DF SS MS F P Regression 1 37781 37781 411.70 0.000 Residual Error 27 2478 92 Total 28 40258 Unusual Observations Obs x y Fit SE Fit Residual St Resid 24 74 93.00 114.17 2.27 -21.17 -2.27R 25 102 137.00 156.15 3.90 -19.15 -2.19R

28. Normal Probability Plot of the Residuals of Mozart’s Data

29. Residuals Vs Fitted ValuesMozart’s Data

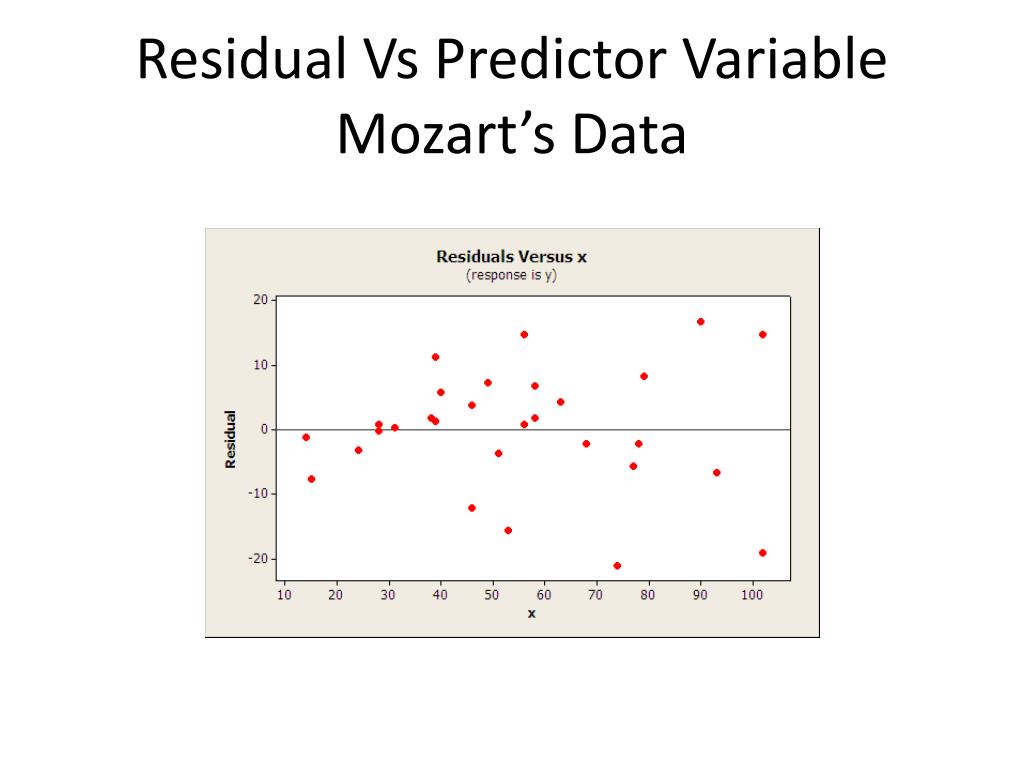

30. Residual Vs Predictor VariableMozart’s Data

31. Histogram of the ResidualsMozart’s Data

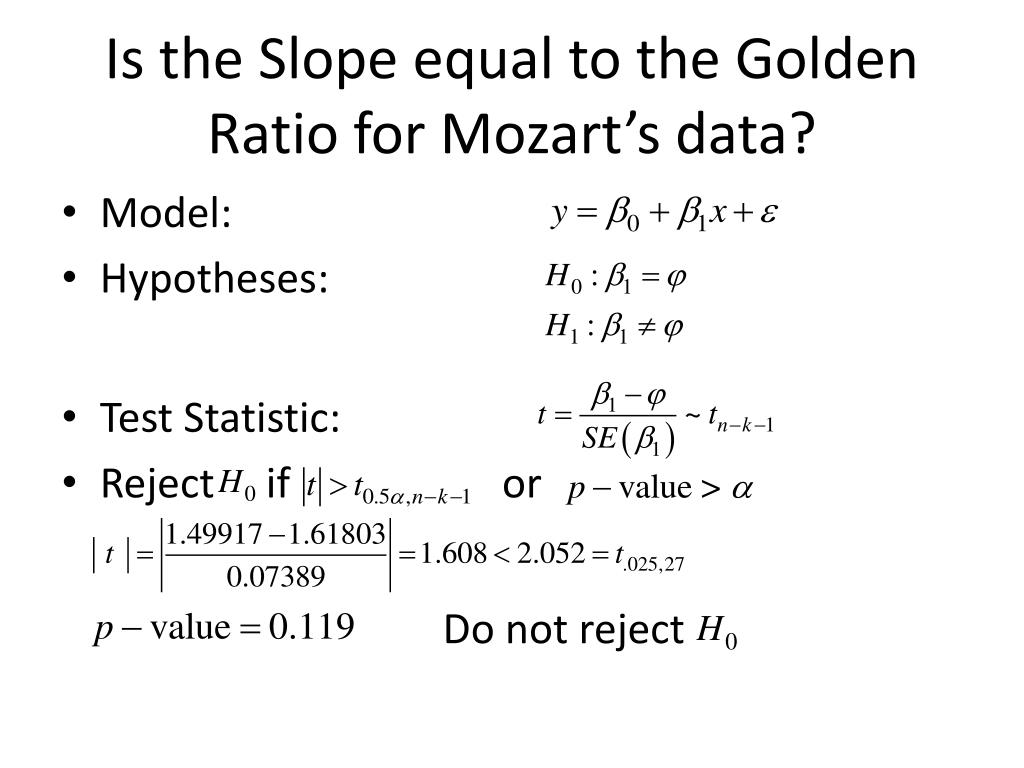

32. Is the Slope equal to the Golden Ratio for Mozart’s data? • Model: • Hypotheses: • Test Statistic: • Reject if or Do not reject

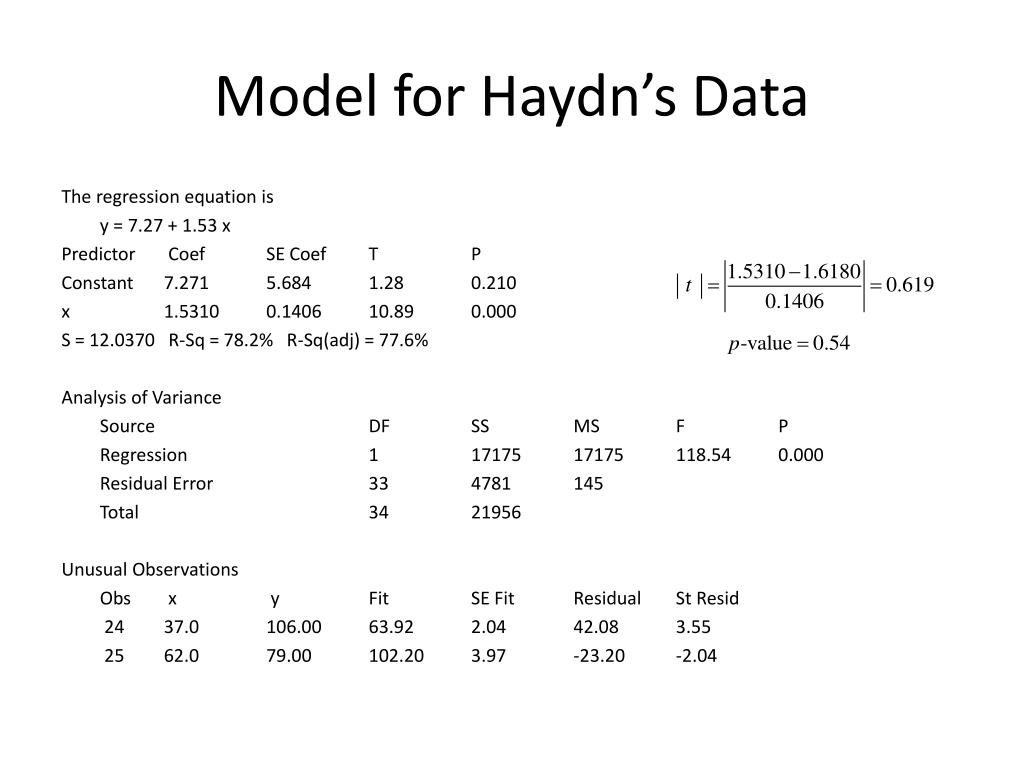

33. Model for Haydn’s Data The regression equation is y = 7.27 + 1.53 x Predictor Coef SE Coef T P Constant 7.271 5.684 1.28 0.210 x 1.5310 0.1406 10.89 0.000 S = 12.0370 R-Sq = 78.2% R-Sq(adj) = 77.6% Analysis of Variance Source DF SS MS F P Regression 1 17175 17175 118.54 0.000 Residual Error 33 4781 145 Total 34 21956 Unusual Observations Obs x y Fit SE Fit Residual St Resid 24 37.0 106.00 63.92 2.04 42.08 3.55 25 62.0 79.00 102.20 3.97 -23.20 -2.04

34. Normal Probability Plot for the Residuals of Haydn’s Data

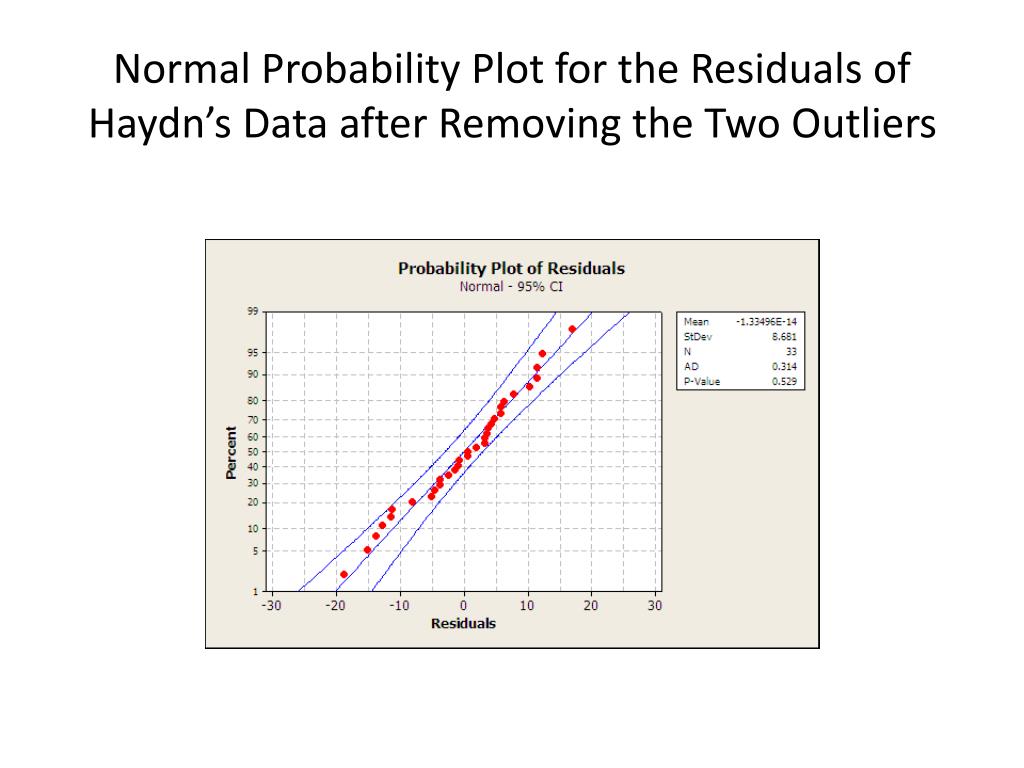

35. Normal Probability Plot for the Residuals of Haydn’s Data after Removing the Two Outliers

36. New Regression Model for Haydn’s Data y = 3.50 + 1.62 x Predictor Coef SE Coef T P Constant 3.501 4.270 0.82 0.419 x 1.6174 0.1076 15.03 0.000 S = 8.82003 R-Sq = 87.9% R-Sq(adj) = 87.5% Analysis of Variance Source DF SS MS F P Regression 1 17582 17582 226.01 0.000 Residual Error 31 2412 78 Total 32 19994

37. Conclusion • The ratio of development and recapitulation length to exposition length in Mozart’s work  is statistically equal to the Golden Ratio. • The ratio of development and recapitulation length to exposition length in Haydn’s work is statistically equal to the Golden Ratio.

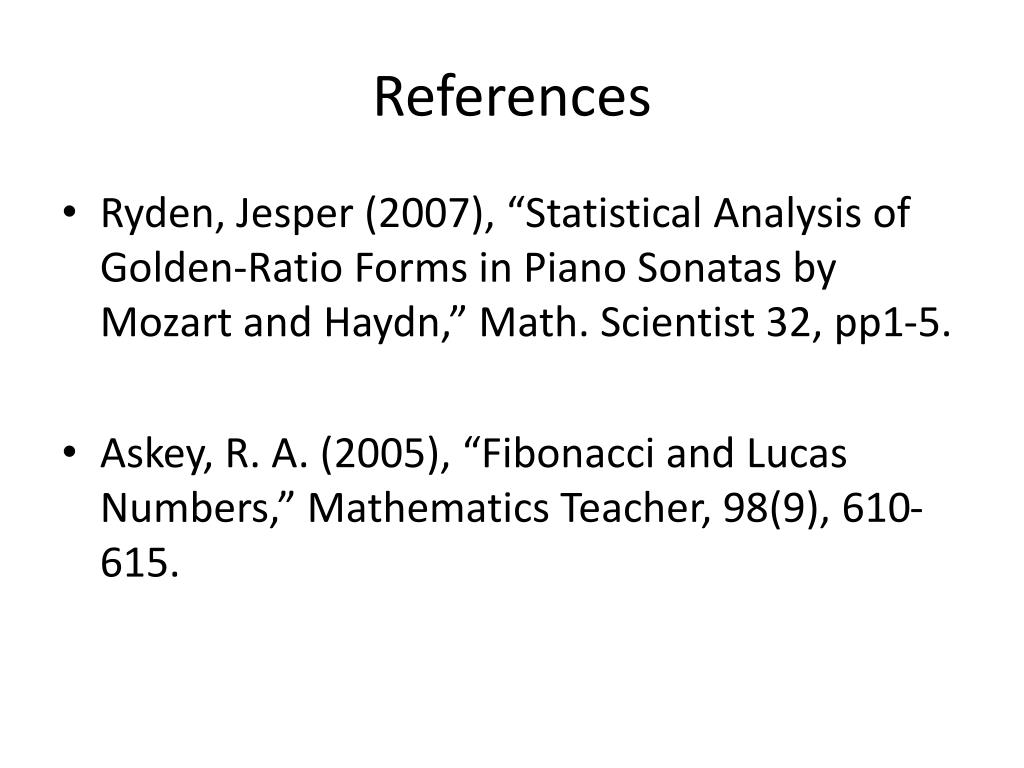

38. References • Ryden, Jesper (2007), “Statistical Analysis of Golden-Ratio Forms in Piano Sonatas by Mozart and Haydn,” Math. Scientist 32, pp1-5. • Askey, R. A. (2005), “Fibonacci and Lucas Numbers,” Mathematics Teacher, 98(9), 610-615.

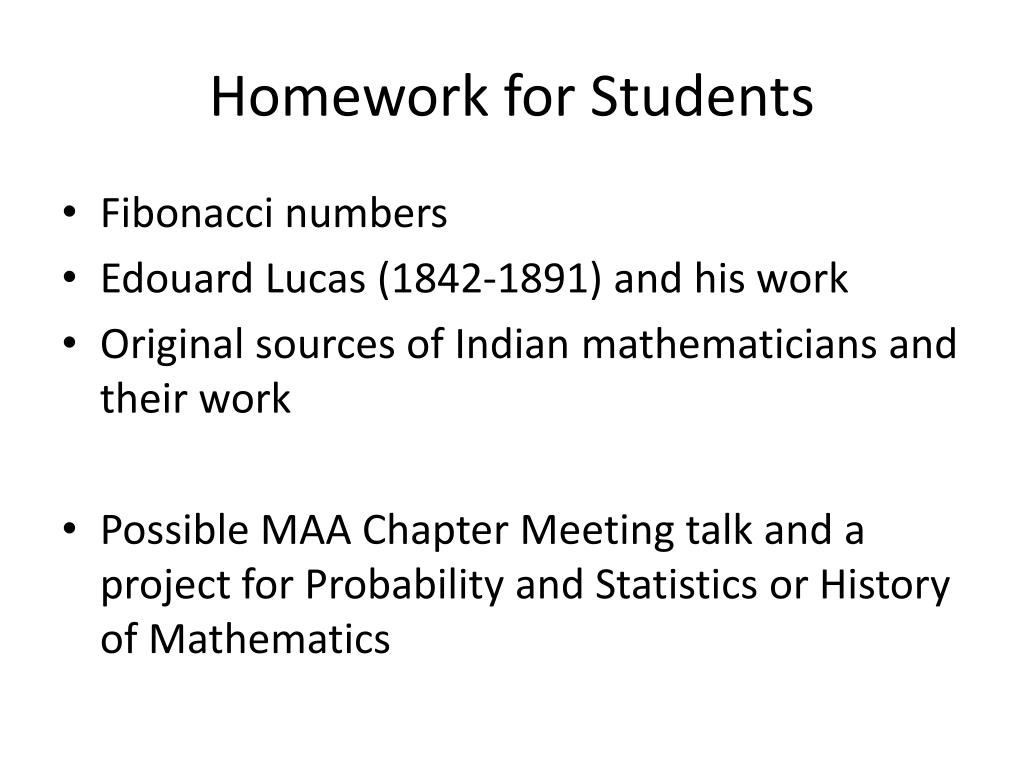

39. Homework for Students • Fibonacci numbers • Edouard Lucas (1842-1891) and his work • Original sources of Indian mathematicians and their work • Possible MAA Chapter Meeting talk and a project for Probability and Statistics or History of Mathematics
