Cylinder Head Modification for Valve and Manifold Optimization

This project involves welding dowel holes to adjust the cylinder head position over the bores, along with installing new dowel holes. We are removing seat rings to accommodate larger valves and executing a half-cut on the manifold for better offset alignment. This modification simplifies the porting process, ensuring optimal flow. The final assembly includes welding the manifold back together, ensuring the bolt holes and chambers are adjusted accordingly. For further information, please call 845-473-1136 or email info1@dambest.com.

blair-benson
Télécharger la présentation

Cylinder Head Modification for Valve and Manifold Optimization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

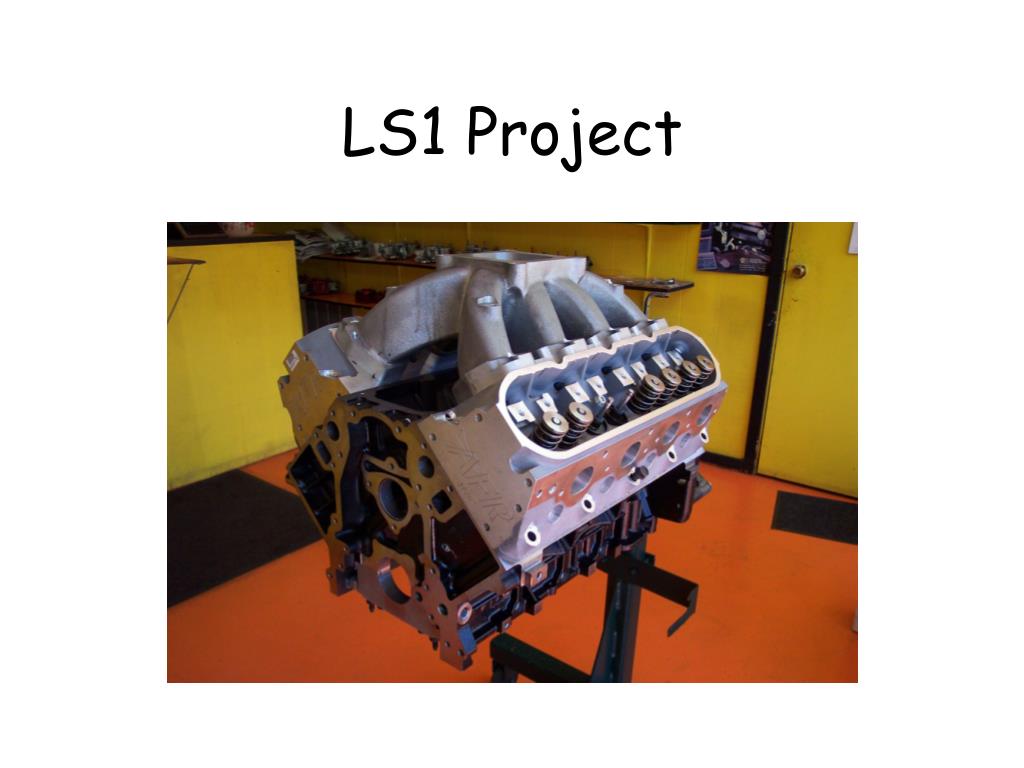

  1. LS1 Project

  2. Weld in dowel holes to move head over bores

  3. Index and install new dowel hole.

  4. Remove seat rings for larger valves

  5. Port cylinder head

  6. Cut manifold in half for offset of heads

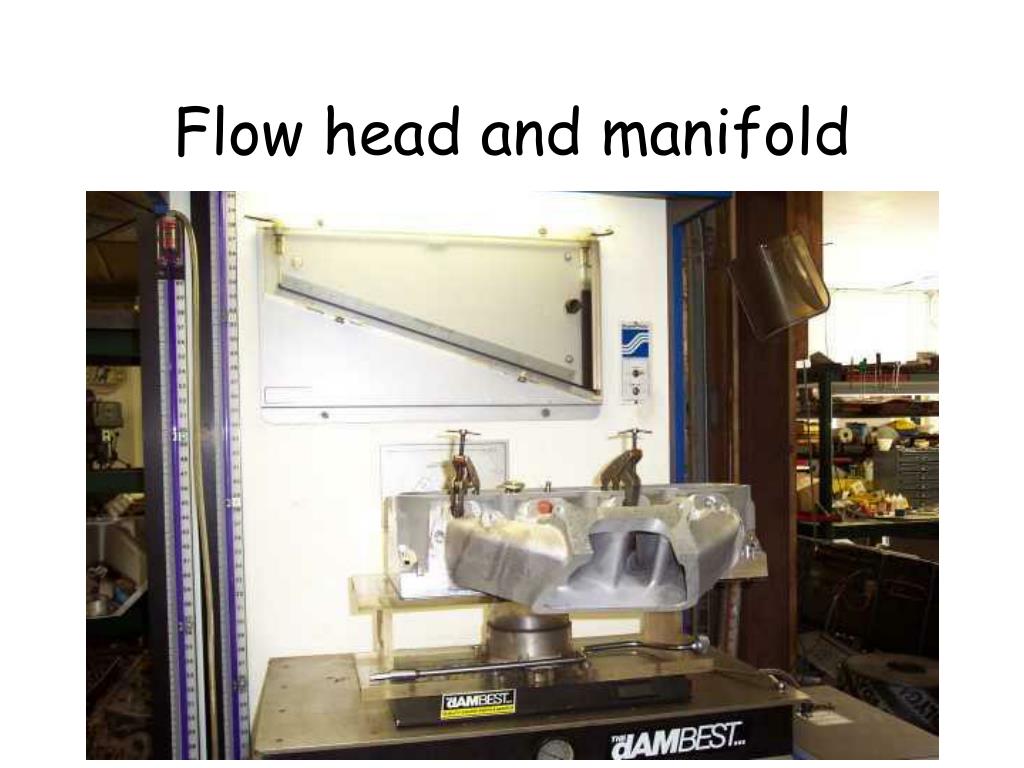

  7. Flow head and manifold

  8. With manifold cut in half, that makes porting easier.

  9. A second view

  10. Weld manifold together again

  11. A better look at the offset

  12. The bolt holes need to be offset also.

  13. Finished bolt holes

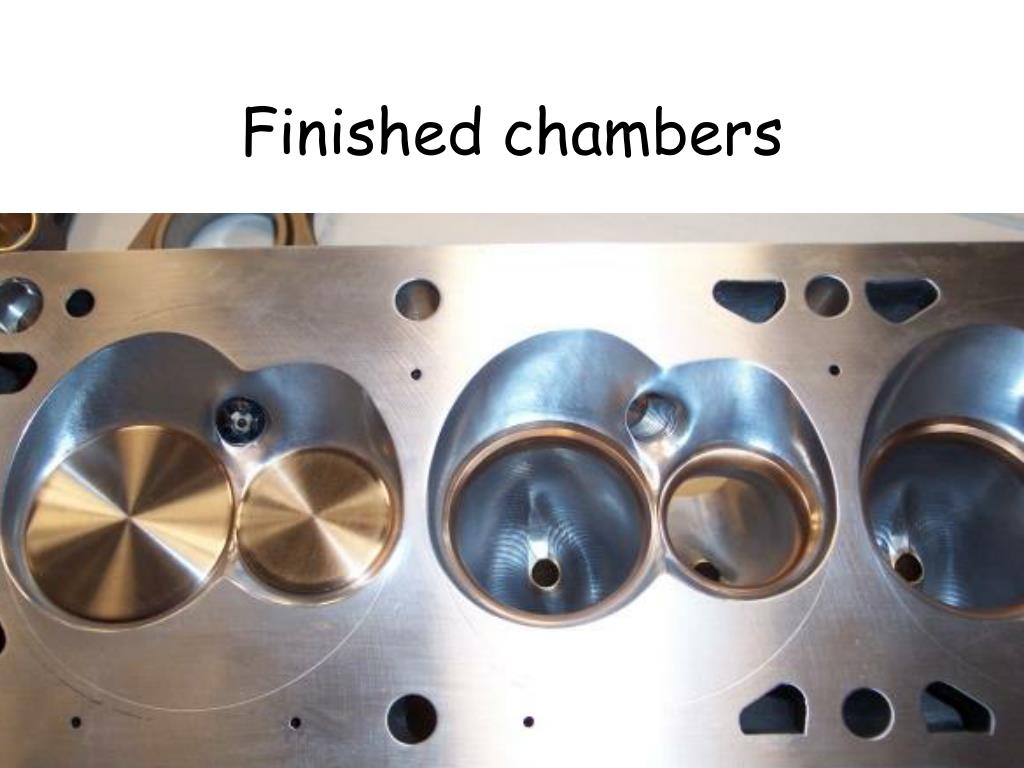

  14. Finished chambers

  15. Rectangular port option

  16. Springs and rocker pads

  17. For further information; • Call 845 473 1136 • E-mail info1@dambest.com • Thanks for your time, have a great day, John
