  1. Sequence Analysis

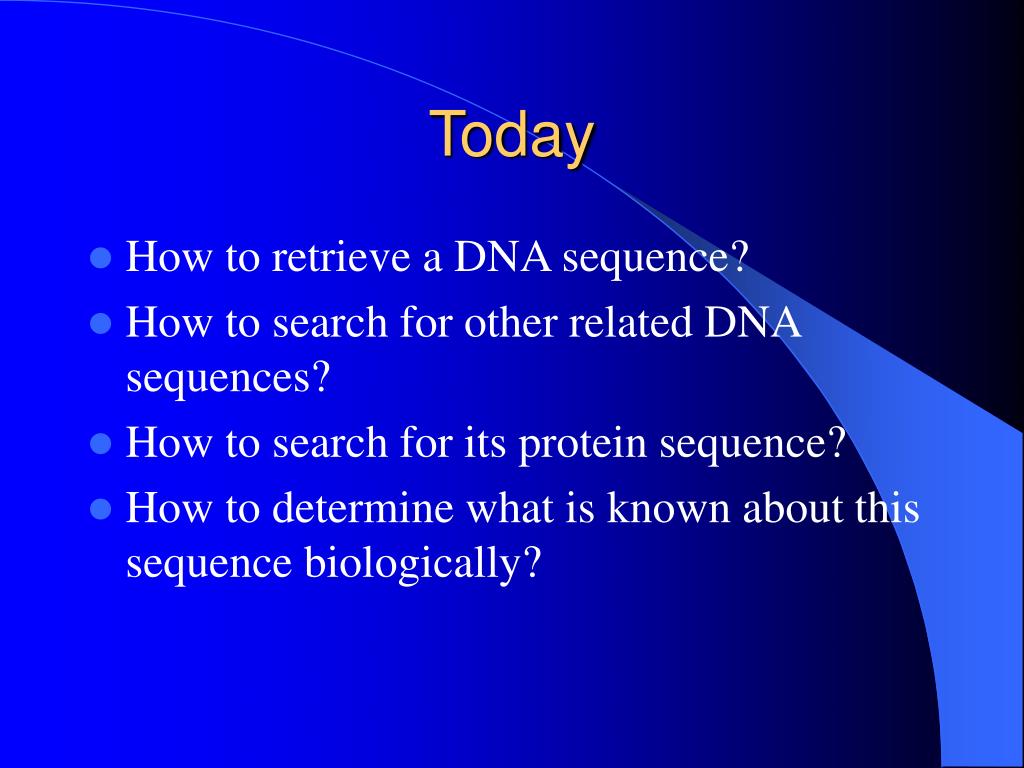

  2. Today • How to retrieve a DNA sequence? • How to search for other related DNA sequences? • How to search for its protein sequence? • How to determine what is known about this sequence biologically?

  3. Gene structure • Genes contain introns and exons. • Introns are transcribed into RNA but are removed, ie. the are non-coding regions. • Exons are the coding regions. Present in mRNA. Intron1 I2 Exon1 E2 E3 mRNA

  4. Types of DNA sequence • Genomic • Contains both genes and non-genic regions • Genes have both intron and exons • cDNA (complimentary DNA) • Sequence corresponds to genes that are expressed. • Sequence contain only the

  5. What could you do with genomic sequence? • What about with cDNA sequence?

  6. What is an EST? • Expressed sequence tag. • Part or all of a cDNA that has been sequenced.

  7. What is NCBI? • National Center for Biotechnology • National Library of Medicine, NIH • Created in 1988 to develop information systems for molecular biology. • Provides data retrieval systems and computational resources.

  8. Database Resources • Database retrieval tools • BLAST family of sequence-similarity search programs. • Resources for gene-level sequences • Resources for genome-scale analysis

  9. Database Retrieval Tools • Entrez-for DNA and protein sequences • PubMed Central-for literature • Taxonomy-organisms and associated sequences • LocusLinks-provides links from sequence info to map and other information.

  10. BLAST family • Basic local alignment search tool • Sequence similarity search against various databases in GenBank

  11. BLAST • Pairwise alignment. • Each alignment has a statistical significance (e-value). • Accounts for amino acid sequence • Outputs a list of matches including start, stop, score, and e-value.

  12. 5 BLAST Programs • BLASTN – Nucleotide vs. Nucleotide • BLASTP – Protein vs. Protein • BLASTX – Protein vs. nucleotide translation • TBLASTN – Nucleotide translation vs. Protein • TBLASTX – Nucleotide translation vs. nucleotide translation.

  13. Genome-Scale Analysis • Entrez Genomes – taxonomic, genome or chromosome view of the current sequence data for an organism. • COGs – List of orthologous protein groups from completely sequenced organisms. • Retroviroal genotyping tools – Important in viral genetic diversity, tracking outbreaks, and vaccine development.

  14. Genome-Scale Analysis • Eukaryotic Genomic Resources – location of Plant Genomes Central with information from various plant genome projects. • Map Viewer – Displays genome assemblies using chromosome map views.

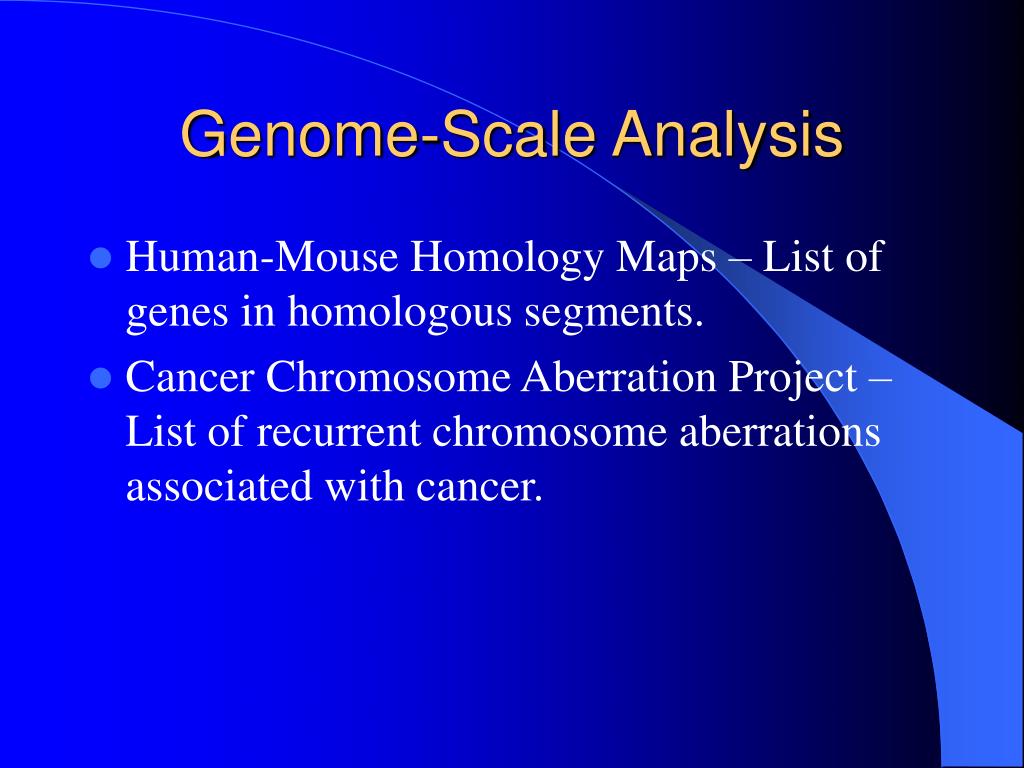

  15. Genome-Scale Analysis • Human-Mouse Homology Maps – List of genes in homologous segments. • Cancer Chromosome Aberration Project – List of recurrent chromosome aberrations associated with cancer.

  16. Gene Expression/Phenotype • OMIM – Catalog of human genes and genetic disorders including phenotypes and polymorphism information. • Gene Expression Omnibus (GEO) – Data repository and retrieval system for expression data from all sources.

  17. MMDB, CDDB, CDART • Molecular Modeling Database • Conserved Domain Database • Conserved Domain Architecture Retrieval Tool – Identifies conserved domains and displays their structure.

  18. Sequence Analysis References • Korf, Yandell, and Bedell. 2003. An Essential Guide to the Basic Local Alignment Search Tool: BLAST. O’Reilly & Associates, Sebastopol, CA. • Markel and Leon. 2003. Sequence Analysis in a Nutshell: A Guide to Common Tools and Databases. O’Reilly & Associates, Sebastopol, CA.

  19. Sequence Analysis References • Baxevanis and Ouellette. 2001. Bioinformatics: A Practical Guide to the Analysis of Genes and Proteins. Wiley Interscience, New York. • Mount. 2000. Bioinformatics: Sequence and Genome Analysis. Cold Spring Harbor Laboratory, New York.

  20. What can you do with the sequence? • Gene prediction • Motif identification • Promoter identification • Survey gene expression across tissues • Full length gene isolation • Identify mutations (SNP, InDel)

  21. InDel • Insertion/Deletions • Usually small sized • Can use the same protocols and equipment as for SSR analysis or can run separation on a capillary system using fluorecently labelly material.

  22. Single Nucleotide Polymorphism • SNP • Single base-pair change in the DNA sequence of two alleles. • Best done with high quality sequence and confirmed in multiple lines or multiple experiments.

  23. SNP popularity • Difficult to identify human disease loci by other methods. • Most abundant class of polymorphisms in many species. • Ease of use for genotyping, ie. they can be automated easily.

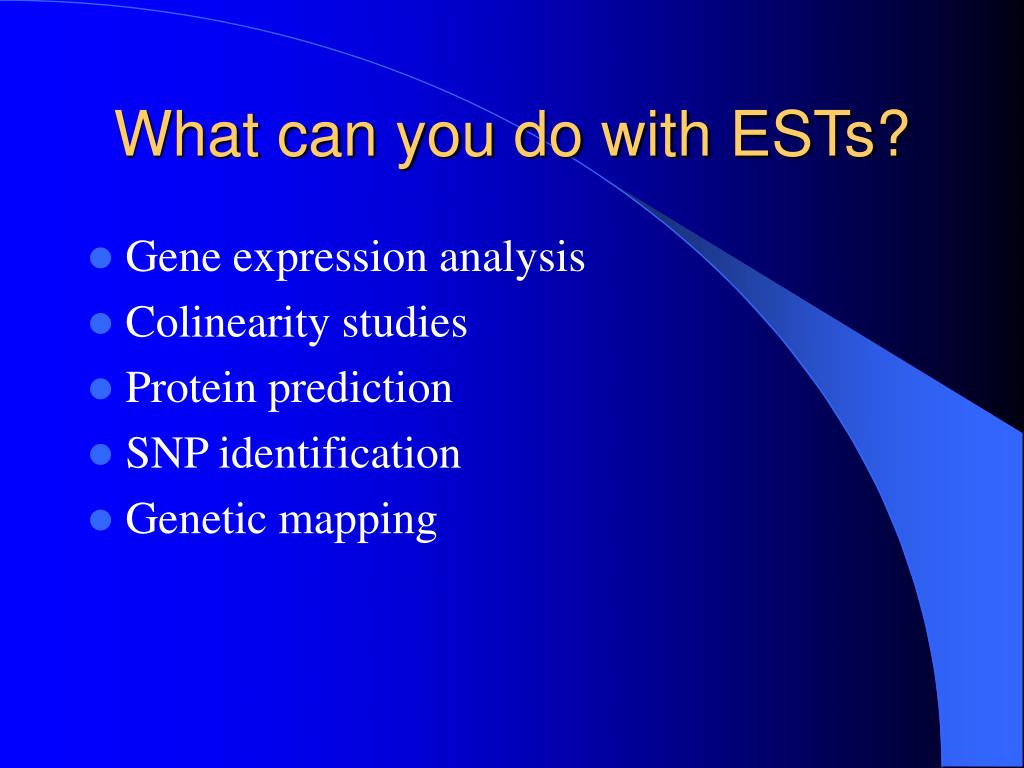

  24. What can you do with ESTs? • Gene expression analysis • Colinearity studies • Protein prediction • SNP identification • Genetic mapping

  25. Today • How to retrieve a DNA sequence? • How to search for other related DNA sequences? • How to search for its protein sequence? • How to determine what is known about this sequence biologically?

  26. Using adh as an example • Find adh1 sequence in corn. • Find related sequences. • Determine its function in corn. • Find adh in human. • Find related sequences. • Determine its function in human.
