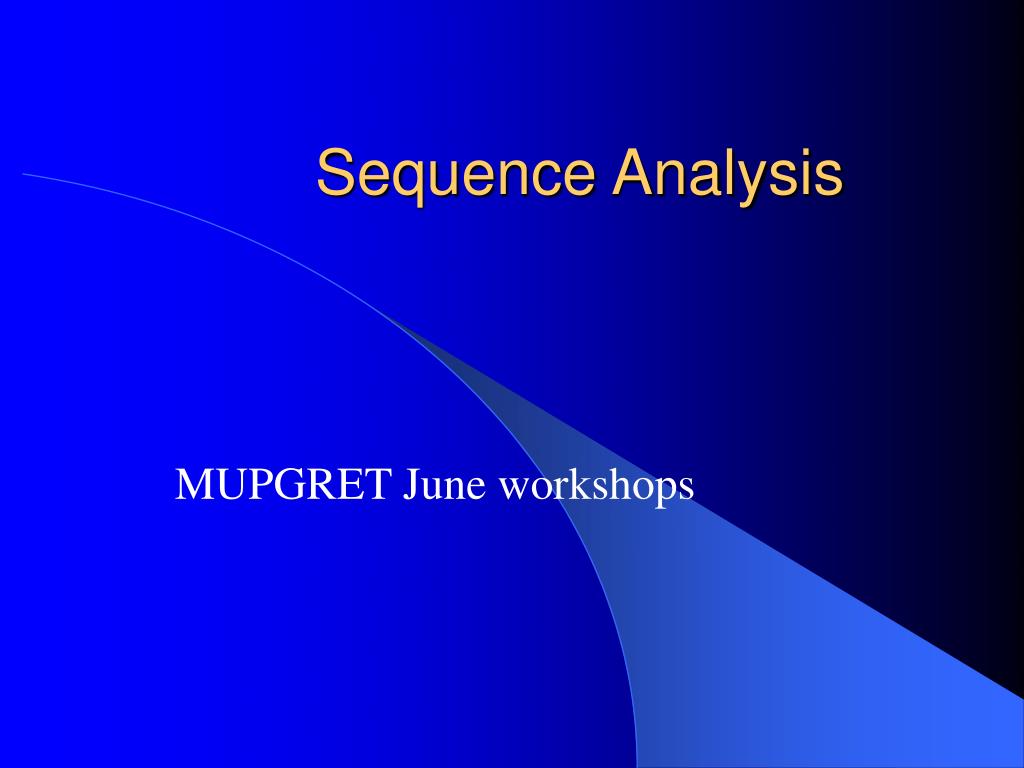

  1. Sequence Analysis MUPGRET June workshops

  2. Today • What can you do with the sequence? • What can you do with the ESTs? • The case of SNP and Indel

  3. What can you do with the sequence? • Gene prediction • Motif identification • Promoter identification • Survey gene expression across tissues • Full length gene isolation

  4. NCBI Tools • National Center for Biotechnology • National Library of Medicine, NIH • Created in 1988 to develop information systems for molecular biology. • Provides data retrieval systems and computational resources.

  5. Database Resources • Database retrieval tools • BLAST family of sequence-similarity search programs. • Resources for gene-level sequences • Resources for genome-scale analysis

  6. Database Resources • Resources for analyzing gene expression patterns and phenotypes • Molecular modeling database, conserved domain database, conserved domain architecture retrieval tool.

  7. Database Retrieval Tools • Entrez-for DNA and protein sequences • PubMed Central-for literature • Taxonomy-organisms and associated sequences • LocusLinks-provides links from sequence info to map and other information.

  8. BLAST family • Basic local alignment search tool • Sequence similarity search against various databases in GenBank • Gapped alignments with links to various other databases such as unigene or locuslink.

  9. BLAST • pairwise alignment but can do multiple alignments with “query-anchored” feature. • each alignment has a statistical significance (e-value) • Accounts for amino acid sequence • Outputs a list of matches including start, stop, score, and e-value.

  10. 5 BLAST Programs • BLASTN – Nucleotide vs. Nucleotide • BLASTP – Protein vs. Protein • BLASTX – Protein vs. nucleotide translation • TBLASTN – Nucleotide translation vs. Protein • TBLASTX – Nucleotide translation vs. nucleotide translation.

  11. BLAST family • BLAST2Sequences-dot plot of alignment • MegaBLAST-nearly exact matches • PSI-BLAST – match to protein that reduces false positive hits • Blink – Allows display of alignments by taxonomic criteria, database origin, relation to a complete genome, relation to a 3D protein structure or conserved domain.

  12. Gene-Level Sequences • UniGene – Identifies a non-redundant set of EST based on GenBank sequences. • ProtEST – displays pre-computed BLAST alignments between protein sequences from model organisms and the 6-frame translation of the UniGene nucleotide sequences.

  13. Gene-Level Sequences • HomoloGene – Curated and calculated gene lrthologs and homologs for 14 organsisms. • RefSeq – Curated reference sequences for mRNAs, genomic sequences, etc. • ORF Finder – 6-frame translation with graph of ORF position. • ePCR – locates sequence tagged sites. • dbSNP – Contains SNP and InDel

  14. Genome-Scale Analysis • Entrez Genomes – taxonomic, genome or chromosome view of the current sequence data for an organism. • COGs – List of orthologous protein groups from completely sequenced organisms. • Retroviroal genotyping tools – Important in viral genetic diversity, tracking outbreaks, and vaccine development.

  15. Genome-Scale Analysis • Eukaryotic Genomic Resources – location of Plant Genomes Central with information from various plant genome projects. • Map Viewer – Displays genome assemblies using chromosome map views. • Model Maker (MM) – Generates transcript models using exon data from prediction or from GenBank alignments.

  16. Genome-Scale Analysis • Evidence Viewer – Graphical summary of alignments relative to contigs including insertion/deletion or mismatches. • Human-Mouse Homology Maps – List of genes in homologous segments. • Cancer Chromosome Aberration Project – List of recurrent chromosome aberrations associated with cancer.

  17. Gene Expression/Phenotype • SAGEmap – A way to look at SAGE data inlcuding two-way mapping between SAGE tag and UniGene. • Gene Expression Omnibus (GEO) – Data repository and retrieval system for expression data from all sources. • OMIM – Catalog of human genes and genetic disorders including phenotypes and polymorphism information.

  18. MMDB, CDDB, CDART • Molecular Modeling Database • Based on Protein Data Bank • Conserved Domain Database • PSI-BLAST-derived scores indicating domains in the protein data bank. • Conserved Domain Architecture Retrieval Tool – Identifies conserved domains and displays their structure.

  19. Sequence Analysis References • Korf, Yandell, and Bedell. 2003. An Essential Guide to the Basic Local Alignment Search Tool: BLAST. O’Reilly & Associates, Sebastopol, CA. • Markel and Leon. 2003. Sequence Analysis in a Nutshell: A Guide to Common Tools and Databases. O’Reilly & Associates, Sebastopol, CA.

  20. Sequence Analysis References • Baxevanis and Ouellette. 2001. Bioinformatics: A Practical Guide to the Analysis of Genes and Proteins. Wiley Interscience, New York. • Mount. 2000. Bioinformatics: Sequence and Genome Analysis. Cold Spring Harbor Laboratory, New York.
