  1. Lesson 22Series/Parallel AC Circuits

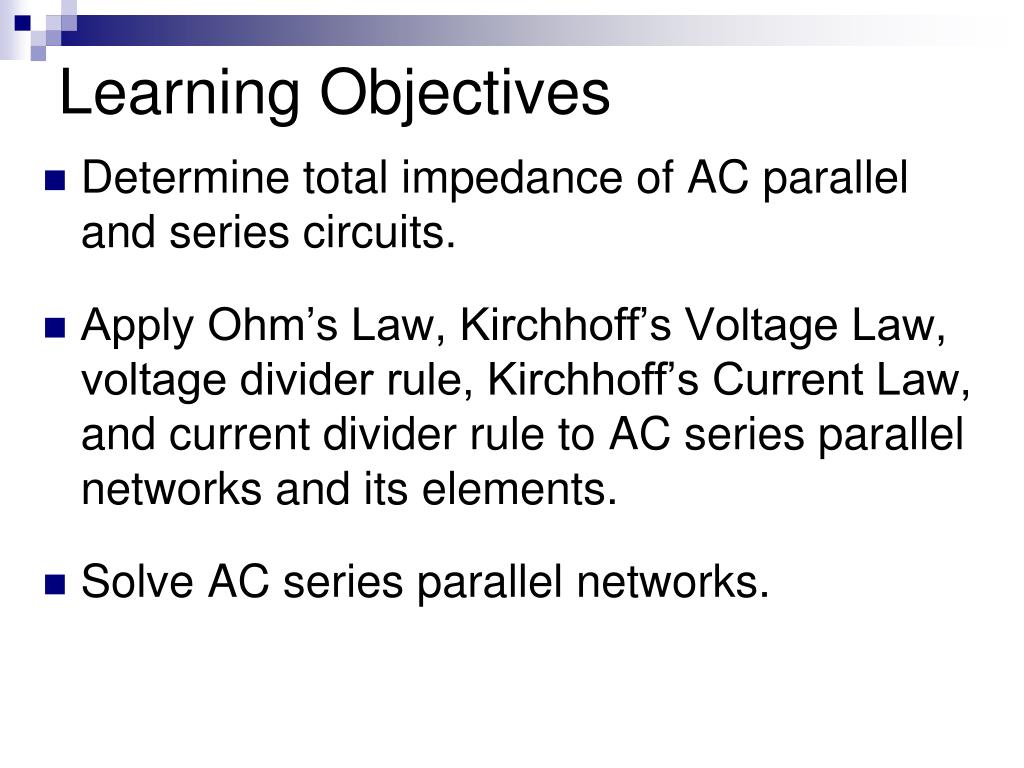

  2. Learning Objectives • Determine total impedance of AC parallel and series circuits. • Apply Ohm’s Law, Kirchhoff’s Voltage Law, voltage divider rule, Kirchhoff’s Current Law, and current divider rule to AC series parallel networks and its elements. • Solve AC series parallel networks.

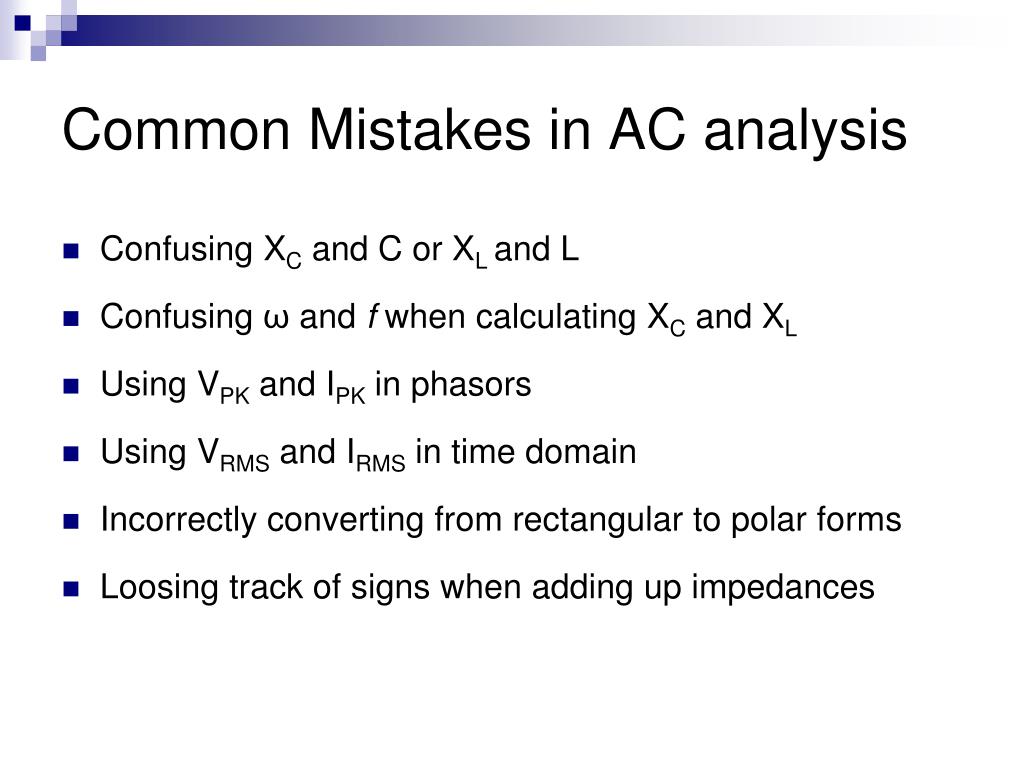

  3. Common Mistakes in AC analysis • Confusing XC and C or XL and L • Confusing ω and f when calculating XC and XL • Using VPK and IPK in phasors • Using VRMS and IRMS in time domain • Incorrectly converting from rectangular to polar forms • Loosing track of signs when adding up impedances

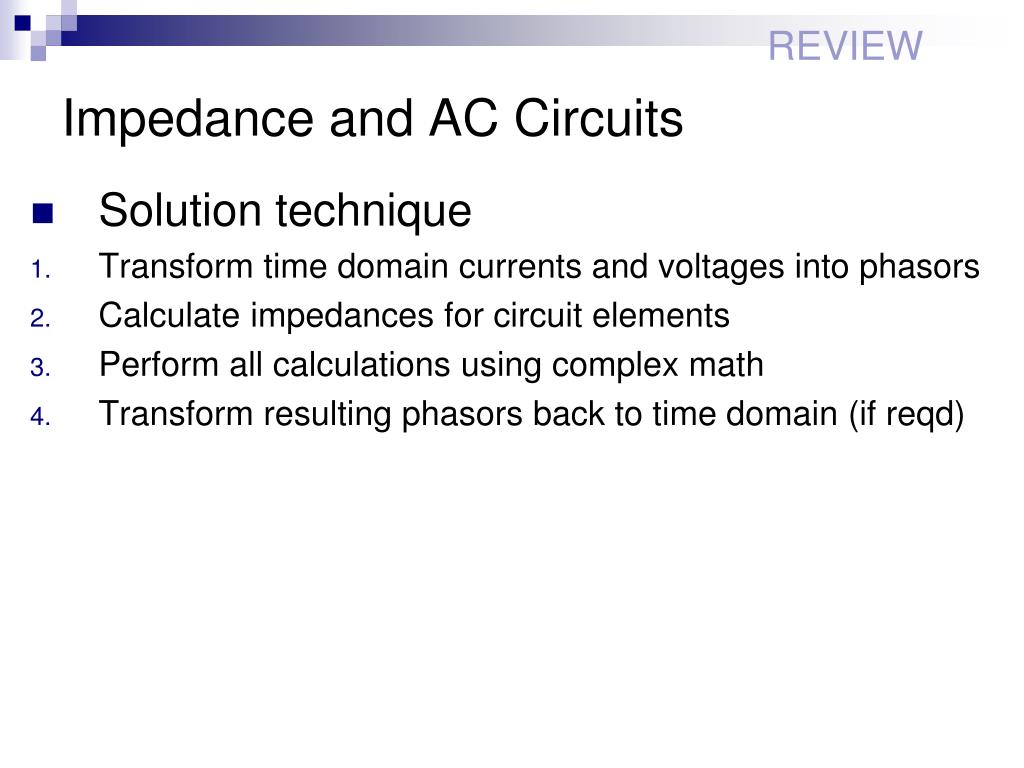

  4. REVIEW Impedance and AC Circuits • Solution technique • Transform time domain currents and voltages into phasors • Calculate impedances for circuit elements • Perform all calculations using complex math • Transform resulting phasors back to time domain (if reqd)

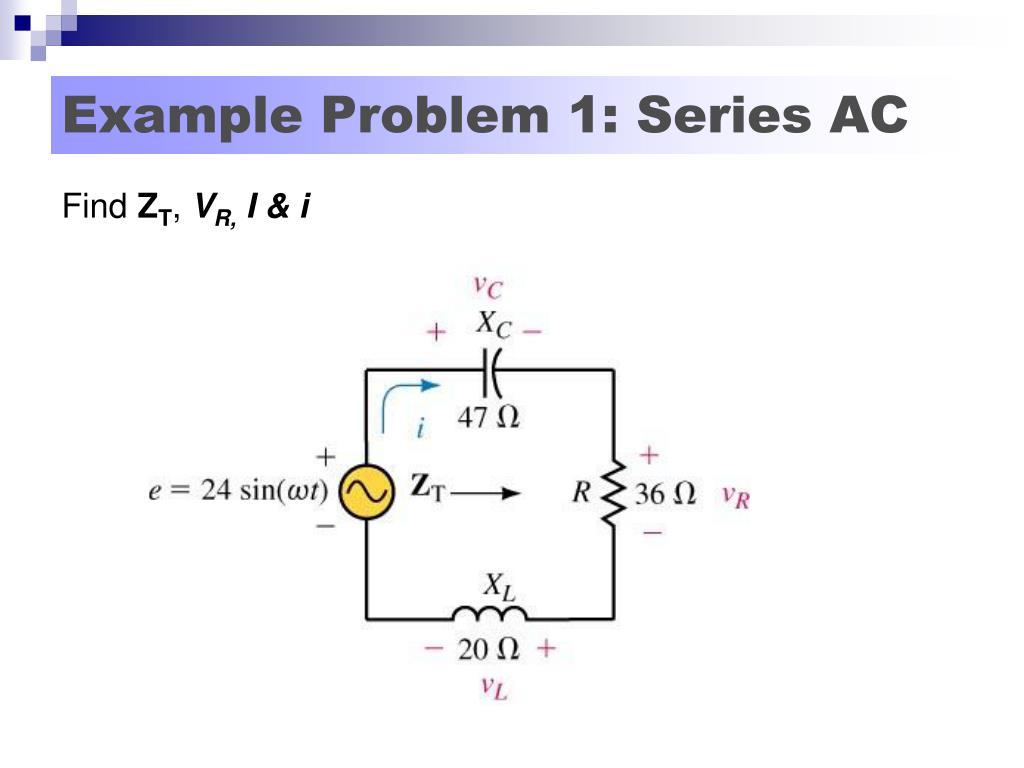

  5. Example Problem 1: Series AC Find ZT, VR, I & i

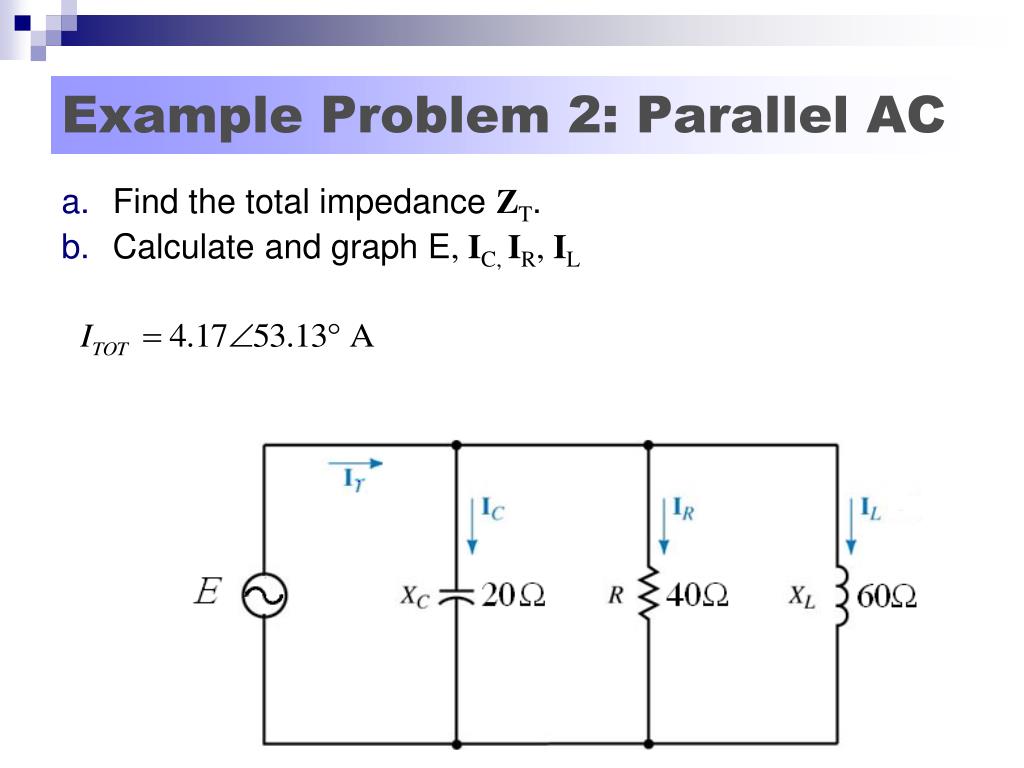

  6. Example Problem 2: Parallel AC • Find the total impedance ZT. • Calculate and graph E, IC, IR, IL

  7. Example Problem 2

  8. Common Mistakes Applying Ohm’s Law • Incorrectly calculating voltage drop or current direction across an impedance • GIVEN: Vb=361-174V • REQD: IL • SOLN:

  9. Example Problem 3: Series/Parallel Find I1 and I2

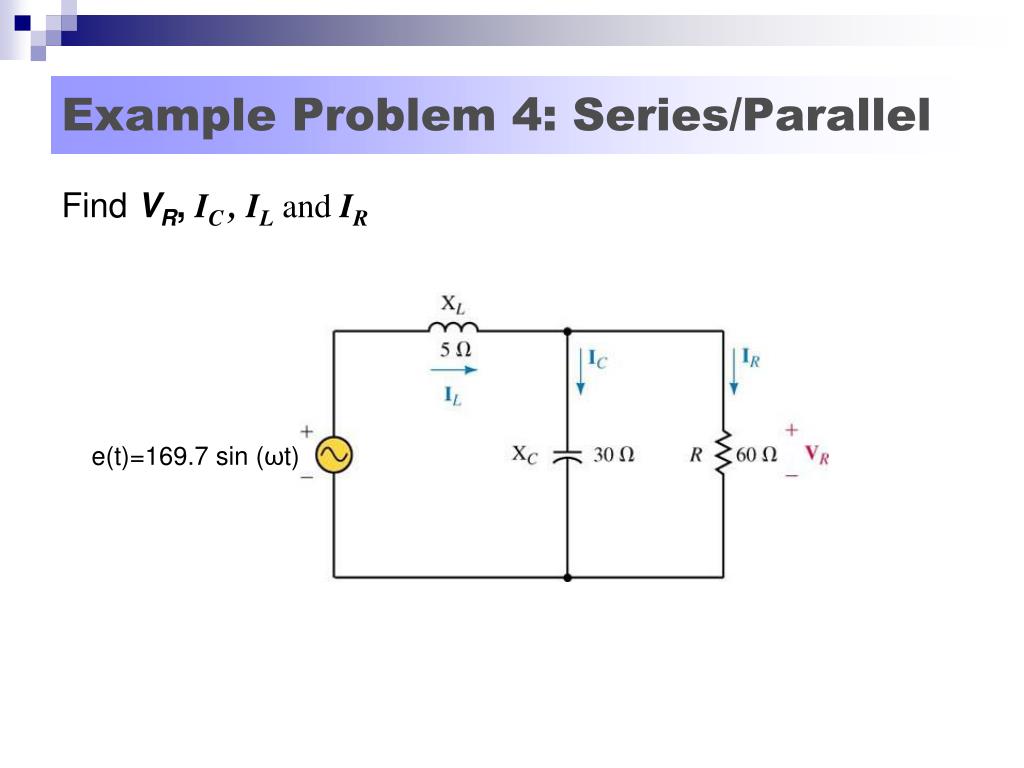

  10. Example Problem 4: Series/Parallel Find VR, IC , ILand IR e(t)=169.7 sin (ωt)

  11. Example Problem 5 Find I2and VL

  12. Common Mistakes Applying VDR #1: Confusing E and Vcn E in the VDR is the voltage drop across those impedances in series.

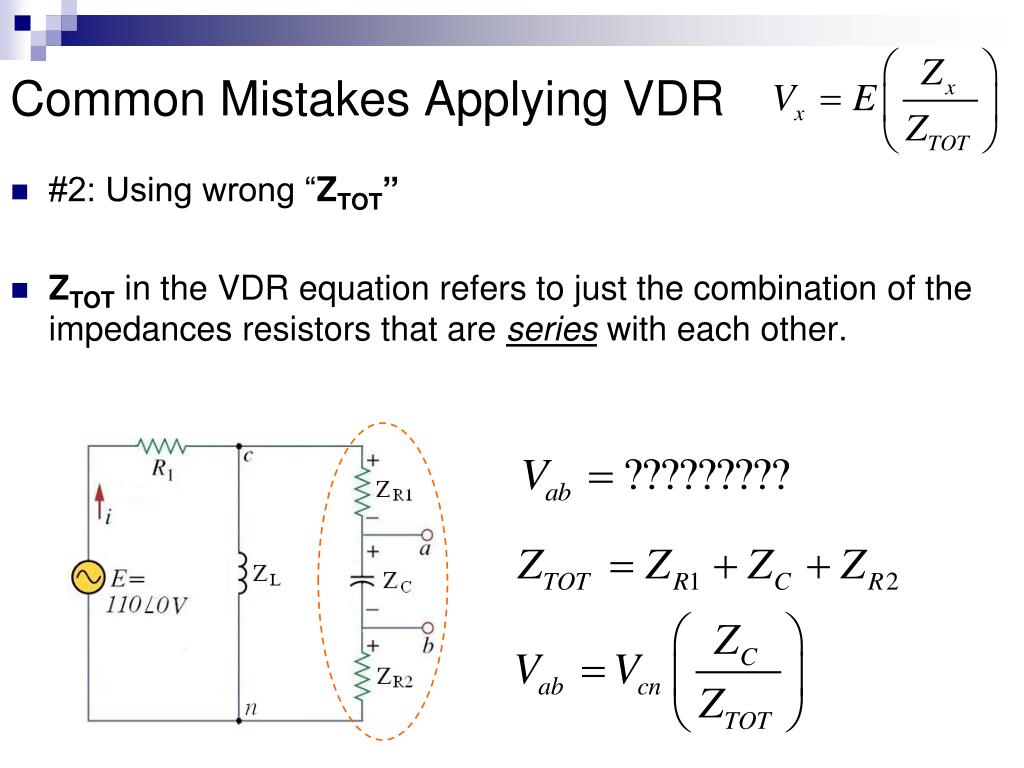

  13. Common Mistakes Applying VDR #2: Using wrong “ZTOT” ZTOT in the VDR equation refers to just the combination of the impedances resistors that are series with each other.

  14. Example Problem 6 Find VRusing the Voltage Divider Rule

  15. Common Mistakes Applying CDR #1: Using ZTOT in the CDR instead of ZEQ for the impedance of the parallelbranches.

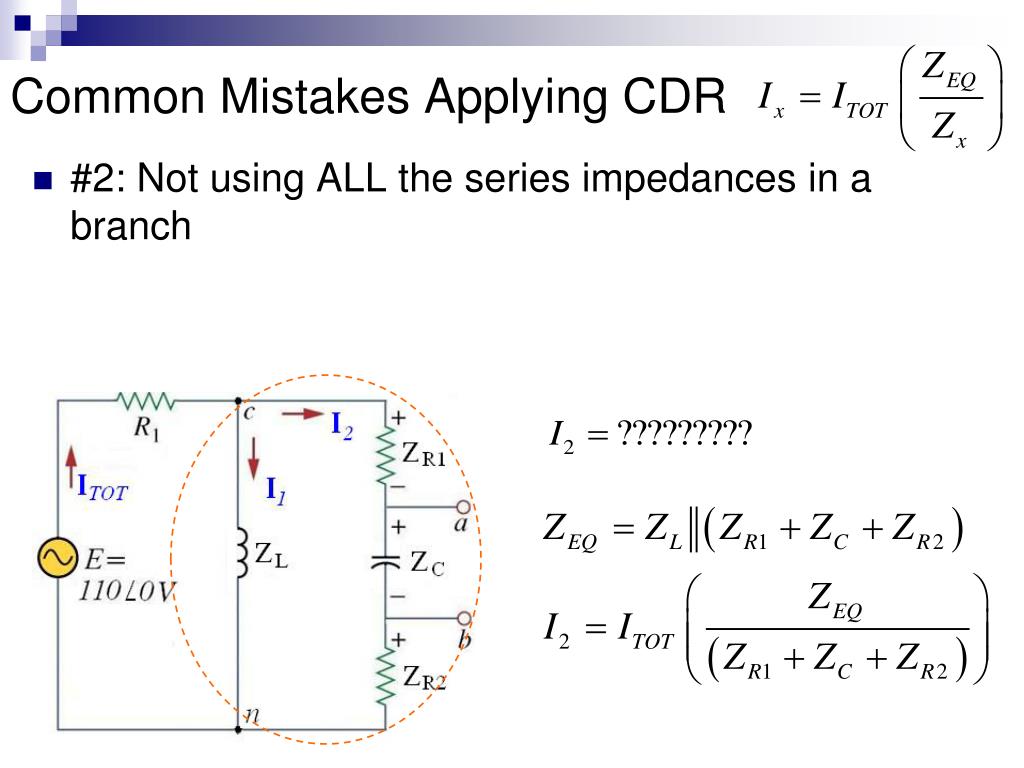

  16. Common Mistakes Applying CDR #2: Not using ALL the series impedances in a branch

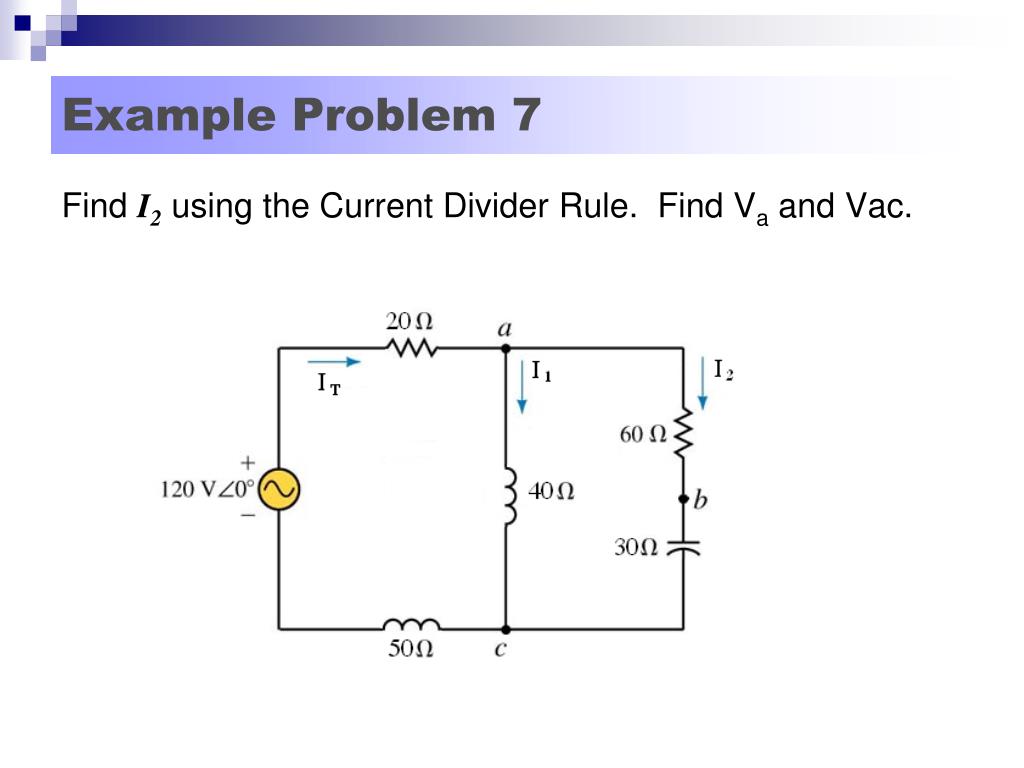

  17. Example Problem 7 Find I2using the Current Divider Rule. Find Va and Vac.

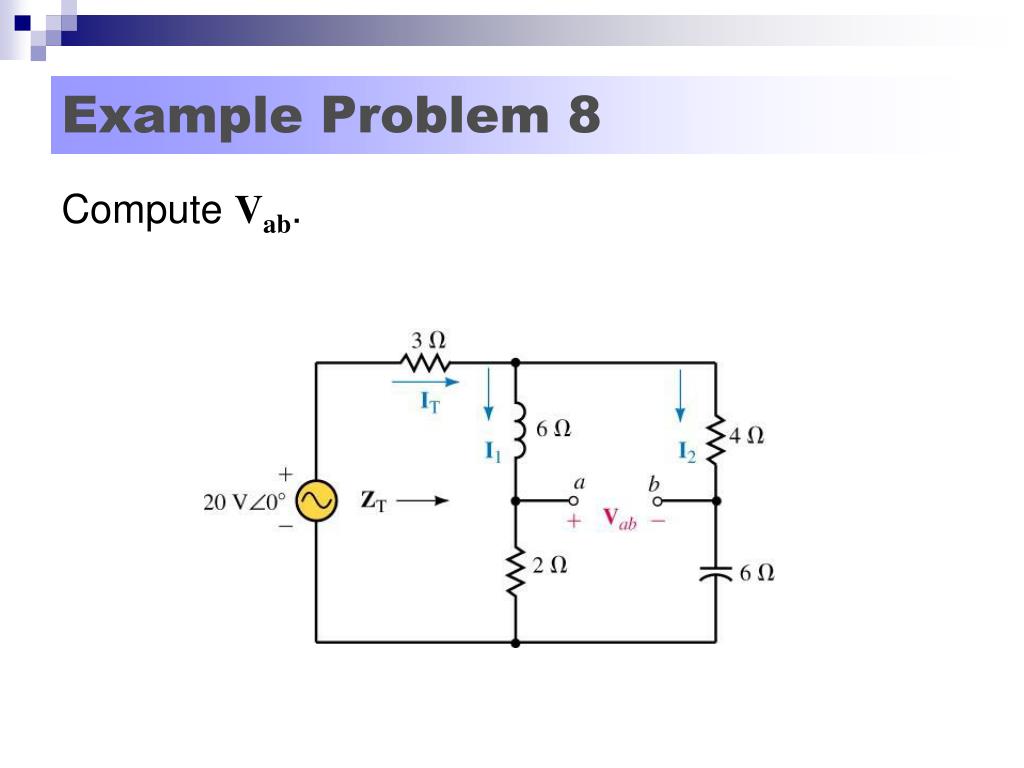

  18. Example Problem 8 Compute Vab.

  19. Example Problem 9 Use the Current Divider Rule to find I3
