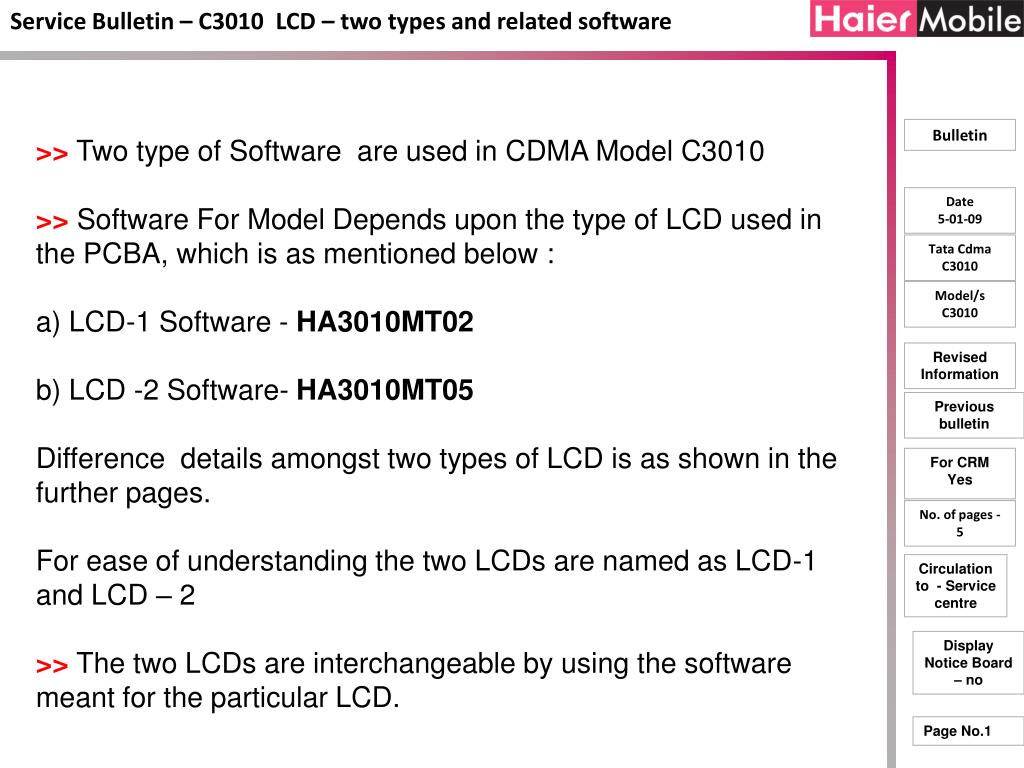

  1. Service Bulletin – C3010 LCD – two types and related software >> Two type of Software are used in CDMA Model C3010>> Software For Model Depends upon the type of LCD used in the PCBA, which is as mentioned below :a) LCD-1 Software - HA3010MT02b) LCD -2 Software- HA3010MT05Difference details amongst two types of LCD is as shown in the further pages. For ease of understanding the two LCDs are named as LCD-1 and LCD – 2 >> The two LCDs are interchangeable by using the software meant for the particular LCD. Page No.1

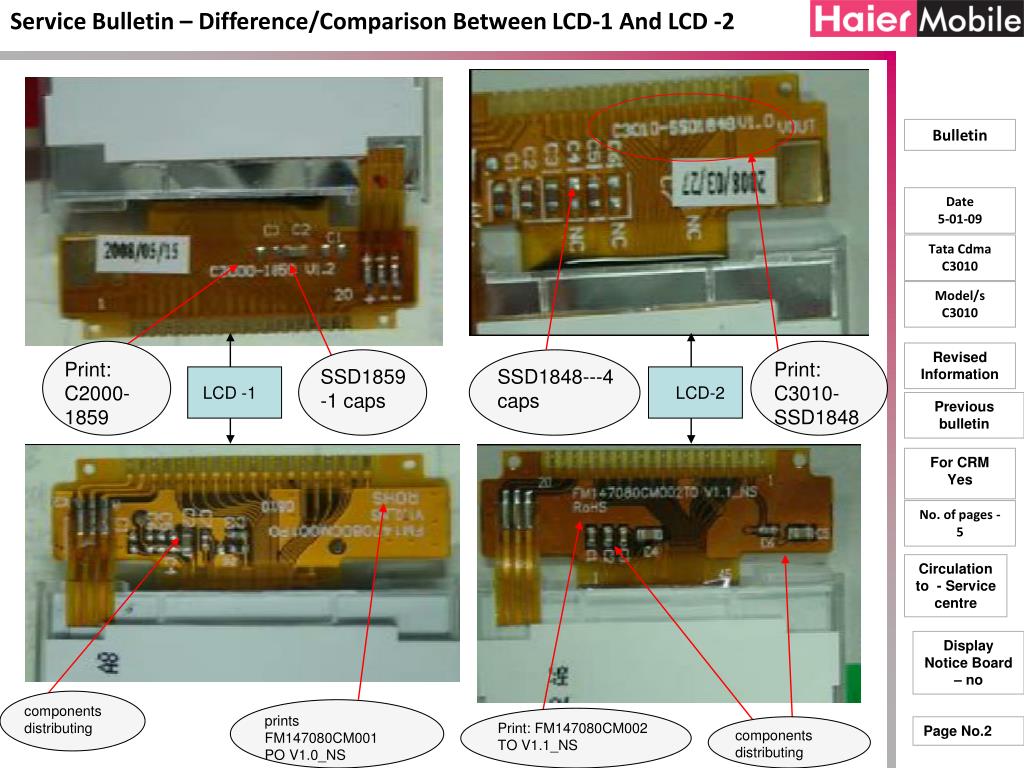

  2. Service Bulletin – Difference/Comparison Between LCD-1 And LCD -2 Print: C2000-1859 Print: C3010- SSD1848 SSD1859-1 caps SSD1848---4 caps LCD -1 LCD-2 components distributing prints FM147080CM001 PO V1.0_NS Print: FM147080CM002 TO V1.1_NS components distributing Page No.2

  3. Service Bulletin – Difference/Comparison Between LCD-1 And LCD -2 LCD Driver IC is small LCD Driver IC is big SW VERSION HA3010MT02 LCD-1 SW VERSION HA3010MT05 LCD-2 Black“B Page No.3 "black

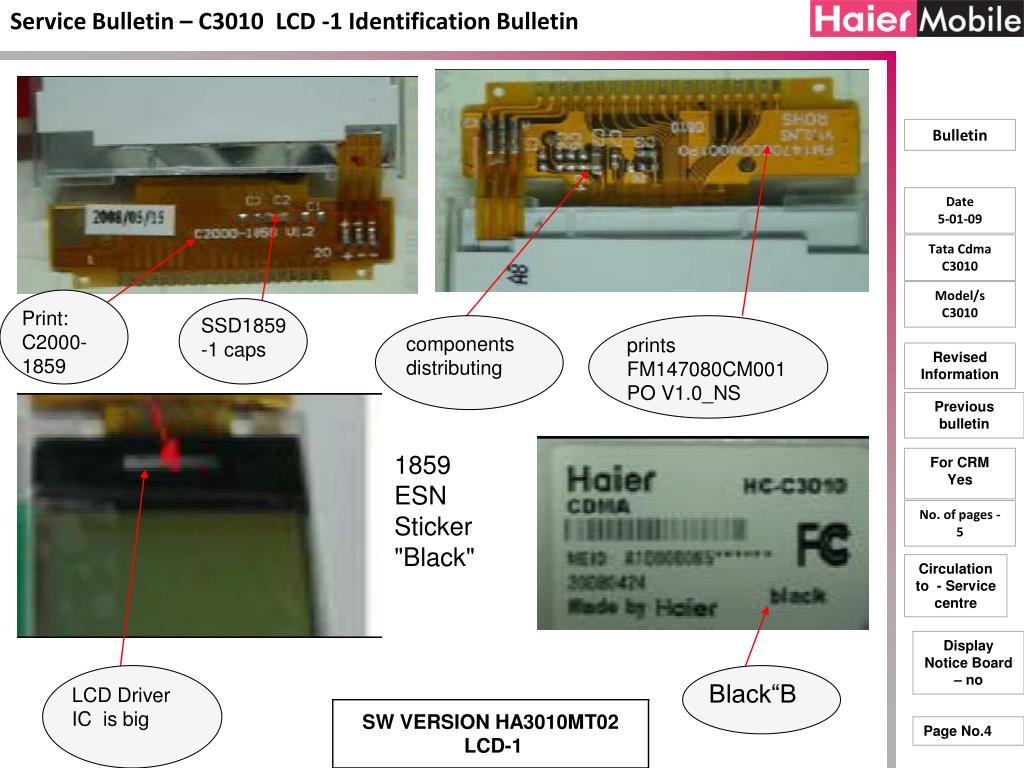

  4. Service Bulletin – C3010 LCD -1 Identification Bulletin Print: C2000-1859 SSD1859-1 caps components distributing prints FM147080CM001 PO V1.0_NS 1859 ESN Sticker "Black" LCD Driver IC is big Black“B Page No.4

  5. Service Bulletin – C3010 LCD -2 Identification Bulletin Print: FM147080CM002 TO V1.1_NS components distributing SSD1848---4 caps Print: C3010- SSD1848 1848 LCD ESN sticker "black" LCD Driver IC is small "black Page No.5
